M2TECH EVO PHONODAC TWO User Manual page 64

EVO PHONODAC TWO
DXD-DSD A-TO-D AND D-TO-A CONVERTER – PHONO PREAMP
REVISION P A – JULY 2016
R

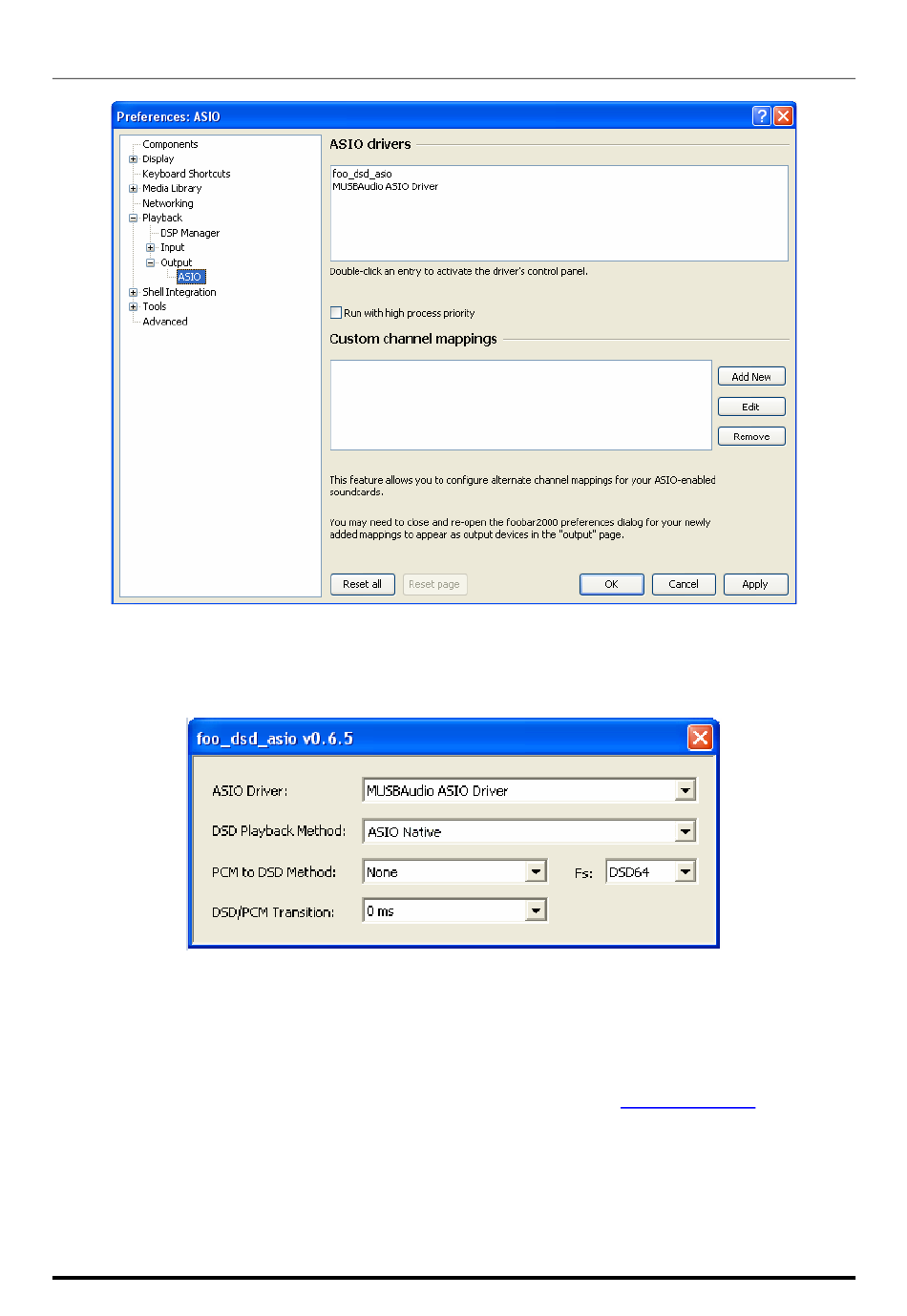

Double-click on "foo_dsd_asio" to open the configuration window as shown in Fig. 45.
Configure the parameters as in the figure: FooBar is now ready to send DSD streams from
DSD files to the EVO PHONODAC TWO .
The second player used as an example is JRiver Media Center (www.jriver.com). JRiver is
a commercial player, a "closet" product which is delivered provided with all the needed
features to support various audio transfer modes and the various audio formats.
As with FooBar, we'll skip the installation instructions for the player. Access JRiver's option
window and set "ASIO" in the "Audio" section as "Output mode" (Fig. 46).
Figure 44
Figure 45
64
