Here the user must select "EVO PHONODAC TWO UAC2" as predefined device (as it's
already been done in the case shown in Fig. 39). From that moment on, every sound
produced by Windows or any application which relies on Windows to deliver its sound will
be sent to the EVO PHONODAC TWO .
It is also possible to tell the operating system which sampling frequency and resolution are
to be used to operate the EVO PHONODAC TWO . To this purpose, it is sufficient to click on
the "Properties" button, thus opening the window shown in Fig. 40.

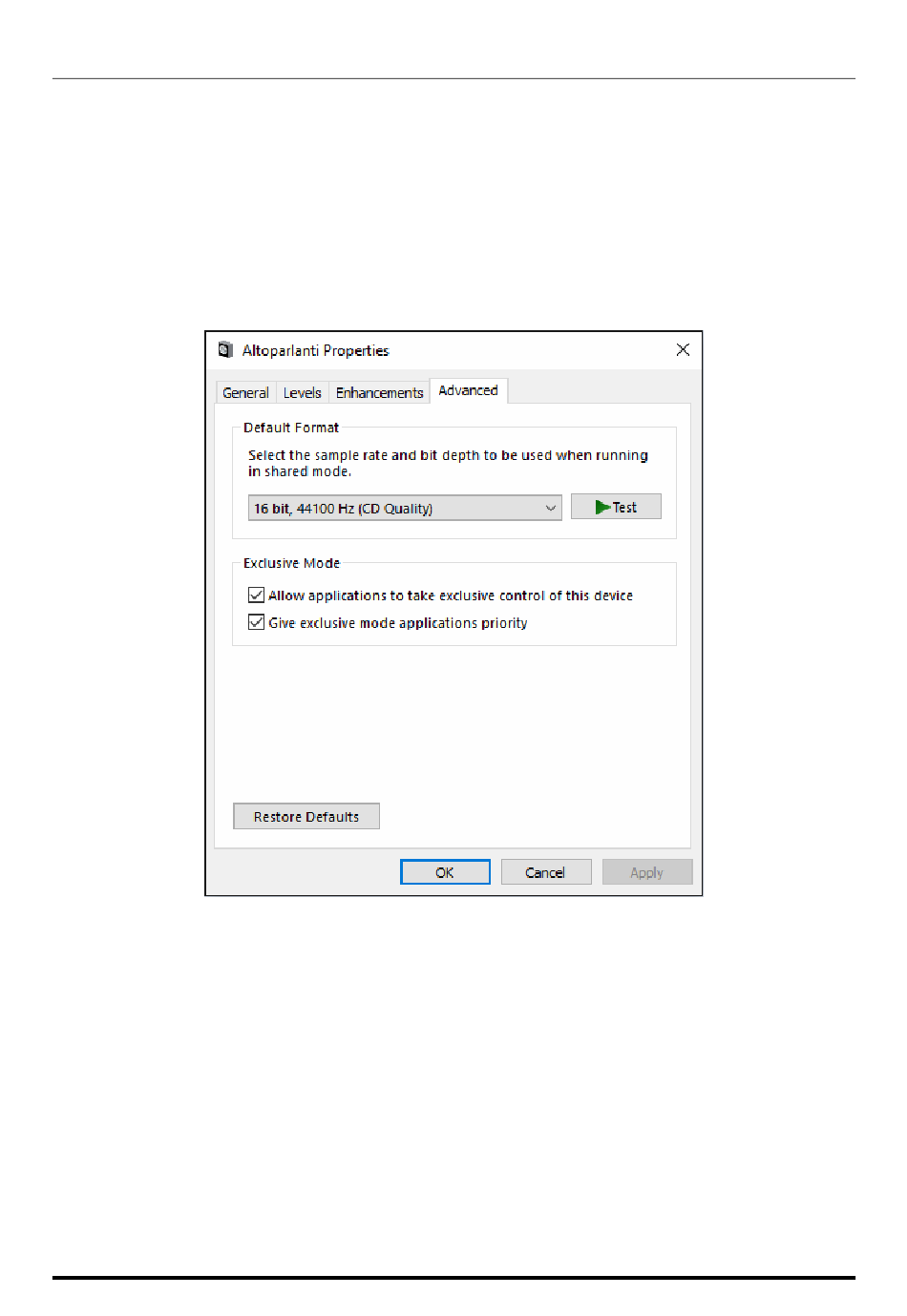

Figure 40
By accessing the drop-down menu available in the "Advanced" tab it will be possible to
choose one of the system's available configurations. Once a configuration is chosen, the
system will automatically convert any audio signal with different sampling frequency and
resolution so that the EVO PHONODAC TWO will always work at the sampling frequency
and resolution set by the user.
Same thing can be done to set the EVO PHONODAC TWO as the predefined audio device
for recording. In the "Sound" window, access the "Recording" tab and select the EVO
PHONODAC TWO , as shown in Fig. 41.
