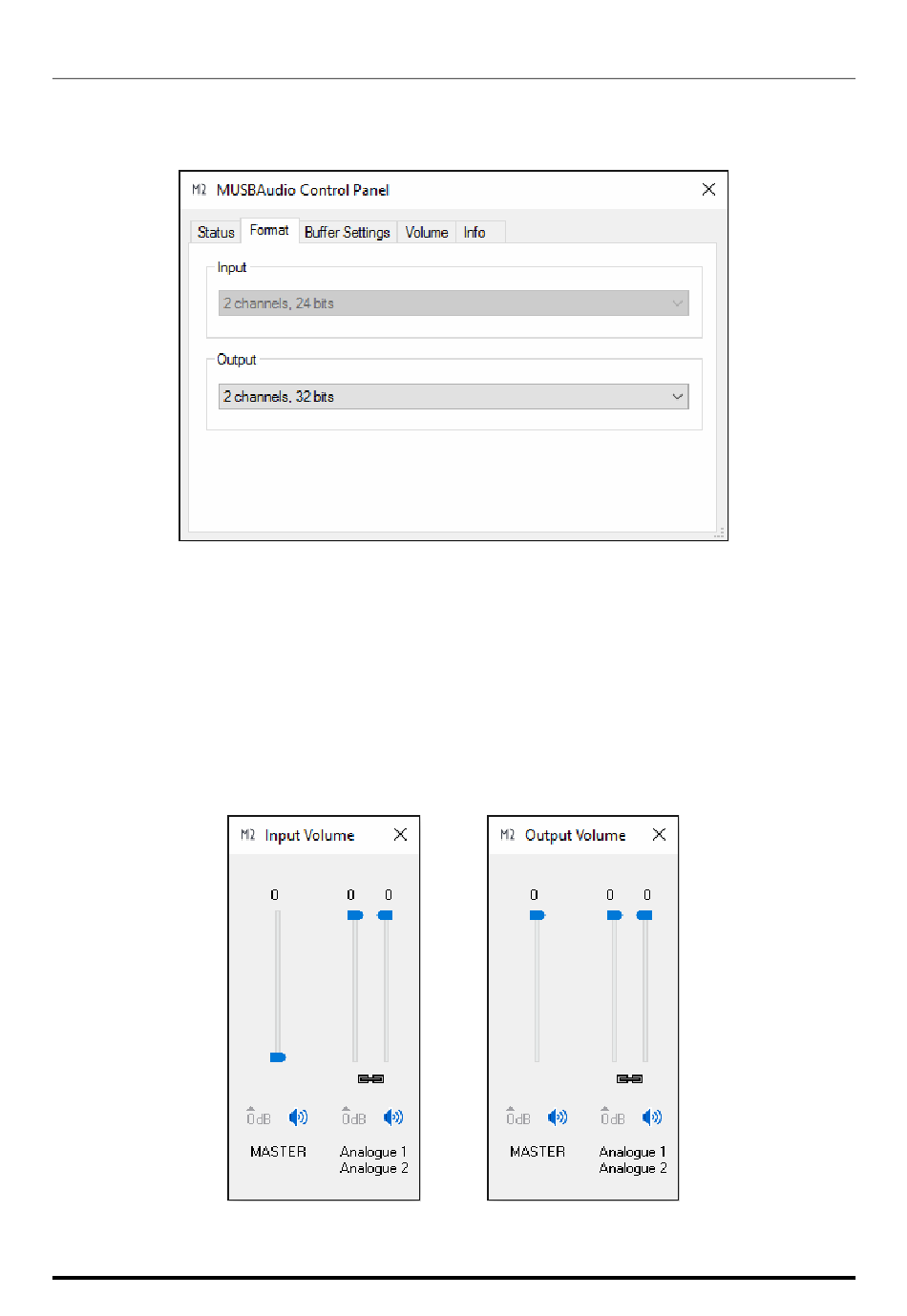

The "Format" tab gives information about the audio format handled by the device (2
channels, various resoutions), as shown in figure 35.
The control panel also sports a volume control, shown in Fig. 36. there are two volume
control, one for the computer input and one for the computer output.
The XMOS-based system used in the EVO PHONODAC TWO allows for digital volume
setting. Anyway, we suggest not to use this feature as its operation will reduce the sonic
performance, even more so for low volume settings. It's important to be aware that, in case
of the absence of sound, the total mute in this window may be enabled (one or both "M"
buttons pressed).
Figure 35
Figure 36
