3. Rear Panel

4) Supply input. Connect the stock wall wart or one of the outputs of the EVO SupplY Two
using one of the cables provided with the latter. 5.5/2.1mm jack.
5) Chassis post. Low-level sources, like a phono pickup, should have their earth or
chassis wire connected to this post to reduce hum.
6) External clock or S/PDIF input. Connect to the output of a clock generator, like the
EVO CLOCK Two using a 75 Ohms BNC terminated cable. This input works at its best
when connected to the EVO CLOCK Two master clock output, anyway it also accepts
standard word clocks and even the reference 10MHz clock.
As an alternative, connect to the S/PDIF output of a digital audio device. It may be used to
playback digital audio from a CD or DVD player. The usage of this input is set by menu
(See Chap. 7). Female BNC connector.
7) Input impedance matching control. Set to the value required by the source driving the
EVO PHONODAC Two 's analog input.
8) USB port. Connect to a 2.0 or 3.0 USB port of a computer. The EVO PHONODAC TWO
exchanges audio data with a computer through this connection.
9) Optical output for clock information. Connect to the clock info input of the EVO
CLOCK Two using a Toslink™ fibre cable. Toslink™ transmitter.
10) Stereo analog input. Connect the output of any analogue source. Female RCA
connectors.
11) Stereo analog output. Connect the input of any analogue device like a preamplifier or
a mixer. Female RCA connectors.
5
CHASSIS
M2TECH
10
VIN
CLOCK IN
USB
7.5-15V
DC
S/N:
4 6 8

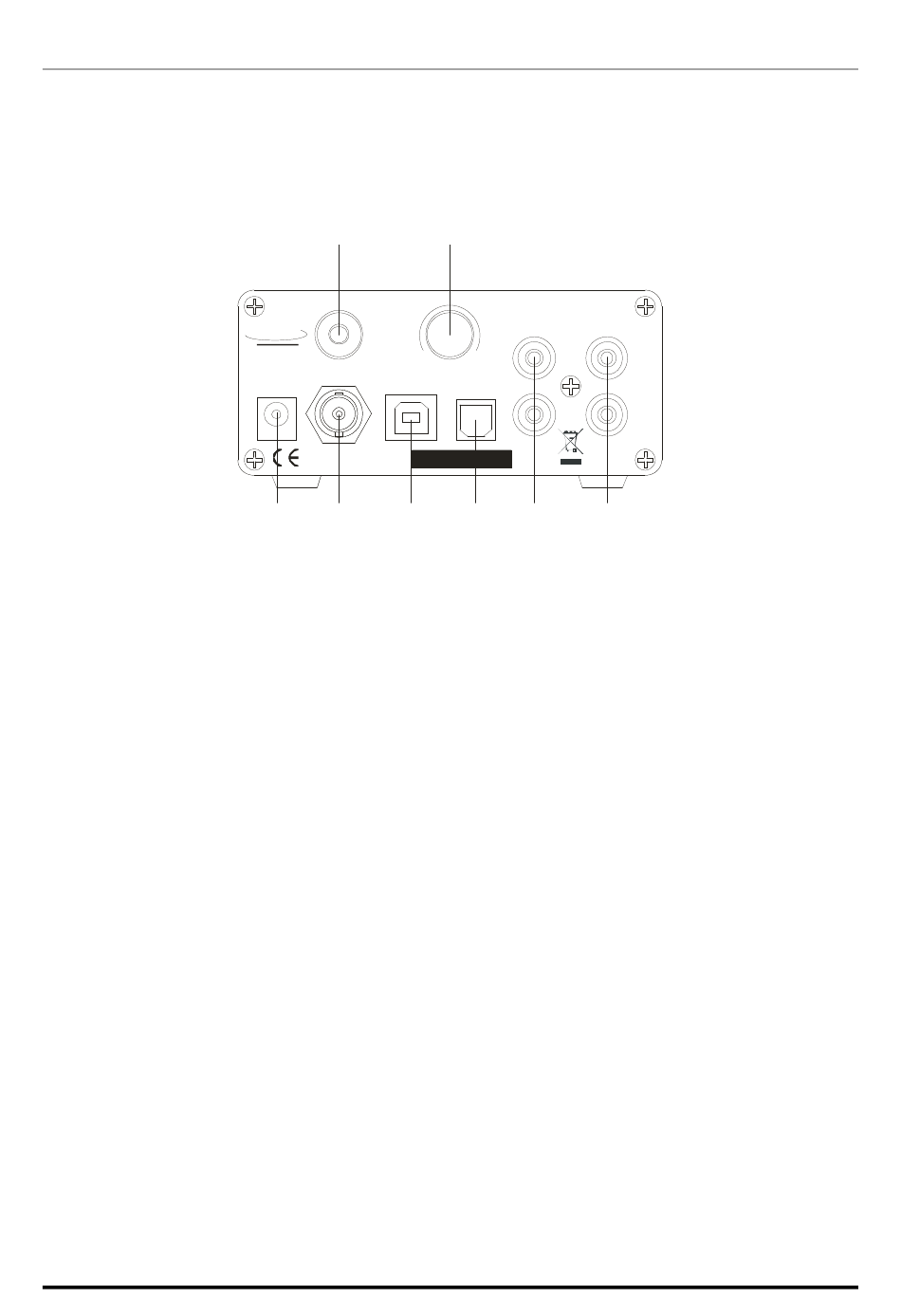

Figure 2
7
ANALOG
OUT
50K
Z
IN
CLK INFO
9 10
11
