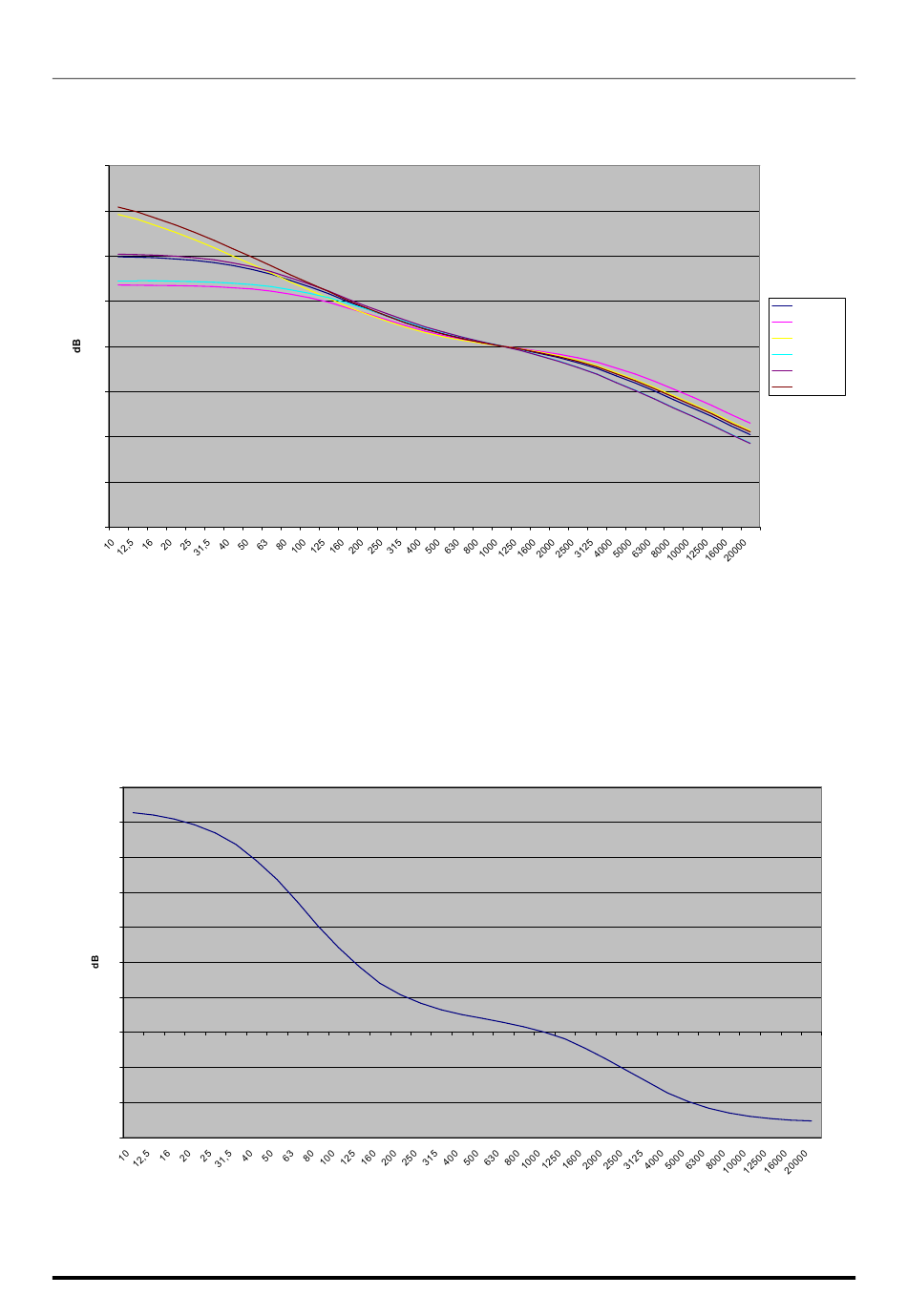

To better understand the effect of using the wrong equalization curve to play a record,
Figure 8 shows the relative level versus frequency of the music on a Decca FFRR record
when it is played through a RIAA phono input of a modern amplifier.
Equalization of the signal of a Decca FFRR record being amplified by a RIAA phono
7
6
5
4
3
2
1
0
-1
-2
-3
Eq comparison
Hz
Figure 7
stage
Hz
Figure 8
