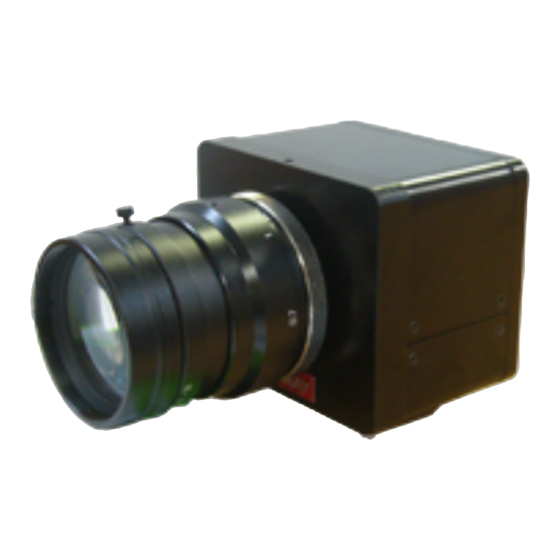

- Page 1 December 8, 2022 Ver1.02 USB2.0 I n G a A s NIR CAMERA ARTCAM-0016TNIR-TEC INSTRUCTION BOOKLET 0.016M pixels ARTCAM-0016TNIR-TEC ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Specification details ........................- 8 - 6.2. Shutter Speed Setting ........................- 8 - External Dimensions ..........................- 9 - 7.1. ARTCAM-0016TNIR-TEC ........................ - 9 - Spectral sensitivity characteristics ..................... - 10 - 8.1. ARTCAM-0016TNIR-TEC ......................- 10 - System Requirements ........................... - 11 - 9.1. -
Page 3: Attention
1. Attention ■ About this manual 1．Before using the camera, please read this manual thoroughly. 2．Please keep this manual reachable and always refer to the contents when needed. 3．Please contact us if the manual is lost or damaged. We will provide a replacement. 4．We cannot guarantee the safety of improper uses of the camera. - Page 4 ■ For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・...
- Page 5 For more details, please refer to the sites below: Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf ■ Dispose To dispose this product, please return the camera to us. If you decide to dispose the camera without returning it us, please follow related regulations and have the camera disposed as an industrial waste.
-
Page 6: Introduction
950 nm to 1700 nm. ARTCAM-0016TNIR-TEC adopts USB2.0 interface, so image data can be delivered to PC directly without a capture board. Also, this camera is equipped with an on board memory which avoid data missing during transfer. -
Page 7: The Product
4. The Product 1) Camera 2) USB Cable Type A-B connector cable, 3m approx. 3) AC adapter (DC12V) 4) Introduction Booklet 5) Viewer software/Device Driver CD 6) Software Development Kit, ARTCCM-SDK <Options> 1) NIR Lenses (C Mount Lens) 2) 5m extension cable with USB2.0 repeater 5. -
Page 8: Specifications
6. Specifications 6.1. Specification details ARTCAM-016TNIR-TEC Sensor Type InGaAs Image Sensor Sensor Model G12242-0707W Number of effective pixels 128(H)x128(V) Pixel Size 20(H)x20(V)μm Active Imager Size 2.56(H)x2.56(V)mm Detected Wavelength 950~1700nm Shutter Type Global Shutter Scan Mode Progressive Scan Operability ≥99% Interface USB2.0 Bulk Transfer A/D Resolution 14bit... -
Page 9: External Dimensions
7. External Dimensions 7.1. ARTCAM-0016TNIR-TEC - 9 -... -
Page 10: Spectral Sensitivity Characteristics
8. Spectral sensitivity characteristics 8.1. ARTCAM-0016TNIR-TEC - 10 -... -
Page 11: System Requirements
What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3389-5488) ARTRAY Co., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan TEL: +81-3-3389-5488 FAX: +81-3-3389-5486 Email: sales@artray.us...
