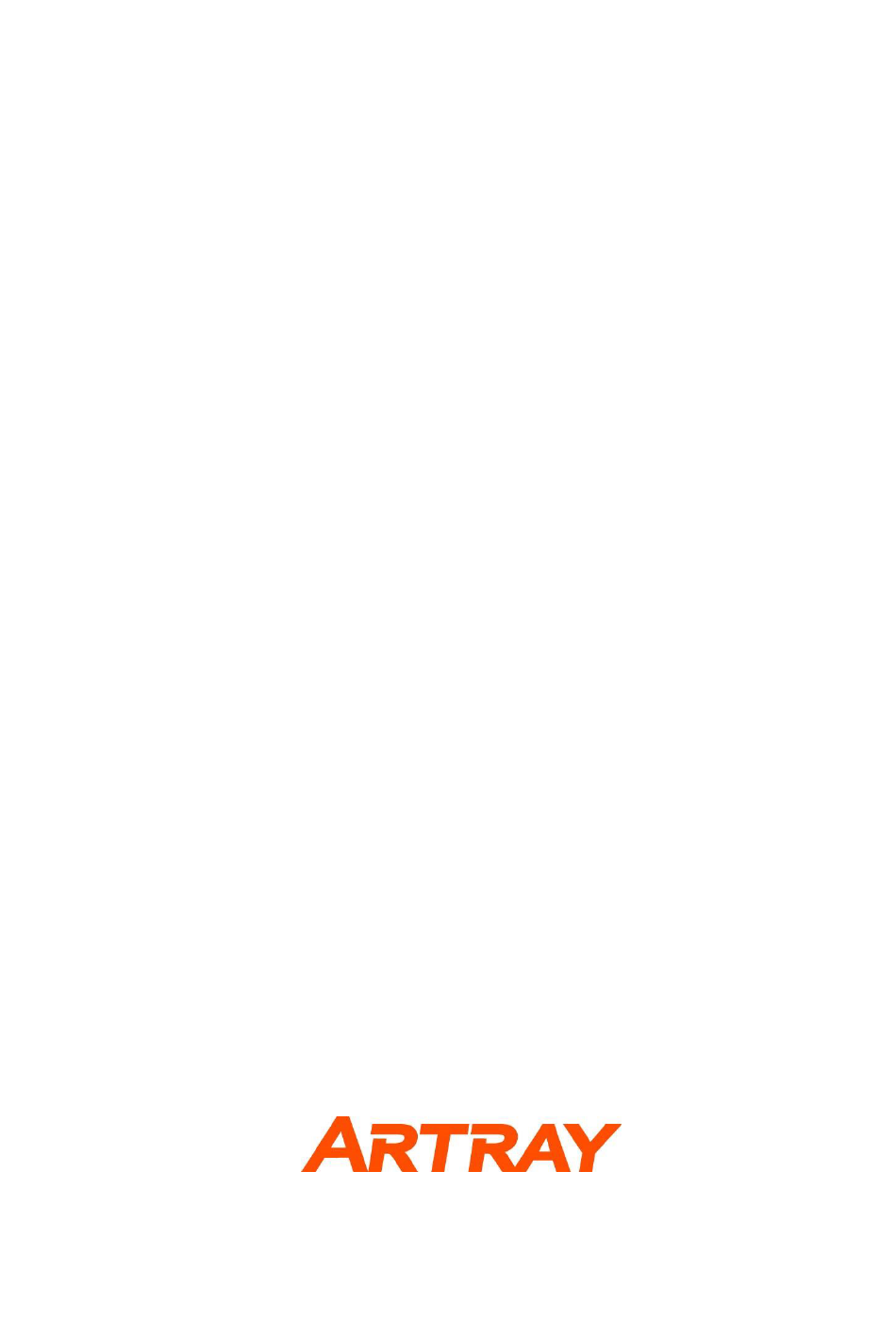

- Page 1 December 9, 2020 Ver1.01 USB2.0 InGaAs NIR CAMERA ARTCAM-0016TNIR-TEC INSTRUCTION BOOKLET ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
6.1. Sensor Specifications ........................- 9 - 6.2. Camera Specifications ........................- 10 - 7. External Dimensions ..........................- 11 - 7.1. ARTCAM-0016TNIR-TEC ......................- 11 - 8. Spectral Sensitivity Characteristics ..................... - 12 - 8.1. ARTCAM-0016TNIR-TEC ....................... - 12 - 9. -
Page 3: Attention
1. Attention ■ About this manual 1．Before using the camera, please read this manual thoroughly. 2．Please keep this manual reachable and always refer to the contents when needed. 3．Please contact us if the manual is lost or damaged. We will provide a replacement. 4．We cannot guarantee the safety of improper uses of the camera. - Page 4 ■ For Safe Use Warning ● In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
- Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below: Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf - 5 -...
-
Page 6: Introduction

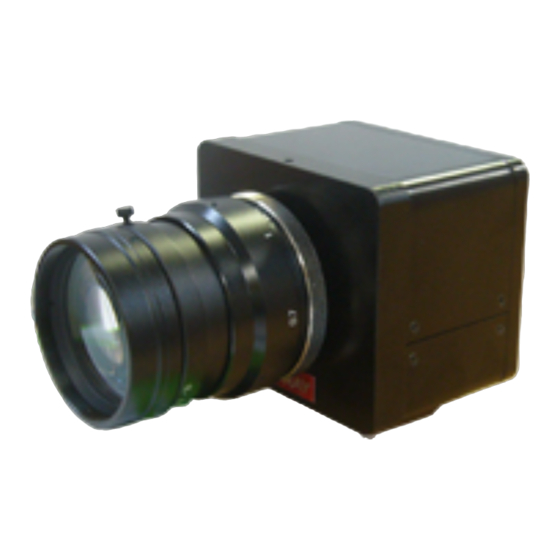

2. Introduction ARTCAM-0016TNIR-TEC adopts 128 x 128 InGaAs (Indium gallium arsenide) sensor. The cameras have a high sensitive spectral response from 950 nm to 1700 nm. ARTCAM-0016TNIR-TEC adopts USB2.0 interface, so image data can be delivered to PC directly without a capture board. -
Page 7: The Product
4. The Product 1) Camera 2) USB Cable Type A-B connector cable, 3m approx. 3) AC adapter (DC12V) 4) Introduction Booklet 5) Viewer software/Device Driver CD 6) Software Development Kit, ARTCCM-SDK <Options> 1) NIR Lenses (C Mount Lens) 2) 5m extension cable with USB2.0 repeater - 7 -... -
Page 8: Connect The Camera
5. Connect the Camera 5.1. How to connect a camera Please connect the camera with our standard USB 2.0 cable, when used with notebook PC or desktop PC, etc. - 8 -... -
Page 9: Specifications
6. Specifications 6.1. Sensor Specifications Model ARTCAM-0016TNIR-TEC Sensor Type InGaAs Image Sensor G12242-0707W Sensor Model Number of effective pixels 128(H) × 128(V) Active Imager Size 2.56(H) × 2.56(V)mm Scan Mode Progressive Scan 20(H)x20(V)μm Pixel Size 950nm ～ 1700nm Detected Wavelength ≥99%... -
Page 10: Camera Specifications
6.2. Camera Specifications Interface USB2.0 Bulk Transfer Lens Mount C Mount Power DC12V Power Consumption Under Approx.20W Operating Temperature/Humidity : 0~35°C/10~80% (Non condensing) Ambient Conditions Storage Temperature/Humidity : 0~60°C/10~95% (Non condensing) 71.5(W) × 61.5(H) × 61.5(D)mm External Dimensions *Lens, tripod and cables not included Approx. -
Page 11: External Dimensions
7. External Dimensions 7.1. ARTCAM-0016TNIR-TEC - 11 -... -
Page 12: Spectral Sensitivity Characteristics
8. Spectral Sensitivity Characteristics 8.1. ARTCAM-0016TNIR-TEC - 12 -... -
Page 13: System Requirements
What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3-3389-5488) ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us...
