Page 8
•
Piegraph indication
This 10 segment Piegraph gives a quick impression about the actual value in relation to its
measuring range in a scale of 0-100%.
•
Low-battery alarm
When the battery voltage drops, it must be replaced. At first "battery low"" will flash, but as soon
as it is displayed continuously, the battery MUST be replaced shortly after!
The remaining lifetime after the first moment of indication is generally several days up to some
weeks. See paragraph 6.3 for further information on battery replacement.
•
Range error
As soon as the input value is 5% outside the calibrated measurement range, the piegraph starts
flashing. Meanwhile, LO CURRENT or HI CURRENT will be displayed.
•
Alarm 01-03
When "alarm" is displayed, please consult Appendix B: problem solving.

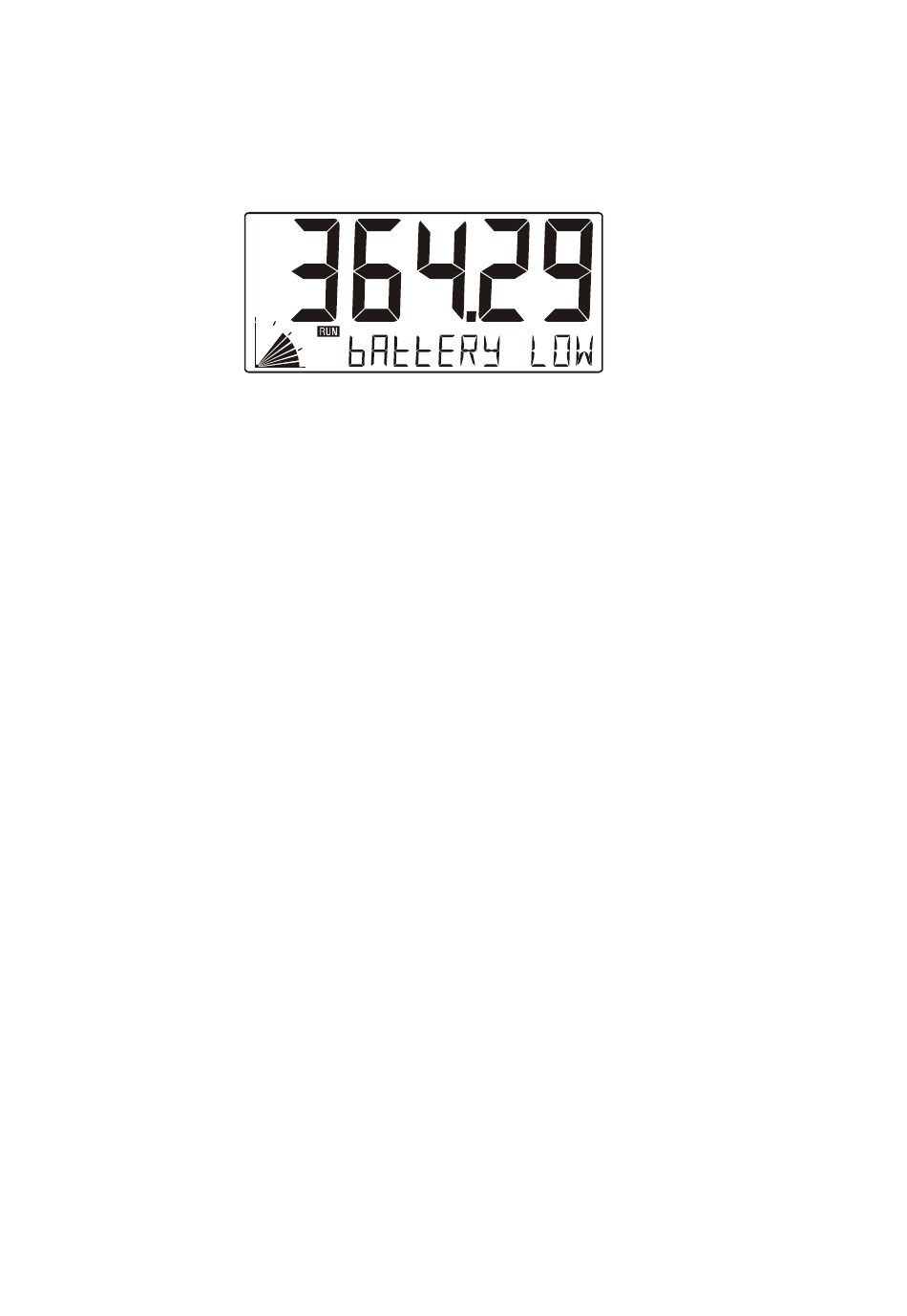

Fig. 4: Example of low-battery alarm.
