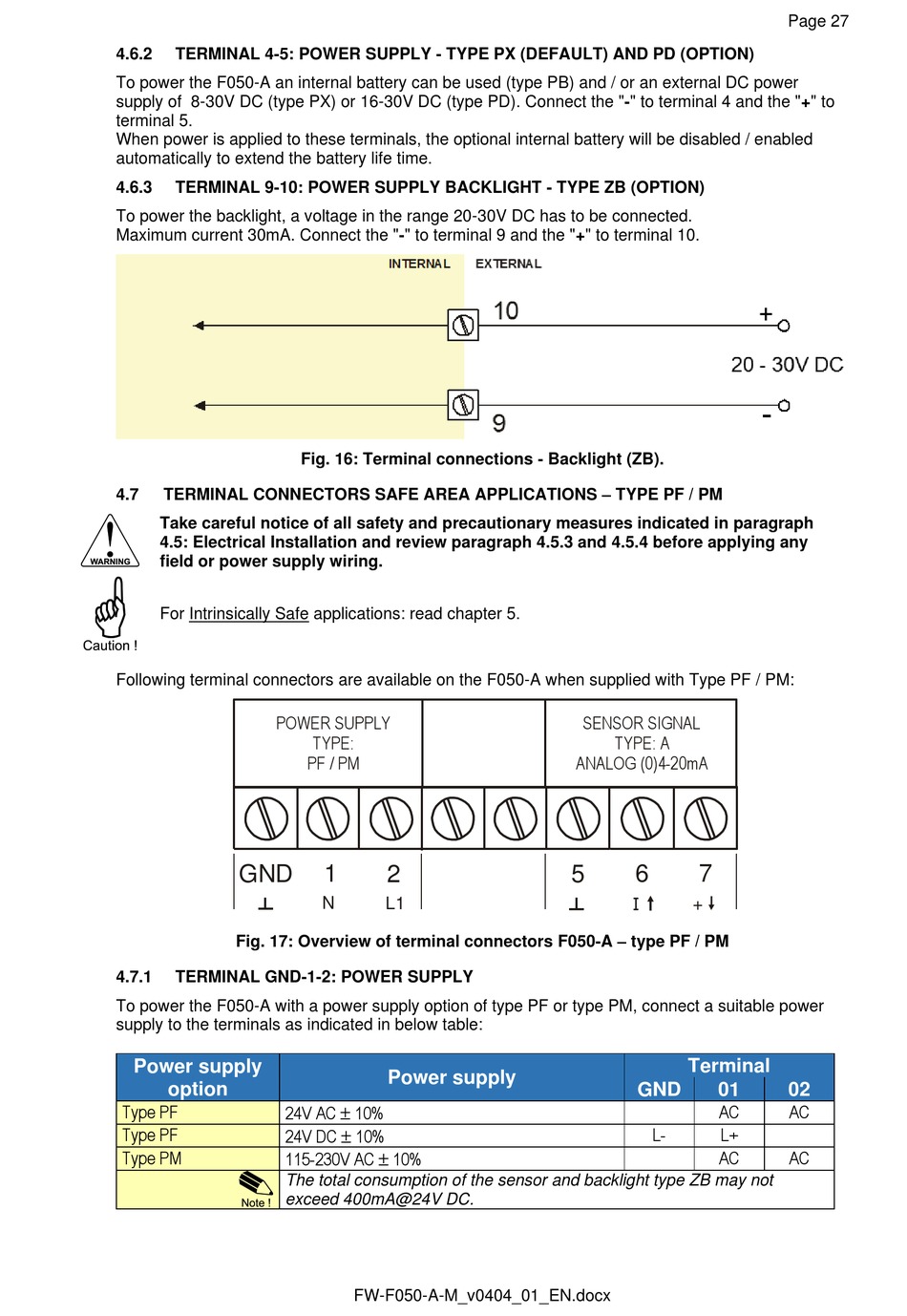

TERMINAL 4-5: POWER SUPPLY - TYPE PX (DEFAULT) AND PD (OPTION)

To power the F050-A an internal battery can be used (type PB) and / or an external DC power
supply of 8-30V DC (type PX) or 16-30V DC (type PD). Connect the "-" to terminal 4 and the "+" to
terminal 5.
When power is applied to these terminals, the optional internal battery will be disabled / enabled
automatically to extend the battery life time.
4.6.3

TERMINAL 9-10: POWER SUPPLY BACKLIGHT - TYPE ZB (OPTION)

To power the backlight, a voltage in the range 20-30V DC has to be connected.
Maximum current 30mA. Connect the "-" to terminal 9 and the "+" to terminal 10.
TERMINAL CONNECTORS SAFE AREA APPLICATIONS – TYPE PF / PM
4.7
Take careful notice of all safety and precautionary measures indicated in paragraph
4.5: Electrical Installation and review paragraph 4.5.3 and 4.5.4 before applying any
field or power supply wiring.
For Intrinsically Safe applications: read chapter 5.
Following terminal connectors are available on the F050-A when supplied with Type PF / PM:
POWER SUPPLY
GND
Fig. 17: Overview of terminal connectors F050-A – type PF / PM
4.7.1

TERMINAL GND-1-2: POWER SUPPLY

To power the F050-A with a power supply option of type PF or type PM, connect a suitable power
supply to the terminals as indicated in below table:
Power supply
option
Type PF 24V AC  10%
Type PF 24V DC  10%
Type PM 115-230V AC  10%
The total consumption of the sensor and backlight type ZB may not
exceed 400mA@24V DC.

Fig. 16: Terminal connections - Backlight (ZB).

TYPE:
PF / PM
1
2
N L1
Power supply
