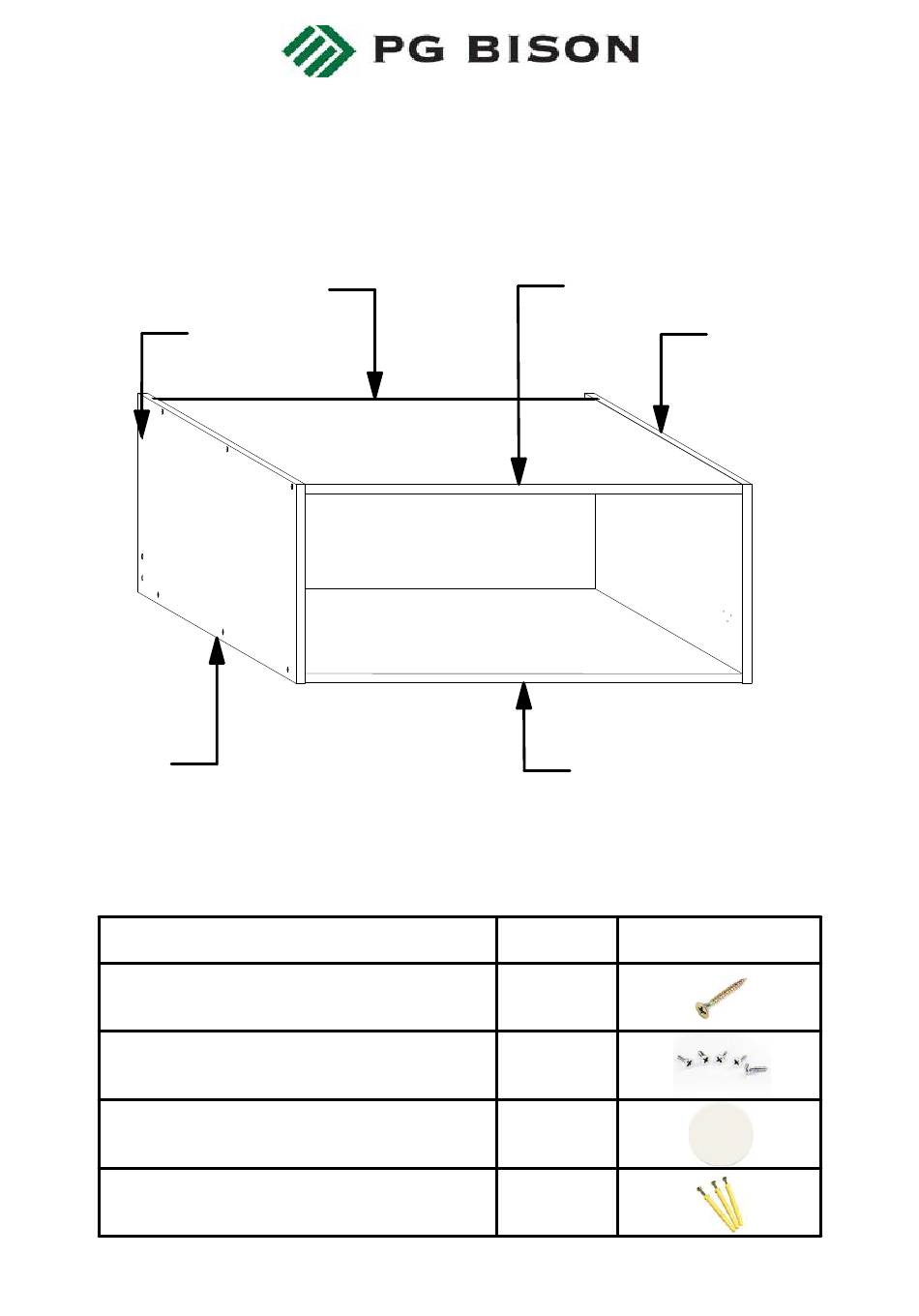

WALL CABINET FLAP 900mm
E - Visible Side Left
HARDWARE
Screw Nail in Anchor 8 x 80mm Yellow
KINETIC FLATPAX RANGE
ASSEMBLY GUIDE
F - Back
C - Back Rail
PRODUCT
Screw 4.0 x 50mm
Screw 3.5 x 16mm
Screw Cap Super White
B - Top
D - Wall Bottom
TOTAL NUMBER OF PANELS: 6
QTY
16
10
2
2
1
A - Visible Side Right
Advertisement
Table of Contents
Related Manuals for PG BISON KINETIC FLATPAX RANGE
Summary of Contents for PG BISON KINETIC FLATPAX RANGE
- Page 1 KINETIC FLATPAX RANGE ASSEMBLY GUIDE WALL CABINET FLAP 900mm B - Top F - Back C - Back Rail A - Visible Side Right E - Visible Side Left D - Wall Bottom TOTAL NUMBER OF PANELS: 6 HARDWARE IMAGE PRODUCT Screw 4.0 x 50mm...
- Page 2 GENERAL INSTRUCTIONS 1. Confirm that all panels (6) are in the package before assembling. 2. Check the white sticker on each panel for the labelling (A, B, C, D, E & 3. Ensure that the panels are laid on a non-abrasive surface when assembling.
- Page 3 STEP 1 Screw 4 x 50mm Connect panels B, C & D to panel A using Screw 4.0 X 50mm in the pre-drilled pilot holes as shown. Refer to Det 1 - 3 below before fastening the screws. STEP 2 Det.
- Page 4 STEP 3 Slide the 3mm panel (F) into the groove on panels A & E with the finished side facing down. STEP 4 X 10 Screw 3.5 x 16mm First, check the diagonal of the cabinet by measuring the two distances indicated by the red, broken lines.
- Page 5 STEP 5 Ø 8 mm 50 mm 50 mm Cabinet Front View Det. 4 Using an 8mm Drill Bit, gently drill two holes through panels F & C in the positions shown in Det. 4. Countersink the holes such that the Screw Head will be flush with the surface of panel F. STEP 6 Section View of Cabinet without panels B &...
