- Page 1 User Manual F090-A-PL MULTI-PURPOSE INDICATOR INPUT LOOP POWERED Signal input: 4-20 mA sensor signal Options: intrinsically safe backlight F-Series - Field mounted indicators for safe and hazardous areas More info: www.fluidwell.com/fseries...
-
Page 2: Table Of Contents
5.4.3 Menu 3: Sensor ......................14 5.4.4 Menu 4: Others ......................15 INSTALLATION........................16 Installation / environmental conditions ................16 Handling the F090-A-PL enclosure................. 17 6.2.1 Identification........................17 6.2.2 Opening, assembling and closing the F-Series .............. 18 Mechanical installation....................19 6.3.1... - Page 3 Power supply ........................30 Terminal connectors hazardous area applications ............30 Configuration examples Intrinsically Safe applications ........... 31 7.4.1 F090-A-PL-XI-ZB - Ex ia IIC/IIIC..................31 MAINTENANCE........................32 General directions......................32 Instructions for repair ...................... 32 APPENDIX A - TECHNICAL SPECIFICATION ................33 General ...........................
-
Page 4: About This Manual
● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 03.03.xx... -
Page 5: Safety
F090-A-PL User Manual SAFETY PERSONAL SAFETY ● Explosion hazard: Never open the unit when explosive atmosphere is present, and the unit is connected to a power supply or consuming device like the internal battery supply. ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. -
Page 6: Introduction

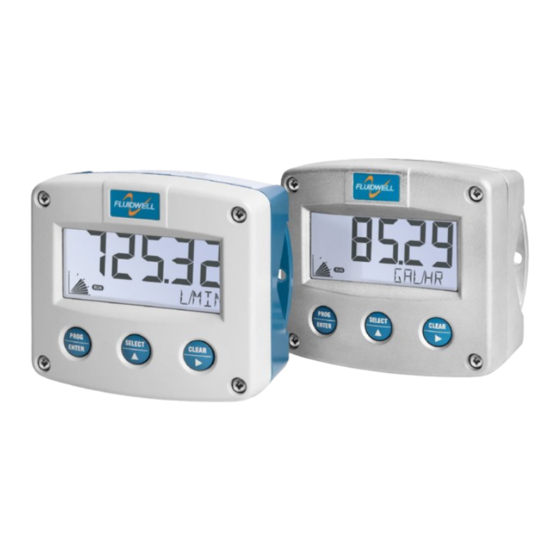

Fig. 1: The F090 This manual describes the daily use, configuration and installation of the F090-A-PL with analog 4-20 mA input from a sensor, and its available options. The following figure shows the F090-A-PL used in a typical application. -
Page 7: Installation Example
● Panel mount enclosure (Types HB, HC) ● Flame-proof enclosure (Type XF) ● Display backlight (Type ZB). INSTALLATION EXAMPLE Following parts can be recognized in below installation example. Fig. 3: Installation example F090-A-PL 1. Front cover 3. Label 5. Keys 2. Display 4. Back cover 6. -
Page 8: Operation
Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the F090-A-PL. For this, the F-Series is equipped with a control panel that provides the operator with various functions, information and operating modes. 4.1.1... -
Page 9: Backlight (Type Zb)
F090-A-PL User Manual Normally, the display is updated depending on the refresh rate selected in the configuration settings. By pressing any key, the display switches to refreshing the information 8 times per second. After 30 seconds of key inactivity, the display returns to the configured refresh rate. -
Page 10: Configuration
CONFIGURATION INTRODUCTION This chapter describes how technicians can use configuration settings to configure the F-Series for optimal functionality. Configuration of the F090-A-PL can be done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8]... -
Page 11: Changing Configuration Settings
F090-A-PL User Manual 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps. -
Page 12: Setup Menu Overview
User Manual F090-A-PL SETUP MENU OVERVIEW DISPLAY DEFAULT UNIT mL - L - nL- M3 - nM3 - mg - g - kg - ton - gal - sgal - igal - lb - bbl - cf - scf - p - rev - °C - °F - K - % - m - mm - cm -... -
Page 13: Menu 2: Backlight
F090-A-PL User Manual DISPLAY UNIT Determines the measurement unit for the displayed process value. The following can be selected: mL - L - nL- M3 - nM3 - mg - g - kg - ton - gal - sgal - igal - lb - bbl - cf - scf - p - rev - °C - °F - K - % - m - mm - cm - mtr - inch - ft - psi - mbar -... -
Page 14: Menu 3: Sensor
F090-A-PL 5.4.3 MENU 3: SENSOR SENSOR FORMULA The F090-A-PL can process the analog signal in two ways: linear or as a root. Interpolation: the signal is processed in a linear way ● R = S x I Square root: the signal is processed applying a square root ●... -
Page 15: Menu 4: Others
F090-A-PL User Manual SENSOR CALIBRATE HIGH The unit is calibrated in factory using a very accurate current source. In case the sensor signal does not equal 20mA at maximum process value, this function is needed to set the input current at maximum level (offset + span). -
Page 16: Installation
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F090-A-PL may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 17: Handling The F090-A-Pl Enclosure
F090-A-PL User Manual HANDLING THE F090-A-PL ENCLOSURE 6.2.1 IDENTIFICATION The F-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. Refer to for identification and installation labels Section 7: Intrinsically safe applications [»26]... -
Page 18: Opening, Assembling And Closing The F-Series
User Manual F090-A-PL Serial number and year of production The serial number can be reviewed on the identification label, the installation label, or in . The production SETUP 4.3: OTHERS > SERIAL NUMBER date is shown on the label and also indicated by the first 4 digits of the serial number representing year and week number (YYWW). -
Page 19: Mechanical Installation
F090-A-PL User Manual MECHANICAL INSTALLATION 6.3.1 MECHANICAL DIMENSIONS Aluminum and stainless steel enclosures 75 mm (2.95") 90 mm (3.54") 130 mm (5.12") 112 mm (4.40") 12mm 12mm 30 mm 30 mm 30mm 30mm M16 x 1,5 M16 x 1,5 M20 x 1,5... - Page 20 User Manual F090-A-PL Non-metallic enclosures 75 mm (2.95") 130 mm (5.12") 112 mm (4.40") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...
-
Page 21: Mounting The F-Series
F090-A-PL User Manual 6.3.2 MOUNTING THE F-SERIES The enclosure can be installed by itself or with the aid of a mounting plate in the configurations shown below. When the product is installed on a wall or onto a meter, please use components and installation techniques that are suitable for the used materials. -
Page 22: Electrical Installation
● The wire screens shall be terminated at one side to prevent wire loops. Inside of the F090-A-PL, the different common ground terminals are connected to each other. It is advised, as illustrated, to terminate the wire screens in the vicinity of the sensor and to insulate the wire screen with a shrink tube at the F090-A-PL side. -
Page 23: Field Wiring Connections
○ Within the United States all field wiring must conform to the National Electric Code, NFPA 70, Article 501-4(b). All field wiring enters the F090-A-PL through the bottom of the enclosure and connects to the circuit assembly inside the enclosure. Wiring is routed through cable glands. Please make sure to order the F090-A-PL with the correct drilling pattern and thread (metal) or hole (plastic) sizes. -
Page 24: Power Supply
6.5.1 TERMINALS 1-2: SENSOR INPUT The F090-A-PL requires a 4-20mA sensor signal which will be processed 4 times per second with 16 bit accuracy. Input is not isolated. The screen of the signal wire can be connected to the common ground terminal (see Section 6.4.3: Field wiring connections [»23]... -
Page 25: Terminals 9-10: Backlight Power Supply - Type Zb
F090-A-PL User Manual 6.5.2 TERMINALS 9-10: BACKLIGHT POWER SUPPLY - TYPE ZB To power the optional backlight, a voltage from 20 to 30 V must be connected to the display. The maximum current will be 30mA. Connect the “-“ to terminal 9 and the “+“ to terminal 10. -
Page 26: Intrinsically Safe Applications
User Manual F090-A-PL INTRINSICALLY SAFE APPLICATIONS IDENTIFICATION The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. If Type XI is not indicated your unit is not suitable for Intrinsically Safe applications! -
Page 27: Electrical Installation In Hazardous Areas
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F090-A-PL may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 28: Electrical Data - Control Drawing
User Manual F090-A-PL 7.2.2 ELECTRICAL DATA - CONTROL DRAWING trol Dr ing F -A-PL-XI Ce t r ific t a ion F0-SERIES – Type -XI T RMINAL CONNE CTORS F0 ERIE c mm on ground Ce tif r ica e number: CSA.08.2059461... -
Page 29: Installations Based On Atex Or Iecex Certificate
F090-A-PL User Manual 7.2.3 INSTALLATIONS BASED ON ATEX OR IECEX CERTIFICATE Installation instructions ● For installation under ATEX directive: this Intrinsically Safe device must be installed in accordance with ATEX directive 2014/34/EU and product certificate KEMA 03ATEX1168 X. ● For installation under IECEx scheme: this Intrinsically Safe device must be installed in accordance with product certificate IECEx DEK 08.0006X. -
Page 30: Electrical Data - Annex 1
User Manual F090-A-PL 7.2.4 ELECTRICAL DATA - ANNEX 1 Annex 1 ( mo el p s eci fic) to prod uct certif c i ates KEMA 0 ATEX1168 X, IECEx 00 6 Model F0..-A-PL-XI Int nal supply for use w... -
Page 31: Configuration Examples Intrinsically Safe Applications
F090-A-PL User Manual The following terminal connectors are available on the intrinsically safe F090-A-PL Type XI. SENSOR POWER SUPPLY SIGNAL INPUT BACKLIGHT PL 4-20 mA ZB 20-30 V DC Fig. 17: Overview of terminal connectors - Type A-PL All electrical connections made to the terminals of the intrinsically safe product (Type XI) must follow the instructions and safety parameters as given in the product certificate. -
Page 32: Maintenance
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F090-A-PL may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 33: Appendix A - Technical Specification
F090-A-PL User Manual APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD, UV-resistant Digits 5½ with height 26mm (1”) and 11 with height 8mm (0.31”). Various symbols and measuring units. Dimensions 90 x 40 mm (3.5” x 1.6”) - Page 34 User Manual F090-A-PL OPERATING TEMPERATURE Safe area -40°C to +80°C (-40°F to +178°F) Intrinsically safe -40°C to +70°C (-40°F to +158°F) For EPL Da: -40°C to +50°C (-40°F to +122°F) POWER REQUIREMENTS Type PL Input loop powered from 4-20mA signal. Voltage drop max. 2.6V DC.
-
Page 35: Input
F090-A-PL User Manual INPUT SENSOR Signal type 4-20 mA, with signal calibration feature Accuracy 16 bit. Error < 0.01 mA or ±0.05% FS. Low-level cut-off programmable. Span 0.00001 to 199.999 with variable decimal position. Offset -99.999 - +199.999 Update time... -
Page 36: Appendix B - Troubleshooting
APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the F090-A-PL. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ). Press the SELECT key several times to display the 4-digit error code shown in Table 2. -
Page 37: Appendix C - Legal Information
DECLARATIONS OF CONFORMITY EU De cla tio n of Conformi Fluidwell F0‒Series indicators he , February 2022 We, Fluidwell BV, declare under our s e ol respons ibility that the F0 ‒Series indicators are de igne d and will operate conform the following applicable European... - Page 38 User Manual F090-A-PL LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: DISPLAY UNIT TIME UNIT DECIMALS OFFSET SPAN 1600 DIRECTION normal CURRENT PERCENTAGE BARGRAPH BACKLIGHT BACKLIGHT BACKLIGHT BRIGHTNESS SENSOR FORMULA interpolation FILTER 01 (off) CALIBRATE LOW factory CALIBRATE HIGH factory...
- Page 39 F090-A-PL User Manual NOTES FW_F090-A-PL_M_v0501-02_EN Page 39...
- Page 40 Fluidwell bv P.O. Box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives the Netherlands the Netherlands © Copyright 2023 - FW_F090-A-PL_M_v0501-02_EN...
