To Install a Disk Drive
M
1. Go to the front of the Sun StorEdge D2 array.
2. Unlock and open the door at the front of the chassis.
Push down the button latch at the center of the door (
Arrow
Button latch

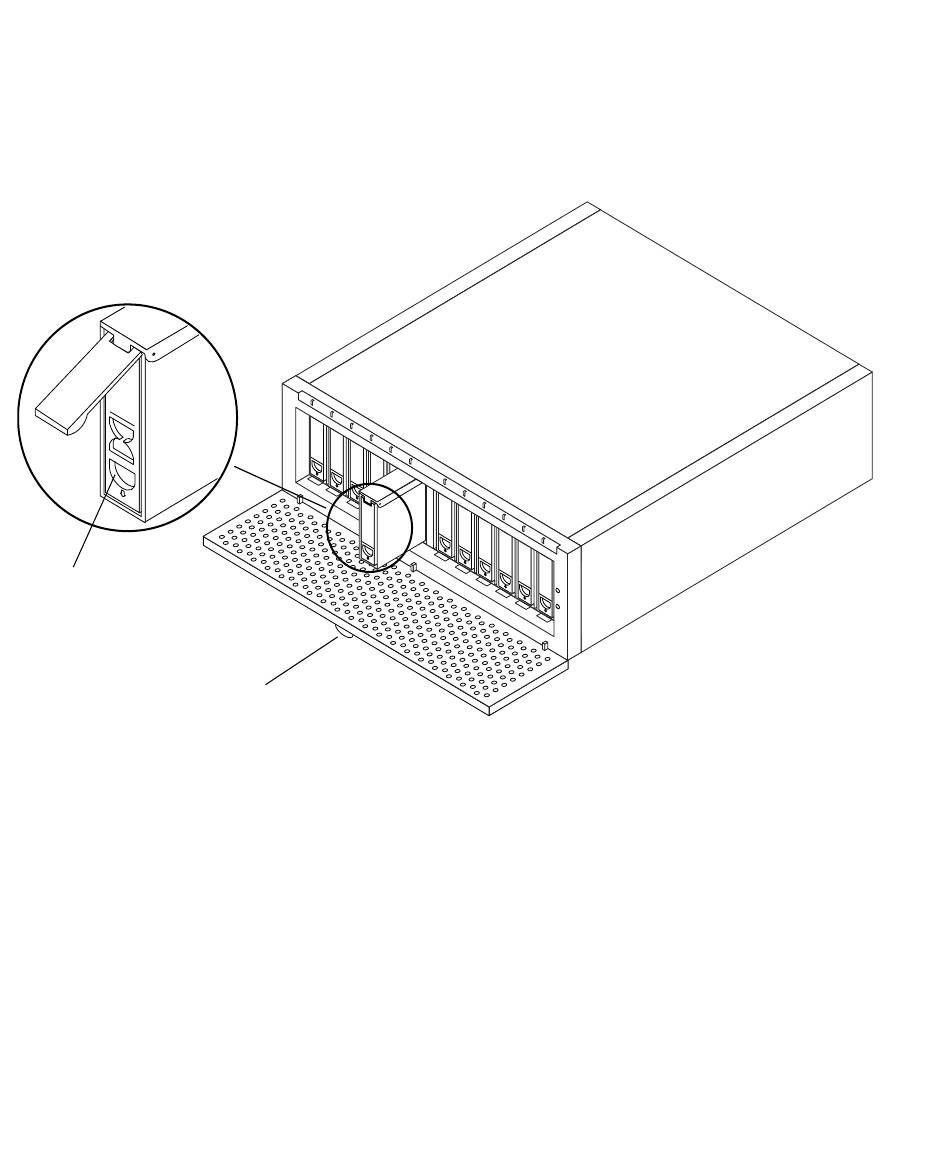

FIGURE 4-2
3. Release the latch on the replacement disk drive.
Press down on the finger slot on the front of the disk drive (the arrow indicates
which direction to press. The handle pops out (
4. Support the replacement disk drive with both hands and align it with the
appropriate slot.
5. Tilt the drive slightly downward to begin sliding it into the slot.
6. Slide the drive into the chassis until the drive clicks into place.
7. Press the handle down to secure the drive into position.
4-10 Sun StorEdge D2 Array Installation, Operation, and Service Manual • February 2002
Removing and Replacing a Disk Drive
).
FIGURE 4-1
).
FIGURE 4-1
