To Remove a Disk Drive
M
1. Go to the front of the Sun StorEdge D2 array.
2. Unlock and open the door at the front of the chassis.

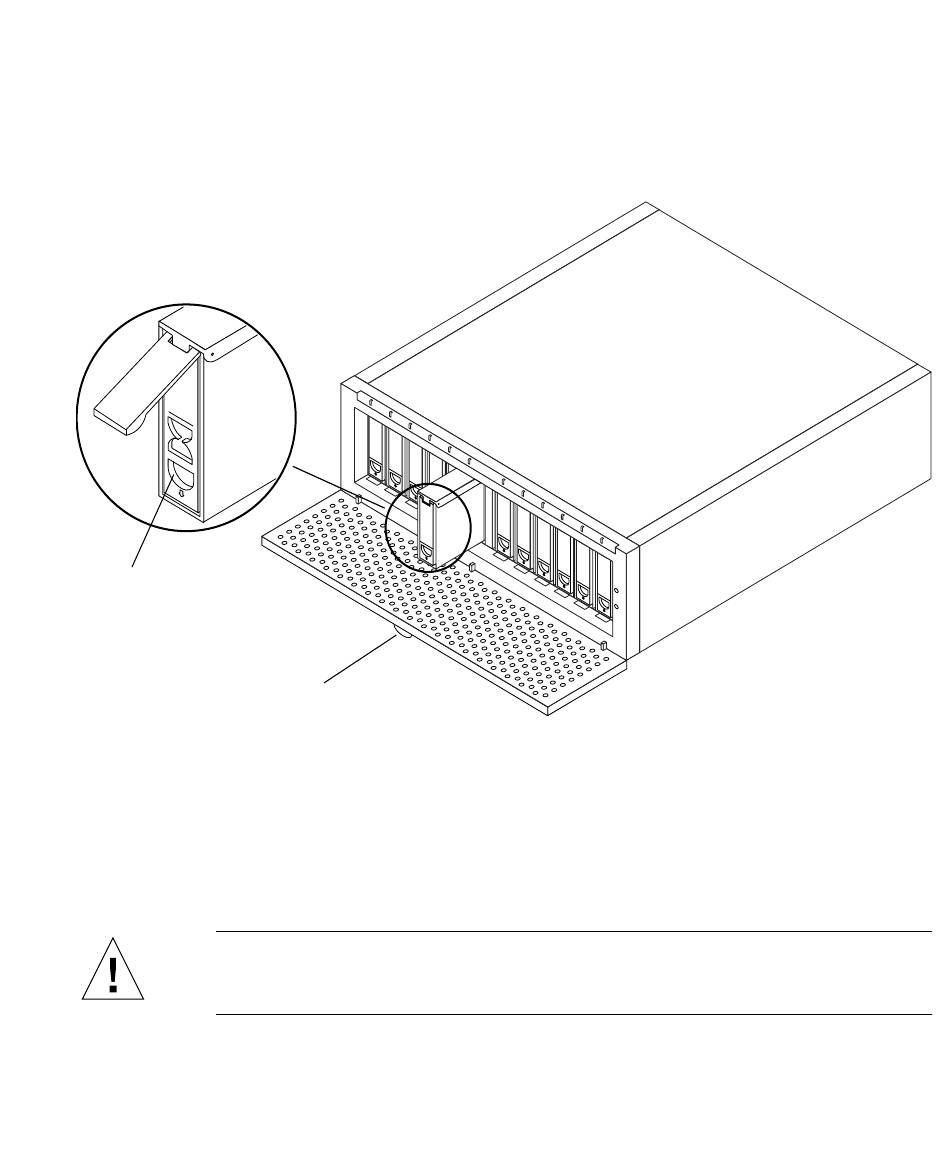

Push down the button latch at the center of the door (
Arrow
Button latch
FIGURE 4-1
3. Unlatch the drive bracket handle to release it.
Press down on the finger slot on the front of the disk drive (the arrow indicates
which direction to press). The handle pops out (
4. Continue to pivot the disk drive bracket handle against the chassis while pulling
the disk out, until the disk disconnects.
Caution – After disconnecting the disk, leave it in the drive bay for at least 30
seconds before removing it. After the disk has had time to spin down, you can
remove it from the drive bay.
5. Place both hands under the drive for support, and pull the drive from the chassis.
6. Go to "To Install a Disk Drive" on page 4-10 for how to replace the drive.
