4. Blink the amber Subsystem Fault LED.
a. Scroll down to the D2 Identify section of the window.

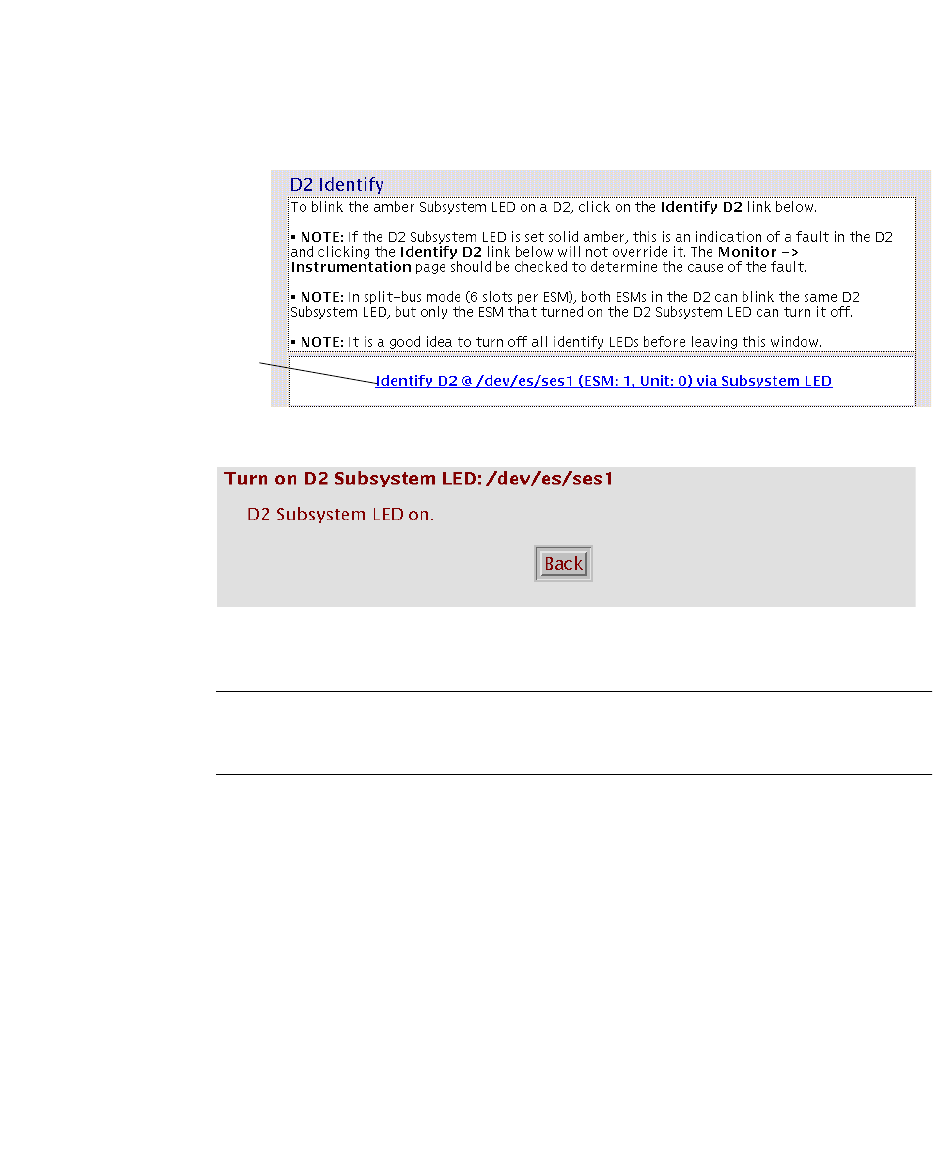

b. Click on the link for the D2 array enclosure as shown in the following screen.
Link for turning on the
Subsystem LED
The following screen displays.
If there are no existing subsystem faults, the Subsystem LED on the front of the
enclosure starts blinking amber.
Note – If another failure is currently occurring on the array, the Subsystem LED on
the front of the array will already be solid amber. The enclosure Identify function
cannot override this state of the LED.
5. Click the Back button to return to the Identify page.
6. Refer to
page 1-7 (if needed) for the location of the Subsystem LED on the Sun StorEdge
D2 array.
, "Array Front With Door Open and Disk Slots Accessible" on
FIGURE 1-1
Chapter 3 Monitoring and Troubleshooting the Sun StorEdge D2 Array 3-13
