Keysight 16442B Test Fixture
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16442B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keysight 16442B

Summary of Contents for Keysight 16442B

  • Page 1 Keysight 16442B Test Fixture User’s Guide...

  • Page 2: Warranty

    Search field. ability and fitness for a particular pur- Edition pose. Keysight shall not be liable for Latest Information errors or for incidental or consequential Edition 1, December 2002 To get the latest firmware/software/elec-...
  • Page 3 PRELIMINARY...

  • Page 4: Safety Summary

    Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized modification to the instrument. Return the instrument to a Keysight Technologies Sales and Service Office for services and repair to ensure that safety features are maintained.

  • Page 5: Safety Symbols

    Safety Symbols The general definitions of safety symbols used on equipment or in manuals are listed below. Instruction manual symbol. The equipment will be marked with this symbol when it is necessary for the user to refer to the instruction manual. Hazardous voltage and potential for electrical shock.

  • Page 6: Product Stewardship

    The crossed out wheeled bin symbol indicates that separate collection for waste electric and electronic equipment (WEEE) is required, as obligated by the EU DIRECTIVE and other National legislation. Please refer to http://keysight.com/go/takeback to understand your Trade in options with Keysight in addition to product takeback instructions.
  • Page 7 User's Guide...
  • Page 8 User's Guide Keysight 16442B test fixture (B1500A-A5F) is designed for testing electronic devices. You mount the suitable socket module on the 16442B, which allows you to easily connect various devices (DUTs) to measurement units. The 16442B has thirteen channels: •...

  • Page 9: Keysight Part Number

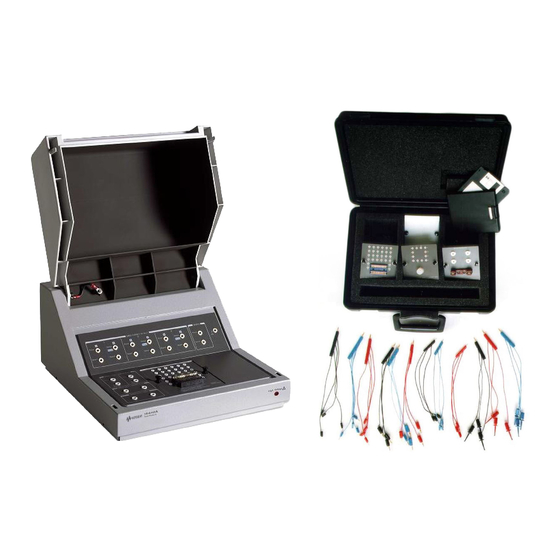

    User's Guide Introduction Introduction Keysight 16442B test fixture (B1500A-A5F) contains the following accessories: Keysight Description Quantity Part Number Test fixture 16442-60011 Stabilizer set (with flathead screws) 16442-60002 Carrying case for socket modules 16442-60142 Miniature banana to pin plug connection cable...
  • Page 10 NOTE Inspecting the 16442B upon Receiving When the 16442B test fixture (B1500A-A5F) arrives at your site, make sure that nothing is missing or damaged. Unpack the carton, then check the contents against figure and table above. For details about furnished and optional accessories, refer to “Specifications”.

  • Page 11: Connection Cables

    Miniature Banana - Pin Plug Reference data: Residual Resistance: 20 m typical Black: 16442-61600 Red: 16442-61601 Blue: 16442-61602 • Pin Plug - Pin Plug Reference data: Residual Resistance: 20 m typical Black: 16442-61603 Red: 16442-61604 Blue: 16442-61605 Keysight 16442B User’s Guide, Edition 3...
  • Page 12 Miniature Banana - Miniature Clip Reference data: Residual Resistance: 20 m typical Black: 16442-61606 Red: 16442-61607 Blue: 16442-61608 • Miniature Banana - Miniature Banana Reference data: Residual Resistance: 20 m typical Black: 16442-61609 Red: 16442-61610 Blue: 16442-61611 Keysight 16442B User’s Guide, Edition 3...
  • Page 13 User's Guide Introduction Socket Modules • Blank PTFE Board (16058-60004) • Dual-In-Line Packages (28-pin, 16088-60042) Keysight 16442B User’s Guide, Edition 3...
  • Page 14 User's Guide Introduction • Universal socket module 0.1 inch pitch: 16088-60050, Option 0.075 inch pitch: 16442-60051 0.05 inch pitch: 16442-60052 Connection pin Keysight 16442B User’s Guide, Edition 3...
  • Page 15 User's Guide Introduction • TO-package (4-pin, 16088-60041, Option) • Dual-In-Line package (18-pin, 16088-60043, Option) Keysight 16442B User’s Guide, Edition 3...

  • Page 16: Operation

    Keysight Technologies recommend that the measurement is performed in as noiseless environment as possible for more stable and accurate measurement results. You place the DUT into the provided socket modules in the 16442B, then measure the DC characteristics by using the connected measurement units. WARNING...

  • Page 17: Circuit Schematic

    The 16442B is equipped with an interlock (Intlk) terminal, which prevents the user from getting an electric shock during operation. If more than ±40/42 V, depends on the instrument, will be forced to the 16442B, be sure to connect Intlk terminal of the 16442B to Interlock terminal of measurement instrument such as the Keysight 4155/4156 and E5270 using an Interlock/LED cable (16493J-001 for 1.5 m, 16493J-002 for 3.0 m).
  • Page 18 User's Guide Operation The following figure shows pin assignment of the Intlk terminal. Keysight 16442B User’s Guide, Edition 3...
  • Page 19 Attaching Socket Module After choosing correct socket module for DUT, install the socket module into the 16442B test fixture (B1500A-A5F) . The following figure shows how to attach socket module to the 16442B. Use the following procedure to attach the socket module: 1.
  • Page 20 Connect a miniature banana to pin plug cable between the FORCE terminal on the Connections 16442B and the disired terminal on the socket module, and then connect additional miniature banana to pin plug cable between the SENSE terminal and the hole of the pin plug connected to the terminal.
  • Page 21 Note that hydrochloric acid residue deposited by solder may cause electrical problems. Keysight Technologies recommend that you solder the wiring on the universal board using low hydrochloric acid solder (Keysight part number: 8090-0433).

  • Page 22: Installation

    User's Guide Installation Installation You can make the 16442B test fixture (B1500A-A5F) stable by installing stabilizers as shown in the following figure. 1. Put a stabilizer on both sides of test fixture. 2. Screw a flathead screw into hole of each stabilizer.

  • Page 23: Maintenance

    • Chassis, lid, inner plate, and socket modules: 1. Make sure that voltage or current is not forced to the 16442B. 2. Disconnect all cables from the 16442B. 3. Using lint-free paper, gently wipe the chassis, lid, inner plate, and socket module.
  • Page 24 5. Change a channel output to greater than 42 V. The High Voltage LED has to turn 6. Open the lid of the 16442B. The High Voltage LED has to turn off. Opening the lid will make the instrument cause an error or change voltage to 0 V.
  • Page 25 When wiring the test fixture and socket modules, use low hydrochloric acid solder (Keysight part number: 8090-0433) to prevent the flux in the solder from spreading unnecessarily. When soldering, make sure the terminals do not make contact with each other.

  • Page 26: Replaceable Parts

    User's Guide Maintenance Replaceable Parts Keysight 16442B User’s Guide, Edition 3...
  • Page 27 Wire 24 White/Green (12) 8150-0458 30cm8 Wire 24 White/Brown (13) 8150-0462 32cm1 Wire 24 White/Yellow (14) 8120-0122 16cm1 Coaxial Cable (15) 8120-0122 16cm1 Coaxial Cable (16) 8150-0456 5cm4 Wire 24 White (17) 41422-24099 Soldering Pipe Keysight 16442B User’s Guide, Edition 3...
  • Page 28 User's Guide Maintenance Installing Triaxial and BNC Connectors: Reference Keysight Quantity Description Designation Part Number 1250-1906 Triaxial Connector 1250-0083 BNC Connector 2190-0016 Lock Washer 0360-1190 Terminal Washer 2950-0001 5000-4218 Terminal Washer 1252-1419 6-pin Connector Keysight 16442B User’s Guide, Edition 3...
  • Page 29 User's Guide Maintenance Connections between Lid and Body: Reference Keysight Quantity Description Designation Part Number 16442-24001 Sleeve 0515-1973 Bolt M4 16442-61624 Cable Assy 0515-1550 Screw M3-L 8 P-H 16442-23001 Keysight 16442B User’s Guide, Edition 3...
  • Page 30 User's Guide Maintenance Socket Modules • TO- (4-pin) Package Socket Module (16088-60041) • Dual-In-Line (28-pin) Package Socket Module (16088-60042) Keysight 16442B User’s Guide, Edition 3...
  • Page 31 User's Guide Maintenance • Dual-In-Line (18-pin) Package Socket Module (16088-60043) • Universal Socket Module 0.1 inch pitch: 16088-60050 0.075 inch pitch: 16442-60051 0.05 inch pitch: 16442-60052 Keysight 16442B User’s Guide, Edition 3...

  • Page 32: Specifications

    The following specifications data is specified at 23 ± 5 C and 50 % relative humidity. Functions Keysight 16442B lets you test various shaped DUTs. The 16442B has: • Six SMU channels (when using non-Kelvin connections) Three SMU channels (when using Kelvin connections) •...

  • Page 33: General Specifications

    (force or sense to other SMUs) 3 pF typical Residual Resistance (force) 60 m typical Residual Resistance (sense) 60 m typical Guard Capacitance (force or sense guard) 70 pF maximum • VSU channel Residual Resistance 60 m typical Keysight 16442B User’s Guide, Edition 3...
  • Page 34 200 V 16088-60042 28-pin DIP 230 V 16088-60043 18-pin DIP 230 V 16088-60050 0.1 inch pitch universal 16442-60051 0.075 inch pitch universal 16442-60052 0.05 inch pitch universal Connection wire residual resistance : 20 m typical Keysight 16442B User’s Guide, Edition 3...
  • Page 35 Extra connection cables, miniature banana to pin plug black (16442-61600), 2 ea. red (16442-61601), 2 ea.) blue (16442-61602), 2 ea. 16442B-812 Extra connection cables, pin plug to pin plug black (16442-61603), 2 ea. red (16442-61604), 2 ea. blue (16442-61605), 2 ea. Keysight 16442B User’s Guide, Edition 3...
  • Page 36 (16442-61610), 2 ea. blue (16442-61611), 2 ea. 16442B-821 Socket module, 4-pin TO package (16088-60041) 16442B-822 Socket module, 18-pin DIP package (16088-60043) 16442B-823 Socket module, 28-pin DIP package (16088-60042) 16442B-890 Extra carrying case for socket modules (16442-60142) Keysight 16442B User’s Guide, Edition 3...
  • Page 38 This information is subject to change without notice. © Keysight Technologies 2002-2014 Edition 3, August 2014 *16442-90100* 16442-90100 www.keysight.com...
