- Page 1 Keysight 16034G Test Fixture Operation Manual...
- Page 2 EULA. governed by United States and Declaration of Conformity Keysight shall be under no obligation international copyright laws. to update, revise or otherwise modify Trademark Acknowledgments Declarations of Conformity for this the Software.
-
Page 3: Table Of Contents
Connecting the 16034G ........ - Page 4 Contents Keysight 16034G Test Fixture...
-
Page 5: Overview

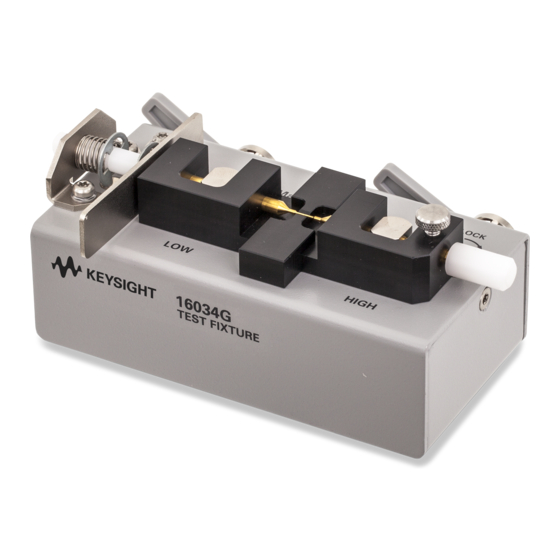

Keysight 16034G Test Fixture Operation Manual Overview Product Overview The 16034G is designed for chip type components whose sizes range from 0201 to 1306. This test fixture can take measurements of the chip type L,C,R. Figure 1-1 Product Overview... -
Page 6: Incoming Inspection
Inspect the shipping container for damage. If the shipping container or cushioning material is damaged, it should be kept until the contents of the shipment have been checked for completeness and the 16034G has been checked mechanically and electrically. The contents of the shipment should be... -
Page 7: Functions
For lateral adjustment of HIGH side Contact Pin. Contact Pin For securing HIGH side Contact Pin’s position by turning Locking Screw clockwise. Measuring Stage Where DUT is mounted. Lever For pulling back Low side Contact Pin before placing DUT between contact pins. Keysight 16034G Test Fixture... - Page 8 Overview Functions Keysight 16034G Test Fixture...
-
Page 9: Operation
16034G. Take care to avoid rough handling and never allow any mechanical shock to the 16034G, especially against the contact pins from the sides or any to the parts mounted on top of the fixture. Connecting the 16034G 1. -
Page 10: Performing Short Correction
LOW side contact pin (Figure 2-2). Tighten the contact pin locking screw to secure the HIGH side contact pin. Figure 2-2 Contact pin position for short correction 2. Perform the short correction as described in the specific instrument’s manual. Keysight 16034G Test Fixture... -
Page 11: Performing Open Correction
LOW side contact pin. 2. Tighten the contact pin locking screw to secure the HIGH side contact pin. Figure 2-3 Contact pin position for open correction 3. Perform the open correction as described in the specific instrument’s manual. Keysight 16034G Test Fixture... -
Page 12: Dut Measurement
4. Perform the measurement as described in the specific instrument’s manual. 5. To measure the same size DUT repeatedly, simply release the LOW side contact pin with the lever when to changing the DUT without moving the HIGH side contact pin. Keysight 16034G Test Fixture... -
Page 13: Dut Measurement Over 3 Mhz
1. Set the 100 W SMD resistor on the fixture the same way as a DUT measurement, and perform measurement at 3 MHz to determine the value of the 100 W SMD resistor. 2. Set the measured resistance and inductance values to the instrument as load value. 3. Perform load correction. Keysight 16034G Test Fixture... - Page 14 Operation DUT Measurement Keysight 16034G Test Fixture...
-
Page 15: Specifications And Supplemental Performance Characteristics
Keysight 16034G Test Fixture Operation Manual Specifications and Supplemental Performance Characteristics This chapter provides specifications and supplemental performance characteristics of the 16034G test fixture. Specifications Applicable Instruments LCR meters and impedance analyzers with four-terminals Applicable DUT Type Chip components Applicable DUT dimensions Maximum Voltage ±... - Page 16 Specifications and Supplemental Performance Characteristics Specifications Non Operating temp. - 40°C to +70°C Environment humidity ≤ 90 % RH (@ wet bulb temp. < 65°C) Dimensions Approximately 120 (W) x 50 (H) x 70 (D) mm Weight Approximately 200 g Keysight 16034G Test Fixture...
-
Page 17: Supplemental Performance Characteristics
Specifications and Supplemental Performance Characteristics Supplemental Performance Characteristics Supplemental Performance Characteristics This section provides useful data on the 16034G. These supplemental performance characteristics should not be considered specifications. Frequency Range With OPEN/SHORT correction ≤ 3 MHz With OPEN/SHORT/LOAD correction ≤ 120 MHz Additional Errors (With OPEN/SHORT correction) Additional errors are calculated as follows. - Page 18 Dx is the measured value of D and is calculated as follows. Dx = 2 × π × f × Csx × Rsx, where f: measurement signal frequency Csx: measured value of Cs Rsx: measured value of Rs. Figure 3-1 Additional Error in |Z| measurement Keysight 16034G Test Fixture...
-
Page 19: Contact Pressure
Supplemental Performance Characteristics Contact Pressure The following data are supplemental performance characteristics for the spring that applies contact pressure. Spring constant 37 gf/mm ± 10 % Spring pre-load Approximately 400 g (without E-ring, approximately 20 g) Keysight 16034G Test Fixture... - Page 20 Specifications and Supplemental Performance Characteristics Supplemental Performance Characteristics Keysight 16034G Test Fixture...
- Page 21 This information is subject to change without notice. © Keysight Technologies 1999-2018 Edition 7,April 2019 *16034-90011* 16034-90011 www.keysight.com...
