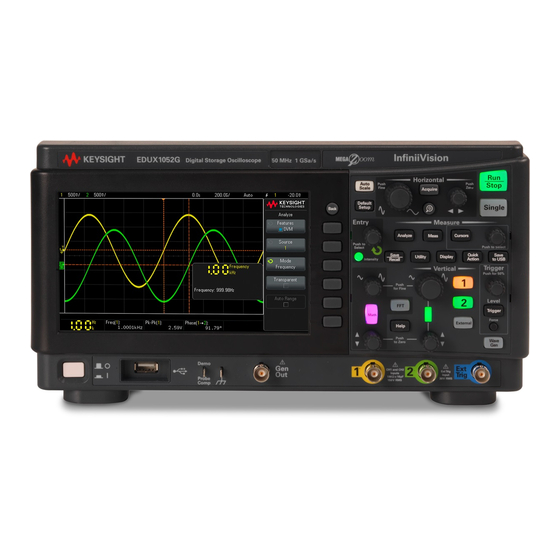

Page 1 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 2 Keysight shall not be liable for errors or for commercial computer software or incidental or consequential damages in Do not proceed beyond a WARNING...
Page 3: Infiniivision 1200 X-Series And Edux1052A/G Oscilloscopes-At A Glance
InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes— At a Glance Figure 1 InfiniiVision 1200 X-Series 4-Channel Oscilloscope Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 4 Sampling rate: 1 GSa/s 2 GSa/s (interleaved), 1 GSa/s (non-interleaved) Memory: 200 kpts 2 Mpts (1 Mpts when the 2 Mpts (interleaved), 1 Mpts External Trig channel is on) (non-interleaved) Segmented memory: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 5 DSOX1204A DSOX1204G Waveform generator: Yes (20 MHz) Yes (20 MHz) Yes (20 MHz) Mask/limit test: The Keysight InfiniiVision 1200 X-Series and EDUX1052A/G oscilloscopes deliver these features: • 7 inch WVGA display. • 200,000 waveforms/second update rate. • All knobs are pushable for making quick selections.
Page 6: In This Guide
19, “Waveform Generator,” starting on page generator, see: When saving, recalling, or printing, • Chapter 20, “Save/Recall (Setups, Screens, Data),” see: starting on page 215 • Chapter 21, “Print (Screens),” starting on page 227 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 7 [Key1], then pressing Softkey2, then pressing Softkey3 are abbreviated as follows: Press [Key1]> Softkey2 > Softkey3. The keys may be a front panel [Key] or a Softkey. Softkeys are the six keys located directly below the oscilloscope display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 8 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 9: Table Of Contents
Front Panel Overlays for Different Languages / 33 Learn the Rear Panel Connectors / 33 Learn the Oscilloscope Display / 34 Access the Built-In Quick Help / 36 Select the User Interface Language / 36 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 10 To invert a waveform / 51 Setting Analog Channel Probe Options / 51 To specify the channel units / 52 To specify the probe attenuation / 52 To specify the probe skew / 53 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 11 To save a waveform to a reference waveform location / 77 To display a reference waveform / 78 To scale and position reference waveforms / 79 To adjust reference waveform skew / 79 To display reference waveform information / 80 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 12 To reset the label library to the factory default / 95 Triggers Adjusting the Trigger Level / 99 Forcing a Trigger / 99 Edge Trigger / 99 Pulse Width Trigger / 102 Pattern Trigger / 104 Rise/Fall Time Trigger / 106 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 13 Oscilloscope Rise Time / 133 Oscilloscope Bandwidth Required / 134 Memory Depth and Sample Rate / 134 Selecting the Acquisition Mode / 135 Normal Acquisition Mode / 136 Peak Detect Acquisition Mode / 136 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 14 Top / 161 Base / 162 Overshoot / 162 Preshoot / 163 Average / 164 DC RMS / 164 AC RMS / 165 Time Measurements / 167 Period / 167 Frequency / 168 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 15 To manually modify a mask file / 185 Building a Mask File / 188 How is mask testing done? / 191 Digital Voltmeter Frequency Response Analysis To make connections / 197 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 16 Recalling Setups, Masks, or Reference Waveforms / 222 To recall setup files / 223 To recall mask files / 223 To recall reference waveform files from a USB storage device / 224 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 17 Performing Service Tasks / 243 To perform user calibration / 243 To perform hardware self test / 244 To perform front panel self test / 244 To export crash log files / 244 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 18 Specifications and Characteristics / 261 Measurement Category / 261 Oscilloscope Measurement Category / 261 Measurement Category Definitions / 262 Maximum Input Voltages / 262 Maximum input voltage at analog inputs / 262 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 19 I2C Triggering and Serial Decode Setup for I2C Signals / 285 I2C Triggering / 286 I2C Serial Decode / 290 Interpreting I2C Decode / 291 Interpreting I2C Lister Data / 292 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 20 Setup for UART/RS232 Signals / 313 UART/RS232 Triggering / 315 UART/RS232 Serial Decode / 318 Interpreting UART/RS232 Decode / 320 UART/RS232 Totalizer / 321 Interpreting UART/RS232 Lister Data / 322 Index Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 21: Getting Started
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 1 Getting Started Inspect the Package Contents / 21 Power-On the Oscilloscope / 22 Connect Probes to the Oscilloscope / 23 Input a Waveform / 23 Recall the Default Oscilloscope Setup / 24...
Page 22: Power-On The Oscilloscope
3 Press the power switch. The power switch is located on the lower left corner of the front panel. The oscilloscope will perform a self-test and will be operational in a few seconds. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 23: Connect Probes To The Oscilloscope
1 Connect an oscilloscope probe from channel 1 to the Demo, Probe Comp terminal on the front panel. 2 Connect the probe's ground lead to the ground terminal (next to the Demo terminal). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 24: Recall The Default Oscilloscope Setup
Use Autoscale Use [Auto Scale] to automatically configure the oscilloscope to best display the input signals. 1 Press [Auto Scale]. You should see a waveform on the oscilloscope's display similar to this: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 25: Compensate Passive Probes
Compensate Passive Probes Each oscilloscope passive probe must be compensated to match the input characteristics of the oscilloscope channel to which it is connected. A poorly compensated probe can introduce significant measurement errors. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 26: Learn The Front Panel Controls And Connectors
7 Connect probes to all other oscilloscope channels. 8 Repeat the procedure for each channel. Learn the Front Panel Controls and Connectors On the front panel, key refers to any key (button) you can press. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 27 20. USB 19. Demo/Probe Comp 18. Waveform 17. Analog 16. Math 15. [Help] key Host and Ground generator channel function port terminals output inputs controls Figure 3 InfiniiVision 1200 X-Series 4-Channel Oscilloscopes Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 28 Often, rotating the Entry knob is enough to make a selection. Sometimes, you can push the Entry knob to enable or disable a selection. Also, pushing the Entry knob can also make popup menus disappear. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 29 To capture and display a single acquisition (whether the oscilloscope is running or stopped), press [Single]. The [Single] key is yellow until the oscilloscope triggers. For more information, see "Running, Stopping, and Making Single Acquisitions (Run Control)" on page 129. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 30 See "Configuring the [Quick Action] Key" page 246. • [Save to USB] key — Press this key to perform a quick save to a USB storage device. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 31 On G-suffix models that have a built-in waveform generator, press this key to access waveform generator functions. See Chapter 19, “Waveform Generator,” starting on page 203. [FFT] key Provides access to FFT spectrum analysis function. See Chapter 5, “FFT Spectral Analysis,” starting on page 57. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 32 25. The oscilloscope can also output demo or training signals on this terminal. • Ground terminal — Use the ground terminal for oscilloscope probes connected to the Demo/Probe Comp terminal. See the warning in "Input a Waveform" on page 23. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 33: Front Panel Overlays For Different Languages
2 Insert the overlay's side tabs into the slots on the front panel. 3 Reinstall the front panel knobs. Learn the Rear Panel Connectors For the following figure, refer to the numbered descriptions in the table that follows. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 34: Learn The Oscilloscope Display
On 2-channel models, the external trigger input BNC connector is on the front panel. "External Trigger Input" on page 127 for an explanation of this feature. Learn the Oscilloscope Display The oscilloscope display contains acquired waveforms, setup information, measurement results, and the softkey definitions. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 35 Each analog channel's information appears in a different color. Signal detail is displayed using 256 levels of intensity. For more information about display modes see Chapter 9, “Display Settings,” starting on page 83. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 36: Access The Built-In Quick Help
Select the User Interface Language To select the user interface and Quick Help language: 1 Press [Help], then press the Language softkey. 2 Turn the Entry knob until the desired language is selected. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 37 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 2 Horizontal Controls To adjust the horizontal (time/div) scale / 38 To adjust the horizontal delay (position) / 39 Panning and Zooming Single or Stopped Acquisitions / 40 To change the horizontal time mode (Normal, XY, or Roll) / 40...
Page 38: Horizontal Controls
1 Turn the large horizontal scale (sweep speed) knob marked change the horizontal time/div setting. Notice how the time/div information in the status line changes. The ∇ symbol at the top of the display indicates the time reference point. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 39: To Adjust The Horizontal Delay (Position)
"Panning and Zooming Single or Stopped Acquisitions" on page 40. Note that the horizontal position knob has a different purpose in the Zoom display. "To display the zoomed time base" on page 44. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 40: Panning And Zooming Single Or Stopped Acquisitions
To change the horizontal time mode (Normal, XY, or Roll) 1 Press [Acquire]. 2 In the Acquire menu, press Time Mode; then, select: • Normal — the normal viewing mode for the oscilloscope. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 41: Xy Time Mode
Channel 1 is the X-axis input, channel 2 is the Y-axis input. You can use various transducers so the display could show strain versus displacement, flow versus pressure, volts versus current, or voltage versus frequency. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 42 5 Set the Y2 cursor to the top of the signal, and set Y1 to the bottom of the signal. Note the ΔY value at the bottom of the display. In this example, we are using the Y cursors, but you could have used the X cursors instead. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 43 (analog oscilloscopes called this Z-axis blanking because it turned the beam on and off). When Z is low (<1.4 V), Y versus X is displayed; when Z is high (>1.4 V), the trace is turned off. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 44: To Display The Zoomed Time Base
Zoom window window window when the Horizontal position knob is turned Normal window Signal anomaly expanded in zoom window Zoom window Select Zoom Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 45: To Change The Horizontal Scale Knob's Coarse/Fine Adjustment Setting
(displayed in the status line at the top of the display) in smaller increments. The time/div remains fully calibrated when Fine is on. When Fine is turned off, the Horizontal scale knob changes the time/div setting in a 1-2-5 step sequence. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 46: To Position The Time Reference (Left, Center, Right)
) knob in Normal mode (not Zoom) moves the trigger point indicator ( ) to the left or right of the time reference point (∇). See "To adjust the horizontal delay (position)" on page 39. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 47 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 3 Vertical Controls To turn waveforms on or off (channel or math) / 49 To adjust the vertical scale / 49 To adjust the vertical position / 49 To specify channel coupling / 50...
Page 48: Vertical Controls
Vertical Controls Keysight recommends always scaling the signal so that the entire waveform is contained NOTE between the top and bottom of the display. For proper operation of the 1200 X-Series oscilloscope, the channel inputs must not be overdriven more than ±8 divisions. Exceeding this limit may result in signals that appear incorrect and may increase crosstalk between the input channels.
Page 49: To Turn Waveforms On Or Off (Channel Or Math)
237. To adjust the vertical position 1 Turn the small vertical position knob ( ) to move the channel's waveform up or down on the display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 50: To Specify Channel Coupling
"To select the trigger coupling" on page 124. To specify bandwidth limiting 1 Press the desired channel key. 2 In the Channel menu, press the BW Limit softkey to enable or disable bandwidth limiting. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 51: To Change The Vertical Scale Knob's Coarse/Fine Adjustment Setting
Inverting a channel also changes the result of any math function selected in the waveform Math menu or any measurement. Setting Analog Channel Probe Options 1 Press the probe's associated channel key. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 52: To Specify The Channel Units
Channel sensitivity, trigger level, measurement results, and math functions will reflect the measurement units you have selected. To specify the probe attenuation The probe attenuation factor must be set properly for accurate measurement results. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 53: To Specify The Probe Skew
4 In the Channel Probe menu, press Skew; then, select the desired skew value. Each analog channel can be adjusted ±100 ns for a total of 200 ns difference. The skew setting is not affected by pressing [Default Setup] or [Auto Scale]. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 54 Vertical Controls Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 55 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 4 Analog Bus Display You can display a bus made up of the analog channel inputs and, on 2-channel oscilloscope models, the external trigger input. Any of the input channels can be assigned to the bus.
Page 56 The bus values display appears at the bottom of the graticule, above any serial bus waveforms (if present). Channel 1 is the least significant bit and channel 4 is the most significant bit. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 57: Fft Spectral Analysis
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 5 FFT Spectral Analysis FFT is used to compute the fast Fourier transform of analog input signals. FFT takes the digitized time record of the specified source and transforms it to the frequency domain.
Page 58 Pressing the FFT Auto Setup softkey will automatically rescale the waveform and span and center will again automatically track the horizontal scale setting. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 59 1 V/div, Units/div to 20 dBV, Offset to -40.0 dBV, Center frequency to 500 kHz, frequency Span to 1 MHz, and window to Hanning. See Also • "FFT Measurement Hints" on page 60 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 60: Fft Measurement Hints
For the best vertical accuracy on peak measurements: • Make sure the probe attenuation is set correctly. The probe attenuation is set from the Channel menu if the operand is a channel. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 61: Fft Units
• Adjust frequency span for better cursor placement. • Return to the Cursors menu to fine tune the X cursor. For more information on the use of FFTs, please refer to Keysight Application Note 243, The Fundamentals of Signal Analysis at http://literature.cdn.keysight.com/litweb/pdf/5952-8898E.pdf.
Page 62: Fft Aliasing
FFT resolution of 1.91 Hz. The displayed FFT spectrum waveform shows the components of the input signal above the Nyquist frequency to be mirrored (aliased) on the display and reflected off the right edge. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 63: Fft Spectral Leakage
FFT. The FFT menu provides four windows: Hanning, Flat Top, Rectangular, and Blackman-Harris. For more information on leakage, see Keysight Application Note 243, The Fundamentals of Signal Analysis at http://literature.cdn.keysight.com/litweb/pdf/5952-8898E.pdf.
Page 64 FFT Spectral Analysis Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 65 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 6 Math Waveforms To display math waveforms / 66 To perform a math function on an arithmetic operation / 67 To adjust the math waveform scale and offset / 67 Units for Math Waveforms / 67...
Page 66: Math Waveforms
The vertical scaling and offset of each math function can be adjusted for ease of viewing and measurement considerations. The math function waveform can be measured using [Cursors] and/or [Meas]. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 67: To Perform A Math Function On An Arithmetic Operation
Units for Math Waveforms Units for each input channel can be set to Volts or Amps using the Units softkey in the Channel Probe menu. Units for math function waveforms are: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 68: Math Operators
You can use subtract to make a differential measurement or to compare two waveforms. If your waveforms' DC offsets are larger than the dynamic range of the oscilloscope's input channels you will need to use a differential probe instead. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 69: Multiply Or Divide
The divide by zero case places holes (that is, zero values) in the output waveform. Multiply is useful for seeing power relationships when one of the channels is proportional to the current. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 70: Math Transforms
The FFT takes the digitized time record of the specified source and transforms it to the frequency domain. The source of the FFT math functions can be analog input channels or an arithmetic operation g(t). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 71 FFT sample rate, which is a function of the time per division setting. The FFT resolution is the quotient of the sampling rate and the number of FFT points (f /N). The current FFT Resolution is displayed. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 72 Vertical Units — For FFT (Magnitude), you can select Decibels or V RMS. For FFT (Phase), you can select Degrees or Radians. Use the knobs for the [Math] key to adjust the FFT waveform vertical scale and offset. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 73 1. Set the horizontal scale to 50 µs/div, vertical sensitivity to 1 V/div, Units/div to 20 dBV, Offset to -60.0 dBV, Center frequency to 250 kHz, frequency Span to 500 kHz, and window to Hanning. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 74: Math Filters
• "Low Pass Filter" on page 74 Low Pass Filter The low-pass filter function applies the filter to the selected source waveform and display the resut in the math waveform. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 75 The ratio of the input signal's Nyquist frequency and the selected -3 dB cutoff frequency NOTE affects how many points are available in the output, and under some circumstances, there are no points in the output waveform. Figure 12 Example of Low Pass Filter Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 76 Math Waveforms Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 77: Reference Waveforms
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 7 Reference Waveforms To save a waveform to a reference waveform location / 77 To display a reference waveform / 78 To scale and position reference waveforms / 79 To adjust reference waveform skew / 79...
Page 78: To Display A Reference Waveform
To display a reference waveform 1 Press the [Analyze] key. 2 Press Features; then, select R1 or R2. 3 Press Features again (or push the Entry knob) to turn on the reference waveform. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 79: To Scale And Position Reference Waveforms
To adjust reference waveform skew Once reference waveforms are displayed, you can adjust their skew. 1 Display the desired reference waveform (see "To display a reference waveform" on page 78). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 80: To Display Reference Waveform Information
You can recall a reference waveform file from a USB storage device into one of the reference waveform locations. See "To recall reference waveform files from a USB storage device" on page 224. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 81: Serial Bus Decode/Trigger
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 8 Serial Bus Decode/Trigger Depending on the oscilloscope model, the following hardware-accelerated serial decode and trigger features are available: Serial decode and trigger type: Available on: CAN (Controller Area Network) DSOX1200-Series models...
Page 82 Serial Bus Decode/Trigger • Chapter 28, “SPI Triggering and Serial Decode,” starting on page 301 • Chapter 29, “UART/RS232 Triggering and Serial Decode,” starting on page 313 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 83: Display Settings
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 9 Display Settings To adjust waveform intensity / 83 To set or clear persistence / 85 To clear the display / 86 To select the grid type / 86 To adjust the grid intensity / 87...
Page 84 Display Settings Figure 13 Amplitude Modulation Shown at 100% Intensity Figure 14 Amplitude Modulation Shown at 40% Intensity Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 85: To Set Or Clear Persistence
Entry knob to specify the amount of time that previous acquisitions are to be displayed. The display will begin accumulating multiple acquisitions. 4 To erase the results of previous acquisitions from the display, press the Clear Persistence softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 86: To Clear The Display
The mV and IRE grid values are accurate (and match Y cursor values) when the vertical scaling is 140 mV/division and the vertical offset is 245 mV. To select the grid type: 1 Press [Display]. 2 In the Display menu, press Grid. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 87: To Adjust The Grid Intensity
1 On the oscilloscope's front panel, press [Display]. 2 In the Display menu, press Annotation. 3 In the Annotation menu, press Annotation to enable the annotation. 4 Press Edit. 5 In the Edit Annotation menu: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 88 You can use a connected USB keyboard instead of using the Spell (and other) character NOTE editing softkeys. • Use the Clear softkey to delete all annotation characters. • Press OK to save the annotation edits. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 89: To Freeze The Display
227 To freeze the display To freeze the display without stopping running acquisitions, you must configure the [Quick Action] key. See "Configuring the [Quick Action] Key" on page 246. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 90 2 To un-freeze the display, press [Quick Action] again. Manual cursors can be used on the frozen display. Many activities, such as adjusting the trigger level, adjusting vertical or horizontal settings, or saving data will un-freeze the display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 91: 10 Labels
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 10 Labels To turn the label display on or off / 91 To assign a predefined label to a channel / 92 To define a new label / 93 To load a list of labels from a text file you create / 94...
Page 92: To Assign A Predefined Label To A Channel
To assign a predefined label to a channel 1 Press [Display] > Labels > Edit. 2 Press the Channel softkey, then turn the Entry knob or successively press the Channel softkey to select a channel for label assignment. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 93: To Define A New Label
The channel does not have to be turned on to have a label assigned to it. If the channel is turned on, its current label will be highlighted. 3 Press the Spell softkey; then, turn the Entry knob to select the first character in the new label. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 94: To Load A List Of Labels From A Text File You Create
You can create a list of up to 75 labels and load it into the oscilloscope. Labels are added to the beginning of the list. If more than 75 labels are loaded, only the first 75 are stored. To load labels from a text file into the oscilloscope: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 95: To Reset The Label Library To The Factory Default
This will delete all user-defined labels from the library and set the labels in the library back to the factory default. However, this does not default the labels currently assigned to the channels (those labels that appear in the waveform area). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 96 Defaulting labels without erasing the default library NOTE Pressing [Default Setup] sets all channel labels back to the default labels but does not erase the list of user-defined labels in the library. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 97: 11 Triggers
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 11 Triggers Adjusting the Trigger Level / 99 Forcing a Trigger / 99 Edge Trigger / 99 Pulse Width Trigger / 102 Pattern Trigger / 104 Rise/Fall Time Trigger / 106...
Page 98 The position of the trigger event in acquisition memory is defined by the time reference point and the delay (horizontal position) setting (see "To adjust the horizontal delay (position)" on page 39). Trigger Event Post-Trigger Buffer Pre-Trigger Buffer Acquisition Memory Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 99: Adjusting The Trigger Level
You can define the trigger source and slope in this menu. The trigger type, source, and level (if applicable) are displayed in the upper-right corner of the display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 100 5 Press the Slope softkey and select rising edge, falling edge, alternating edges, or either edge (depending on the selected source). The selected slope is displayed in the upper-right corner of the display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 101 You can then pan and zoom through the data using the Horizontal and Vertical knobs to find a stable trigger point. Autoscale often produces a triggered display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 102: Pulse Width Trigger
The source can be any analog channel available on your oscilloscope. 5 Adjust the trigger level by turning the Trigger Level knob. The value of the trigger level is displayed in the upper-right corner of the display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 103 8 Select the qualifier time set softkey (< or >), then rotate the Entry knob to set the pulse width qualifier time. The qualifiers can be set as follows: • 17 ns to 10 s for > or < qualifier. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 104: Pattern Trigger
Level knob. The value of the trigger level is displayed in the upper-right corner of the display. 5 For each channel you select, press the Pattern softkey; then, turn the Entry knob to set the condition for that channel in the pattern. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 105 You are allowed to specify only one rising or falling edge term in the pattern. If you define an edge term, then select a different channel in the pattern and define another edge term, the previous edge definition is changed to a don't care. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 106: Rise/Fall Time Trigger
3 Press the Trigger Type softkey; then, turn the Entry knob to select Rise/Fall Time. 4 Press the Source softkey, and turn the Entry knob to select the input channel source. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 107: Setup And Hold Trigger
4 Press the Clock softkey; then, turn the Entry knob to select the input channel with the clock signal. 5 Set the appropriate trigger tevel for the clock signal using the Trigger Level knob. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 108: Video Trigger
The oscilloscope's MegaZoom IV technology gives you bright, easily viewed displays of any part of the video waveform. Analysis of video waveforms is simplified by the oscilloscope's ability to trigger on any selected line of the video signal. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 109 Turning the Trigger Level knob does not change the trigger level because the trigger level is automatically set to the sync pulse. Trigger coupling is automatically set to TV in the Trigger menu. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 110 NOTE Many video signals are produced from 75 Ω sources. To provide correct matching to these sources, a 75 Ω terminator (such as a Keysight 11094B) should be connected to the oscilloscope input. 5 Press the sync polarity softkey to set the Video trigger to either positive (...
Page 111 Line: Field1 and Line:Field2 — Trigger on the selected line # in field 1 or field 2 (interlaced standards only). • Line: Alternate — Alternately trigger on the selected line # in field 1 and field 2 (NTSC, PAL, PAL-M, and SECAM only). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 112: To Trigger On A Specific Line Of Video
3 Press the Trigger Type softkey; then, turn the Entry knob to select Video. 4 Press the Settings softkey, then press the Standard softkey to select the appropriate TV standard (NTSC). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 113: To Trigger On All Sync Pulses
1 Press the [Trigger] key. 2 In the Trigger menu, press the Trigger Type softkey. 3 Press the Trigger Type softkey; then, turn the Entry knob to select Video. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 114: To Trigger On A Specific Field Of The Video Signal
3 Press the Trigger Type softkey; then, turn the Entry knob to select Video. 4 Press the Settings softkey, then press the Standard softkey to select the appropriate TV standard. 5 Press the Mode softkey and select Field1 or Field2. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 115: To Trigger On All Fields Of The Video Signal
3 Press the Trigger Type softkey; then, turn the Entry knob to select Video. 4 Press the Settings softkey, then press the Standard softkey to select the appropriate TV standard. 5 Press the Mode softkey and select All Fields. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 116: To Trigger On Odd Or Even Fields
But this definition of field does not take into consideration the phase of the reference subcarrier. When Field 1 is selected, the trigger system will find any field where the vertical sync starts on Line 4. In the case of NTSC video, the Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 117 Repeat until the correct phase is displayed. When holdoff is adjusted using the Field Holdoff softkey and the Entry knob, the corresponding holdoff time will be displayed in the Trigger menu. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 118: Serial Trigger
81), you can enable serial trigger types. To set up these triggers, see: • "CAN Triggering" on page 277 • "I2C Triggering" on page 286 • "LIN Triggering" on page 295 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 119 Triggers • "SPI Triggering" on page 307 • "UART/RS232 Triggering" on page 315 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 120 Triggers Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 121 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 12 Trigger Mode/Coupling To select the Auto or Normal trigger mode / 122 To select the trigger coupling / 124 To enable or disable trigger noise rejection / 125 To enable or disable trigger HF Reject / 125...
Page 122: Trigger Mode/Coupling
Post-Trigger the pre-trigger buffer is filled, the oscilloscope starts searching for a trigger, and Buffers sampled data continues to flow data through the pre-trigger buffer in a first-in first-out (FIFO) manner. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 123 LIN, etc.) or another signal that arrives in bursts. The Normal trigger mode lets you stabilize the display by preventing the oscilloscope from auto-triggering. • Making single-shot acquisitions with the [Single] key. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 124: To Select The Trigger Coupling
LF (low frequency) Reject coupling — adds a high-pass filter with the 3-dB point at 50 kHz in series with the trigger waveform. 0 dB 3 dB down point Pass Band 50 kHz Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 125: To Enable Or Disable Trigger Noise Rejection
3 Press Reject again (or push the Entry knob) to enable or disable. To enable or disable trigger HF Reject HF Reject adds a 50 kHz low-pass filter in the trigger path to remove high frequency components from the trigger waveform. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 126: To Set The Trigger Holdoff
For example, to get a stable trigger on the repetitive pulse burst shown below, set the holdoff time to be >200 ns but <600 ns. Holdoff Oscilloscope triggers here 200 ns 600 ns To set the trigger holdoff: 1 Press the [Trigger] key. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 127: External Trigger Input
Changing the time base settings does not affect the trigger holdoff time. With Keysight's MegaZoom technology, you can press [Stop], then pan and zoom through the data to find where the waveform repeats. Measure this time using cursors; then, set the holdoff.
Page 128 The range is automatically recalculated when a different External Trigger probe attenuation factor is chosen. 6 On 2-channel oscilloscopes, press the Position softkey; then, turn the Entry knob to adjust the vertical position of the Ext Trig signal's digital waveform. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 129: 13 Acquisition Control
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 13 Acquisition Control Running, Stopping, and Making Single Acquisitions (Run Control) / 129 Overview of Sampling / 130 Selecting the Acquisition Mode / 135 Acquiring to Segmented Memory / 141 This chapter shows how to use the oscilloscope's acquisition and run controls.
Page 130: Overview Of Sampling
To understand the oscilloscope's sampling and acquisition modes, it is helpful to understand sampling theory, aliasing, oscilloscope bandwidth and sample rate, oscilloscope rise time, oscilloscope bandwidth required, and how memory depth affects sample rate. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 131: Sampling Theory
Figure 21 Aliasing Oscilloscope Bandwidth and Sample Rate An oscilloscope's bandwidth is typically described as the lowest frequency at which input signal sine waves are attenuated by 3 dB (-30% amplitude error). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 132 (square waves are made up of sine waves at the fundamental frequency and an infinite number of odd harmonics), and typically, for 500 MHz bandwidths and below, oscilloscopes have a Gaussian frequency response. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 133: Oscilloscope Rise Time
10% to 90% criterion. An oscilloscope's rise time is not the fastest edge speed that the oscilloscope can accurately measure. It is the fastest edge speed the oscilloscope can possibly produce. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 134: Oscilloscope Bandwidth Required
= 1.9 x f knee See Also Choosing an Oscilloscope with the Right Bandwidth for your Application, Keysight Application Note 1588 (http://literature.cdn.keysight.com/litweb/pdf/5989-5733EN.pdf) Memory Depth and Sample Rate The number of points of oscilloscope memory is fixed, and there is a maximum sample rate associated with oscilloscope's analog-to-digital converter;...
Page 135: Selecting The Acquisition Mode
Peak Detect — at slower time/div settings, the maximum and minimum samples in the effective sample period are stored. Use this mode for displaying narrow pulses that occur infrequently. See "Peak Detect Acquisition Mode" on page 136. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 136: Normal Acquisition Mode
In peak detect mode, narrow glitches and sharp edges are displayed more brightly than when in Normal acquire mode, making them easier to see. To characterize the glitch, use the cursors or the automatic measurement capabilities of the oscilloscope. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 137 Acquisition Control Figure 24 Sine With Glitch, Normal Mode Figure 25 Sine With Glitch, Peak Detect Mode Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 138: Averaging Acquisition Mode
The number of averages can be set from 2 to 65536 in power-of-2 increments. A higher number of averages reduces noise more and increases vertical resolution. # Avgs Bits of resolution ≥ Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 139 2 Press the #Avgs softkey and turn the Entry knob to set the number of averages that best eliminates the noise from the displayed waveform. The number of acquisitions being averaged is displayed in the # Avgs softkey. Figure 26 Random noise on the displayed waveform Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 140: High Resolution Acquisition Mode
MegaZoom custom ASIC. High Resolution mode limits the oscilloscope's real-time bandwidth because it effectively acts like a low-pass filter. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 141: Acquiring To Segmented Memory
Memory can be divided into as few as two segments and as many as 500 segments. 6 Press the [Run] or [Single] key. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 142: Navigating Segments
5 µs/div, and the Time Reference is set to Center, it will take at least 50 µs to fill all ten divisions and re-arm. (That is 25 µs to capture pre-trigger data and 25 µs to capture post-trigger data.) Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 143: Saving Data From Segmented Memory
When the oscilloscope is busy saving multiple segments, progress is displayed in the upper right area of the display. For more information, see "To save CSV, ASCII XY, or BIN data files" on page 218. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 144 Acquisition Control Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 145 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 14 Cursors To make cursor measurements / 146 Cursor Examples / 150 Cursors are horizontal and vertical markers that indicate X-axis values and Y-axis values on a selected waveform source. You can use cursors to make custom voltage, time, phase, or ratio measurements on oscilloscope signals.
Page 146: To Make Cursor Measurements
The Cursors box in the right-side information area appears, indicating that cursors are "on". (Press the [Cursors] key again when you want to turn cursors off.) 3 In the Cursors menu, press Mode; then, select the desired mode: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 147 Binary — Logic levels of displayed waveforms at the current X1 and X2 cursor positions are displayed in binary. The display is color coded to match the color of the related channel's waveform. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 148 This can be useful, for example, for checking pulse width variations in a pulse train. The currently selected cursor(s) display brighter than the other cursors. 6 To change the cursor units, press the Units softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 149 For phase or ratio units, once the 0 and 360 degree or 0 and 100% locations are set, adjusting cursors will display measurements relative to the set locations. 7 Adjust the selected cursor(s) by turning the Cursors knob. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 150: Cursor Examples
Cursors Cursor Examples Figure 28 Cursors used to measure pulse widths other than middle threshold points Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 151 Cursors Figure 29 Cursors measure frequency of pulse ringing Expand the display with Zoom mode, then characterize the event of interest with the cursors. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 152 Cursors Figure 30 Cursors track Zoom window Put the X1 cursor on one side of a pulse and the X2 cursor on the other side of the pulse. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 153 Cursors Figure 31 Measuring pulse width with cursors Press the X1 X2 linked softkey and move the cursors together to check for pulse width variations in a pulse train. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 154 Cursors Figure 32 Moving the cursors together to check pulse width variations Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 155 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 15 Measurements To make automatic measurements / 156 Measurements Summary / 157 Voltage Measurements / 160 Time Measurements / 167 Count Measurements / 174 Measurement Thresholds / 175 Measurement Window with Zoom Display / 177 The [Meas] key lets you make automatic measurements on waveforms.
Page 156: To Make Automatic Measurements
3 Press the Type softkey then rotate the Entry knob to select a measurement to be made. For more information on the types of measurements, see "Measurements Summary" on page 157. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 157: Measurements Summary
All measurements are available for analog channel waveforms. All measurements except Counter are available for math waveforms other than FFT. A limited set of measurements is available for math FFT waveforms (as described in the following table). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 158 160 "Period" on page 167 "Phase" on page 171 Measures between two sources. Press Settings to specify the second source. "Preshoot" on page 163 "Rise Time" on page 170 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 159: Snapshot All
The Snapshot All measurement type displays a popup containing a snapshot of all the single waveform measurements. You can also configure the [Quick Action] key to display the Snapshot All popup. "Configuring the [Quick Action] Key" on page 246. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 160: Voltage Measurements
The peak-to-peak value is the difference between Maximum and Minimum values. The Y cursors show the values being measured. Maximum Maximum is the highest value in the waveform display. The Y cursor shows the value being measured. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 161: Minimum
The following figure shows how to use Zoom mode to isolate a pulse for a Top measurement. You may need to change the measurement window setting so that the measurement is made in the lower, Zoom window. See "Measurement Window with Zoom Display" on page 177. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 162: Base
Amplitude. The X cursors show which edge is being measured (edge closest to the trigger reference point). local Maximum − D Top Rising edge overshοot = × 100 Amplitude Falling edge overshοot = Base − D local Minimum × 100 Amplitude Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 163: Preshoot
Amplitude. The X cursors show which edge is being measured (edge closest to the trigger reference point). local Maximum − D Top Rising edge preshοot = × 100 Amplitude Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 164: Average
The X cursors show what interval of the waveform is being measured. DC RMS DC RMS is the root-mean-square value of the waveform over one or more full periods. ∑ RMS (dc) = Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 165: Ac Rms
Greek letter sigma: σ. For a Gaussian distribution, two sigma (± 1σ) from the mean, is where 68.3 percent of the measurement results reside. Six sigma (± 3σ) from is where 99.7 percent of the measurement results reside. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 166 − x ¯ ∑ σ = where: • σ = the standard deviation. • N = the number of measurements taken. • x = the ith measurement result. • x = the mean. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 167: Time Measurements
The X cursors show what portion of the waveform is being measured. The Y cursor shows the middle threshold point. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 168: Frequency
Zoom window. See "Measurement Window with Zoom Display" on page 177. If the waveform is clipped, it may not be possible to make the measurement. Figure 35 Isolating an event for Frequency measurement Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 169: Counter
The bit rate measurement measures all positive and negative pulse widths on the waveform, takes the minimum value found of either width type and inverts that minimum width to give a value in Hertz. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 170: Duty Cycle
Negative delay values indicate that the selected edge of source 1 occurred after the selected edge of source 2. Source 1 Delay Source 2 1 Press the [Meas] key to display the Measurement menu. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 171: Phase
Phase is the calculated phase shift from source 1 to source 2, expressed in degrees. Negative phase shift values indicate that the rising edge of source 1 occurred after the rising edge of source 2. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 172 Back key to return to the Measurement menu. Back 6 Press the Add Measurement softkey to make the measurement. The example below shows a phase measurement between the channel 1 and the math d/dt function on channel 1. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 173: At Min Y
1 Select FFT as the Operator in the Waveform Math Menu. 2 Choose Math: f(t) as the source in the Measurement Menu. 3 Choose Maximum and X at Max Y measurements. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 174: Count Measurements
The Positive Pulse Count measurement is a pulse count for the selected waveform source. Positive pulse count This measurement is available for analog channels. Negative Pulse Count The Negative Pulse Count measurement is a pulse count for the selected waveform source. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 175: Rising Edge Count
Top and Base. Changing these threshold definitions from the default values may change the returned measurement results for Average, Delay, Duty Cycle, Fall Time, Frequency, Overshoot, Period, Phase, Preshoot, Rise Time, +Width, and -Width. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 176 The default lower threshold is 10% (or 800 mV when absolute thresholds are selected). If threshold Type is set to %, the lower threshold value can be set from 5% to 93%. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 177: Measurement Window With Zoom Display
Main window is used. • Main — The measurement window is the upper, Main window. • Zoom — The measurement window is the lower, Zoom window. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 178 Measurements Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 179: 16 Mask Testing
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 16 Mask Testing To create a mask from a "golden" waveform (Automask) / 179 Mask Test Setup Options / 182 Mask Statistics / 184 To manually modify a mask file / 185...
Page 180 8 Press the Create Mask softkey. The mask is created and testing begins. Whenever the Create Mask softkey is pressed the old mask is erased and a new mask is created. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 181 If you press Create Mask and it appears that no mask was created, check the ± Y and ± X settings. They may be set so large that the mask is not visible. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 182: Mask Test Setup Options
Stop — The oscilloscope will stop when the first error is detected (on the first waveform that does not conform to the mask). This setting supersedes the Minimum # of Tests and Minimum Time settings. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 183 Automask menu. • Test All — When enabled, all displayed analog channels are included in the mask test. When disabled, just the selected source channel is included in the test. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 184: Mask Statistics
Failure rate (percentage of failures). • Sigma (the ratio of process sigma to maximum achievable sigma, based on number of waveforms tested). • Reset Statistics — Note that statistics are also reset when: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 185: To Manually Modify A Mask File
9 Open the .msk file your created using a text editor (such as Wordpad). 10 Edit, save, and close the file. The mask file contains the following sections: • Mask File Identifier. • Mask Title. • Mask Violation Regions. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 186 Region number 1 is the top mask region. The vertices in Region 1 describe points along a line; that line is the bottom edge of the top portion of the mask. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 187 The mask scaling controls how the normalized vectors are interpreted. This in turn controls how the mask is drawn on the display. The remote programming commands that control mask scaling are: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 188: Building A Mask File
The following mask file produced the mask shown above: MASK_FILE_548XX "All Regions" /* Region Number */ 1 /* Number of vertices */ 4 -12.50, -10.00, 1.750 10.00, 1.750 12.50, /* Region Number */ 2 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 189 /* Number of vertices */ 4 -12.50, -10.00, -1.750 10.00, -1.750 12.50, setup :MTES:ENAB 1 :CHAN1:RANG +4.00E+00;OFFS +0.0E+00;COUP DC;IMP ONEM;DISP 1;BWL 0;INV 0 :CHAN1:LAB "1";UNIT VOLT;PROB +1.0E+00;PROB:SKEW +0.0E+00;STYP SING :CHAN2:RANG +16.0E+00;OFFS +1.62400E+00;COUP DC;IMP FIFT;DISP 0;BWL 0;INV Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 190 • The X1 setup command specifies the time location of the x,y graph's x origin. • The Y1 setup command specifies the vertical location of the x,y graph's y origin. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 191: How Is Mask Testing Done
"# of Tests". The mask file allows greater resolution than the 200 X 640 database. Some quantization of data occurs to reduce the mask file data for display on-screen. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 192 Mask Testing Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 193: 17 Digital Voltmeter
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 17 Digital Voltmeter The Digital Voltmeter (DVM) analysis feature provides 3-digit voltage and 5-digit frequency measurements using any analog channel. DVM measurements are asynchronous from the oscilloscope's acquisition system and are always acquiring.
Page 194 DC — displays the DC value of the acquired data. • DC RMS — displays the root-mean-square value of the acquired data. • AC RMS — displays the root-mean-square value of the acquired data, with the DC component removed. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 195 When enabled, Auto Range overrides attempted adjustments of the channel's vertical scale and position knobs. When disabled, you can use the channel's vertical scale and position knobs normally. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 196 Digital Voltmeter Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 197: Frequency Response Analysis
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 18 Frequency Response Analysis To make connections / 197 To set up and run the analysis / 198 To view and save the analysis results / 200 On G-suffix oscilloscope models (that have a built-in waveform generator), the...
Page 198: To Set Up And Run The Analysis
Output (Transfer Function) To set up and run the analysis 1 Press the [Analyze] key. 2 Press Features; then, select Frequency Response Analysis. 3 Press Features again to enable the feature. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 199 Frequency Response Analysis 4 Press the Setup softkey. In the FRA Setup menu, these softkeys are present for setting up the frequency response analysis: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 200: To View And Save The Analysis Results
Bode plot chart. You can press the Move Marker softkey and turn the Entry knob to move a marker across the chart to see the measured gain and phase values at each frequency point. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 201 Because the chart's ending frequency value must be greater than the starting frequency value, increasing the starting value can also cause the ending value to be increased. Likewise, decreasing the ending value can also cause the starting value to be decreased. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 202 • Autoscale — automatically sets the scale and offset of the gain and phase plots based on the measured values. You can save the analysis results by choosing [Save/Recall] > Save > Format and selecting the Frequency Response Analysis data (*.csv) option. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 203: 19 Waveform Generator
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 19 Waveform Generator To select generated waveform types and settings / 203 To specify the expected output load / 206 To use waveform generator logic presets / 207 To add noise to the waveform generator output / 207...
Page 204 Waveform Generator 3 Depending on the selected waveform type, use the remaining softkeys and the Entry knob to set the waveform's characteristics. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 205 For all waveform types, the output amplitude, into 50 Ω, can be adjusted from 10 mVpp to 2.5 Vpp (or from 20 mVpp to 5 Vpp into an open-circuit load). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 206: To Specify The Expected Output Load
2 In the Wave Gen menu, press the Settings softkey. 3 In the Wave Gen Settings menu, press the Out Load softkey and turn the Entry knob to select: • 50 Ω Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 207: To Use Waveform Generator Logic Presets
-0.8 V (ECL compatible) -0.9 V To add noise to the waveform generator output 1 If the Wave Gen menu is not currently displayed on the oscilloscope's softkeys, press the [Wave Gen] key. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 208: To Add Modulation To The Waveform Generator Output
1 If the Wave Gen menu is not currently displayed on the oscilloscope's softkeys, press the [Wave Gen] key. 2 In the Wave Gen menu, press the Settings softkey. 3 In the Wave Gen Settings menu, press the Modulation softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 209: To Set Up Amplitude Modulation (Am)
3 Press the AM Freq softkey and turn the Entry knob to specify the frequency of the modulating signal. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 210: To Set Up Frequency Modulation (Fm)
1 Press the Type softkey and turn the Entry knob to select Frequency Modulation (FM). 2 Press the Waveform softkey and turn the Entry knob to select the shape of the modulating signal: • Sine • Square • Ramp Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 211 100 kHz. The following screen shows an FM modulation of a 100 kHz sine wave carrier signal. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 212: To Set Up Frequency-Shift Keying Modulation (Fsk)
3 Press the FSK Rate softkey and turn the Entry knob to specify the rate at which the output frequency "shifts". The FSK rate specifies a digital square wave modulating signal. The following screen shows an FSK modulation of a 100 kHz sine wave carrier signal. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 213: To Restore Waveform Generator Defaults
3 In the Wave Gen Settings menu, press the Default Wave Gen softkey. The waveform generator factory default settings (1 kHz sine wave, 500 mVpp, 0 V offset, High-Z output load) are restored. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 214 Waveform Generator Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 215: Save/Recall (Setups, Screens, Data)
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 20 Save/Recall (Setups, Screens, Data) Saving Setups, Screen Images, or Data / 215 Recalling Setups, Masks, or Reference Waveforms / 222 Recalling Default Setups / 224 Performing a Secure Erase / 224 Oscilloscope setups, reference waveforms, and mask files can be saved to internal oscilloscope memory or to a USB storage device and recalled later.
Page 216 220. • Mask (*.msk) — This creates a mask file in a Keysight proprietary format that can be read by Keysight InfiniiVision oscilloscopes. A mask data file includes some oscilloscope setup information, but not all setup information. To save all setup information including the mask data file, choose "Setup (*.scp)"...
Page 217: To Save Setup Files
Invert Grat — the graticule in the image file has a white background instead of the black backgound that appears on-screen. • Palette — lets you choose between Color or Grayscale images. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 218: To Save Csv, Ascii Xy, Or Bin Data Files
(See also "Saving Data from Segmented Memory" on page 143.) 4 Finally, press the Press to Save softkey. A message indicating whether the save was successful is displayed. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 219: Length Control
5000 data points in length, four of each five data points will be decimated, creating an output file 1000 data points in length. When saving waveform data, the save times depend on the chosen format: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 220: To Save Lister Data Files
4 Press the Source softkey and turn the Entry knob to select the source waveform. 5 Press the softkey in the second position and use the Entry knob to navigate to the save location. See "To navigate storage locations" on page 221. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 221: To Save Masks
• Location — when you have navigated to the current folder location (and are not saving files). • Save to — when you can save to the selected location. • Load from — when you can recall from the selected file. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 222: To Enter File Names
Recalling Setups, Masks, or Reference Waveforms 1 Press the [Save/Recall] key. 2 In the Save/Recall menu, press Recall. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 223: To Recall Setup Files
3 Press the Press to Recall softkey. A message indicating whether the recall was successful is displayed. 4 If you would like to clear the display or clear the recalled mask, press Clear Display or Clear Mask. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 224: To Recall Reference Waveform Files From A Usb Storage Device
You must confirm the recall because there are no user settings that are left unchanged. Performing a Secure Erase 1 Press the [Save/Recall] key. 2 In the Save/Recall menu, press Default/Erase. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 225 This performs a secure erase of all non-volatile memory in compliance with National Industrial Security Program Operation Manual (NISPOM) Chapter 8 requirements. You must confirm the secure erase, and the oscilloscope will reboot when finished. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 226 Save/Recall (Setups, Screens, Data) Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 227: Print (Screens)
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 21 Print (Screens) To print the oscilloscope's display / 227 To set up network printer connections / 229 To specify the print options / 230 To specify the palette option / 230 You can print the complete display, including the status line and softkeys, to a USB printer or a network printer when the oscilloscope is set up on a network.
Page 228 You can also configure the [Quick Action] key to print the display. See "Configuring the [Quick Action] Key" on page 246. See Also • "To add an annotation" on page 87 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 229: To Set Up Network Printer Connections
You can use a connected USB keyboard instead of using the Spell (and other) character NOTE editing softkeys. 6 Press the Apply softkey to make the printer connection. A message appears to tell you whether the connection was successful. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 230: To Specify The Print Options
The oscilloscope's print driver cannot print color images to color laser printers, so the Color option is not available when connected to laser printers. • Grayscale — Select this to print the screen in shades of gray rather than in color. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 231: I/O Interface Settings
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 22 Utility Settings I/O Interface Settings / 231 Setting up the Oscilloscope's LAN Connection / 232 File Explorer / 234 Setting Oscilloscope Preferences / 236 Setting the Oscilloscope's Clock / 240...
Page 232: Utility Settings
249. Any time you modify the oscilloscope's hostname, it breaks the connection between the NOTE oscilloscope and the LAN. You need to re-establish communication to the oscilloscope using the new hostname. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 233: To Establish A Lan Connection
Press the Apply softkey. 6 Connect the oscilloscope to the local area network (LAN) by inserting the LAN cable into the "LAN" port on the rear panel of the oscilloscope. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 234: Stand-Alone (Point-To-Point) Connection To A Pc
LAN configuration settings 4 Connect your PC to the oscilloscope using a cross-over LAN cable such as Keysight part number 5061-0701, available on the web at www.keysight.com/find/parts. 5 Cycle power on the oscilloscope. Wait until the LAN connection is configured: •...
Page 235 Pushing the Entry knob is the same as pressing the Load File softkey. A file that has been deleted from a USB storage device cannot be recovered by the oscilloscope. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 236: Setting Oscilloscope Preferences
237 • "To load the default label library" on page 237 • "To set up the screen saver" on page 237 • "To set Autoscale preferences" on page 239 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 237: To Choose "Expand About" Center Or Ground
95. To set up the screen saver The oscilloscope can be configured to turn on a display screen saver when the oscilloscope has been idle for a specified length of time. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 238 Then press the Enter softkey to advance to the next character and repeat the process. You can use a connected USB keyboard instead of using the Spell (and other) character NOTE editing softkeys. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 239: To Set Autoscale Preferences
[Auto Scale]. • Press the Acq Mode softkey and turn the Entry knob to select whether the acquisition mode should be preserved during autoscale: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 240: Setting The Oscilloscope's Clock
Setting the Gen Out Source On G-suffix oscilloscope models (that have a built-in waveform generator), you can choose the source of the Gen Out connector on the front panel of the oscilloscope: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 241: Enabling Remote Command Logging
(and results returned by the instrument) can be logged to the screen, to a text file on a USB storage device, or to both the screen and a text file. To enable remote command logging: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 242 7 Press Transparent to disable or enable a transparent background for the remote command logging screen display. Enable to make the background transparent. This lets you view underlying waveforms. Disable for a solid background which makes the logged remote commands easier to read. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 243: Performing Service Tasks
Performing User Cal will invalidate your Certificate of Calibration. If NIST (National Institute of Standards and Technology) traceability is required, perform the "Performance Verification" procedure in the Keysight InfiniiVision 1200 X-Series Oscilloscopes Service Guide using traceable sources. To perform user calibration:...
Page 244: To Perform Hardware Self Test
Pressing [Utility] > Service > Diagnostics > Export Logs opens the Log Export menu where you can save crash log files to a connected USB storage device. Crash log files are used by Keysight Technical Support when debugging oscilloscope problems.
Page 245: To Display Oscilloscope Information
1 Point your web browser to: www.keysight.com/find/warrantystatus 2 Enter your product's model number and serial number. The system will search for the warranty status of your product and display the results. If the system Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 246: To Contact Keysight
• Description of service required or failure indication. 2 Remove accessories from the oscilloscope. Only return accessories to Keysight Technologies if they are associated with the failure symptoms. 3 Package the oscilloscope. You can use the original shipping container, or provide your own materials sufficient to protect the instrument during shipping.
Page 247: Utility Settings
• Quick Clear Display — clears the display, see "To clear the display" page 86. Once the [Quick Action] key is configured, you simply press it to perform the selected action. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 248 Utility Settings Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 249 Instrument Utilities / 258 Setting a Password / 259 When Keysight InfiniiVision 1200 X-Series and EDUX1052A/G oscilloscopes are set up on the LAN, you can access the oscilloscope's built-in web server using a web browser. The oscilloscope's web interface lets you: •...
Page 250: Web Interface
It is possible to use a point-to-point connection, but using a normal LAN connection is the preferred method. 2 Type the oscilloscope's hostname or IP address in the web browser. The oscilloscope's web interface Welcome Page is displayed. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 251: Control Instrument
• The Browser-Based Remote Front Panel (see "Remote Front Panel" page 252). • The SCPI Command window applet for Remote Programming (see "Remote Programming via the Web Interface" on page 252). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 252: Remote Front Panel
If Java is not installed on your PC, you will be prompted to install the Java Plug-in. This NOTE plug-in must be installed on the controlling PC for the web interface's Remote Programming operations. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 253 The SCPI Command window is useful for testing commands or entering a few commands interactively. When creating automated programs for controlling the oscilloscope, you will typically use the Keysight IO Libraries from within a programming environment like Microsoft Visual Studio (see "Remote...
Page 254: Remote Programming With Keysight Io Libraries
While the SCPI Commands applet window lets you enter and remote programming commands, remote programming for automated test and data acquisition is typically done using the Keysight IO Libraries, which are separate from the instrument's web interface. The Keysight IO Libraries let a controller PC communicate with Keysight InfiniiVision X-Series oscilloscopes via their USB, LAN, or GPIB interfaces (if available).
Page 255: Save/Recall
2 When the oscilloscope's web interface is displayed, select the Save tab. 3 On the Save page: a Enter the name of the file you are saving to. b Select the format. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 256: Recalling Files Via The Web Interface
To recall setup files, reference waveform data files, or mask files from your PC via the oscilloscope's web interface: 1 Access the oscilloscope's web interface (see "Accessing the Web Interface" page 250). 2 When the oscilloscope's web interface is displayed, select the Recall tab. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 257: Identification Function
"Accessing the Web Interface" page 250). 2 When the oscilloscope's web interface Home tab is displayed, select the Enable front panel identification indicator check box. An "Identify" message is displayed on the oscilloscope. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 258: Instrument Utilities
The Instrument Utilities page of the web interface lets you: • View installed options. • View firmware versions. • View calibration status. You can select these cababilities via a drop-down menu. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 259: Setting A Password
3 Click the Enable password button. 4 Enter your desired password in the New Password field. Enter the password again in the Confirm Password field. Click Enable Password. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 260 To do this, select the Configure LAN tab, select Advanced options, and select LAN Reset. • You can also reset the oscilloscope's LAN settings using the keys on the front panel of the oscilloscope: press [Utility] > I/O > LAN Reset. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 261: 24 Reference
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 24 Reference Specifications and Characteristics / 261 Measurement Category / 261 Environmental Conditions / 263 Probes and Accessories / 263 Software and Firmware Updates / 264 Binary Data (.bin) Format / 264...
Page 262: Measurement Category Definitions
Examples are electricity meters and measurements on primary overcurrent protection devices and ripple control units. Maximum Input Voltages Maximum input voltage at analog inputs CAUTION 150 Vrms, 200 Vpk Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 263: Environmental Conditions
Example: Sheltered outdoor environment. Declaration of Conformity For Declarations of Conformity for Keysight products, go to: www.keysight.com/go/conformity Probes and Accessories For a list of the probes and accessories that are compatible with the 1200 X-Series oscilloscopes, see the data sheet at: www.keysight.com/find/1200X-Series...
Page 264: Software And Firmware Updates
Probe Resource Center at: www.keysight.com/find/PRC Software and Firmware Updates From time to time Keysight Technologies releases software and firmware updates for its products. To search for firmware updates for your oscilloscope, direct your web browser to www.keysight.com/find/1200X-Series-sw. To view the currently installed software and firmware press [Help] > About Oscilloscope.
Page 265: Binary Data In Matlab
MATLAB. You can download the appropriate MATLAB functions from the Keysight Technologies web site at www.keysight.com/find/1200X-Series-examples. Keysight provides the .m files, which need to be copied into the work directory for MATLAB. The default work directory is C:\MATLAB7\work. Binary Header Format File Header There is only one file header in a binary file.
Page 266 Reference Cookie Two byte characters, AG, that indicate the file is in the Keysight Binary Data file format. Version Two bytes that represent the file version. File Size A 32-bit integer that is the number of bytes that are in the file.
Page 267 A 64-bit double, only used when saving multiple segments (requires segmented memory option). This is the time (in seconds) since the first trigger. Segment Index A 32-bit unsigned integer. This is the segment number. Only used when saving multiple segments. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 268: Example Program For Reading Binary Data
"Example Program for Reading Binary Data". Examples of Binary Files Single Acquisition The following picture shows a binary file of a single acquisition with multiple Multiple Analog analog channels. Channels Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 269 12 bytes Voltage Data N buffer size Single Acquisition The following picture shows a binary file of a single acquisition with all pods for the All Pods Logic logic channels saved. Channels Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 270 12 bytes Pod 2 Timing Data buffer size Segmented The following picture shows a binary file of a segmented memory acquisition on Memory one analog channel. Acquisition on One Analog Channel Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 271: Csv And Ascii Xy Files
Voltage Data N buffer size CSV and ASCII XY files • "CSV and ASCII XY file structure" on page 272 • "Minimum and Maximum Values in CSV Files" on page 272 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 272: Csv And Ascii Xy File Structure
The decimator used to produce a CSV record is configured to provide a best-estimate of all the samples that each point in the record represents. Therefore, the min and max values may not appear in the CSV file. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 273: Acknowledgements
1200 X-Series and EDUX1052A/G oscilloscopes with the embedded Linux operating system are located at www.keysight.com/find/1200X-Series-third-party-software. You can also find a link to this list on the Keysight InfiniiVision oscilloscopes manuals website at www.keysight.com/find/1200X-Series-manual. Product Markings and Regulatory Information These symbols are used on the 1200 X-Series oscilloscopes.
Page 274 Symbol Description The CSA mark is a registered trademark of the CSA International. 267459 South Korean Certification (KC) mark; includes the marking's identifier code which follows this format: MSIP-REM-Kst- 1A15150 MSIP-REM-YYY-ZZZZZZZZZZZZZZ. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 275: Can Triggering And Serial Decode
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 25 CAN Triggering and Serial Decode Setup for CAN Signals / 275 CAN Triggering / 277 CAN Serial Decode / 279 CAN triggering and serial decode is available on DSOX1200-Series oscilloscopes.
Page 276 11 Press the Signal softkey and select the type and polarity of the CAN signal. This also automatically sets the channel label for the source channel. • CAN_H — The actual CAN_H differential bus. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 277: Can Triggering
Idle Field Field Field Field Field SOF edge After setting up the oscilloscope to capture a CAN signal: 1 Press [Trigger]. 2 In the Trigger menu, press the Trigger Type softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 278 If the setup does not produce a stable trigger, the CAN signal may be slow enough that the NOTE oscilloscope is auto-triggering. Press the [Trigger] key, then press the Mode softkey to set the trigger mode from Auto to Normal. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 279: Can Serial Decode
Press the [Trigger] key, then press the Mode softkey to set the trigger mode from Auto to Normal. You can use the horizontal Zoom window for easier navigation of the decoded data. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 280: Interpreting Can Decode
• Angled waveforms show an active bus (inside a packet/frame). • Mid-level blue lines show an idle bus. • Decoded text is truncated at the end of the associated frame when there is insufficient space within frame boundaries. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 281: Can Totalizer
(not acquiring data). Pressing the [Run/Stop] key does not affect the totalizer. When an overflow condition occurs, the counter displays OVERFLOW. The counters can be reset to zero by pressing the Reset CAN Counters softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 282: Interpreting Can Lister Data
ERR counter will be incremented. If a data frame contains an error that is not an active error it is considered a partial frame and no counters are incremented. Interpreting CAN Lister Data Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 283 Frame (Fr). Different kinds of errors can be combined like "Fo,Fr" in the above example. Aliased data is highlighted in pink. When this happens, decrease the horizontal time/div setting and run again. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 284 CAN Triggering and Serial Decode Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 285: I2C Triggering And Serial Decode
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 26 I2C Triggering and Serial Decode Setup for I2C Signals / 285 I2C Triggering / 286 I2C Serial Decode / 290 I2C triggering and serial decode is available on DSOX1200-Series and EDUX1052A/G oscilloscopes.
Page 286: I2C Triggering
EEPROM data read, or on a read/write frame with a specific device address and data value. 1 Press [Trigger]. 2 In the Trigger menu, press the Trigger Type softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 287 Ack bit after the data byte. This data byte does not need to occur directly after the control byte. Read Control Start or Data Restart byte Trigger point Condition Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 288 For triggering purposes, a restart is treated as a start condition. Write Data Address Ack1 Address Ack2 Start or Stop 1st byte 2nd byte Restart Condition Trigger point Condition 26th clock edge Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 289 If you have selected a three-byte trigger, press the Data2 value softkey and turn the Entry knob to select the 8-bit data pattern on which to trigger. To display I2C serial decode, see "I2C Serial Decode" on page 290. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 290: I2C Serial Decode
You can use the horizontal Zoom window for easier navigation of the acquired data. See Also • "Interpreting I2C Decode" on page 291 • "Interpreting I2C Lister Data" on page 292 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 291: Interpreting I2C Decode
• Red dots in the decode line indicate that more data can be displayed. Scroll or expand the horizontal scale to view the data. • Aliased bus values (undersampled or indeterminate) are drawn in pink. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 292: Interpreting I2C Lister Data
• Missing Ack — indicated by an "X", highlighted in red if an error. Aliased data is highlighted in pink. When this happens, decrease the horizontal time/div setting and run again. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 293: Lin Triggering And Serial Decode
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 27 LIN Triggering and Serial Decode Setup for LIN Signals / 293 LIN Triggering / 295 LIN Serial Decode / 297 LIN triggering and serial decode is available on DSOX1200-Series oscilloscopes.
Page 294 One Bit Sample Point 13 Press the Standard softkey; then, turn the Entry knob to select the LIN standard you are measuring (LIN 1.3 or LIN 2.0). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 295: Lin Triggering
A LIN signal message frame is shown below: Sync Sync Identifier Data Checksum Break Field Break Fields Field Sync Break Exit 1 Press [Trigger]. 2 In the Trigger menu, press the Trigger Type softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 296 ID and trigger on data values only. • To set up the number of data bytes and enter their values (in hexadecimal or binary), press the Bits softkey to open the LIN Bits menu. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 297: Lin Serial Decode
To set up LIN serial decode: 1 Press the [Analyze] key. 2 Press Features; then, select Serial Bus. 3 Press Features again (or push the Entry knob) to enable the serial bus display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 298 You can use the horizontal Zoom window for easier navigation of the decoded data. See Also • "Interpreting LIN Decode" on page 299 • "Interpreting LIN Lister Data" on page 300 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 299: Interpreting Lin Decode
• Unknown bus values (undefined or error conditions) are drawn in red. • If there is an error in the synch field, SYNC will appear in red. • If the header exceeds the length specified in the standard, THM will appear red. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 300: Interpreting Lin Lister Data
• Data and Checksum — (LIN 2.0 only). • Errors — highlighted in red. Aliased data is highlighted in pink. When this happens, decrease the horizontal time/div setting and run again. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 301: Spi Triggering And Serial Decode
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 28 SPI Triggering and Serial Decode Setup for SPI Signals / 301 SPI Triggering / 307 SPI Serial Decode / 309 SPI triggering and serial decode is available on DSOX1200-Series oscilloscopes.
Page 302 4 Press Features again (or push the Entry knob) to enable the serial bus display. 5 Press the Mode softkey; then, select SPI. 6 Press the Signals softkey to open the SPI Signals menu. On 2-channel DSOX1200-Series oscilloscopes: On 4-channel DSOX1200-Series oscilloscopes: Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 303 This determines which clock edge the oscilloscope will use to latch the serial data. When Display Info is enabled, the graphic changes to show the current state of the clock signal. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 304 MOSI signal threshold voltage level. The threshold voltage level is used in decoding, and it will become the trigger level when the trigger type is set to the selected serial decode slot. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 305 The threshold voltage level is used in decoding, and it will become the trigger level when the trigger type is set to the selected serial decode slot. 11 Press the CS softkey to open the SPI Chip Select menu. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 306 When Display Info is enabled, information about the selected signal sources and their threshold voltage levels, as well as a waveform diagram, appears on the screen. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 307: Spi Triggering
2 In the Trigger menu, press the Trigger Type softkey. 3 Press the Trigger Type softkey; then, turn the Entry knob to select the serial slot (Serial 1) on which the SPI signals are being decoded. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 308 As you rotate the Entry knob, the bit is highlighted in the Data string shown in the waveform area. b Press the 0 1 X softkey to set the bit selected in the Bit softkey to 0 (low), 1 (high), or X (don't care). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 309: Spi Serial Decode
To set up SPI serial decode: 1 Press the [Analyze] key. 2 Press Features; then, select Serial Bus. 3 Press Features again (or push the Entry knob) to enable the serial bus display. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 310 You can use the horizontal Zoom window for easier navigation of the acquired data. See Also • "Interpreting SPI Decode" on page 311 • "Interpreting SPI Lister Data" on page 312 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 311: Interpreting Spi Decode
Scroll or expand the horizontal scale to view the information. • Aliased bus values (undersampled or indeterminate) are drawn in pink. • Unknown bus values (undefined or error conditions) are drawn in red. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 312: Interpreting Spi Lister Data
In addition to the standard Time column, the SPI Lister contains these columns: • Data — data bytes (MOSI and MISO). Aliased data is highlighted in pink. When this happens, decrease the horizontal time/div setting and run again. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 313: Uart/Rs232 Triggering And Serial Decode
Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 29 UART/RS232 Triggering and Serial Decode Setup for UART/RS232 Signals / 313 UART/RS232 Triggering / 315 UART/RS232 Serial Decode / 318 UART/RS232 triggering and serial decode is available on DSOX1200-Series and EDUX1052A/G oscilloscopes.
Page 314 If the desired baud rate is not listed, select User Defined on the Baud softkey; then, select the desired baud rate using the User Baud softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 315: Uart/Rs232 Triggering
Rx and Tx lines and set up a trigger condition. RS232 (Recommended Standard 232) is one example of a UART protocol. 1 Press [Trigger]. 2 In the Trigger menu, press the Trigger Type softkey. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 316 Rx Data — Triggers on a data byte that you specify. For use when the device under test data words are from 5 to 8 bits in length (no 9th (alert) bit). Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 317 Press the [Trigger] key, then press the Mode softkey to set the trigger mode from Auto to Normal. To display UART/RS232 serial decode, see "UART/RS232 Serial Decode" page 318. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 318: Uart/Rs232 Serial Decode
2 Press Features; then, select Serial Bus. 3 Press Features again (or push the Entry knob) to enable the serial bus display. 4 Press the Mode softkey; then, select UART/RS232. 5 Press Settings. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 319 You can use the horizontal Zoom window for easier navigation of the acquired data. See Also • "Interpreting UART/RS232 Decode" on page 320 • "UART/RS232 Totalizer" on page 321 • "Interpreting UART/RS232 Lister Data" on page 322 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 320: Interpreting Uart/Rs232 Decode
Expand the horizontal scale to allow the data to display. • An unknown (undefined) bus is shown in red. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 321: Uart/Rs232 Totalizer
FRAMES and RX FRAMES counts include both normal frames and frames with parity errors. When an overflow condition occurs, the counter displays OVERFLOW. The counters can be reset to zero by pressing the Reset UART Counters softkey in the UART Settings menu. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 322: Interpreting Uart/Rs232 Lister Data
• Tx — transmit data. • Errors — highlighted in red, Parity Error or Unknown Error. Aliased data is highlighted in pink. When this happens, decrease the horizontal time/div setting and run again. Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 323 AM (amplitude modulation), waveform binary data (.bin), channel, probe units, generator output, binary data file examples, channel, skew, Amplitude measurement, binary data in MATLAB, channel, vernier, 31, channel, vertical sensitivity, Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 324 FFT phase math function, DC RMS - N Cycles measurement, either edge trigger, FFT resolution, DC signals, checking, eject USB storage device, FFT spectral leakage, DC waveform generator output, Entry knob, FFT units, Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 325 I2C trigger, front panel, remote, Load from, identification function, web FSK (frequency-shift keying localized front panel overlay, interface, modulation), waveform generator Location, 221, output, logging remote commands, Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 326 NTFS file system format, post-processing, measurement thresholds, number of negative pulses post-trigger information, measurement window with zoom measurements, power consumption, display, number of positive pulses power cord connector, measurements, measurements, power requirements, Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 327 Snapshot All measurements, random noise, save files via web interface, snapshot all, quick action, Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 328 UART totalizer, Wave Gen key, 31, Tools keys, UART trigger, waveform generator, Top measurement, UART/RS232 frame counter, waveform generator amplitude, totalizer, CAN, UART/RS232 serial decode, frequency response analysis, totalizer, UART/rs232, under-sampled signals, Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 329 X at Max Y on FFT, X at Min Y measurement, X at Min Y on FFT, XY mode, Z-axis blanking, zoom and pan, zoom display, measurement window with, Zoom key, Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...
Page 330 Index Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide...

This manual is also suitable for:

Edux1052g Edux1052a Dsox1202a Dsox1204a Dsox1202g Dsox1204g

Keysight InfiniiVision 1200 X Series User Manual

1 Getting Started

2 Horizontal Controls

3 Vertical Controls

4 Analog Bus Display

5 FFT Spectral Analysis

6 Math Waveforms

7 Reference Waveforms

8 Serial Bus Decode/Trigger

9 Display Settings

10 Labels

11 Triggers

12 Trigger Mode/Coupling

13 Acquisition Control

16 Mask Testing

17 Digital Voltmeter

18 Frequency Response Analysis

19 Waveform Generator

20 Save/Recall (Setups, Screens, Data)

21 Print (Screens)

22 Utility Settings

23 Web Interface

24 Reference

25 CAN Triggering and Serial Decode

26 I2C Triggering and Serial Decode

27 LIN Triggering and Serial Decode

28 SPI Triggering and Serial Decode

29 UART/RS232 Triggering and Serial Decode

Quick Links

Need help?

Questions and answers

Related Manuals for Keysight InfiniiVision 1200 X Series

Summary of Contents for Keysight InfiniiVision 1200 X Series
