  • Page 1 Keysight 1000 Series Oscilloscopes User’s Guide Distributed by: dataTec ▪ Ferdinand-Lassalle-Str. 52 ▪ 72770 Reutlingen ▪ Tel. 07121 / 51 50 50 ▪ Fax 07121 / 51 50 10 ▪ info@datatec.de ▪ www.datatec.de...
  • Page 2 Second Edition, October 2009 document or of any information contained to the product or loss of important herein. Should Keysight and the user have a Printed in Malaysia separate written agreement with warranty data. Do not proceed beyond a Keysight Technologies, Inc.

  • Page 3: Keysight 1000 Series Oscilloscopes-At A Glance

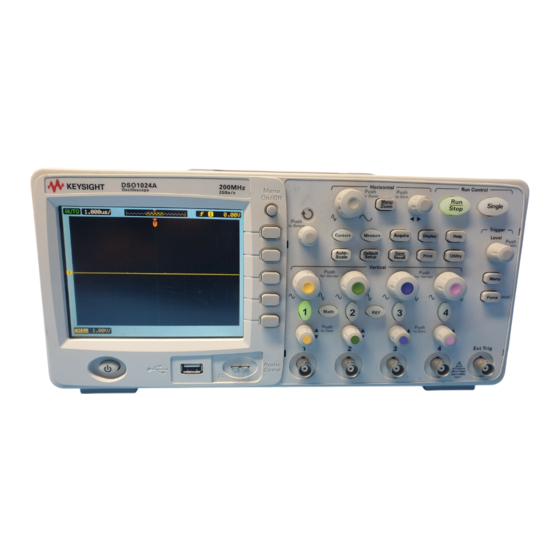

    Keysight 1000 Series Oscilloscopes—At a Glance The Keysight 1000 Series oscilloscopes are low-cost portable digital storage oscilloscopes (DSOs) that deliver these powerful features: • Two and four-channel, 60 MHz, 100 MHz, and 200 MHz bandwidth models. • Bright 5.7 inch QVGA (320 x 240) TFT color LCD display and small footprint (to save bench space).

  • Page 4: In This Book

    In This Book This guide shows how to use the Keysight 1000 Series oscilloscopes. Getting Started Describes the basic steps to take when first using the oscilloscope. Displaying Data Describes how to use the horizontal and vertical controls, channel settings, math waveforms, reference waveforms, and display settings.

  • Page 5: Table Of Contents

    Contents Keysight 1000 Series Oscilloscopes—At a Glance In This Book Figures Tables Getting Started Step 1. Inspect the package contents Step 2. Turn on the oscilloscope Step 3. Load the default oscilloscope setup Step 4. Input a waveform Step 5. Use Auto-Scale Step 6.
  • Page 6 To export or import reference waveforms To return the reference waveform to its default scale Changing the Display Settings To display waveforms as vectors or dots To clear the display To set waveform persistence Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 7 Recording/Playing-back Waveforms To record waveforms To play-back waveforms To store recorded waveforms Adjusting the Trigger Level To adjust the trigger level To force a trigger Choosing the Trigger Mode To set up edge triggers Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 8 Voltage Measurements Vmax (Maximum Voltage) Vmin (Minimum Voltage) Vpp (Peak-to-Peak Voltage) Vtop (Top Voltage) Vbase (Base Voltage) Vamp (Amplitude Voltage = Vtop - Vbase) Vavg (Average Voltage) Vrms (Root-Mean-Square Voltage) Overshoot Preshoot Time Measurements Period Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 9 Using the Disk Manager To switch between files, path, and directory panes To navigate the directory hierarchy To create new folders To edit folder/file names To delete folders To rename folders To delete files To recall files Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 10 To set up masks Setting Preferences To set up the screen saver To select the vertical scale reference level To select the USB device port function Running Self-Calibration Specifications and Characteristics Environmental Conditions Overvoltage Category Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 11 Contents Pollution Degree Pollution Degree Definitions Measurement Category Measurement Category Definitions Transient Withstand Capability Specifications Characteristics Safety Notices Warnings Safety Symbols Index Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 12 Contents Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 13: Figures

    Figure 22. Waveform After Inversion Figure 23. Math Scale Setting Value Figure 24. FFT Waveform Figure 25. [Display] Key Figure 26. Alaising Figure 27. Theoretical Brick-Wall Frequency Response Figure 28. Sample Rate and Oscilloscope Bandwidth Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 14 Figure 50. Editing Folder/File Names in Disk Manager Figure 51. USB Ports on Back Panel Figure 52. [Print] Key Location Figure 53. [Utility] Key Figure 54. Mask Test Display Figure 55. Mask Test Mask Setting Figure 56. Calibration Screen Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 15: Tables

    Tables Table 1. Keysight 1000 Series Oscilloscope Models Table 2. Auto-Scale Default Settings Table 3. Front Panel Controls Table 4. FFT Window Characteristics Table 5. Specifications Table 6. Acquisition System Characteristics Table 7. Vertical System Characteristics Table 8. Horizontal System Characteristics Table 9.
  • Page 16 Tables Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 17: Getting Started

    Keysight 1000 Series Oscilloscopes User’s Guide 1 Getting Started Step 1. Inspect the package contents Step 2. Turn on the oscilloscope Step 3. Load the default oscilloscope setup Step 4. Input a waveform Step 5. Use Auto-Scale Step 6. Compensate probes Step 7.

  • Page 18: Step 1. Inspect The Package Contents

    3 Inspect the oscilloscope. • If there is mechanical damage or a defect, or if the oscilloscope does not operate properly or does not pass performance tests, notify your Keysight Technologies sales office. • If the shipping container is damaged, or the cushioning materials show signs of stress, notify the carrier;...

  • Page 19: Step 2. Turn On The Oscilloscope

    Use a power source that delivers the required power (see Table 16 page 147). To avoid electric shock, be sure the oscilloscope is properly grounded. WARNING 2 Turn on the oscilloscope. Figure 1 Power Switch Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 20: Step 3. Load The Default Oscilloscope Setup

    2 When the Default menu appears, press [Menu On/Off] to turn off the menu. (The Undo softkey in the Default menu lets you cancel the default setup and go back to the previous setup.) Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 21: Step 4. Input A Waveform

    Use one of the supplied passive probes to input the Probe Comp signal from the front panel of the oscilloscope. To avoid damage to the oscilloscope, make sure that the input voltage at the BNC CAUTION connector does not exceed the maximum voltage (300 Vrms maximum). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 22: Step 5. Use Auto-Scale

    The trigger source selected is the highest-numbered channel that has a waveform applied. (The Undo softkey in the AUTO menu lets you cancel the auto-scale and go back to the previous setup.) Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 23: Table 2. Auto-Scale Default Settings

    Adjusted Volts/Div Coarse Bandwidth limit Waveform invert Horizontal position Center Horizontal "S/div" Adjusted Trigger type Edge Trigger source Measure the channel with input waveform automatically. Trigger coupling Trigger voltage Midpoint setting Trigger sweep Auto Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 24: Step 6. Compensate Probes

    4 If waveform does not appear like the Correctly Compensated waveform shown Figure 4, then use a nonmetallic tool to adjust the low frequency compensation adjustment on the probe for the flattest square wave possible. High Frequency Compensation For the supplied passive probes: Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 25: Figure 5 High Frequency Probe Compensation

    4 If waveform does not appear like the Correctly Compensated waveform shown Figure 5, then use a nonmetallic tool to adjust the 2 high frequency compensation adjustments on the probe for the flattest square wave possible. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 26: Step 7. Become Familiar With The Front Panel Controls

    Push Softkeys for Vernier for Vernier Menu Local Local Force Math Push Push to Zero to Zero All Inputs 1MW_15pF 400Vrms CATI Setup controls Menu controls Vertical controls Trigger controls Figure 6 Front Panel Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 27: Front Panel Overlays For Different Languages

    3 When the overlay is against the front panel, insert the tabs on the right side of the overlay into the slots on the front panel. 4 Let the overlay flatten out. It should remain secure on the front panel. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 28: Using The Oscilloscope Softkey Menus

    When one of the oscilloscope front panel keys turns on a menu, you can use the five softkeys to choose items from the menu. Some common menu item choices are: Accesses the next page of items in the menu. Accesses the previous page of items in the menu. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 29 The [Menu On/Off] front panel key turns off the menu or turns on the last accessed menu on again. The Menu Display item in the Display menu lets you select the amount of time menus are displayed (see “To change the menu display time" page 60). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 30: Step 8. Become Familiar With The Oscilloscope Display

    Acquisition Status Trigger, rising edge, channel 1, Timebase 154 mV Status, 500 us per division Waveform Channel 1 Reference Channel 1 Status, DC coupling, 50 mV per division Figure 8 Oscilloscope Display Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 31: Step 9. Use The Run Control Keys

    • When the [Run/Stop] key is red, data acquisition is stopped. To start acquiring data, press [Run/Stop]. • To capture and display a single acquisition (whether the oscilloscope is running or stopped), press [Single]. After capturing and displaying a single acquisition, the [Run/Stop] key is red. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 32: Step 10. Access The Built-In Help

    2 Press the front panel key, softkey, or pushable knob on which you would like quick help information. The built-in help is available in 11 different languages (see “Setting the Language (Menu and Help)" on page 128). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 33: Securing The Oscilloscope

    Getting Started Securing the Oscilloscope To secure a 1000 Series oscilloscope to its location, you can use a Kensington lock or the security loop. Security loop Hole for Kensington lock Figure 11 Securing the Instrument Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 34 Getting Started Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 35: Displaying Data

    Keysight 1000 Series Oscilloscopes User’s Guide 2 Displaying Data Using the Horizontal Controls Using the Vertical Controls Using Math Function Waveforms Using Reference Waveforms Changing the Display Settings This chapter describes how to use the horizontal and vertical controls, channel...

  • Page 36: Using The Horizontal Controls

    (delayed) time base, change the time base mode, and display the sample rate. Menu Zoom Scale knob Position knob Figure 12 Horizontal Controls Figure 13 shows the screen icon descriptions and control indicators. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 37: To Adjust The Horizontal Scale

    (time/div) setting (and the oscilloscope’s sample rate — see “Memory Depth and Sample Rate" on page 70). The time/div setting changes in a 1-2-5 step sequence. The time/div setting is also known as the sweep speed. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 38: To Adjust The Horizontal Position

    The position knob adjusts the horizontal position of all channels, math functions, and reference waveforms. • Push the horizontal position knob to “zero” the trigger point (in other words, move it to the center of the screen). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 39: To Display The Zoomed Time Base

    The horizontal position knob moves the area of magnification forward and backward on the original waveform. • The bottom half of the display shows the magnified data in the zoomed time base. Zoomed window Zoomed window view Figure 14 Zoomed Time Base Window Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 40: To Change The Horizontal Time Base (Y-T, X-Y, Or Roll)

    The oscilloscope uses the untriggered sample acquisition mode and waveform data is displayed as dots. The sampling rate can vary from 4 kSa/s to 100 MSa/s, and the default sampling rate is 1 MSa/s. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 41: Figure 15 X-Y Display Format Showing Out-Of-Phase Waveforms

    Displaying Data Figure 15 X-Y Display Format Showing Out-of-Phase Waveforms Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 42: To View The Sample Rate

    1 Press [Menu/Zoom]. 2 In the Horizontal menu, the Sa Rate menu item displays the sample rate used for the current horizontal scale setting. See Also “Memory Depth and Sample Rate" on page 70. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 43: Using The Vertical Controls

    • If the waveform is on and its menu is not displayed, its menu will be displayed. • If the waveform is on and its menu is displayed, the waveform is turned off and its menu goes away. To adjust the vertical scale When an input channel waveform is on: Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 44: To Adjust The Vertical Position

    Notice that, as you adjust the vertical position, a message showing the position of the ground reference relative to the center of the screen is temporarily displayed in the lower left-hand corner of the screen. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 45: To Specify Channel Coupling

    This lets you use greater sensitivity (amplitude/div settings) to display the AC component of the waveform. The waveform is disconnected from the oscilloscope input. DC Coupling DC Coupling Status Figure 17 DC Coupling Control Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 46: To Specify A Bandwidth Limit

    1 If the channel’s menu is not currently displayed, press the channel key ([1], [2], [3], or [4]). 2 In the Channel menu, press BW Limit to toggle the bandwidth limit setting “ON” and “OFF”. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 47: Figure 19 Bw Limit Control Off

    Displaying Data Bandwidth limit OFF Figure 19 BW Limit Control OFF 20 MHz Bandwidth Bandwidth ON Status Figure 20 BW Limit Control ON Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 48: To Specify The Probe Attenuation

    2 In the Channel menu, press Digital Fil ter. 3 In the Filter menu, press Fil ter Type, and continue pressing the Fil ter Type softkey or turn the entry knob to select between: LPF (Low Pass Filter). HPF (High Pass Filter). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 49: To Change The Volts/Div Control Sensitivity

    43). To invert a waveform You can invert a waveform with respect to the ground level. 1 If the channel’s menu is not currently displayed, press the channel key ([1], [2], [3], or [4]). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 50: Figure 21 Waveform Before Inversion

    2 In the Channel menu, press Invert to toggle between “ON” and “OFF”. Figure 21 Figure 22 show the changes before and after inversion. Figure 21 Waveform Before Inversion Figure 22 Waveform After Inversion Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 51: To Specify The Channel Units

    [3], or [4]). 2 In the Channel menu, press Unit. 3 Continue pressing the Unit softkey or turn the entry knob to select between: Volts, used with voltage probes. Amperes, used with current probes. Watts. Unknown. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 52: Using Math Function Waveforms

    The math scale setting is shown at the bottom of the display. Math Scale Figure 23 Math Scale Setting Value To add, subtract, or multiply waveforms 1 Press [Math]. 2 In the Math menu, press Operate. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 53: To Display The Frequency Domain Using Fft

    There are four FFT windows. Each window has trade-offs between frequency resolution and amplitude accuracy. What you want to measure and your source waveform characteristics help determine which window to use. Use the guidelines in Table 4 to select the best window. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 54: Table 4. Fft Window Characteristics

    10 Use the horizontal position knob to adjust the frequency per division. The frequency scale is displayed on the screen. Use this to display the frequencies associated with the peaks in the FFT waveform. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 55: Figure 24 Fft Waveform

    This frequency is half of the sample rate. Frequencies above the Nyquist frequency will be under sampled, which causes aliasing. The Nyquist frequency is also called the folding frequency because aliased frequency components fold back from that frequency when viewing the frequency domain. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 56: Using Reference Waveforms

    2 If exporting a waveform, in the REF menu, press Source, and continue pressing the softkey or turn the entry knob to select the waveform you want to export. 3 Presh Location to choose “External”. 4 Press Save or Import. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 57: To Return The Reference Waveform To Its Default Scale

    To load the selected waveform (.wfm file), press Import. To return the reference waveform to its default scale 1 Press [REF]. 2 In the REF menu, press Reset. The scale and position of the waveform as originally saved are restored. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 58: Changing The Display Settings

    The digital interpolation is suitable for real time sampling and is most effective at 20 ns or faster horizontal scale settings. Dots The sample points are displayed. To clear the display 1 Press [Display]. 2 In the Display menu, press Clear. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 59: To Set Waveform Persistence

    Sample points remain displayed until the display is cleared or persistence is set to “OFF”. To adjust waveform intensity 1 Press [Display]. 2 In the Display menu, press Intensity and turn the entry knob to adjust the waveform intensity. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 60: To Display Graded Waveform Intensity

    2 In the Display menu, press Menu Display, and continue pressing the softkey or turn the entry knob to select “1 S”, “2 S”, “5 S”, “10 S”, “20 S”, or “Infinite” menu display time. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 61: To Adjust The Grid Brightness

    To invert screen colors 1 Press [Display]. 2 In the Display menu, press Screen to toggle the screen between “Normal” or “Inverted” colors. Inverted screen colors are sometimes useful when printing or saving screens. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 62: To Select Screen Persistence

    1 Press [Display]. 2 In the Display menu, press Screen Persist to toggle between: When acquisitions are stopped, the screen may show data from many acquistions. When acquisitions are stopped, the last acquisition is displayed. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 63: Capturing Data

    Keysight 1000 Series Oscilloscopes User’s Guide 3 Capturing Data Overview of Sampling Choosing the Acquisition Mode Choosing the Acquisition Mode Recording/Playing-back Waveforms Adjusting the Trigger Level Choosing the Trigger Mode Setting Other Trigger Parameters Using the External Trigger Input This chapter describes sampling and acquisition modes and how to set up...

  • Page 64: Overview Of Sampling

    /2 = Nyquist frequency (f ) = folding frequency Aliasing Aliasing occurs when signals are under-sampled (f < 2f ). Aliasing is the signal distortion caused by low frequencies falsely reconstructed from an insufficient number of sample points. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 65: Oscilloscope Bandwidth And Sample Rate

    At the oscilloscope bandwidth, sampling theory says the required sample rate is = 2f . However, the theory assumes there are no frequency components above in this case) and it requires a system with an ideal brick-wall frequency response. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 66: Figure 27 Theoretical Brick-Wall Frequency Response

    (square waves are made up of sine waves at the fundamental frequency and an infinite number of odd harmonics), and typically, for 1 Ghz bandwidths and below, oscilloscopes have a Gaussian frequency response. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 67: Oscilloscope Rise Time

    See Also Evaluating Oscilloscope Sample Rates vs. Sampling Fidelity: How to Make the Most Accurate Digital Measurements, Keysight Application Note 1587 (http://literature.cdn.Keysight.com/litweb/pdf/5989-5732EN.pdf) Oscilloscope Rise Time Closely related to an oscilloscope’s bandwidth specification is its rise time specification.

  • Page 68: Oscilloscope Bandwidth Required

    = 1.3 x f knee = 1.9 x f knee See Also Choosing an Oscilloscope with the Right Bandwidth for your Application, Keysight Application Note 1588 (http://literature.cdn.Keysight.com/litweb/pdf/5989-5733EN.pdf) Real-Time Sampling The 1000 Series oscilloscopes provide real-time sampling. In other words, waveforms are sampled at uniformly spaced intervals. See Figure Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 69: Figure 29 Real-Time Sampling Mode

    Capturing Data N = Waveform Sample is From Trigger Time Figure 29 Real-Time Sampling Mode The 1000 Series oscilloscopes provide real-time sampling rates up to 2 GSa/s. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 70: Memory Depth And Sample Rate

    10 kSa/s. The actual sample rate, is displayed in the horizontal Horizontal menu (see “To view the sample rate" on page 42). The oscilloscope achieves the actual sample rate by throwing away (decimating) unneeded samples. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 71: Choosing The Acquisition Mode

    3 Continue pressing the Acquisition softkey or turn the entry knob to select “Normal”. To select the Average acquisition mode In the Average acquisition mode, acquisitions are made, and the running average over the specified number of acquisitions is displayed. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 72: Figure 31 Noisy Waveform Without Averaging

    Capturing Data Use the Average acquisition mode to remove random noise from the waveform and to improve measurement accuracy. Figure 31 Noisy Waveform Without Averaging Figure 32 Noisy Waveform With Averaging Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 73: To Select The Peak Detect Acquisition Mode

    This way, you can capture narrow excursions on a signal at longer horizontal time/div settings. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 74: Figure 33 Peak Detect Waveform

    Peak Detect acquisition mode to avoid waveform aliasing. To select the Peak Detect acquisition mode: 1 Press [Acquire]. 2 In the Acquire menu, press Acquisition. 3 Continue pressing the Acquisition softkey or turn the entry knob to select “Peak Detect”. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 75: To Turn Off/On Sine(X)/X Interpolation

    The effects of sine(x)/x interpolation are only noticeable when the horizontal scale is set to 20 ns or faster. 1 Press [Acquire]. 2 In the Acquire menu, press Sinx/x to turn sine(x)/x interpolation “OFF” or “ON”. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 76: Recording/Playing-Back Waveforms

    1 In the Sequence menu ([Acquire] > Sequence > Mode=Record), press Operate to start or stop recording. Appears on the menu when not recording; press Operate to start recording. Appears on the menu when recording; press Operate to stop recording. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 77: To Play-Back Waveforms

    To select the interval between played-back frames 1 In the Sequence menu ([Acquire] > Sequence > Mode=Play back), press Interval. 2 Turn the entry knob to select an interval from 1 ms to 20 s. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 78: To Store Recorded Waveforms

    800. To select internal/external recording storage location 1 In the Sequence menu ([Acquire] > Sequence > Mode=Storage), press Location to toggle between Internal and External. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 79 2 In the Sequence menu ([Acquire] > Sequence > Mode=Storage), press Imp./Exp.. 3 Use the Disk Manager to select the file and import or export the waveform recording. See “Using the Disk Manager" on page 116. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 80: Adjusting The Trigger Level

    1 Press [Force]. Forcing a trigger is useful, for example, when you want to display the DC voltage of a level signal. The [Force] key has no effect if the acquisition is already stopped. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 81 When the oscilloscope’s front panel is locked by a remote program (shown by a red “Rmt” on the upper-right part of the display), pressing the [Force] key returns the front panel to Local control. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 82: Choosing The Trigger Mode

    Mode again. 5 Press Source and continue pressing the softkey or turn the entry knob to select the waveform to trigger on: CH1 - CH4 The oscilloscope input channel. The external trigger input. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 83: To Set Up Pulse Width Triggers

    The (5:1) attenuated external trigger input. 6 Press When and continue pressing the softkey or turn the entry knob to select the type of pulse to trigger on: Positive pulse greater than the width setting. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 84: To Set Up Video Triggers

    Inverted Polarity selection. 6 Press Sync and continue pressing the softkey or turn the entry knob to select what to trigger on: All Lines Trigger on all lines. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 85: Figure 35 Line Synchronization

    Even Field Trigger on an even field. 7 Press Standard to toggle between: NTSC Trigger on an NTSC video waveform. PAL/ SECAM Trigger on a PAL or SECAM video waveform. Figure 35 Line Synchronization Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 86: To Set Up Pattern Triggers

    The external trigger input. EXT/5 The (5:1) attenuated external trigger input. 6 Press Code and continue pressing the softkey or turn the entry knob to select the value for the selected channel: Logical high value. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 87: To Set Up Alternate Triggers

    At this point, the remaining items in the Trigger menu let you set up independent triggers for the selected channel. For each source, you can set up edge, pulse width, or video triggering. You can also specify other trigger setup options, except trigger sweep. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 88: Figure 37 Alternate Triggers

    Capturing Data Figure 37 Alternate Triggers Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 89: Setting Other Trigger Parameters

    To set the trigger coupling: 1 Press [Menu]. 2 In the Trigger menu, press Set Up. 3 In the Set Up menu, press Coupling. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 90: To Set The Trigger High-Frequency Reject Coupling

    To set the trigger high-frequency reject coupling: 1 Press [Menu]. 2 In the Trigger menu, press Set Up. 3 In the Set Up menu, press HF Reject to toggle between “ON” and “OFF”. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 91: To Change The Trigger Sensitivity

    To change the trigger sensitivity Trigger sensitivity specifies the vertical change that must occur in order for a trigger to be recognized. In the 1000 Series oscilloscopes, you can adjust the trigger sensitivity. For example, to reduce the influence of noise, you can lower the trigger sensitivity (by increasing the vertical change required to trigger).

  • Page 92: To Specify A Trigger Holdoff

    To reset the trigger holdoff 1 In the Set Up menu, select the Holdoff Reset menu item to return the trigger holdoff setting to the 100 ns minimum value. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 93: Using The External Trigger Input

    Capturing Data Using the External Trigger Input You can trigger on external inputs by selecting “EXT” or “EXT/5” (5:1 attenuated) as the trigger source in all trigger modes except Alternate. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 94 Capturing Data Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 95: Making Measurements

    Keysight 1000 Series Oscilloscopes User’s Guide 4 Making Measurements Displaying Automatic Measurements Voltage Measurements Time Measurements Counter (Frequency) Making Cursor Measurements This chapter shows how to make automatic voltage measurements, automatic time measurements, and cursor measurements.

  • Page 96: Displaying Automatic Measurements

    A maximum of three measurements can be displayed at the bottom of the display. When three measurements are displayed and you add a new one, the measurements shift to the left, pushing the first measurement result off screen. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 97: To Clear Automatic Measurements From The Display

    To select channels for delay/phase measurements 1 Press [Measure]. 2 In the Measure menu, press Delay/Phase. 3 In the Delay/Phase menu, press DelayA, DelayB, PhaseA, or PhaseB to select the input channel for the respective measurement. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 98: Voltage Measurements

    • Overshoot. • Preshoot. Overshoot Overshoot base Preshoot Figure 40 Voltage Measurement Points Vmax (Maximum Voltage) The maximum amplitude. The most positive peak voltage measured over the entire waveform. See Figure 40 on page 98. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 99: Vmin (Minimum Voltage)

    Vavg (Average Voltage) The arithmetic mean over the entire waveform. Vrms (Root-Mean-Square Voltage) The true root-mean-square voltage over the entire waveform.  --------------- - Where: = value at i point. n = number of points. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 100: Overshoot

    Making Measurements Overshoot Defined as (Vmax-Vtop)/Vamp, useful for square and pulse waveforms. See Figure 40 on page 98. Preshoot Defined as (Vmin-Vbase)/Vamp, useful for square and pulse waveforms. See Figure 40 on page 98. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 101: Time Measurements

    • Delay A-B, rising edges. • Delay A-B, falling edges. • Phase A-B, rising edges. • Phase A-B, falling edges. Period Measures the period of a waveform. Time origin line Base Period Figure 41 Period and Frequency Measurements Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 102: Frequency

    90% (upper) 50% (middle) 10% (lower) Vbase Rising Falling edge edge Figure 42 Rise Time and Fall Time Measurements Fall Time Measures the fall time of a waveform. See Figure 42 on page 102. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 103: Positive Pulse Width

    Measures the negative pulse width of a waveform. See Figure 43 on page 103. Positive Duty Cycle Measures the positive duty cycle of a waveform. Negative Duty Cycle Measures the negative duty cycle of a waveform. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 104: Delay Between Rising Edges

    Channel 2 Delay from channel 1 to channel 2 falling edge Figure 44 Delay Measurements Delay Between Falling Edges Measures the delay between two waveforms using the falling edges. See Figure 44 on page 104. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 105: Phase Between Rising Edges

    Channel 2 Phase from channel 1 to channel 2 rising edge Figure 45 Phase Measurements Phase Between Falling Edges Measures the phase between two waveforms using the falling edges. See Figure 45 on page 105. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 106: Counter (Frequency)

    Making Measurements Counter (Frequency) The 1000 Series oscilloscopes have an integrated 6-digit hardware frequency counter. The counter operates on the currently selected trigger source and can measure frequencies from 5 Hz to the bandwidth of the oscilloscope. The counter uses the trigger comparator to count the number of cycles within a period of time (known as the gate time), so the trigger level must be set correctly.

  • Page 107: Making Cursor Measurements

    To use manually adjustable cursors You can set up two parallel, manually adjustable cursors to make amplitude (vertical) or time (horizontal) measurements on a selected waveform. 1 Press [Cursors]. 2 In the Cursors menu, press Mode. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 108: To Use Tracking Cross-Hair Cursors

    “Track”. 4 Press Cursor A, and continue pressing the softkey or turn the entry knob to select the channel on which to make the measurement (or “None” to turn off the cursor). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 109: To Display Cursors For Automatic Measurements

    In the “Auto” cursors mode: • Cursors appear for the most recently displayed automatic measurement (see “To display an automatic measurement" on page 96). • No cursors are displayed if there are no automatic measurements. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 110 Making Measurements Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 111: Saving, Recalling, And Printing Data

    Keysight 1000 Series Oscilloscopes User’s Guide 5 Saving, Recalling, and Printing Data Saving and Recalling Data Using the Disk Manager Printing Screens This chapter describes how to save, recall, and print data. The oscilloscope has internal, nonvolatile memory locations for saving and recalling waveforms and setups.

  • Page 112: Saving And Recalling Data

    You can also save/recall waveforms and setups to an external USB drive when it is connected to a rectangular USB host port. 1 Press [Save/Recall]. 2 In the Storage menu, press Storage. 3 Continue pressing the Storage softkey or turn the entry knob to select “Waveform”. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 113: To Save And Recall Oscilloscope Setups

    To save to or recall from internal storage: a Press Internal. b In the Internal menu, press Location. c Continue pressing the Location softkey or turn the entry knob to select the desired internal storage location. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 114: To Save Screens To Bmp Or Png Format Files

    6 Use the disk manager dialog to navigate to the folder where you want to save the file (see “To navigate the directory hierarchy" on page 117). 7 In the External menu, press New File, enter the filename (see “To edit folder/file names" on page 118), and press Save. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 115: To Save Data To Csv Format Files

    7 Use the disk manager dialog to navigate to the folder where you want to save the file (see “To navigate the directory hierarchy" on page 117). 8 In the External menu, press New File, enter the filename (see “To edit folder/file names" on page 118), and press Save. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 116: Using The Disk Manager

    Disk Manager to select and name files and folders. To access the Disk Mana. menu: 1 Press [Save/Recall]. 2 In the Storage menu, press Disk Mana.. The Disk Manager screen appears. It looks similar to: Figure 49 Disk Manager Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 117: To Switch Between Files, Path, And Directory Panes

    1 In the Disk Mana. menu ([Save/Recall] > Disk Mana.), press New Folder. 2 Use the folder/file naming dialog to enter the folder name. See “To edit folder/file names" on page 118. 3 In the New Folder menu, press Save. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 118: To Edit Folder/File Names

    On “En”, change from single-byte to multi-byte character entry fields. • Select the menu item to delete a character from the name. To delete folders In the directory pane (see “To switch between files, path, and directory panes" page 117): Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 119: To Rename Folders

    2 Press Recall to load the selected file. To rename files In the files pane (see “To switch between files, path, and directory panes" page 117): 1 Turn the entry knob to select the file. 2 Press Rename. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 120: To Display Disk Information

    3 Use the folder/file naming dialog to edit the file name. See “To edit folder/file names" on page 118. 4 In the Rename menu, press Ok. To display disk information 1 In the Disk Mana. menu ([Save/Recall] > Disk Mana.), press Disk info. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 121: Printing Screens

    You can print oscilloscope display screens to: • A PictBridge compliant printer connected to the (square) USB device port on the oscilloscope’s back panel. USB Device Port USB Host Port Figure 51 USB Ports on Back Panel Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 122: To Choose A Pictbridge Printer

    PictBridge compliant printing and remote programming features cannot be used at the same time. For more information on remote programming, see the Keysight 1000 Series Oscilloscopes Programmer’s Guide. If there are problems when connecting the USB device port to a PictBridge compliant printer or remote computer, see “To select the USB device port function"...

  • Page 123: To Print With Inverted Screen Colors

    Color When this option is selected, the traces are printed in color. To copy a screen to the printer 1 Press [Print]. 2 In the Print menu, press the Print softkey. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 124 Saving, Recalling, and Printing Data Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 125: Oscilloscope Utility Settings

    Keysight 1000 Series Oscilloscopes User’s Guide 6 Oscilloscope Utility Settings Displaying System Information Turning Sound ON or OFF Setting and Displaying the Date and Time Setting the Language (Menu and Help) Performing Mask Tests Setting Preferences Running Self-Calibration This chapter describes oscilloscope settings found in the Utilities menu.

  • Page 126: Displaying System Information

    2 In the Utilities menu, press Sound to toggle between on and off. Appears on the menu when sound is off; press Sound to run the test. Appears on the menu when sound is on; press Sound to stop the test Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 127: Setting And Displaying The Date And Time

    (see “Recording/Playing-back Waveforms" on page 76). To move the cursor between the date and time settings. To move the cursor between fields within the date or time. To apply the date/time setting. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 128: Setting The Language (Menu And Help)

    • Simplified Chinese. • Traditional Chinese. • Korean. • Japanese. • English. • German. • French. • Portuguese. • Spanish. • Italian. • Russian. If quick help is unavailable in a particular language, English is displayed. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 129: Performing Mask Tests

    To select the source channel for mask tests 1 In the Mask Test menu ([Utility] > Mask Test), press Source. 2 Continue pressing the Source softkey or turn the entry knob to select the desired input channel. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 130: To Run/Stop A Mask Test

    The message display shows the failed, passed, and total number of waveforms. Figure 54 Mask Test Display To set the mask test output condition 1 In the Mask Test menu ([Utility] > Mask Test), press Output. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 131: To Stop A Mask Test On The Output Condition

    USB drive. To access the Mask menu: 1 Press [Utility]. 2 In the Utilities menu, press Mask Test. 3 In the Mask Test menu, press MaskSetting. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 132: Figure 55 Mask Test Mask Setting

    The margin can be set from 0.04 div to 4.00 div. To create a mask using the failure margin settings 1 In the Mask menu ([Utility] > Mask Test > MaskSetting), press Create Mask. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 133 When importing a mask while the Location is Internal or when importing or recalling a mask NOTE while the Location is External, the mask is imported or recalled to internal memory. To activate the mask, you must set the Location to Internal, then Recall from internal memory. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 134: Setting Preferences

    “To adjust the vertical scale" on page 43. To select the USB device port function The (square) USB device port on the oscilloscope’s back panel can be used for: • Connecting to a PictBridge compliant printer. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 135 Lets the USB device port auto-detect the type of host that is connected. Computer Specifies the that the USB device port will be connected to a computer host. PictBridge Specifies the that the USB device port will be connected to a PictBridge compliant printer host. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 136: Running Self-Calibration

    Before performing the automatic calibration, let the oscilloscope warm-up at least 30 NOTE minutes. To run the oscilloscope’s self-calibration: 1 Press [Utility]. 2 In the Utilities menu, press Sel f-Cal. 3 Follow the instructions on the Calibration screen. Figure 56 Calibration Screen Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 137: Specifications And Characteristics

    Keysight 1000 Series Oscilloscopes User’s Guide 7 Specifications and Characteristics Environmental Conditions Measurement Category Specifications Characteristics This chapter describes the 1000 Series oscilloscopes’ specifications and characteristics.

  • Page 138: Environmental Conditions

    This product is intended to be powered by MAINS that comply to Overvoltage Category II, which is typical of cord-and-plug connected equipment. Pollution Degree The 1000 Series oscilloscope may be operated in environments of Pollution Degree 2 (or Pollution Degree 1). Pollution Degree Definitions Pollution Degree 1: No pollution or only dry, non-conductive pollution occurs.

  • Page 139: Measurement Category

    Specifications and Characteristics Measurement Category The 1000 Series oscilloscope is intended to be used for measurements in Measurement Category I. Measurement Category Definitions Measurement category I is for measurements performed on circuits not directly connected to MAINS. Examples are measurements on circuits not derived from MAINS, and specially protected (internal) MAINS derived circuits.

  • Page 140: Specifications

    (DC coupling): bandwidth < 5 mV/div: 1 div from DC to 10 MHz, 1.5 div from 10 MHz to 20 MHz 20 MHz when vertical scale is set to < 5 mV (1X probe attenuation). Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 141: Characteristics

    20 MHz when vertical scale is set to < 5 mV (1X probe attenuation). Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10° C from firmware calibration temperature. Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 142 20 MHz when vertical scale is set to < 5 mV (1X probe attenuation). Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10° C from firmware calibration temperature. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 143: Table 8. Horizontal System Characteristics

    1-2-5 increments when off, 1% minor increments between major settings when on. Modes: Main, Zoom, Roll, XY Bandwidth: Max bandwidth Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10° C from firmware calibration temperature Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 144: Table 9. Trigger System Characteristics

    5.7-inch (145 mm) diagonal color TFT LCD Display update rate: Up to 400 waveforms/s Resolution: QVGA 320 x 240 dots Backlight intensity 300 cd/m Persistence: Off, infinite Display types: Dots, vectors Real-time clock: Time and date (user adjustable) Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 145: Table 11 Measurement Features

    Name Typical Value Points: Fixed at 1024 points Source of FFT: Oscilloscope channels 1 or 2 (or 3 or 4 on DSO1xx4A only) Window: Rectangular, blackman, hanning, hamming Amplitude: Display in dBVrms and Vrms Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 146: Table 13 Storage

    Most FAT formatted <2 GB or FAT32 formatted <32 GB flash drives. Table 14 I/O Name Typical Value Standard ports: 1 USB device, two USB host ports Max transfer rate: USB 2.0 full-speed up to 12 Mb/sec Printer compatibility: PictBridge compatible printer Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 147: Table 15 General Characteristics

    Thread a security cable through the built-in security loop on the rear panel. Table 16 Power Requirements Name Typical Value Line rating: ~Line 60 W max 100-120 V/50/60/400 Hz, ±10% 100-240 V/50/60 Hz, ±10% Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 148: Table 17 Environmental Characteristics

    Use this instrument only for measurements within its specified measurement WARNING categories. The N2739A rack mount kit is available for placing a 1000 Series oscilloscope into Electronic Industries Association (EIA) standard 19-inch (487-mm) rack cabinets. Installation instructions are included in the kit.

  • Page 149: A Safety Notices

    Keysight 1000 Series Oscilloscopes User’s Guide A Safety Notices Warnings Safety Symbols This apparatus has been designed and tested in accordance with IEC Publication 1010, Safety Requirements for Measuring Apparatus, and has been supplied in a safe condition. This is a Safety Class I instrument (provided with terminal for protective earthing).

  • Page 150: Safety Symbols

    Hazardous voltage symbol. Earth terminal symbol: Used to indicate a circuit common connected to grounded chassis. Keysight 1000 Series Oscilloscopes User’s Guide...

  • Page 151: Index

    FFT (Fast Fourier Transform) math function, 52, backlight, LCD, FFT resolution, band pass filter, dBVrms scale, FFT windows, band reject filter, DC channel coupling, field synchronization, 86, bandwidth limit, DC trigger coupling, file names, editing, Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 152 Manual cursor measurements, oscilloscope sample rate, high pass filter, manually adjustable cursors, oscilloscope setups, saving and high-frequency reject coupling, mask test, 42, loading, trigger, mask, creating, overshoot measurement, holdoff, trigger, mask, loading, overvoltage category, Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 153 BMP or PNG triggering, files, SECAM standard, 84, self-calibration, random noise, sensitivity, trigger, under-sampled signals, real-time sampling mode, sensitivity, Volts/Div control, units, channel, recalling data, serial number, unknown units, record waveforms, setups, saving and loading, Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 154 3, 42, 98, Volts/Div control sensitivity, Vpp (peak-to-peak voltage) measurement, Vrms (root-mean-square voltage) measurement, Vtop (top voltage) measurement, warnings, watt units, waveform intensity, waveform intensity, graded, waveform math, waveform persistence, waveforms, recording/playing-back, 3, Keysight 1000 Series Oscilloscopes User’s Guide...
  • Page 156 © Keysight Technologies, Inc. 2008-2009 Printed in Malaysia 10/09 Second Edition, October 2009 *54130-97014* 54130-97014...

This manual is also suitable for:

Dso1024aDso1014aDso1004aDso1022aDso1012aDso1002a

Table of Contents
