- Page 1 High End Systems SolaPix 19 XT Automated Luminaire User Manual Version 1.0.1 Part Number: 2595M1210-1.0.1 Rev: A Released: 2022-08...
- Page 2 To view a list of ETC trademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked and not marked, are the property of their respective owners. You can find complete High End Systems terms and conditions and warranty information at etcconnect.com/Support/Warranty.aspx.
-
Page 3: Table Of Contents
Table of Contents Introduction Important Safety Information Help from Technical Services Safety Considerations General Operation and Use Guidelines Specifications Environment Power Electrical Connector Specifications Fixture Overview Modular Control Install the Fixture DMX Control DMX Connector Pinout Connect DMX Cables to Fixture Terminate DMX Set the DMX Start Address DMX Channels... - Page 4 Set the Control Source and Universe Configure the Fixture Navigate the User Interface Set Fixture Parameters Address Info Menu Set Menu Test Menu Preset Menu Error Codes Maintenance Clean the Fixture Replace the Battery Replace the Fuse Compliance FCC Compliance SolaPix 19 XT User Manual...
-
Page 5: Introduction

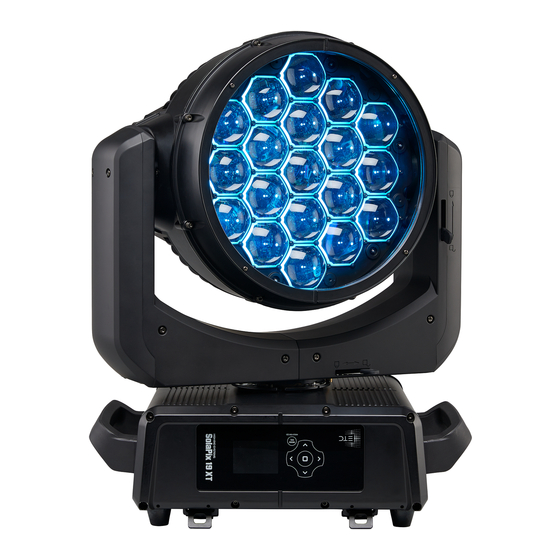

Introduction Congratulations on your purchase of the SolaPix 19 XT automated fixture. The SolaPix 19 XT is an IP65-rated fixture that is suitable for indoor and temporary outdoor use. This manual provides important information for the safe installation, configuration, and maintenance of your SolaPix 19 XT fixture. -
Page 6: Help From Technical Services
Help from Technical Services If you have questions that are not answered by this document, try the ETC support website at support.etcconnect.com or the High End Systems product website at etcconnect.com/Products/High-End-Systems. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. Emergency service is available from all offices outside of normal business hours. -
Page 7: Safety Considerations
Safety Considerations To ensure safe operation, follow the safety instructions and warning notes in the user manual. The SolaPix 19 XT is intended for professional use only. Not for residential use. Not • intended for permanent outdoor installation. Read the entire manual before using this equipment. - Page 8 Note: The light source in this luminaire is not user-replaceable, and must be replaced only by a qualified technician. Contact ETC Customer Support for assistance. Symbols used on the product label are defined below: The luminaire must be installed at least 1.0 m (3 ft Le luminaire doit être installé...
-
Page 9: General Operation And Use Guidelines
Applying power to a cold fixture may cause damage to the fixture and void the manufacturer warranty. Please use the original packaging if the fixture is to be transported. ETC will not be •... -
Page 10: Power
See the following wire color code chart: Wire Color Code (EU) Wire Color Code (US Standard) Connection type Terminal Green/Yellow Green Earth/Ground Blue White Neutral Brown Black Line (Live) SolaPix 19 XT User Manual... -
Page 11: Fixture Overview
Fixture Overview 1: Protective glass (shaded area) 2: Lens (x19) 3: Tilt lock 4: Display 5: Navigation controls 6: Pan lock 7: Handle 8: USB 9: Air valve* 10: Power In 11: Power Out 12: Ethernet ports (x2) 13: DMX In 14: DMX Thru 15: Battery holder *A second air valve is located behind... -
Page 12: Modular Control
SolaPix 19 XT software and user manual, "Flex" and "Macro" are interchangeable. The SolaPix 19 XT fixture has three segments of control (or modules) that essentially give you three fixtures in one, letting you customize each fixture based on your control needs. -
Page 13: Install The Fixture
L'installation doit être régulièrement inspectée par du personnel qualifié. • CAUTION: The SolaPix 19 XT is intended for indoor and temporary outdoor use. If • you are installing the fixture outdoors, do not include it in a permanent outdoor installation. Per NEC Article 590.3(B), temporary lighting installations shall be permitted for a period not to exceed 90 days. - Page 14 You can install the fixture in any of the orientations shown below. SolaPix 19 XT User Manual...
- Page 15 1. Assemble the clamp (provided by others) to the Omega bracket that was provided with the fixture and secure together using appropriately sized hardware (not provided). 2. Align the assembled Omega bracket and quick-lock fasteners into the respective holes on the bottom of the fixture upper enclosure.
-
Page 16: Dmx Control
DMX Control The SolaPix 19 XT fixture operates on standard DMX-512 control bus, controlled by a DMX console. The fixture requires 114 channels of DMX-512. Attach the fixture to the control bus using a two-core, shielded cable with a 5-pin XLR connector (Belden 9729 is preferred). -
Page 17: Terminate Dmx
If you are using the Base and Pixel modules (the Pixel module is set to Compound mode and the Flex module is disabled) the total channel usage is 97 channels. DMX Channels The current DMX channel map for the SolaPix 19 can be found on the ETC website: etcconnect.com/SolaPix/Documentation. DMX Control... -
Page 18: Ethernet Control
Ethernet Control The SolaPix 19 XT fixture includes two Ethernet ports that allow sending and receiving of control signals using the Art-Net protocol or sACN. Use a Cat5e (or better) cable and terminate to RJ45 connectors following the TIA/EIA 568B wiring standard. -
Page 19: Set The Dmx Start Address
Address on page 17 Example: The SolaPix 19 XT requires up to 114 channels of control depending on the configuration of the modules. The Base module uses 21 channels. When the Flex module is set to Compound mode, an additional 17 channels are added. If the Pixel module is also set to Compound mode, then an additional 76 channels are added, making 114 channels total. -
Page 20: Configure The Fixture
Configure the Fixture You can configure SolaPix 19 XT fixtures through the onboard user interface. Navigate the User Interface Mode 1. Press the [MODE/ESC] button to access the main menu. (The display is powered by Esc. Mode battery when the fixture has no power; press and hold the [MODE/ESC] button Esc. -
Page 21: Set Fixture Parameters
Note: Some consoles may refer to the Flex effects by the feature name "Macro". For the purposes of the SolaPix 19 XT software and user manual, "Flex" and "Macro" are interchangeable. Navigate: Main Menu → Address → Base Module Base module configuration is mandatory. - Page 22 When using Art-Net or sACN control source, set the Universe 000–255 universe. Note: This option is only available when the Mode selection is set to Independent. When you set the module to Compound mode, the Universe setting is inherited from the Base module. SolaPix 19 XT User Manual...
- Page 23 Navigate: Main Menu → Address → Pixel Module The Pixel module is an optional feature. Select Disable in the Mode menu to turn off the module. Settings Value Description Compound Select how the Pixel module is implemented: Mode • Independent • Compound - the module inherits its settings from •...
- Page 24 The result: You can control each fixture individually and you can access the Flex effects (although all fixtures will perform the same animation). The recommended console libraries are Base for each unique fixture and a single instance of Flex for the Flex/Macro control. SolaPix 19 XT User Manual...
-
Page 25: Info Menu
Separate Console Control and Video Server Control The system contains a video control source in addition to a DMX console. Example: For each fixture: Configure the Base module with DMX source and a unique address. • Set the Flex module to Compound mode. •... - Page 26 View the DMX value of each of the fixture's channels (parameters of the fixture). Scroll to the parameter that you want to view (Pan, Tilt, etc.) and view the value. The DMX value that you view is the DMX value that displays on the main window of the UI until you select a different DMX value to view.
-
Page 27: Set Menu
Set Menu Set the Status Options Navigate: Main Menu → Set → Status Parameter Value Description Close Shutter No DMX Mode Control mode when DMX is absent. The default • Hold value is Hold. • Auto Program • Pan Reverse Reverse the pan movement of the fixture. The •... - Page 28 You • must enter the Service PIN to access this menu item. Set this parameter to ON in order to clear the error messages. The default setting is OFF. SolaPix 19 XT User Manual...
- Page 29 Set the Fans Mode Navigate: Main Menu → Set → Fans Mode Setting Select the fan mode for the fixture: Standard • Studio (reduces fan noise, but decreases fixture output by ~20%) • Note: Fan Speed DMX control overrides the Fans Mode setting in the fixture user interface when the DMX control is set to Standard or Studio.
-
Page 30: Test Menu
Test Menu Reset (Home) the Mechanical Positions on the Fixture Navigate: Main Menu → Test → Home Reset ("home") all features on the fixture, including, pan, tilt, colors, gobos, etc. Test the Fixture Navigate: Main Menu → Test → Self Test Run a self-test program on the fixture. When you run the test, the display indicates "Running"... -
Page 31: Preset Menu
Presets are built by combining scenes into programs and then assigning the programs to Program Partitions for playback. For information about the Preset menu, access the High End Systems Preset Menu Guide from the ETC support website: support.etcconnect.com. Configure the Fixture... -
Page 32: Error Codes
(optical or magnetic sensor failure) • the stepper motor is defective or the related IC driver on the main PCB has failed • the Zoom wheel is not located in the default position after the reset • SolaPix 19 XT User Manual... -
Page 33: Maintenance
Moving parts must not show any signs of wear and must move smoothly without issue. • The power supply cables must not show any damage, material fatigue, or sediment. • If spare parts are required, order only genuine parts from ETC or your authorized ETC • dealer. Clean the Fixture 1. -
Page 34: Replace The Battery
Replace the battery with the specified type and rating only. AVERTISSEMENT : Remplacez la batterie uniquement par le type et le calibre indiqués. SolaPix 19 XT replacement batteries are available for purchase from the ETC Online Shop: shop.etcconnect.com. Order part number 2595A3220. Tools and parts needed: Flatblade screwdriver •... -
Page 35: Compliance
For current and complete compliance information, view the product datasheet at etcconnect.com/Products/High-End-Systems. For complete product documentation, including compliance documentation, visit etcconnect.com/products. FCC Compliance SolaPix 19 XT (For any FCC matters): Electronic Theatre Controls, Inc. 3031 Pleasant View Road Middleton, WI 53562 +1 (608) 831-4116 etcconnect.com... - Page 36 | Support support.etcconnect.com | Contact etcconnect.com/contactETC © 2022 Electronic Theatre Controls, Inc. | Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 2595M1210-1.0.1 Rev A Released 2022-08...
