Summary of Contents for BZB Gear BG-UPTZ-20XHSU
Page 1

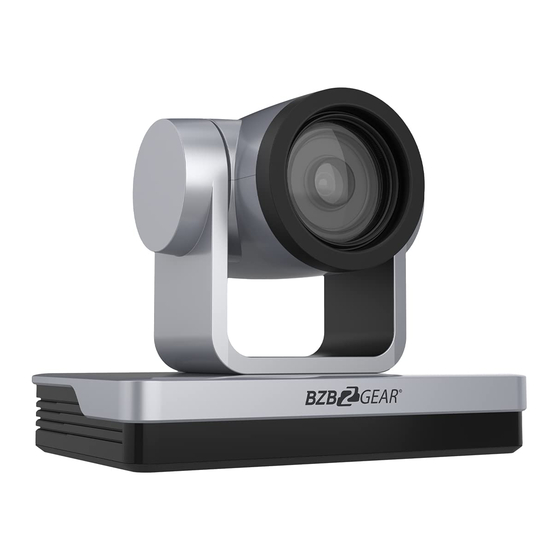

BG-UPTZ-12XHSU BG-UPTZ-20XHSU BG-UPTZ-30XHSU Full HD PTZ Camera User Manual CONTACT 1.888.499.9906 | support@bzbgear.com | bzbgear.com...
Page 2
Attention Improper operations may damage the product structure and result in mechanical failure. Please note the following tips: Do not move the camera by grabbing the head. Move the camera by holding the bottom with one or both hands. Please do not rotate the lens and holder manually regardless of camera being powered on or off;...
Page 3
This manual introduces functionality, proper installation, and operations for this PTZ camera in details. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid product damage caused by heavy pressure, strong vibration or immersion during transportation, storage, and installation.
1.2 Interfaces and Connection Figure 1.3 Wiring Diagram 1) After powering on and self-starting, the camera will automatically return to the preset (0) position once it’s pre-set. 2) The default address for the IR remote control is 1. If restored to factory defaults, note that the remote control default address will be restored to 1. 1.3 Mounting Brackets Notes: Ceiling or wall mounting brackets should only be installed on sturdy walls rated to support mounted objects.
2.2 Accessories Standard Accessories Optional Accessories Power adapter Ceiling Mount IR Remote Control Wall Mount RS232 Cable User Manual USB3.0 Cable 2.3 RS-232 Interface 1) RS-232 Interface Definition Connection to PC or Camera Controller Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND...
3) RS232 (DB9) Port Definition Definition Port Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4) VISCA networking as shown below: Camera cascade connection Camera 1 Camera 2 1.DTR 1.DTR...
2.6 Main Features This model series is packed with functions, superior performance, and rich video output interfaces. Featuring advanced ISP processing algorithms, offering vivid and high-resolution video with a strong sense of depth and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video more fluent and clearer under low bandwidth conditions.
Page 14
Main-Stream: YUY2/MJPEG/NV12/H.264/H.265: 1920×1080P30,1280×720P30,1024×576P30,960×540P30,800×448P30,720×480P30,640×360P3 0, 640×480P30,320×176P30 Sub-Stream: YUY2/NV12: 640×360P30,640×480P30,320×176P30 MJPEG/H.264/H.265: 1920×1080P30,1280×720P30, 1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30 View Angle 72.5° (W) 54.7° (W) 65.1°(W) 6.3°(T) 3.3°(T) 2.34°(T) F1.8 – F2.4 F1.6 – F4.7 F1.5~ F3.0 Digital Zoom 12X/20X/30X Minimum 0.5Lux (F1.8, AGC ON) Illumination 2D & 3D DNR White Balance Auto / Manual/ One Push/ Specify color temperature (range: 2400k-7100k) Focus/Aperture/...
USB Communication UVC (Video),UAC (UAC) PTZ Parameter Pan/Tilt Rotation ±170°, -30°~+90° Pan Control Speed 0.1 - 60°/sec Tilt Control Speed 0.1- 30°/sec Preset Speed Pan: 60°/sec, Tilt: 30°/sec Preset Number 255 presets (10 presets via remote control) Other Parameter Stored Temperature -10℃~+60℃...
3.2 Keys Introduction for IR Remote Control 1). In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. 2). When a key-combination is required, do it in sequence. For example, 【*】+【#】+【F1】 means press “【*】” first and then press “【#】”...
Page 17
Set Preset: press 【SET PRESET】 button, and then press the number key 0-9 to set preset positions. Note: 10 presets via remote control. Call Preset: Press a number key 0-9 directly to call a preset position. Clear Preset: press 【CLEAR PRESET】 button, and then press the number key 0-9 to clear preset positions.
9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【9】: Flip switch 6) 【*】+【#】+Auto: Enter aging mode 7) 【#】+【*】+Auto: Exit aging mode 8) 【*】+【#】+Manual: Restore the default username, password, and IP address 9) 【#】...
4. Network Configuration 4. Network Connection 4.1 Connection Mode Direct connection: Connect the camera directly to the computer by using an ethernet cable. Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN). Note: Ensure power and network connections are secured to prevent video issues caused by poor connection quality.
For the following steps refer to the diagram below. Click on the bubble for “Use the following IP address” In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect.
Page 22
Configure the parameters according to the network environment. Note: stream name live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. The way to obtain the RTSP video stream is as below rtsp://192.168.5.163:554/live/av0(av0 mainstream) rtsp://192.168.5.163:554/live/av1(av1 sub stream) The default IP address of the camera is 192.168.5.163.
Push RTMP stream to public network server, the stream camera must be on the public network, otherwise it will fail to connect to server. Host address: server address, which can be either a domain name or an IP address Host port: server default port number Stream name: live/test (live/ XXX) Username and password: the username and password set by the server, or leave it empty Access URL:rtmp://host domain name: host port/live/xxx...
Returned when a command cannot be executed due to Command current conditions. For example, when commands z0 61 41 FF Executable controlling the focus manually are received during auto focus. 5.2 VISCA Protocol Control Command Command Function Command packet Note AddressSet Broadcast 88 30 0p FF...
Page 25
Command Function Command packet Note 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF Manual Control mode...
Page 26
Command Function Command packet Note B&W-Mode 8x 01 04 63 04 FF CAM_Picture effect Picture effect Setting 8x 01 04 63 00 FF Reset 8x 01 04 3F 00 pq FF pq: Memory Number (=0 to 254) CAM_Memory 8x 01 04 3F 01 pq FF Corresponds to 0 to 9 on the Remote Commander Recall...
Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF Query Pan Position 0xA0 Address 0x00 0x51 0x00 0x00 0xAF Query Pan Position Response 0xA0 Address 0x00 0x59 Value High Byte Value Low Byte 0xAF Query Tilt Position 0xA0 Address 0x00 0x53 0x00...
7. Tech Support Before contacting tech support, we may have answered your question already! Visit our BZBGEAR support page (bzbgear.com/support) for valuable information on our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start guides, and step-by-step troubleshooting instructions.
