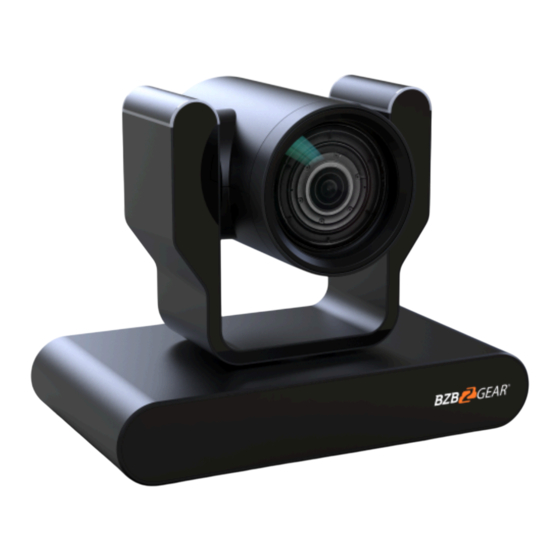

BZB Gear BG-ADAMO-JR20X-W User Manual

1080p hd auto tracking hdmi 2.0/3g-sdi/usb 2.0/usb 3.0 live streaming ptz camera with tally lights

Hide thumbs

page of 48

/ 48
Bookmarks

Quick Links

Download this manual

BG-ADAMO-JR

1080P HD AUTO TRACKING HDMI 2.0/3G-SDI/USB 2.0/USB 3.0 Live Streaming

PTZ Camera with Tally Lights

User Manual

Need help?

Do you have a question about the BG-ADAMO-JR20X-W and is the answer not in the manual?

Questions and answers

Summary of Contents for BZB Gear BG-ADAMO-JR20X-W

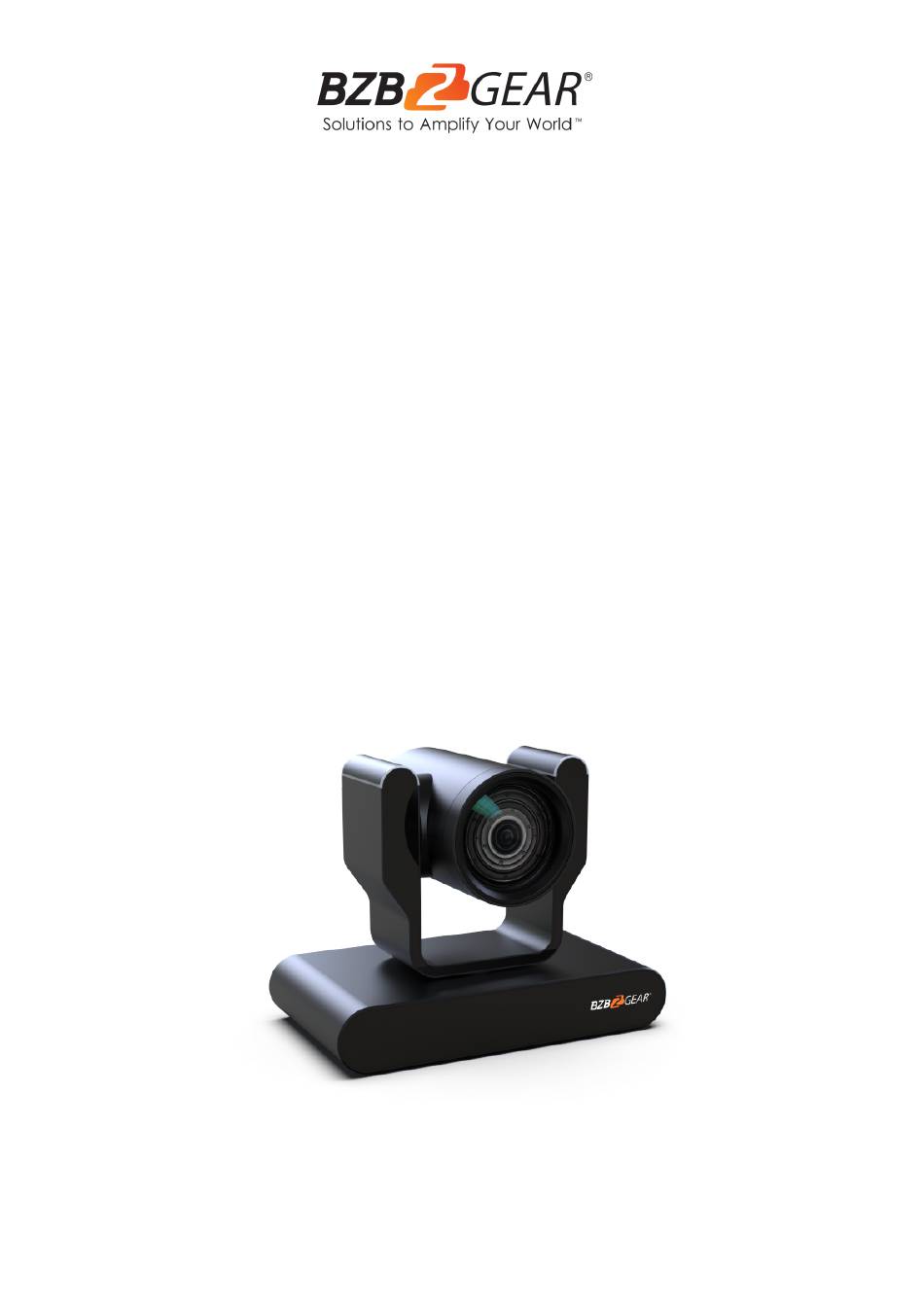

Page 1 BG-ADAMO-JR 1080P HD AUTO TRACKING HDMI 2.0/3G-SDI/USB 2.0/USB 3.0 Live Streaming PTZ Camera with Tally Lights User Manual...
Page 2 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
Page 3 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Speciﬁcations Installation and Handling Caution Camera Interface Mounting Wall Mounting Ceiling Mounting Operating Instructions Power on and Self-check Remote Remote Buttons Introduction Network Connection Web Client Login Preview SD Card Recording Auto-Tracking Conﬁguration...
Page 4 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Serial Port Communication and Control VISCA Protocol List VISCA P ROTOCOL ETURN OMMAND VISCA P ROTOCOL ONTROL OMMANDS VISCA P ROTOCOL NQUIRY OMMANDS -D P ELCO ROTOCOL OMMAND -P P ELCO ROTOCOL OMMAND Maintenance and Troubleshooting AINTENANCE ROUBLESHOOTING Tech Support...
Page 5 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Introduction The BZBGEAR BG-ADAMO-JR is an ultra-high-deﬁnition PTZ camera that delivers 1080P resolution video at 60 fps. Available in a 12x optical zoom lens with a 70.28° wide-angle, 20x optical zoom lens with a 60.05° wide-angle, or 30X optical zoom 58.1°wide-angle lens. Featuring USB 2.0, USB 3.0, LAN, HDMI, and 3G-SDI video connections allowing for ﬂexible workﬂow options.
Page 6 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Packing List • • 1 x BG-ADAMO-JR 1 x User Manual • • 1 x IR Remote Control 1 x 12V/1.5A Power Supply Speciﬁcations Camera Parameters Optical Zoom f=4.1 mm～ 49.2mm ±5% f=5.2 mm～ 148.4 mm ±5% f=5.05 mm～...
Page 7 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Interface Product Interfaces HDMI, 3G-SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, SD (FAT32), 5-pin Phoenix terminal (compatible with RS232 andRS485), DC12V, Power Switch LAN Interface: H.264, H.265 Video Compression Format USB 2.0 Interface: MJPG, H264, YUY2, NV12 USB3.0 Interface: YUY2 Audio Input Interface Stereo 3.5mm AUX...
Page 8 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Installation and Handling Caution ● Do not manually rotate the camera head as it could cause mechanical failure. ● Place the camera on a stable table or horizontal surface. Installing on a slanted surface will result in a slanted image. ●...
Page 9 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Mounting Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall. Mounting to plasterboard is not recommended for safety reasons. Wall Mounting 1/4-20 UNC Bolt Limited Post Anti-vibrate Cushion M6 Swelling Bolts M6 Nut and Shim Wall Mounting Bracket Camera...
Page 10 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Ceiling Mounting Operating Instructions OWER ON AND CHECK 1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of the camera. or connect to a PoE enabled network switch using a category cable. 2.
Page 11 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL EMOTE One-to-One Code Matching: Out of the box the remote is automatically paired with the camera. Should the camera need to be re-pair with the remote, perform the steps below. 1. Press the "set" and " * " keys combined for 3 seconds. The LED indicator will start ﬂashing.
Page 12 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL 2. Camera Selection Select the camera’s address to control it. 3. Pan/Tilt Control Up: press Down: press Left: press Right: press Return to middle position: press 【HOME】 Press and hold the up, down, left, or right button to pan/tilt the camera.
Page 13 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL 6. Auto Tracking Buttons F1: Turn oﬀ auto tracking F2: Turn on auto tracking F3: Switch auto tracking modes F4: Switch auto tracking to follow a diﬀerent person 7. Key Combinations 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English...
Page 14 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
Page 15 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Network Connection Connection Mode ● Direct connection: Connect the camera directly to the computer using an ethernet cable. ● Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN). Note: Ensure power and network connections are secured to prevent video issues caused by poor connection quality.
Page 16 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL ● Right-click on your connection and select “Status". Then click “B” Take note of your current IPv4 Address and Default Gateway as you will need this information later. Close the Details and Status windows. ● Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”. ●...
Page 17 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL For the following steps refer to the diagram below. ● Click on the bubble for “Use the following IP address” ● In the IP address ﬁeld, enter a non-conﬂicting IP address on the same subnet as the camera.
Page 18 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Web Client Login ● Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as the administrator (Default Username/Password: admin). Users can preview and conﬁgure in the Web Client. ● When logged in as a normal user (Default Username/Password: user1 or user2), users can only preview with no options for conﬁguration.
Page 19 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Navigate to Conﬁguration -> DNS ● In the “Preferred DNS Server” type 8.8.8.8 ● In the “Alternative DNS Server” type 8.8.4.4 ● Click “Save” and reboot the camera once more. ● Once you have completed the camera network setup, repeat the steps on your computer to adjust the “Internet Protocol Version 4 (TCP/IPV4) Properties.”...
Page 20 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL SD Card Recording ● The recording option will appear in the bottom right corner of the “Preview Screen” after a compatible SD card is inserted into the camera. ○ The BG-ADAMO line of cameras currently only supports FAT32 format at this time. Before recording, ensure the SD card has been formatted properly.
Page 21 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL “Zone Tracking Setup” for instructions. RACKING ETUP ● Zone tracking must be set up using the web interface. However, it can be activated using the remote once the setup process has been completed. ● Using either the remote or web interface, adjust the camera to the desired shot.
Page 22 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL General Conﬁguration To access system settings select “Conﬁguration” in the top left corner of the web interface. Menu Explanation Includes audio compression formats, Audio sampling frequency, sampling Conﬁgure precision, compressing code rate settings etc. Video Includes video encoding, video Conﬁgure parameters, character-overlapping, character size, video output setting...
Page 23 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Audio Conﬁgure ● Enable: Check the Enable box to turn on embedded audio into the camera stream. ● Encode Type: Select the audio format (AAC only at this time). ● Sample Rate: 48kHz (not editable) ● Sample Bits: 16bit (not editable) ●...
Page 24 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL From the Video Encode tab users can edit the following parameters for the main and sub streams: Compressed Format: H.264 (default) or H.265 Proﬁle: HP or MP Image Size: 1280x720 - 1920x1080 (Main Stream) 320x240 - 720x480 (Sub Stream) Rate Control: CBR (Constant bit rate) or VBR (Variable Bit Rate) Bit Rate: Default 8192 Kb/s (recommended for 3840x2160) Frame Rate (F/S): Default is 25...
Page 25 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL For example: The default IP address of the camera is 192.168.5.163. To obtain the RTSP video stream, see below: rtsp://192.168.5.163:554/live/av0（av0 main stream) rtsp://192.168.5.163:554/live/av1（av1 sub stream） The default IP address of the camera is 192.168.5.163. To obtain the RTMP video stream, see below: rtmp://192.168.5.163:1935/live/av0（av0 main stream）...
Page 26 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Navigate to Conﬁguration -> Stream Publish ● To push an RTMP stream to a public network, such as Facebook or YouTube, the camera must be connected to a network otherwise it will fail to connect to a server. ●...
Page 27 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Video Parameters From the Video Parameters tab users have several options to manually control the image captured from the camera. Controls are broken into 6 sub sections: Focus, Exposure, Color, Image, NR, and Style. A preview image is shown above the settings so users can see their changes in real time.
Page 28 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Exposure Depending on the Exposure mode selected diﬀerent control options will be displayed as shown below: Auto Manual Bright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
Page 29 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Color By default the WB Mode (White Balance) is set to Auto. Color temperatures from 2400K - 7100K, Manual, or OnePush are selectable. Options will change depending on the mode selected as shown below: Auto and Manual Color Temperature 2400K - 7100K OnePush Press the “Adjust”...
Page 30 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Image From the Image tab users can control settings such as image Brightness, Contrast, Sharpness, B&W Mode (Black and white). Flip-H, Flip-V, Auto Flip, DZoom (digital zoom). Note: Flip-H and Flip-V are only available when Auto Flip is disabled. DZoom allows the camera to digitally zoom in on a shot past the standard optical zoom range but may reduce image quality.
Page 31 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Video OSD and OSD Font Video OSD or On Screen Display gives users the option to display the Device Name, Date, and Time, on the stream of the camera. This can be useful in easily identifying cameras when multiple are in use simultaneously in a production or security type setup.
Page 32 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Video Out Video Out is used to adjust output resolution of the camera to its physical HDMI and SDI outputs. Note: To adjust NDI, Dante, RTSP stream, USB, and SD Capture resolutions, use the Video Encode Main or Sub stream setting “Image Size.” Network Conﬁgure Network Port Network Port allows users to modify port settings...
Page 33 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Ethernet Ethernet settings allow users to change or modify how the camera is accessed on the network. DHCP If the DHCP box is enabled, the local network will automatically assign an IP address to the camera the next time it is rebooted.
Page 34 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL GB28181, SRT, and RTSP Authentication GB28181 is a camera protocol similar to ONVIF but uses Session Initiation Protocol (SIP). These settings are typically used by particularly government entities and can be largely ignored by the standard user. SRT is an alternative to standard RTSP streams.
Page 35 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL System Conﬁgure System Attribute, System Time, & System User System Attribute allows users to edit the Device Name of the camera which can be helpful when identifying devices through enterprise level networks. System Time allows users to edit date and hour formats, time zones, hour type (24hr/12hr), if an NTP server is used or if the camera syncs to the connected computer via...
Page 36 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Auto Reboot Auto Reboot allows users to schedule the camera to automatically reboot on a certain time daily, once per week, or once per month. This is useful when the camera remains on constantly and helps to alleviate random system problems that may occur over time. ·...
Page 37 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Operation System Operation System is used to control and limit the USB output resolution and refresh rate when connecting to Windows OS or MAC OS platforms to ensure the best possible performance. Update, Default, & Reboot Update shows the camera's current ﬁrmware information and also allows users to upload new ﬁrmware to the camera.
Page 38 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Serial Port Communication and Control The camera can be controlled through an RS232/RS485 interface. RS232C serial parameters are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None VISCA Protocol List VISCA P ROTOCOL...
Page 39 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Command Function Command packet Note Stop 8x 01 04 07 00 FF Far(Standard) 8x 01 04 08 00 FF Near(Standard) 8x 01 04 08 02 FF Far(Variable) 8x 01 04 08 03 FF p = 0(low) - F(high) Near (Variable) 8x 01 04 08 2p FF CAM _Focus...
Page 40 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Function Command packet Note Command Bright 8x 01 04 39 0D FF Bright mode Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down...
Page 41 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Function Command packet Note Command Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0 to 254) 8x 01 04 3F 01 pq FF Corresponds to 0 to 9 on the Remote CAM_Memory Commander...
Page 42 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Function Command packet Note Command Upleft 8x 01 06 01 VV WW 01 01 FF Upright 8x 01 06 01 VV WW 02 01 FF DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight 8x 01 06 01 VV WW 02 02 FF Stop 8x 01 06 01 VV WW 03 03 FF...
Page 43 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Oﬀ(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFModeInq...
Page 44 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Oﬀ(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFModeInq...
Page 45 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Command Packet Return Packet Note Command rs tu : ARM Version vw : reserve P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A：1080P59.94 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 3:1080i50 B：1080i59.94 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30...
Page 46 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL -P P ELCO ROTOCOL OMMAND Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Value High Query Zoom Position 0x00 0x5D Value Low Byte 0xFF Address Response Byte 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address...
Page 47 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Maintenance and Troubleshooting AINTENANCE ● Turn the camera oﬀ and disconnect the power adapter when not in use for an extended period. ● Use a soft cloth or tissue to clean the camera cover. ● Wipe the camera lens with a soft, dry cloth when cleaning. Gently wipe the lens with a mild detergent if needed.
Page 48 BZBGEAR BG-ADAMO-JR PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will ﬁnd our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up, conﬁguring, and other helpful how-to videos about our gear.
