BZB Gear BG-EPTZ-UH4K-b User Manual

All-in-One ePTZ Camera User Manual
1

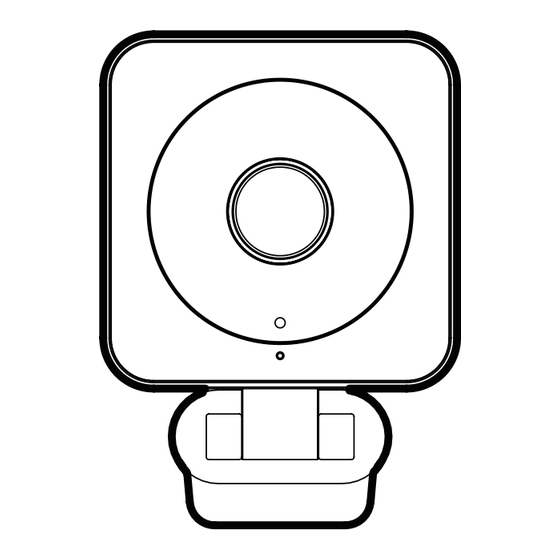

Camera Interface
①
⑤
No. Description
1 Lens
2 Array Microphone
3 Brackets with Damper
2
Packing Box
ePTZ Camera × 1
USB 3.0 Cable × 1
4K Audio Integrated
②
③
④
⑥
No. Description
4 Product Label
5 USB 3.0 Interface
6 HDMI 2.0 Interface
IR Remote Control × 1
User Manual × 1
3
Remote Control Specification
No.
②
①
1 Power Key
③
④
2 P/T RST Key
⑥
⑤ 3
4
⑦
5
6
⑧ ⑨
7
⑪
⑩
8
9
⑫
10 Focus Key
11 Zoom Key + increase, - decrease
12 Number Key
4
Camera
Video
Sony 1/2.5" CMOS
System
4K@3820*2160
Pixel
Zoom 4X Digital Zoom @1080P
Lens F=2.8mm FOV 130°
White
Auto / Indoor /Outdoor/ ONE PUSH, Manual
Balance
USB Function
Video 4K@30,25fps; 1080p@30,25fps;
Output 1080i@60,50,30,25fps; 720p@60,50fps
Encoding
UVC
Protocol
Video
Audio Function
Built-in
Audio
Voice
Pickup
Range
HDMI Interface
Video 4K@30,25fps; 1080p@30,25fps;
Output 1080i@60,50,30,25fps; 720p@60,50fps
Encoding
Audio
Output
ePTZ Support, 4X Digital Zoom @1080P
USB 3.0
Type B Female
Interface
HDMI 2.0
Key Function
After pressing, the camera
enters standby mode
After pressing, the camera
enters self-check
Flip Key
Camera Select the camera to be
Select Key controlled
BLC Key
Menu Key Enter/Exist Menu
Camera Press HOME button, the
PTZ camera returnto the middle
Control Key position
Preset Press "Preset"+Number(1-9) to
Setting Key save the corresponding Preset
Preset Press "Reset"+Number(1-9) to
Reset Key reset the corresponding Preset
[AUTO]:Automatic focus
[MANUAL]: Manual focus
[FAR]: Manual focus, make the
far object clearer
[NEAR]: Manual focus, make
the near object clearer
Cooperate with setting /
calling Preset
Min 0.02Lux @ F1.8,
Illumination AGC ON
Digital Noise
Reduce
Shutter 1/30s ~ 1/10000s
Auto Focus Support
H.265 / H.264 / MJPEG
Support
UVC1.0 - UVC1.5
YES
USB 3.0
8Meters
H.265 / H.264 / MJPEG
N/A
Compatible with all interfaces below
USB3.0, support video, control, power
supply, audio input and output
Compatible with HDMI 2.0, 1.4, 1.3A, 1.3
and other interfaces, only supports video
transmission
2D, 3D
