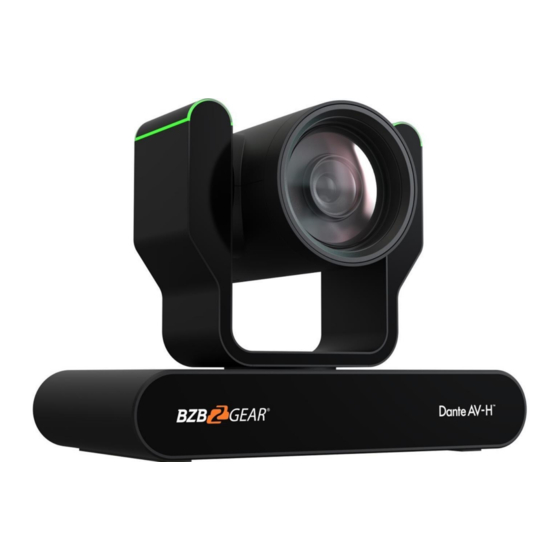

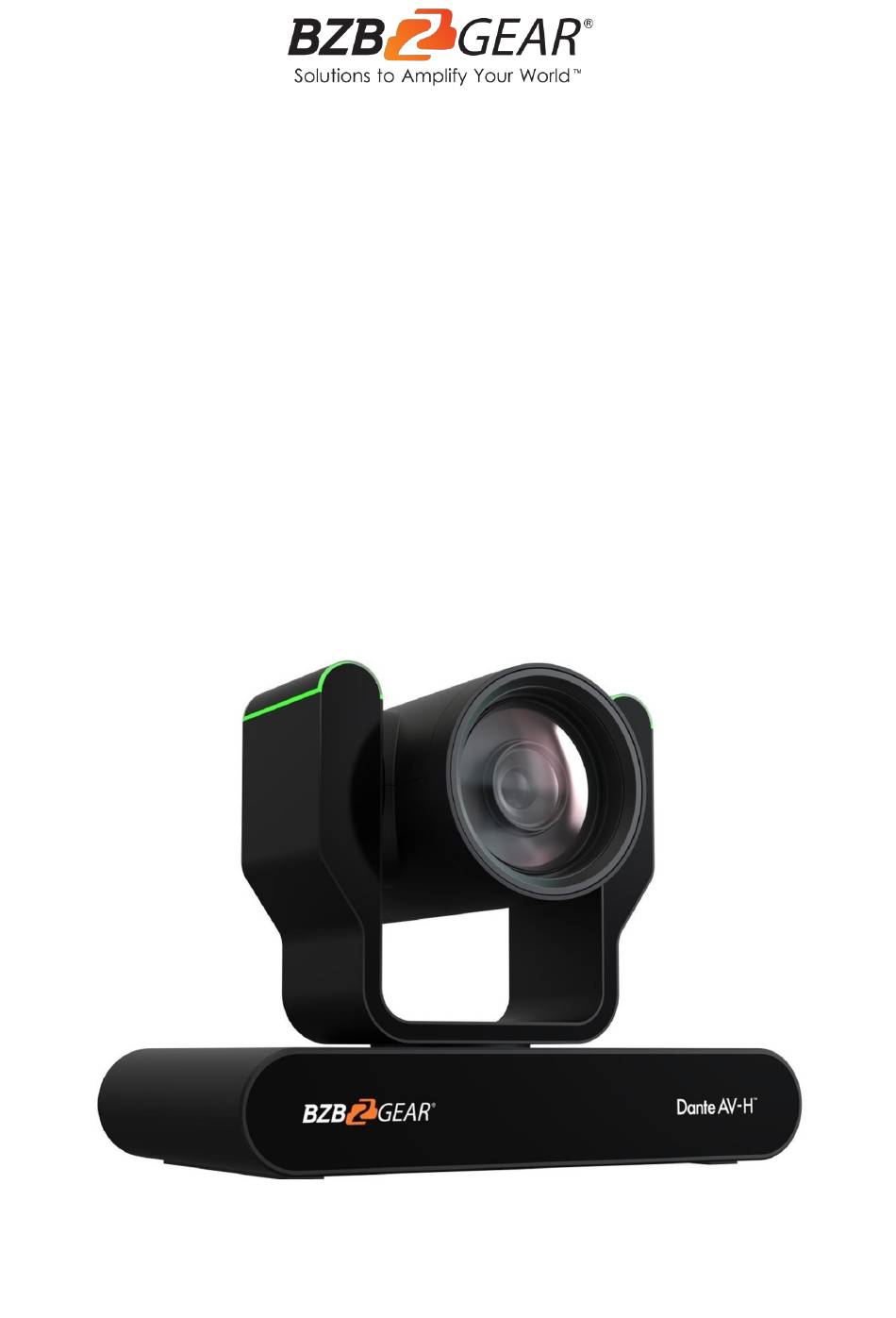

- Page 1 BG-ADAMO-JRDA 1080P HD AUTO TRACKING HDMI 2.0/3G-SDI/USB 2.0/USB 3.0/Dante AV-H Live Streaming PTZ Camera with Tally Lights User Manual...
-
Page 2: Table Of Contents
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Installation and Handling Caution Camera Interface Mounting Wall Mounting Ceiling Mounting Power-on and Self-check Remote Remote Button Commands Network Connection Web Client Login SD Card Recording Auto-Tracking Configuration Zone Tracking Setup General Configuration... -
Page 3: Statement
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. ●... -
Page 4: Introduction
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Introduction The BZBGEAR BG-ADAMO-JRDA is an ultra-high-definition PTZ camera that delivers 1080P resolution video at 60 fps. Available in a 12x optical zoom lens with a 70.28° wide- angle, 20x optical zoom lens with a 60.05° wide-angle, or 30X optical zoom 58.1°wide- angle lens. -
Page 5: Packing List
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Packing List • • 1 x BG-ADAMO-JRDA 1 x User Manual • • 1 x IR Remote Control 1 x 12V/1.5A Power Supply Specifications Camera Parameters Optical Zoom f=4.1 mm～ 49.2mm ±5% f=5.05 mm～ 91.49 mm ±5% f=5.2 mm～... - Page 6 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Interface Product Interfaces HDMI, 3G-SDI, LAN (supports PoE+), USB 2.0, A-IN, USB 3.0, SD (FAT32), 5-pin Phoenix terminal (compatible with RS232 andRS485), DC12V, Power Switch LAN Interface: H.264, H.265 Video Compression Format USB 2.0 Interface: MJPG, H264, YUY2, NV12 USB3.0 Interface: YUY2 Audio Input Interface Stereo 3.5mm AUX...
-
Page 7: Installation And Handling Caution
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Installation and Handling Caution ● Do not manually rotate the camera head as it could cause mechanical failure. ● Place the camera on a stable table or horizontal surface. Installing on a slanted surface will result in a slanted image. ●... -
Page 8: Mounting
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Mounting Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall. Mounting to plasterboard is not recommended for safety reasons. Wall Mounting Limited Post 1/4-20 UNC Bolt Anti-vibrate Cushion M6 Swelling Bolts M6 Nut and Shim Wall Mounting Bracket Camera... -
Page 9: Ceiling Mounting
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Ceiling Mounting Power-on and Self-check 1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of the camera. or connect to a PoE enabled network switch using a category cable. 2. Camera Self-check: The remote-control IR indicator and tally lights will flash when powered on. -
Page 10: Remote
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Remote One-to-One Code Matching: Out of the box the remote is automatically paired with the camera. Should the camera need to be re-pair with the remote, perform the steps below. 1. Press the "set" and " * " keys combined for 3 seconds. The LED indicator will start flashing. - Page 11 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL 2. Camera Selection Select the camera’s address to control it. 3. Pan/Tilt Control Up: press Down: press Left: press Right: press Return to middle position: press 【HOME】 Press and hold the up, down, left, or right button to pan/tilt the camera.
- Page 12 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL 6. Auto Tracking Buttons F1: Turn off auto tracking F2: Turn on auto tracking F3: Switch auto tracking modes F4: Switch auto tracking to follow a different person 7. Key Combinations 【#】+【#】+【#】: Cancel all preset positions 【*】+【#】+ 【Manual】: IP, username, password 【*】+【#】+【3】: The menu is set to Chinese restore to default...
- Page 13 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL 1. Main Menu · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 14: Network Connection
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Network Connection Connection Mode ● Direct connection: Connect the camera directly to the computer using an ethernet cable. ● Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN). Note: Ensure power and network connections are secured to prevent video issues caused by poor connection quality. - Page 15 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL ● Right-click on your connection and select “Status". Then click “B” Take note of your current IPv4 Address and Default Gateway as you will need this information later. Close the Details and Status windows. ● Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”. ●...
- Page 16 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL For the following steps refer to the diagram below. ● Click on the bubble for “Use the following IP address” ● In the IP address field, enter a non-conflicting IP address on the same subnet as the camera.
-
Page 17: Web Client Login
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Web Client Login ● Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as the administrator (Default Username/Password: admin). Users can preview and configure in the Web Client. ● When logged in as a normal user (Default Username/Password: user1 or user2), users can only preview with no options for configuration. - Page 18 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL • Navigate to Configuration -> DNS ● In the “Preferred DNS Server” type 8.8.8.8 ● In the “Alternative DNS Server” type 8.8.4.4 ● Click “Save” and reboot the camera once more. ● Once you have completed the camera network setup, repeat the steps on your computer to adjust the “Internet Protocol Version 4 (TCP/IPV4) Properties.”...
-
Page 19: Sd Card Recording
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL ● Preview After successfully logging into the management interface, the web portal will enter the “Preview” tab. In Preview, users can control pan/tilt, zoom, focus, video capture, sound, focus, full screen preview, as well as set the preset position, run, delete, and other operations. SD Card Recording ●... -
Page 20: Auto-Tracking Configuration
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Auto-Tracking Configuration To set up or enable auto-tracking, select “Track Configuration” on the top right corner. Select “On” under the option for Monocular Tracking. You have 2 modes for tracking: Presenter: The camera will continuously follow the subject until either the subject moves beyond the camera’s physical range of motion, a new more prominent target is in frame, or the tracking is disabled. -
Page 21: Zone Tracking Setup
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Zone Tracking Setup ● Zone tracking must be set up using the web interface. However, it can be activated using the remote once the setup process has been completed. ● Using either the remote or web interface, adjust the camera to the desired shot. -
Page 22: General Configuration
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL General Configuration To access system settings select “Configuration” in the top left corner of the web interface. Menu Explanation Includes audio compression formats, Audio sampling frequency, sampling Configure precision, compressing code rate settings etc. Video Includes video encoding, video Configure parameters, character-overlapping, character size, video output setting... -
Page 23: Streaming
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Streaming Video Stream Capture Navigate to Configuration -> Video Encode Configure the parameters according to the network environment. Note: stream name - live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. To obtain the RTSP video stream, see below: rtsp://192.168.5.163:554/live/av0（av0 main stream) rtsp://192.168.5.163:554/live/av1（av1 sub stream）... -
Page 24: Live Stream Publish
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Live Stream Publish Navigate to Configuration -> Audio Configure Ensure the check box next to “Enable” is toggled. ● Select AAC as the “Encode Type.” ● Change “Bitrate” to 128kbps. Click Save and Reboot the ● camera. -
Page 25: Dante
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Dante Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable. - Page 26 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL 3) Open the Dante Controller software and click the “Choose a Dante Interface” button. a) Ensure your correct PC network interface is selected and that the listed IP is in the same subnet as the camera. (Note: Your computer cannot have multiple subnets enabled unless your camera is on the lowest numerical subnet as that is what the Dante Control software will see.) 4) Select the “Device Info”...
- Page 27 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL 5) Click the “Routing” tab to return to the main screen. The vertical axis displays transmitters in this case cameras. The Horizontal axis displays Dante receivers such as the computer running Dante Studio. a) To enable a Dante stream, select to expand a transmitter by clicking the + icon and then expand the desired receiver (typically your computer).
-
Page 28: Serial Port Communication And Control
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Serial Port Communication and Control The camera can be controlled through an RS232/RS485 interface. RS232C serial parameters are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None VISCA Protocol List VISCA Protocol Return Command Ack/Completion Message... - Page 29 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Command Function Command packet Note Stop 8x 01 04 07 00 FF Far(Standard) 8x 01 04 08 00 FF Near(Standard) 8x 01 04 08 02 FF Far(Variable) 8x 01 04 08 03 FF p = 0(low) - F(high) Near (Variable) 8x 01 04 08 2p FF CAM _Focus...
- Page 30 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Function Command packet Note Command Bright 8x 01 04 39 0D FF Bright mode Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down...
- Page 31 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Function Command packet Note Command Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0 to 254) 8x 01 04 3F 01 pq FF Corresponds to 0 to 9 on the Remote CAM_Memory Commander...
-
Page 32: Visca Protocol Inquiry Commands
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Function Command packet Note Command Upleft 8x 01 06 01 VV WW 01 01 FF Upright 8x 01 06 01 VV WW 02 01 FF DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight 8x 01 06 01 VV WW 02 02 FF Stop 8x 01 06 01 VV WW 03 03 FF... - Page 33 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFModeInq...
- Page 34 BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFModeInq...
-
Page 35: Pelco-D Protocol Command List
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Command Packet Return Packet Note Command CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF Flip-H... -
Page 36: Pelco-P Protocol Command List
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Clear Preset 0xFF Address 0x00 0x05 0x00 Preset ID Call Preset 0xFF Address 0x00 0x07 0x00 Preset ID Query Pan Position 0xFF Address 0x00 0x51 0x00 0x00 Query Pan Position Value High Value Low 0xFF Address 0x00 0x59 Response... -
Page 37: Maintenance
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Maintenance ● Turn the camera off and disconnect the power adapter when not in use for an extended period. ● Use a soft cloth or tissue to clean the camera cover. ● Wipe the camera lens with a soft, dry cloth when cleaning. Gently wipe the lens with a mild detergent if needed. -
Page 38: Tech Support
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to videos about our gear. -
Page 39: Mission Statement
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 40: Copyright
BZBGEAR BG-ADAMO-JRDA PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
