- Page 1 BG-ADAMO-4KND 4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/NDI|HX3 Live Streaming PTZ Camera with Tally Lights User Manual...
- Page 2 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Installation and Handling Caution Camera Interface RS-232 Interface VISCA Networking Mounting Wall Mounting Ceiling Mounting Operating Instructions Power on and Self-check Remote Remote Buttons Introduction... -
Page 4: Statement
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction

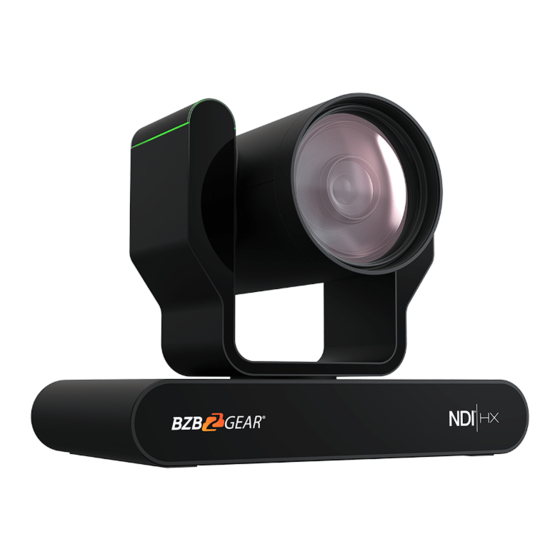

PRODUCT MANUAL Introduction The BZBGEAR BG-ADAMO-4KND is an ultra-high-definition PTZ camera that delivers 4K resolution video at 60fps Available with either the 12x optical zoom lens with an 80.4° wide-angle, or the 25x optical zoom lens with a 59° wide-angle. Featuring USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI video connections. -
Page 6: Packing List
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Packing List • • 1 x BG-ADAMO-4KND 1 x RS232 Control Cable • • 1 x IR Remote Control 1 x User Manual • 1 x 12V/1.5A Power Supply Specifications Camera Parameters Optical Zoom f=3.85 mm～ 43.06 mm ±5% f=6.91 mm～... - Page 7 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ≥50dB Interface Product Interfaces HDMI, 12G-SDI, LAN NDI|HX3 (supports PoE), USB 2.0, A-IN, USB 3.0, SD (FAT32), RS232-IN, RS232-OUT, RS422 (compatible with RS485), DC12V, Power Switch LAN Interface: H.264, H.265 Video Compression Format USB 2.0 Interface: MJPG, H264, YUY2, NV12 USB 3.0 Interface: YUY2...
-
Page 8: Installation And Handling Caution
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Installation and Handling Caution ● Do not manually rotate the camera head as it could cause mechanical failure. ● Place the camera on a stable table or horizontal surface. Installing on a slanted surface will result in a slanted image. -
Page 9: Rs-232 Interface
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL RS-232 I NTERFACE PC / Camera Controller Camera RS232 RS232 In Interface RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR OUT IR Commander Signal No Connection ·... -
Page 10: Visca Networking
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL RS-232 (BD9) Port Connections Port Definition Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send VISCA Networking Mounting Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall. -
Page 11: Ceiling Mounting
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL EILING OUNTING · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 12: Operating Instructions
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Operating Instructions OWER ON AND CHECK 1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of the camera. or connect to a PoE enabled network switch using a category cable. -
Page 13: Remote
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL EMOTE One-to-One Code Matching: Out of the box the remote is automatically paired with the camera. Should the camera need to be re-pair with the remote, perform the steps below. 1. Press the "set" and " * " keys combined for 3 seconds. The LED indicator will start flashing. - Page 14 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL 2. Camera Selection Select the camera’s address to control it. 3. Pan/Tilt Control Up: press Down: press Left: press Right: press Return to middle position: press 【HOME】 Press and hold the up, down, left, or right button to pan/tilt the camera.
- Page 15 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL 6. Auto Tracking Buttons F1: Turn off auto tracking F2: Turn on auto tracking F3: Switch auto tracking modes F4: Switch auto tracking to follow a different person 7. Key Combinations 【#】+【#】+【#】: Cancel all preset positions 【*】+【#】+ Manual: IP, username, password restore to...
- Page 16 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL 8. Main Menu · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 17: Network Connection
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Network Connection Connection Mode ● Direct Connection: Connect the camera directly to the computer using an ethernet cable. ● Internet Connection: Connect the camera and computer to a router or switch and access via the local area network (LAN). - Page 18 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ● Right-click on your adapter again (Wi-Fi or Ethernet) and select “Properties”. ● Select “Internet protocol version 4 (TCP/IPv4” as shown below and click “Properties”. For the following steps refer to the diagram below. ● Click on the bubble for “Use the following IP address”...
-
Page 19: Initial Web Client Login
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Initial Web Client Login ● Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as the administrator (Default Username/Password: admin). Users can preview and configure in the Web Client. ● When logged in as a normal user (Default Username/Password: user1 or user2), users can only preview with no options for configuration. -
Page 20: Preview
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ● Navigate to Configuration in the top left corner of the screen. Click “Ethernet” on the left-hand side. ● Enter an unused IP address on your network. Note: You should have your specific network information from the “Status”... -
Page 21: Sd Card Recording
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL SD Card Recording ● The recording option will appear in the bottom right corner of the “Preview Screen” after a compatible SD card is inserted into the camera. ○ The BG-ADAMO line of cameras currently only supports FAT32 format at this time. -
Page 22: Zone Tracking Setup
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL RACKING ETUP ● Zone tracking must be set up using the web interface. However, it can be activated using the remote once the setup process has been completed. ● Using either the remote or web interface, adjust the camera to the desired shot. -
Page 23: General Configuration
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL General Configuration To access system settings select “Configuration” in the top left corner of the web interface. Menu Explanation Includes audio compression formats, Audio sampling frequency, sampling Configure precision, compressing code rate settings etc. Video Includes video encoding, video Configure... -
Page 24: Streaming
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Streaming IDEO TREAM APTURE Navigate to Configuration -> Video Encode Configure the parameters according to the network environment. Note: stream name - live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. To obtain the RTSP video stream, see below: rtsp://192.168.5.163:554/live/av0（av0 main stream) -
Page 25: Live Stream Publish
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL TREAM UBLISH Navigate to Configuration -> Audio Configure Ensure the check box next to “Enable” is toggled. ● Select AAC as the “Encode Type.” ● Change “Bit Rate” to 128Kbps. Click Save and Reboot the ●... -
Page 26: Ndi
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL ● The BG-ADAMO-4KND has NDI enabled by default. ● Change the NDI Name and NDI Group on this screen. Note: Please consult your streaming software instructions on how to connect to the NDI stream from the camera. -
Page 27: Serial Port Communication And Control
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Serial Port Communication and Control The camera can be controlled through an RS232/RS485 interface. RS232C serial parameters are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None... - Page 28 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Command Function Command packet Note Near(Standard) 8x 01 04 08 02 FF Far(Variable) 8x 01 04 08 03 FF p = 0(low) - F(high) Near (Variable) 8x 01 04 08 2p FF CAM _Focus Direct 8x 01 04 08 3p FF...
- Page 29 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Function Command packet Note Command Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF...
- Page 30 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Function Command packet Note Command Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0 to 254) 8x 01 04 3F 01 pq FF Corresponds to 0 to 9 on the Remote CAM_Memory Commander Recall...
-
Page 31: Visca Protocol Inquiry Commands
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Function Command packet Note Command Upright 8x 01 06 01 VV WW 02 01 FF DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight 8x 01 06 01 VV WW 02 02 FF Stop... - Page 32 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position...
- Page 33 BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position...
-
Page 34: Pelco-D Protocol Command List
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Command Packet Return Packet Note Command P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A：1080P59.94 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 3:1080i50 B：1080i59.94 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25 y0 50 ww zz FF... -
Page 35: Pelco-P Protocol Command List
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL -P P ELCO ROTOCOL OMMAND Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Query Zoom Position 0x00 0x5D Value High Byte Value Low Byte 0xFF Address Response 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF... -
Page 36: Maintenance And Troubleshooting
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Maintenance and Troubleshooting Maintenance ● Turn the camera off and disconnect the power adapter when not in use for an extended period. ● Use a soft cloth or tissue to clean the camera cover. ● Wipe the camera lens with a soft, dry cloth when cleaning. Gently wipe the lens with a mild detergent if needed. -
Page 37: Tech Support
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,... -
Page 38: Warranty
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 39: Mission Statement
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 40: Copyright
BZBGEAR BG-ADAMO-4KND PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
