BG-ADAMO-4K

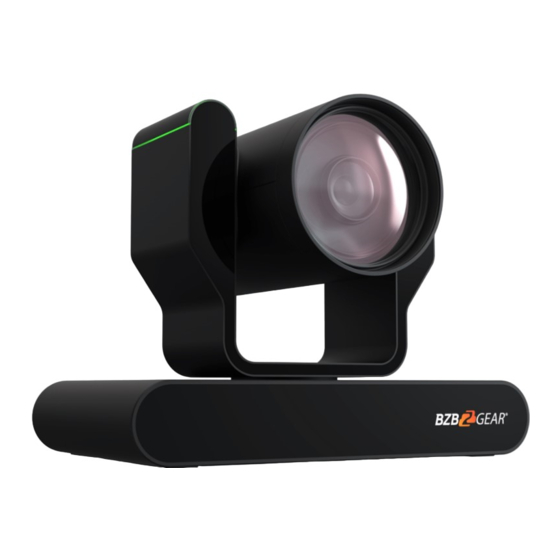

4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0 Live Streaming
PTZ Camera with Tally Lights
User Manual

Advertisement

Table of Contents
loading

Related Manuals for BZB Gear BG-ADAMO-4K

Summary of Contents for BZB Gear BG-ADAMO-4K

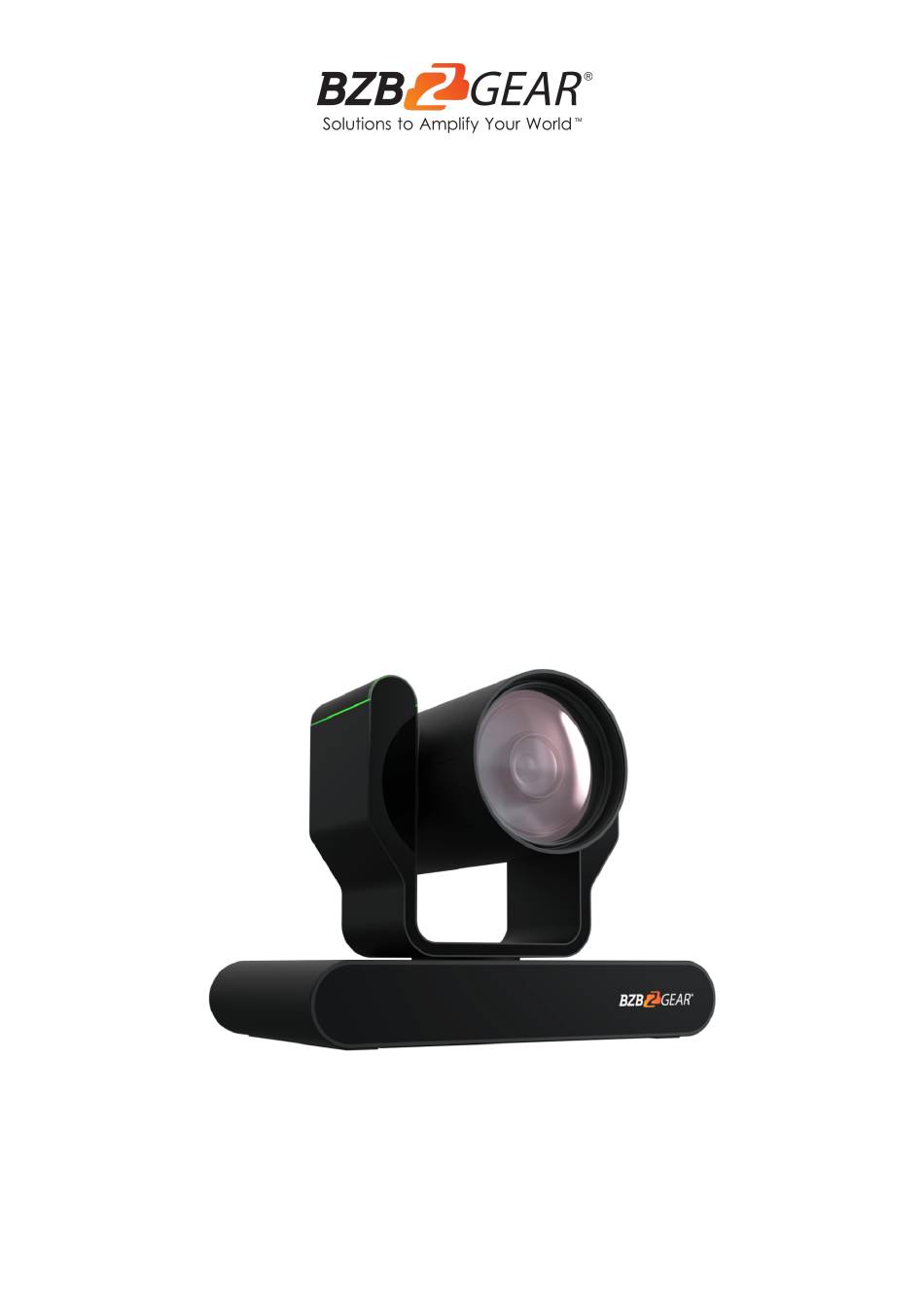

  • Page 1 BG-ADAMO-4K 4K UHD AUTO TRACKING HDMI 2.0/12G-SDI/USB 2.0/USB 3.0 Live Streaming PTZ Camera with Tally Lights User Manual...
  • Page 2 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Installation and Handling Caution Camera Interface RS-232 Interface VISCA Networking Mounting Wall Mounting Ceiling Mounting Operation Instructions Power on and Self-check Remote Remote Buttons Introduction...

  • Page 4: Statement

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BZBGEAR BG-ADAMO-4K is an ultra-high-definition PTZ camera that delivers 4K resolution video at 60fps Available with either the 12x optical zoom lens with an 80.4° wide-angle, or the 25x optical zoom lens with a 59.2° wide-angle. Featuring USB 2.0, USB 3.0, LAN, HDMI, and 12G-SDI video connections.

  • Page 6: Packing List

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Packing List • • 1 x BG-ADAMO-4K 1 x RS232 Control Cable • • 1 x IR Remote Control 1 x User Manual • 1 x 12V/1.5A Power Supply Specifications Camera Parameters Optical Zoom f=3.85 mm～ 43.06 mm ±5% f=7.1 mm～...
  • Page 7 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL ≥50dB Interface Product Interfaces HDMI, 12G-SDI, LAN (supports POE), USB2.0, A-IN, USB3.0, TF,RS232-IN, RS232-OUT,RS422（ compatible with RS485), DC12V, Power Switch LAN Interface: H.264, H.265 Video Compression USB 2.0 Interface: MJPG, H264, YUY2, NV12 Format USB3.0 Interface: YUY2 Audio Input Interface Stereo 3.5mm AUX...

  • Page 8: Installation And Handling Caution

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Installation and Handling Caution ● Do not manually rotate the camera head as it could cause mechanical failure. ● Place the camera on a stable table or horizontal surface. Installing on a slanted surface will result in a slanted image.

  • Page 9: Rs-232 Interface

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL RS-232 I NTERFACE MD8M DB9F PC / Camera Controller Camera RS232 RS232 In Interface RS-232 Mini-DIN 8-pin Port Definition · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 10: Visca Networking

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR OUT IR Commander Signal No Connection RS-232 (BD9) Port Connections Port Definition Definition Data Carrier Detect Receive Data Transmit Data...

  • Page 11: Mounting

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Mounting Note: Ceiling or wall mounting brackets should be mounted to a wooden or concrete wall. Mounting to plasterboard is not recommended for safety reasons. Wall Mounting 1/4-20UNC Bolt Limited Post Anti-vibrate Cushion M6 Swelling Bolts...

  • Page 12: Ceiling Mounting

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Ceiling Mounting Operation Instructions OWER ON AND CHECK 1. Power-on: Connect the DC12V power adaptor to the power supply socket on the back of the camera. or connect to a PoE enabled network switch using a category cable.

  • Page 13: Remote

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 1. After the power-on and self-check, the camera will automatically return to the preset 0 position. 2. The factory default address for the IR remote-control is #1. EMOTE One-to-One Code Matching: Out of the box the remote is automatically paired with the camera.
  • Page 14 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 1. Camera Remote Control Address Setting 【*】+【＃】+【F1】: Camera Address No.1 【*】+【＃】+【F2】: Camera Address No. 2 【*】+【＃】+【F3】: Camera Address No. 3 【*】+【＃】+【F4】: Camera Address No. 4 2. Camera Selection Select the camera’s address to control it. 3. Pan/Tilt Control...
  • Page 15 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 5. Set and Clear Presets Set Preset: Press the【SET PRESET】button, then press the number buttons 0-9 to set the preset positions. Note: 10 presets are available via remote control. Call Preset: Press the 0-9 number buttons to call a preset position.
  • Page 16 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 7. Key Combinations 【#】+【#】+【#】: Cancel all preset positions 【*】+【#】+ Manual: IP, username, password restore to 【*】+【#】+【3】: The menu is set to Chinese default 【*】+【#】+【9】: Toggle forward and backward 【#】+【#】+【1】: Switch video format 4KP50 【#】+【*】+ Auto : Stop aging mode 【#】+【#】+【3】: Switch video format 4KP25...
  • Page 17 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 8. Main Menu · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 18: Network Connection

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Network Connection Connection Mode ● Direct connection: Connect the camera directly to the computer using an ethernet cable. ● Internet connection mode: Connect the camera and computer to a router or switch and access via the local area network (LAN).
  • Page 19 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL ● Right-click on your connection and select “Status". Then click “B” Take note of your current IPv4 Address and Default Gateway as you will need this information later. Close the Details and Status windows. ● Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”.
  • Page 20 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL For the following steps refer to the diagram below. ● Click on the bubble for “Use the following IP address” ● In the IP address field, enter a non-conflicting IP address on the same subnet as the camera.

  • Page 21: Web Client Login

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Web Client Login ● Enter 192.168.5.163 in the address bar of your internet browser and click “Enter”. Login as the administrator (Default Username/Password: admin). Users can preview and configure in the Web Client. ● When logged in as a normal user (Default Username/Password: user1 or user2), users can only preview with no options for configuration.
  • Page 22 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL ● Enter an unused IP address on your network. Note: you should have this information from the “Status” and “Details” pages of your internet connection noted above. ● In this example we use 192.168.30.116 ● Change the Subnet Mask to 255.255.255.0...
  • Page 23 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL ● Preview After successfully logging into the management interface, the web portal will enter the video preview interface. In the preview screen, users can control pan/tilt, zoom, focus, video capture, sound, focus, full screen and set the preset position, run, delete and other operations. Recorded video can be saved on an SD Card when one is inserted by using the buttons on the lower left of the interface.

  • Page 24: Sd Card

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL SD Card ● The BG-ADAMO only supports FAT32 format. Before recording, ensure the SD card has been formatted. ● Synchronize the time before recording. ● When the video cannot be searched, set the start date to January 1, 1970 while searching.

  • Page 25: Zone Tracking Setup

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL RACKING ETUP ● Zone tracking must be set up using the web interface. However, it can be activated using the remote once the setup process has been completed. ● Using either the remote or web interface, adjust the camera to the desired shot.

  • Page 26: General Configuration

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL General Configuration To access system settings select “Configuration” in the top left corner of the web interface. Menu Explanation Includes audio compression formats, Audio sampling frequency, sampling Configure precision, compressing code rate settings etc. Video Includes video encoding, video Configure...

  • Page 27: Streaming

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Streaming IDEO TREAM APTURE Navigate to Configuration -> Video Encode Configure the parameters according to the network environment. Note: stream name - live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. To obtain the RTSP video stream, see below: rtsp://192.168.5.163:554/live/av0（av0 main stream)

  • Page 28: Live Stream Publish

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL TREAM UBLISH Navigate to Configuration -> Audio Configure Ensure the check box next to “Enable” is toggled. ● Select AAC as the “Encode Type.” ● Change “Bit Rate” to 128Kbps. Click Save and Reboot the ●...

  • Page 29: Serial Port Communication And Control

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL ● To push an RTMP stream to a public network, such as Facebook or YouTube, the camera must be connected to a network otherwise it will fail to connect to a server. ● Host Address: Server address, domain name, or an IP address.

  • Page 30: Visca Protocol Control Commands

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL manually are received during auto focus. VISCA P ROTOCOL ONTROL OMMANDS Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF...
  • Page 31 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 7000K 8x 01 04 35 0B FF Function Command packet Note Command Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM _RGain Down 8x 01 04 03 03 FF...
  • Page 32 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Off 8x 01 04 33 03 FF Reset 8x 01 04 21 00 FF 8x 01 04 21 02 FF WDR Level Setting CAM_WDRStrength Down 8x 01 04 21 03 FF Function Command packet Note Command...

  • Page 33: Visca Protocol Inquiry Commands

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Flip-H 8x 01 04 A4 01 FF Flip-V 8x 01 04 A4 02 FF Flip-HV 8x 01 04 A4 03 FF Function Command packet Note Command P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A：1080P59.94...
  • Page 34 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Command Packet Return Packet Note Command y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position...
  • Page 35 BZBGEAR BG-ADAMO-4K PRODUCT MANUAL CAM_NRLevel(3D) Inq 8x 09 04 54 FF y0 50 0p FF P:3D NRLevel p: Flicker Settings(0: OFF, 1: 50Hz, CAM_FlickerModeInq 8x 09 04 55 FF y0 50 0p FF 2:60Hz) CAM_ApertureInq 8x 09 04 42 FF...

  • Page 36: Pelco-D Protocol Command List

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25 y0 50 ww zz FF ww: Pan Max Speed zz: Tilt Pan-tiltMaxSpeedInq 8x 09 06 11 FF Max Speed y0 50 0w 0w 0w 0w 0z 0z 0z 0z FF wwww: Pan Position...

  • Page 37: Pelco-P Protocol Command List

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL -P P ELCO ROTOCOL OMMAND Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Value High Query Zoom Position 0x00 0x5D Value Low Byte 0xFF Address Response Byte 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF...

  • Page 38: Maintenance And Troubleshooting

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Maintenance and Troubleshooting AINTENANCE ● Turn the camera off and disconnect the power adapter when not in use for an extended period. ● Use a soft cloth or tissue to clean the camera cover. ● Wipe the camera lens with a soft, dry cloth when cleaning. Gently wipe the lens with a mild detergent if needed.

  • Page 39: Tech Support

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,...

  • Page 40: Mission Statement

    BZBGEAR BG-ADAMO-4K PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
