The BG-BFS is an affordable bullet camera offering crisp imaging in a compact form factor. This camera

utilizes 3G-SDI to deliver crystal clear 1080P 60fps video at distances up to 300ft.

LAN connection provides H.264/H.265 encoding ensuring smooth video motion and transporting over

RTSP/RTMP protocols to your favorite streaming platform. Equipped with a simple manual focus 4X

optical zoom lens and a 3.5mm audio port this camera suits a variety of environments including

industrial applications, classrooms, surveillance systems, or anywhere a high-quality static shot is

needed.

Package Contents

1 x BG-BFS

1 x 12V/1A Power Supply

1 x User Manual

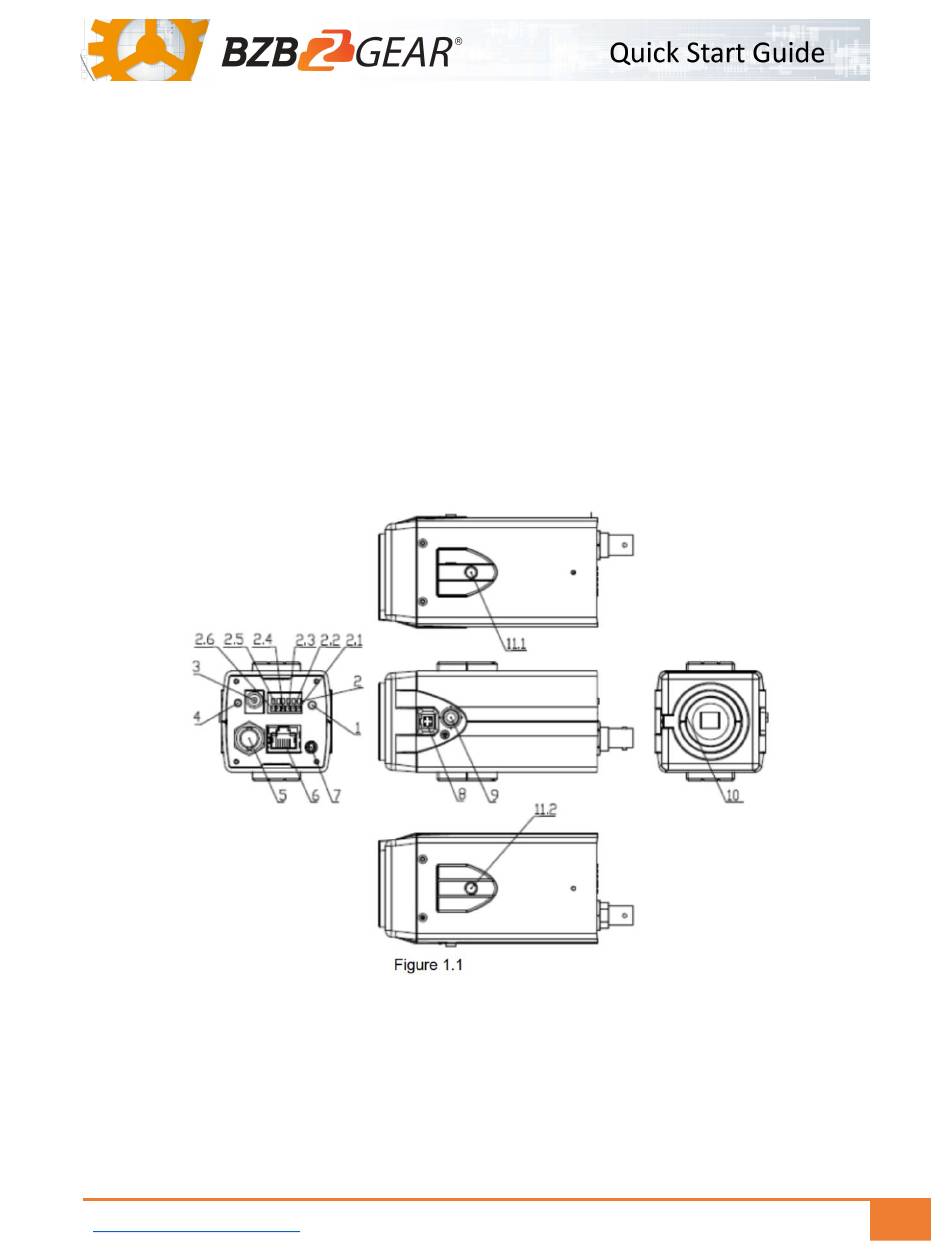

1. Reset

2. RS485/Alarm Connection

3. DC12V Power Supply Socket

4. Power Indicator

5. 3G-SDI Connection

6. Network Port

7. Audio Input

https://bzbgear.com/support/

BG-BFS

1 x Camera Lens

1 x Mounting Bracket

| 1.888.499.9906 | support@bzbgear.com

8. Auto Iris Connection

9. Function Key

10. Threaded Lens Connection

11.1 Tripod/Mount Screw Hole

11.2 Tripod/Mount Screw Hole

BG-BFS

Page 1 BG-BFS The BG-BFS is an affordable bullet camera offering crisp imaging in a compact form factor. This camera utilizes 3G-SDI to deliver crystal clear 1080P 60fps video at distances up to 300ft. LAN connection provides H.264/H.265 encoding ensuring smooth video motion and transporting over RTSP/RTMP protocols to your favorite streaming platform.
Page 2 Mounting Instructions https://bzbgear.com/support/ | 1.888.499.9906 | support@bzbgear.com BG-BFS...
Page 3 RS-485 Interface WebGUI The BG-BFS camera includes a built-in WebGUI allowing for control and management of advanced features. Use the following instructions to access the WebGUI. 1. Launch a web browser and enter the IP address of the unit (default 192.168.5.163).
Page 4 The camera is not connected to  Check connections WebGUI the network  Verify your camera’s IP address using an IP scanning tool  Ensure your computer is connected to the same network as the camera https://bzbgear.com/support/ | 1.888.499.9906 | support@bzbgear.com BG-BFS...
