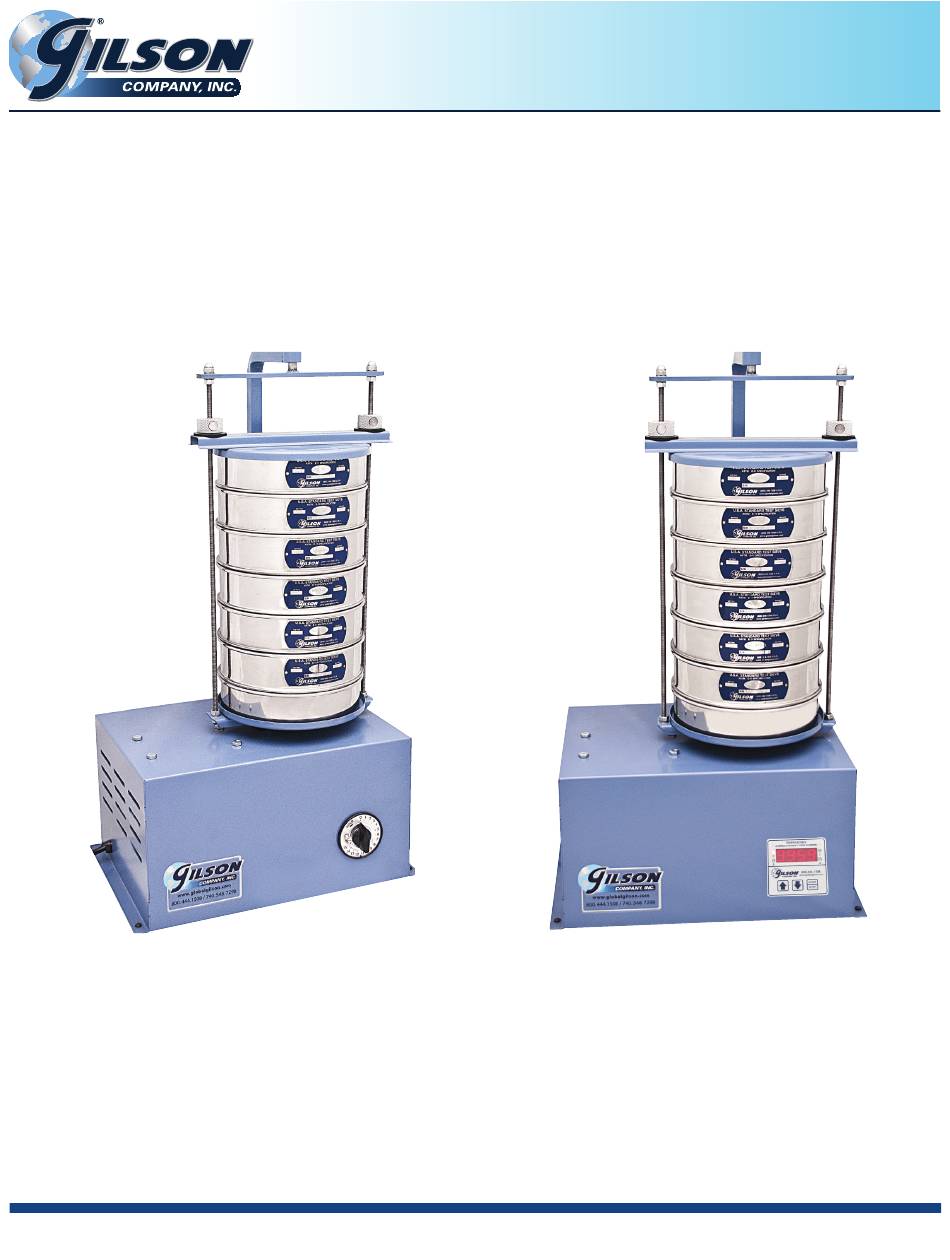

- Page 1 OPERATING MANUAL Gilson 8in Sieve Shakers SS-15, SS-15F, SS-15D, SS-15DF SS-15 SS-15D Rev: 6/2022 PHONE: 800-444-1508 FAX: 800-255-5314 P.O. Box 200, Lewis Center, Ohio 43035-0200 740-548-7298 Email: customerservice@gilsonco.com Product Web Page: globalgilson.com 740-548-5314...
- Page 2 SAFETY INSTRUCTIONS Gilson 8in Sieve Shaker SS-15, SS-15F, SS-15D, SS-15DF Please. read. these. instructions. thoroughly. to. familiarize. yourself. with. the. operation. of. the. SS-15,. SS-15D,. SS-15F,. Operating Manual SS-15DF.before.attempting.to.run.it.. The.buyer.is.responsible.for.ensuring.that.users.are.properly. trained,.that.they.are.aware.of.all.of.the.information.and.in- CONTENTS structions.in.this.document,.and.that.they.are.aware.of.the. potential.risks.of.operating.the.apparatus..The.manufacturer. will. not. be. responsible. for. any. damage. to. people. and/or.
- Page 3 Sieve.Shaker..Wear.safety.glasses.and.work.gloves. peg.should.be.set.for.greater.than.five.minutes. 2.. Open. the. top. of. the. carton. and. lift. the. SS-15. out. by. the. stabilizer. bar.. If. at. all. possible,. do not. cut. away. NOTE: The. main. device. that. the. timer. controls. may. be. the. carton. since. you. will. need. it. if. the. machine. must.
- Page 4 Loosen.and.remove.the.nuts.from.the.back.of.the.plastic.box,. 3.2 Drive Belt this.will.now.allow.you.to.remove.the.timer.out.the.front.of.the. 1.. Periodically.check.drive.belt.for.wear,.tension,.and.align- machine.and.the.box.from.the.inside.of.the.machine. ment..A.worn,.loose,.tight,.or.misaligned.drive.belt.can. affect. the. operation. of. your. SS-15.. The. belt. should. be. 3.5 Main Shaft snug:..neither.too.tight.nor.too.loose..A.snug.fit.assures. 1.. To.remove.the.Main.Shaft.(1).and.attached.subunits,.lay. longer.life,.less.bearing.wear,.and.quieter.operation.than. the.unit.on.either.side.(but.not.on.its.back).and.loosen. a. belt. which. is. too. tight.. A. loose. belt. may. cause. the.
- Page 5 2.. Use. only. sample. types. within. the. design. range. of. the. Next,. loosen. the. Motor. Mounting. Bolts. and. remove. the. test. apparatus.. The. SS-15. has. an. approximate. design. Drive.Belt. range. of. No.4–No.50. test. sieve. sizes,. but. acceptable. results. may. be. possible. over. a. wider. range. depending.
- Page 6 7.0 PARTS DIAGRAM © 2016 GILSON SCREEN INCORPORATED. ALL RIGHTS RESERVED. THIS DOCUMENT IS THE PROPERTY OF GILSON SCREEN INCORPORATED, AND IS LICENSED UNDER A CONFIDENTIAL RELATIONSHIP FOR A SPECIFIC PURPOSE. RECIPIENT AGREES BY RECEIPT HEREOF NOT TO SUPPLY OR DISCLOSE ANY INFORMATION CONTAINED IN THIS DOCUMENT TO ANY OUTSIDE PARTIES WITHOUT GILSON SCREEN INCORPORATED ’...
- Page 7 Drive Belt for 115V,60Hz RPSS-15KEY25-5 Drive Belt for 220V,50Hz RPSS-15KEY26 Motor Mounting Bolts with Clip Nut RPSS-15KEY27 Rubber Feet RPSS-15KEY28 Spring-Wound Timer for SS-15 RP-TIMER-ART Digital Timer for SS-15D RPSS-15KEY22 Outer Case with Stabilizer Bar Gilson 8in Sieve Shaker Manual...
- Page 8 9.0 ACCESSORIES SSA-806 SSA-802 shown with Test Sieve OBA-15R ACCESSORIES Description Model EZ-Clamp.Upgrade.Kit.replaces.the.original.clamping.assemblies.on.older.Gilson.Tapping.Sieve.Shakers..Knurled.knobs.with.push-button.release.slide. freely.up.and.down.the.clamp.rods.for.smooth,.easy.clamping..Once.in.position,.a.quick.twist.tightly.secures.the.sieve.stack..When.the.test.is.complete,. push.the.EZ-Clamp.button.and.raise.just.enough.to.remove.the.stack..Upon.release.of.the.button,.the.clamps.stay.in.place,.ready.for.the.next.test.. EZ-Clamp.kits.include.free-sliding.push-button.knobs,.an.integral.sieve.cover,.and.new.clamp.rods. SSA-806. EZ-Clamp.Upgrade.Kit.for.SS-15 Clean-N-Stor.accessories.are.handy,.time-saving.devices.for.emptying,.cleaning,.and.weighing.functions.associated.with.sieving.operations..Inverting. an.8in.or.200mm.test.sieve.on.the.stainless.steel.funnel.allows.quick.emptying.and.cleaning.of.contents.into.a.receiving.scoop.or.pan..A.sieve.stack. can.also.be.stored.on.top.of.the.funnel..A.scoop.and.soft-bristle.cleaning.brush.are.included.with.all.models..SSA-802.is.a.stand-alone.model.that.can. be.positioned.directly.over.an.electronic.balance,.so.sieve.fractions.can.be.weighed.as.the.test.sieve.is.being.cleaned..OBA-15R.is.an.adjustable-height. Clean-N-Stor.version.designed.to.fit.over.taller.balances. SSA-802. Stand-Alone.Clean-N-Stor OBA-15R Adjustable-Height.Clean-N-Stor Gilson 8in Sieve Shaker Manual...
