NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
Other Locations – Phone: 001.714.632.7100; Fax: 001.714.632.1044
©Premier Mounts 2007
9531-001-000-01

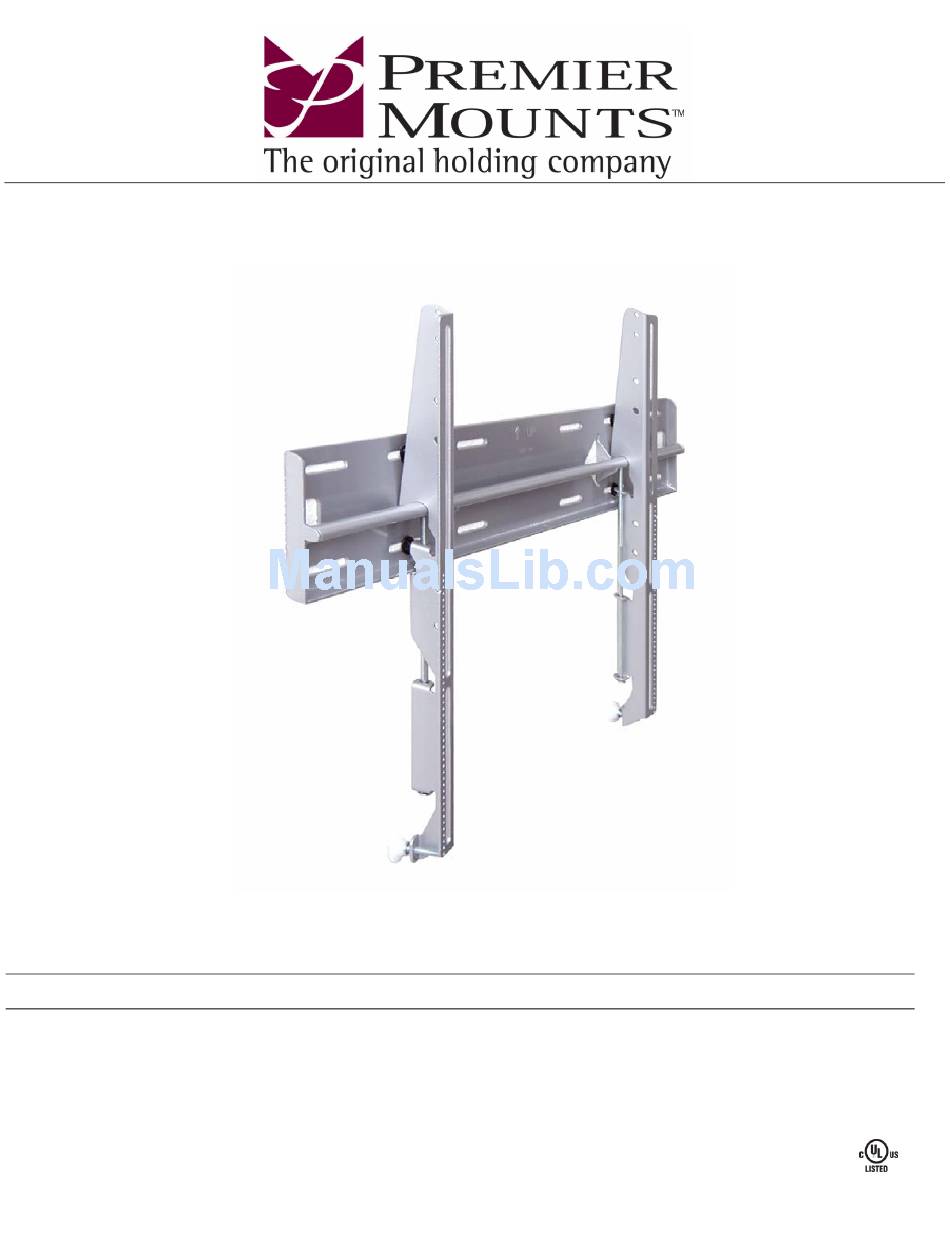

INSTALLATION INSTRUCTIONS
UFM

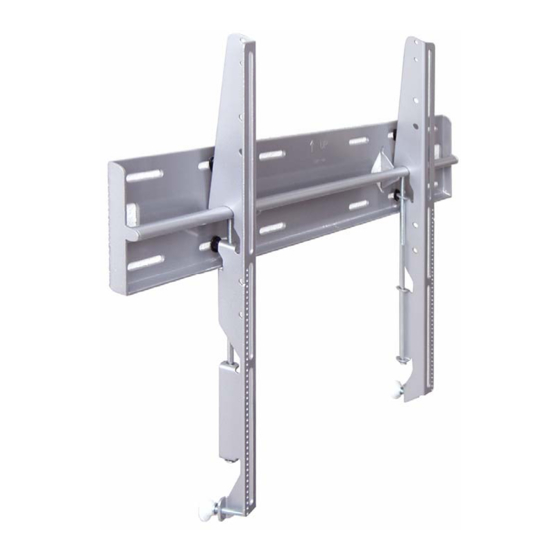

Universal Flat Mount
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
AUSTRALIA, NEW ZEALAND,
OCEANIA (DISTRIBUTOR)
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: 03 9586 6330
www.premiermounts.com.au
Advertisement
Table of Contents
Related Manuals for Premier Mounts Universal Flat-Only Mount UFM
Summary of Contents for Premier Mounts Universal Flat-Only Mount UFM
-
Page 1: Installation Instructions
NORTH AMERICA 3130 East Miraloma Avenue Anaheim, CA 92806 USA USA and Canada – Phone: 800-368-9700 Fax: 800-832-4888 Other Locations – Phone: 001.714.632.7100; Fax: 001.714.632.1044 ©Premier Mounts 2007 9531-001-000-01 INSTALLATION INSTRUCTIONS Universal Flat Mount EUROPE Swallow House, Shilton Industrial Estate,... -
Page 2: Table Of Contents
Mounting structure recommended wood studs, solid-flat concrete. Use a minimum diameter of 5/16” x 2 ¼” lag concrete wedge anchors (commercially available) or a minimum diameter of 5/16” x 3” lag wood screws. - 2 - l l a r t s l l a l l a l l a Contact Premier Mounts for any questions... -
Page 3: Assembly Drawing
Assembly drawing Dimensions are in Inches and (mm) 5.000 3.500 (127) (88.9) Description A. Wall plate B. Mounting brackets C. Griplate™ D. Mounting hardware E. Safety screws F. Leveling feet G. Wood stud H. 5/16” x 3” Lag screws and flat washers 28.000 (171.2) 16.000... -
Page 4: Flat Panel List
Flat panel list Acer PDP7859: M6 x 20 Akai CTA42AR7A, PDP4247, PDP4290, PDP4294, PDP5090, HPT500AN: M8 x 25 – ½” nylon spacers - sleeves Akira EPM420, SV4201: M5 x 16 Albatron PWV46AC: M6 x 20 Barco Cineversum 50: M8 x 20 BenQ PDP7843E: M6 x 20 –... - Page 5 Mitsubishi PD5010HD, PD5030: M4 x 16 Monivision PWV46AC, PD46W00: M6 x 20 4200W, 4210W, M4A,MP2, PX42M3A, 42PD1W, PD2 M5A,M5G, 42MP1, 42PD1, PX42VM1A, PX42VP1A, PX42VP2A, 42MP3, 42PD3, PX42VP3A, 42MP4, 42VP4A, 42MX2: M4 X 16, 5000W, PX50M5A, 50PD1, PX50VP1A, PX50MX1A, 50MP1, 50MP2, 50PD2, 50VP2, 50MP3, 50XM3: M4 X 16 Norcent...
-
Page 6: Parts List
Parts list This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts. (Qty 8) - Page 7 Parts list (con’t) Nylon spacers and flat washers The nylon spacers may be staked to achieve proper spacing. 1/4" Nylon spacers (large) (Qty 6) 1/2" Nylon spacers (large) (Qty 12) 5/16" Flat washers (metal) (Qty 6) 1" Nylon spacers (Qty 6) 1/4"...
-
Page 8: S U C I R G N H T F E T A L A P E N T L T O E H W L L
Parts list (con’t) All of these parts are used to install the mounting bracket. Make sure that none of these parts are missing before beginning installation. If there are parts missing stop the installation and contact Premier Mounts. Level (1) 5/16"... - Page 9 Checking the thread depth on your flat panel Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it. (see figure 1) Locate the correct diameter screw for the thread insert.
- Page 10 Finding center of the flat panel display Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SURFACE TO PREVENT DAMAGE TO THE FLAT PANEL.
-
Page 11: Positioning The Mounting Brackets
Positioning the mounting brackets Nylon spacers if Applicable (see chart) on page 4 and 5 Center mark Lay the left and right mounting brackets (stamped arrows facing out). See figure 4. Install the nylon spacers to the mounting points on the flat panel see figure 3. - Page 12 Align the mounting brackets The mounting brackets are designed with a center of viewing guide on the side of them. See figure 6. Center of flat panel - 12 - Match the center of viewing guide with the center line you marked in step 1.
-
Page 13: Securing The Mounting Brackets
Securing the mounting brackets DIMPLES Phillips screw driver DIMPLES FACING UP Leave a ¾” gap on both mounting brackets as shown on this diagram. The Griplates™ have M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires. EXAMPLE: If your plasma uses M8 x 20 Phillip screws. - Page 14 Finding the wood studs behind the wall structure Wood stud finder (commercially available) Measure from the floor to the desired viewing height and mark the wall. See figure 10. This marking will reference the center of your flat panel display once mounted on the wall.
- Page 15 Marking the mounting points on the wall 16" Wood studs: Drill four (4) ¼" pilot holes to the marked wall. Concrete wall: Drill four (4) 3/8” pilot holes to the marked wall. See figure 12. Place the bottom portion of the wall plate to the reference line and mark the four (4) lag bolt mounting points through the wall plate slots on the wall.
- Page 16 Securing the wall plate to wood studs Level and secure the plate to the wall with the reference arrow facing up to the ceiling. Secure the plate using the four (4) 5/16" lag bolts and flat washers (supplied). See figure 13. Do not over tighten the lag bolts.
-
Page 17: Securing The Wall Plate To A Concrete Wall
Securing the wall plate to a concrete wall Level and secure the plate to the wall with the reference arrow facing up to the ceiling. Use a min dia of 5/16” x 2 ¼” lg concrete wedge anchors (commercially available). See figure 14. Do not over tighten the wedge anchors bolts. -
Page 18: Securing The Flat Panel To The Wall Mount
AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert the top hooks from each bracket to the rod from the wall plates. -
Page 19: Lateral Shift Adjustments
Lateral shift adjustment Make any lateral shift adjustment and lock it by tightening the two (2) ¼”-20 Phillips screws found on the bottom of the mounting brackets. Use the foot leveler to adjust your plasma. See figure 16 Do not over tighten the ¼”-20 screws to the rods. To remove the display from the wall simply back off the ¼”-20 screws using a Phillips screwdriver and lift the unit of the wall carefully. -
Page 20: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
