Page 1: Installation Instructions

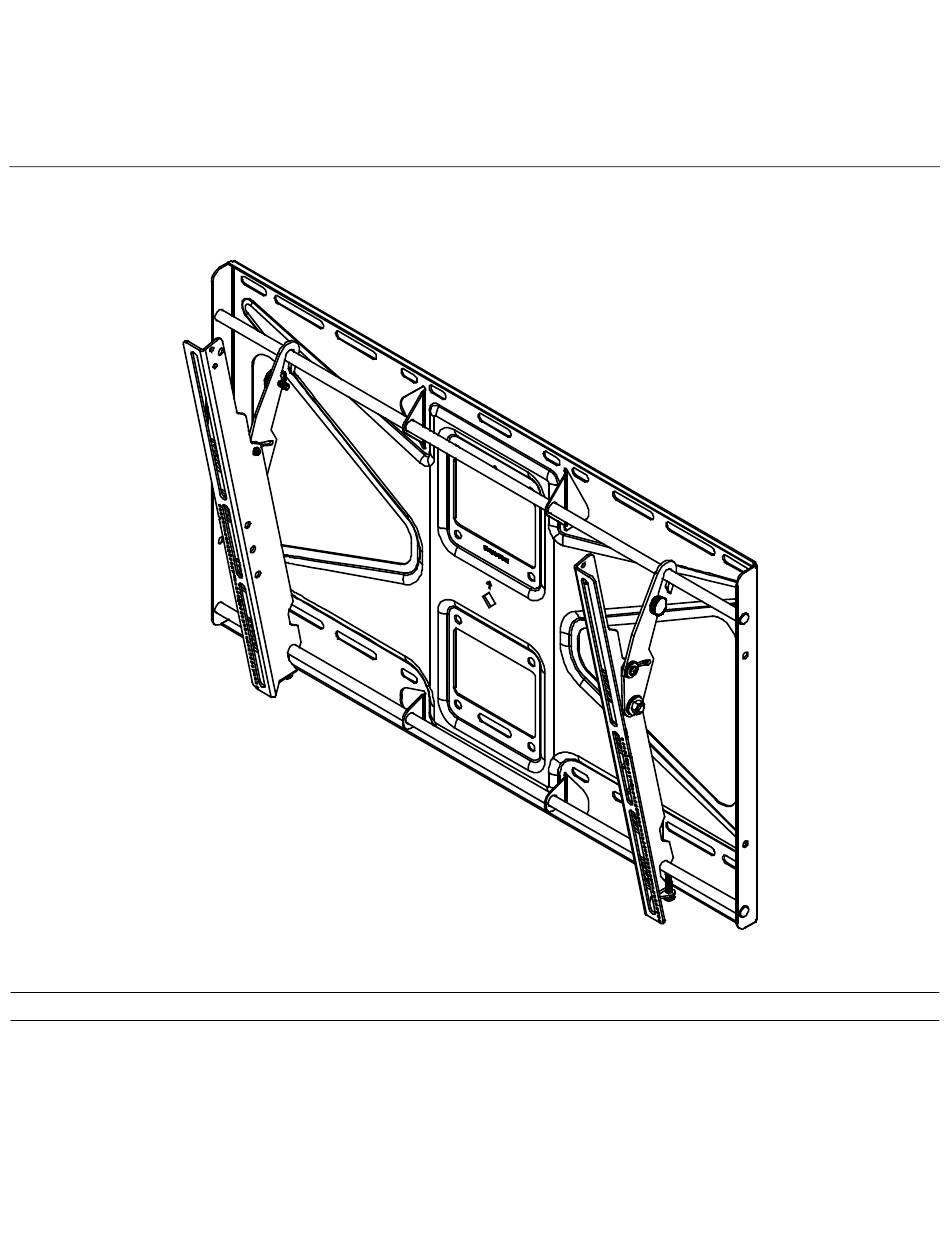

INSTALLATION INSTRUCTIONS CTM-MS2 Flat Panel Display Mount (37” to 61”) NORTH AMERICA Ergo In Demand, Inc. 4900 Industry Drive Central Point, OR 97502 Phone: 800-888-6024 or 541-779-3763 Fax: 541-779-0829 Email: info@ergoindemand.com Website: www.ergoindemand.com 9531-000-311-06... -
Page 2: Table Of Contents
DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS... -
Page 3: Parts List
This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Ergo In Demand (800-888-6024). Mounting CTM-MS2 Wall Brackets Plate (Qty 1) (Qty 2) 5/16”... - Page 4 CTM-MS2 M4 x 30 ( Qty 6) M5 x 30 ( Qty 6) M4 x 25 ( Qty 6) M5 x 25 ( Qty 6) M4 x 16 ( Qty 6) M5 x 16 ( Qty 6) M6 x 45 ( Qty 6)
- Page 5 CTM-MS2 Thread Depth Indicator Step 1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it. Step 2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
-
Page 6: Finding The Center Of The Plasma Display
CTM-MS2 Finding the Center of the Plasma Display Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. -
Page 7: Griplate™ Installation
CTM-MS2 Left M ounting Br acke t Right M ounting Bracke t Align the M ounting Bracke ts Bottom of Flat Pane l Inverted Flat Pane l Arr ows Facing Step 2. Lay Step 3. Match the center of viewing guide with the center... -
Page 8: Wall Stud Location
CTM-MS2 Wall Stud Location 16" 16" Step 1. Using a (commercially available) wood stud finder, Step 3. Place the wall plate to the reference line and mark locate the 16" or 24" stud centers behind the wall. the four (4) lag bolt mounting points through the Step 2. -
Page 9: Securing The Plasma To The Wall Mount
CTM-MS2 Securing the Plasma to the Wall Mount IT IS STRONGLY RECOMMENDED THAT 2 QUALIFIED PERSONS COMPLETE THE INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Step 1. Raise the flat panel with the mounting... -
Page 10: Safety Knurl Knob Installation
CTM-MS2 Safety Knurl Knob Installation Step 1. Tilt the flat panel and secure the two (2) M6 x 12mm safety knobs to each of the mounting brackets. Removing the Display from the Wall Perform the following steps to remove the flat panel from the wall mount: Step 1. -
Page 11: Technical Specifications
CTM-MS2 Technical Specifications - 11 - Installation Manual Page... -
Page 12: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
