6. Locate the two screws that fasten the CPU board to the controller and remove them.
7. Hold the main board by Port 1 and by the I/O expansion port, and pull it out of
8. Locate the two screws that fasten the LCD display to the plastic panel and remove them.
9. Remove the LCD display.
Closing the Controller
1. Replace the new LCD display in the correct location, including the fastening screws.

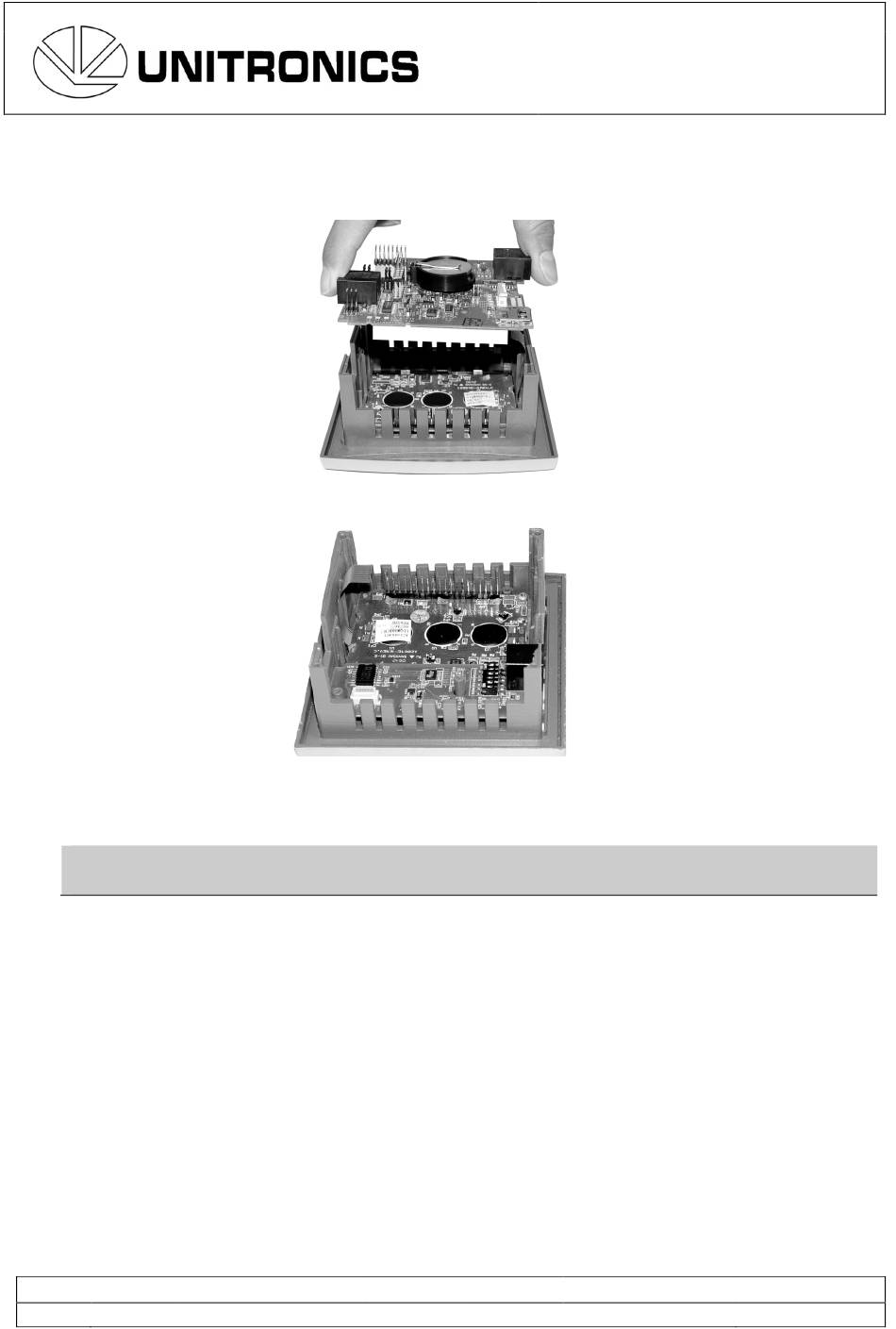

2. Replace the CPU board, including the fastening screws.
3. Replace Keypad ribbon cable, and verify if the cable connectors are locked.
4. Replace the plastic tabs marked X and Y in the correct location.
5. Replace the I/O board.
6. Close the controller by snapping the plastic cover back in its place. If the card is
placed correctly, the cover will snap on easily.
7. Replace the screws in the corners of the back cover.
