Flowcomputer with temperature and pressure compensation for corrected gas volume
Table of Contents

Advertisement

Quick Links

User Manual
E126-P-EG
FLOWCOMPUTER
with temperature and pressure compensation
for corrected gas volume
Signal input:
Flowmeter - type P: Pulse, NAMUR and coil
Pressure - type IA: (0)-20mA
Temperature - type TP: PT100 2-, 3- or 4-wire
Temperature - type TA: (0)-20mA
Signal output:
Analog - 4-20mA ref. corrected flowrate
Pulse - scaled pulse ref. corrected total
Remote control:
External reset with clear-lock
Options:
Modbus communication, USB communication
E-Series - Explosion proof indicators for hazardous areas
More info: www.fluidwell.com/eseries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E126-P-EG and is the answer not in the manual?

Questions and answers

Summary of Contents for Fluidwell E126-P-EG

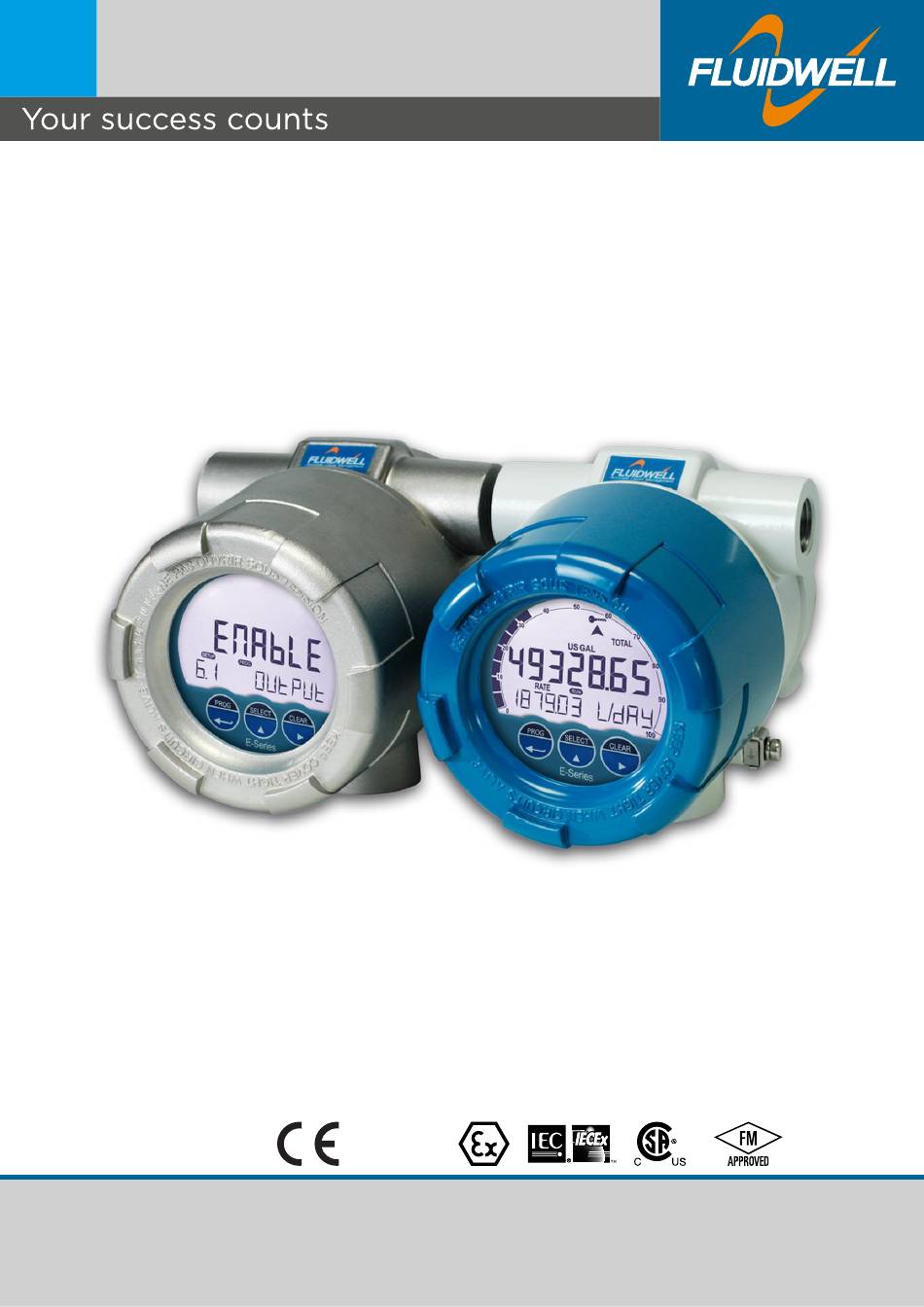

  • Page 1 Temperature - type TA: (0)-20mA Signal output: Analog - 4-20mA ref. corrected flowrate Pulse - scaled pulse ref. corrected total Remote control: External reset with clear-lock Options: Modbus communication, USB communication E-Series - Explosion proof indicators for hazardous areas More info: www.fluidwell.com/eseries...
  • Page 2: Table Of Contents

    User Manual E126-P-EG TABLE OF CONTENTS ABOUT THIS MANUAL ......................How to use this manual....................Use of pictograms ......................Warranty and technical support ..................Model Reference......................SAFETY............................ Personal safety ....................... End-user responsibilities ....................Potential equipment damage ..................Disposal of electronic waste ...................
  • Page 3 E126-P-EG User Manual Handling the E-Series enclosure ..................36 6.2.1 Main parts ........................36 6.2.2 Identification ........................37 6.2.3 Opening, assembling and closing the unit ..............39 6.2.4 Test unit .......................... 40 Mechanical installation ....................41 6.3.1 Installation precautions ....................41 6.3.2...
  • Page 4: About This Manual

    ● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 13.03.xx...
  • Page 5: Safety

    E126-P-EG User Manual SAFETY PERSONAL SAFETY ● Explosion hazard: Never open the unit in a hazardous area when it is connected to a power supply or a consuming device other than the internal battery supply. ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy.
  • Page 6: Introduction

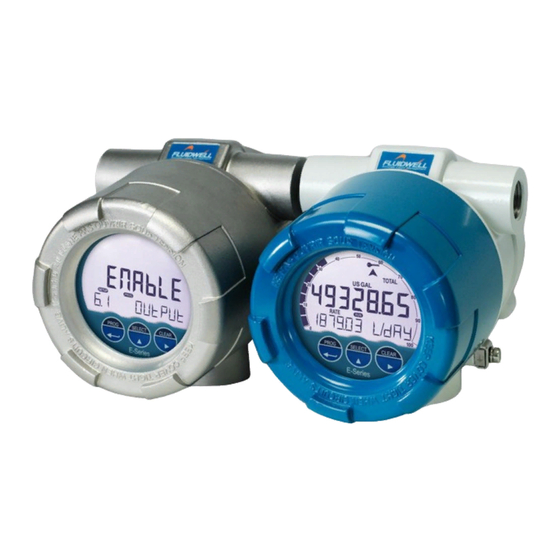

    Fig. 1: The E126-P-EG This manual describes the daily use, configuration and installation of the standard unit (with pulse input from a flowmeter) and its available options. The following figure shows the E126-P-EG used in a typical application. Fig. 2: Typical application...
