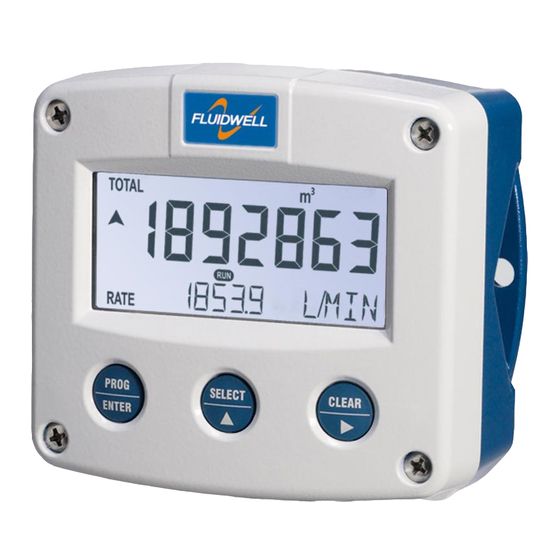

F112-P
FLOW RATE INDICATOR / TOTALIZER
with linearization, analog and pulse outputs
Signal input flowmeter: pulse, Namur and coil
Signal outputs: (0)4-20mA / 0-10V ref. flow rate and pulse ref. total
Options: Intrinsically safe, Modbus communication, external reset and
backlight
F-Series - Field mounted indicators for safe and hazardous areas.
More info: www.fluidwell.com/fseries
Advertisement
Table of Contents
Related Manuals for Fluidwell F112-P
Summary of Contents for Fluidwell F112-P
- Page 1 Signal input flowmeter: pulse, Namur and coil Signal outputs: (0)4-20mA / 0-10V ref. flow rate and pulse ref. total Options: Intrinsically safe, Modbus communication, external reset and backlight F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...
-
Page 2: Safety Instructions
The F112-P must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility). • Connect a proper grounding to the metal enclosure as indicated if the F112-P has an incoming power or signal line which carries a hazardous live voltage. The Protective Earth (PE) wire may never be disconnected or removed. -
Page 3: About The Manual
This manual describes the standard unit as well as the available options. For additional information, please contact your supplier. A hazardous situation may occur if the F112-P is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this manual indicated by the pictograms: A "warning !"... -
Page 4: Table Of Contents
Page 4 TABLE OF CONTENTS SAFETY INSTRUCTIONS........................2 DISPOSAL OF ELECTRONIC WASTE ....................2 SAFETY RULES AND PRECAUTIONARY MEASURES ..............2 ABOUT THE MANUAL ........................3 WARRANTY AND TECHNICAL SUPPORT ..................3 TABLE OF CONTENTS ........................4 INTRODUCTION ........................6 System description ...................... - Page 5 Page 5 5.2.2 Installations based on ATEX or IECEx certificate ..........38 Electrical data – Annex 1 ..................39 5.2.3 5.2.4 Power supply wiring .................... 41 5.2.5 Sensor supply ..................... 41 Terminal connectors Intrinsically Safe applications – Type XI ........42 5.3.1 Terminal 26-29: Type CT - Communication ............
-
Page 6: Introduction
SYSTEM DESCRIPTION Functions and features The flow rate / totalizer model F112-P is a microprocessor driven instrument designed to linearize the flowmeters flow curve and show the flow rate, the total and the accumulated total. This product has been designed with a focus on: ▪... - Page 7 Page 7 Configuration of the unit The F112-P is designed for use in many types of applications. For that reason, a setup menu is available to program the F112-P according to your specific requirements. The setup includes several important features, such as K-Factors, engineering units, signal selection, power management (to extend battery life-time), etc.
-
Page 8: Operational
Page 8 2 OPERATIONAL GENERAL INFORMATION This chapter describes the daily use of the F112-P. This instruction is meant for users / operators. • This device may only be operated by persons who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. - Page 9 Page 9 ▪ Clear total The value for total can be reset. To do so, press the CLEAR/ key twice. When the key is pressed once, the text "PUSH CLEAR" is shown. To avoid a reset at this stage, press another key other than the CLEAR/...
-
Page 10: Configuration
Make sure that the unit is not being used for any application when altering the settings. 3.2.1 ENTERING SETUP-LEVEL Configuration of the F112-P is done at SETUP-level, which can be reached at all times while the F112-P remains fully operational. At SETUP-level the display will deactivate the indicator and... -
Page 11: Programming Sequence
Page 11 Use the control panel to navigate through SETUP-level PROG-key When a function is selected, this key is used to start the programming sequence. When only a function group is selected (and no function), this key is used to scroll back a function group (e.g. -
Page 12: Returning To Operator-Level
In order to return to the operator level, press the PROG-key for three seconds. When no keys are pressed for 2 minutes, SETUP-level will be left automatically. CONFIGURATION SETTINGS All settings of the F112-P can be set via the control panel. The following paragraphs give a detailed description of each setting. 3.3.1... -
Page 13: Menu 1 - Total
Page 13 OTHERS MODEL F112-P SOFTWARE VERSION 03.01.xx SERIAL NO. nnnnnnn PASSWORD 0000 - 9999 TAG-NR 0000000 - 9999999 3.3.2 MENU 1 - TOTAL TOTAL UNIT This setting is used to select the engineering unit for the indication of the total, the accumulated total and the pulse output. -
Page 14: Menu 3 - Display
When used with the internal battery option (type PB/PC), the user can expect reliable measurement over a long period of time. The F112-P has several smart power management functions to extend the battery life time significantly. Two of these functions can be set. -
Page 15: Menu 5 - Flowmeter
Page 15 3.3.6 MENU 5 - FLOWMETER FLOWMETER SIGNAL With this setting the type of flowmeter output is selected. The settings with LP (low-pass) filter are used to apply a build-in noise reduction. Selections "active pulse" offer a detection level of 50% of the supply voltage. -
Page 16: Menu 7 - Analog Output
Page 16 LINEARIZE 6.1... FREQUENCY / M- The frequency is shown at the bottom line of the display. The maximum FACTOR 1 ... F frequency is 9999.9 Hz. With value 0.0Hz, the M-Factor is disabled. The M- Factor (MF) is shown at the top-line of the display. The minimum value to be entered is 0.000001 and the maximum value is 9.999999. - Page 17 Page 17 CUT-OFF A low flow cut-off, e.g. to ignore leakage, can be set as a percentage of the full range of 16 mA, 20 mA or 10 V. When the flow is less than the required rate, the current will be the minimum signal (4 mA or 0 mA, 0 V).
-
Page 18: Menu 8 - Pulse Output
Enter this quantity here while taking the decimals for pulse into account. 3.3.10 MENU 9 - COMMUNICATION (OPTION) The F112-P can optionally be equipped with a communication interface using the Modbus protocol (Type CB/CH/CI/CT). Please consult Appendix C for a more detailed explanation of the protocol, data types and available registers. -
Page 19: Installation
• The F112-P may only be operated by persons who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. •... -
Page 20: Handling The F-Series Enclosure
The F1-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model code by Type XI (e.g. F112-P-XI). For Intrinsically Safe applications: Installation and identification labels are shown in chapter 5. -
Page 21: Opening / Removing The Cover
Page 21 Terminal label Also on the inside, a terminal label is placed to indicate the location of the terminals and settings for the sensor supply configuration switches. Fig. 8: Identification – Example of F1-Series terminal label (safe area) Serial number and year of production The serial number can be reviewed on the identification label or in SETUP-menu Others. -
Page 22: Mechanical Installation
Page 22 MECHANICAL INSTALLATION DIMENSIONS – ALUMINUM AND STAINLESS STEEL ENCLOSURES 4.4.1 Fig. 9: Dimensions – Aluminum and stainless steel enclosures FW_F112-P_M_v2201-01_EN.docx... -
Page 23: Dimensions - Non-Metallic Enclosures
Page 23 DIMENSIONS – NON-METALLIC ENCLOSURES 4.4.2 Fig. 10: Dimensions – Non-metallic enclosures FW_F112-P_M_v2201-01_EN.docx... -
Page 24: Mounting
Page 24 4.4.3 MOUNTING The enclosure can be installed by itself or with the aid of a mounting plate in the configurations shown below. When the unit is installed on a wall or onto a meter, please use components and installation techniques that are suitable for the used materials. -
Page 25: Electrical Installation
Metal enclosure When the F112-P is supplied with a metal enclosure (aluminum or stainless steel), the enclosure must be grounded in accordance with national and local electrical codes. -
Page 26: Field Wiring Connections
Within the United States all field wiring must conform to the National Electric Code, NFPA 70, Article 501-4(b). All field wiring enters the F112-P through the bottom of the enclosure and connects to the circuit assembly inside the enclosure. Wiring is routed through cable glands. Please make sure to order the F112-P with the correct drilling pattern and thread (metal) or hole (plastic) sizes. -
Page 27: Sensor Supply
Setting the sensor supply Risk of electrocution - High voltage! Make sure, all the leads to the terminals are disconnected from the F112-P and NEVER connect mains power to the unit when the protection cover has been removed! To set the sensor supply, follow these instructions: 1. -
Page 28: Terminal Connectors Safe Area Applications - Type Xx / Xf
4.5: Electrical Installation and review paragraph 4.5.3 and 4.5.4 before applying any field or power supply wiring. For Intrinsically Safe applications (Type XI): read chapter 5. Following terminal connectors are available on the F112-P when supplied with Type XX: Fig. 13: Overview of terminal connectors - Standard configuration and options 4.6.1... -
Page 29: Terminal 05-06: Scaled Pulse Output R1
Page 29 4.6.2 TERMINAL 05-06: SCALED PULSE OUTPUT R1 Setup 8 (read chapter 3) determines the pulse output function. The maximum pulse frequency of this output is 500 Hz. If a relay output option has been supplied, be sure that the output frequency does not exceed 5 Hz or else the life-time of the relay will be reduced significantly. - Page 30 Page 30 Type AA An active 4-20 mA signal proportional to the flow rate is available with this option. When the output is disabled, a 3.5mA signal will be generated on these terminals. Max. driving capacity 1000 Ohm @ 24 V DC. (Requires power supply type PD/PF/PM). Fig.
-
Page 31: Terminal 09-11: Flowmeter Input
Page 31 Type AI An isolated 4-20 mA signal proportional to the flow rate is available with this option. When the output is disabled, a 3.5 mA signal will be generated on these terminals. Max. driving capacity 1000 Ohm @ 30 V DC. This option can be used with a battery powered unit but the life time of the battery is about 2 - 3 years. - Page 32 Pulse-signal PNP / PNP-LP The F112-P is suitable for use with flowmeters which have a PNP output signal. 3 V is offered on terminal 11 which has to be switched by the sensor to terminal 10 (SIGNAL). For a reliable pulse detection, the pulse amplitude has to go above 1.2V.
- Page 33 Fig. 27: Terminal connections - Reed-switch signal input (typical) NAMUR-signal The F112-P is suitable for flowmeters with an Namur signal. The standard F112-P is not able to power the Namur sensor, as an external power supply for the sensor is required. However, a 8.2 V sensor supply voltage (terminal 11) can be provided with power supply type PD, PF, PM.
-
Page 34: Terminal 12-13: Type Ib - External Reset (Option)
Page 34 TERMINAL 12-13: TYPE IB – EXTERNAL RESET (OPTION) 4.6.5 With this function the total can be reset to zero with an external switch. The Total resets only when the switch opens. When a Normally Closed (NC) contact is used, the local clear total function is disabled and a clear total is only possible with the external reset command. -
Page 35: Terminal 26-31: Type Cb / Ch / Ci - Communication (Option)
Page 35 4.6.6 TERMINAL 26-31: TYPE CB / CH / CI - COMMUNICATION (OPTION) Serial communications on hardware layers RS232, RS485 and TTL (intrinsic safety) are possible. Make sure that the hardware layer specific requirements are met to achieve reliable communication and read the Modbus communication protocol and Appendix C. -
Page 36: Intrinsically Safe Applications
The F1-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model code by Type XI (e.g. F112-P-XI). If Type XI is not indicated your device is not suitable for Intrinsically Safe applications! -
Page 37: Electrical Installation In Hazardous Area
Page 37 Terminal label Also on the inside, a terminal label is placed to indicate the location of the terminals and settings for the sensor supply configuration switches. Fig. 33: Identification – Example of F1-Series terminal label (intrinsic safety) ELECTRICAL INSTALLATION IN HAZARDOUS AREA 5.2.1 GENERAL INFORMATION AND INSTRUCTIONS Cautions... -
Page 38: Installations Based On Atex Or Iecex Certificate
Page 38 5.2.2 INSTALLATIONS BASED ON ATEX OR IECEX CERTIFICATE Installation instructions • For installation under ATEX directive: this Intrinsically Safe device must be installed in accordance with ATEX directive 2014/34/EU and product certificate KEMA 03ATEX1074 X. • For installation under IECEx scheme: this Intrinsically Safe device must be installed in accordance with product certificate IECEx DEK 11.0042X. -
Page 39: Electrical Data - Annex 1
Page 39 ELECTRICAL DATA – ANNEX 1 5.2.3 Annex 1 (model specific) to type XI product certificates KEMA 03ATEX1074 X, IECEx DEK 11.0042X For the combined connection of the different supply, input and output circuits, the installation instructions of the manufacturer shall be observed. From the safety point of view the circuits shall be considered to be connected to earth. - Page 40 Page 40 Coil, Switch, PNP, NAMUR In type of protection intrinsic safey Ex ia IIB/IIIC or Ex ia IIC, in combination inputs with connected external supply input type -PD, with following maximum values: (terminals 10 and 11, 8.7 V Ex ia IIB/IIIC Ex ia IIC terminals 13 and 14) 25 mA...
-
Page 41: Power Supply Wiring
The following types of power supply are available for hazardous area: • Type PX / PD As standard, the F112-P is supplied with terminal 0 and 1 to power the product externally. Additionally, the power supply circuit connected to terminal 1 is looped through to terminal 2 to allow easy installation, e.g. -
Page 42: Terminal Connectors Intrinsically Safe Applications - Type Xi
4. Normally, the F112-P-XI is classified as group IIB/IIIC. Classification of the unit as group IIC is possible under certain conditions, as shown in Annex 1 in the previous paragraph. -
Page 43: Configuration Examples Intrinsically Safe Applications
Page 43 CONFIGURATION EXAMPLES INTRINSICALLY SAFE APPLICATIONS Fig. 36: F112-P-(AP)-(CT)-IB-(OT)-PC-XI - Battery powered - IIB/IIC – IIIC FW_F112-P_M_v2201-01_EN.docx... - Page 44 Page 44 Fig. 37: F112-P-AP-CT-IB-OT-(PX)-XI - Output loop powered - IIB/IIC - IIIC FW_F112-P_M_v2201-01_EN.docx...
-
Page 45: Maintenance
Repairs should only be carried out by the manufacturer or his authorized agent. Repair policy If you have any problem with your Fluidwell product and you wish to repair it, please follow the procedure below: a. Obtain a Return Material Authorization (RMA) from your supplier or distributor Together with the RMA, you need to complete a repair form to submit detailed information about the problem. -
Page 46: Battery Replacement Instructions
Page 46 BATTERY REPLACEMENT INSTRUCTIONS 6.3.1 SAFETY INSTRUCTIONS • Handle the battery with the utmost care to prevent a short circuit and damage. A mistreated battery can become unsafe. Unsafe batteries can cause (serious) injury to persons. Do not recharge, crush, disassemble, incinerate, heat above its rated temperature or expose contents to water. -
Page 47: Replace The Battery
Page 47 6.3.2 REPLACE THE BATTERY Before starting the battery replacement procedure, make sure that the marking on the new battery corresponds with the type of installation, as shown in paragraph 6.3.1. Remove the old battery as follows: 1. Open the enclosure as indicated in section 4.3 and carefully remove the cable-connectors. 2. -
Page 48: Appendix A Technical Specification
Page 48 APPENDIX A TECHNICAL SPECIFICATION General Display Type High intensity numeric and alphanumeric LCD, UV-resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Type ZB LCD with LED backlight. - Page 49 Page 49 Power supply Type AP Loop-powered from 4-20mA output signal - 8-30V DC. Power consumption max. 0.5 Watt. Type PB Standard lithium battery - life-time depends upon settings - up to 5 years. SAFE AREA ONLY Type PC Intrinsically Safe lithium battery - life-time depends upon settings - up to 5 years. Type PD 8-24V AC / 8-30V DC;...
- Page 50 Page 50 Inputs Flowmeter Type P npn; npn-lp; reed; reed-lp; pnp; pnp-lp; namur; coil-hi; coil-lo; 8-1 DC; 12 DC; 24 DC Frequency Minimum 0 Hz - maximum 7 kHz for total and flow rate. Maximum frequency depends on signal type and internal low-pass filter. E.g.
-
Page 51: Appendix Bproblem Solving
Page 51 APPENDIX B PROBLEM SOLVING In this appendix, several problems are included that can occur when the F112-P is going to be installed or while it is in operation. Flowmeter does not generate pulses: Check: ▪ Signal selection; ▪... -
Page 52: Appendix C Communication Variables
Page 52 APPENDIX C COMMUNICATION VARIABLES General The product is fitted with the Modbus communication protocol and can be equipped with various physical interfaces like RS485 and RS232 (please see device datasheet for available options). The tables below show the various variables that can be accessed through the communication. Currently, the function codes supported are: •... - Page 53 Page 53 Setup variables REGISTER VARIABLE TYPE VALUE / REMARKS ADDRESS TOTAL REGISTERS [d] 32 40033 unit uint16 0=none 3=kg 6= USGAL [h] 0x020 4= lb 7=bbl 2= m 5=GAL [d] 33 40034 decimals uint16 0…3 [h] 0x021 [d] 34 40035 K-Factor uint32 1...9999999...
- Page 54 Page 54 REGISTER VARIABLE TYPE VALUE / REMARKS ADDRESS LINEARIZATION REGISTERS [d] 1024 41025 linearization table entry struct The linearization table is an INDEXED [h] 0x400 variable. Reading and writing the entries of the uint24 linearization tables is done by first selecting the entry through the index.
- Page 55 Page 55 REGISTER VARIABLE TYPE VALUE / REMARKS ADDRESS COMMUNICATION REGISTERS [d] 144 40145 speed (Baudrate) uint16 0=1200 1=2400 2=4800 3=9600 [h] 0x090 [d] 145 40146 Modbus address uint16 1…255 [h] 0x091 [d] 146 40147 Modbus mode uint16 0: ASCII 1: RTU 2: OFF [h] 0x092...
-
Page 56: Appendix D Declaration Of Conformity
Veghel, February e, Fluidwell V, declare under our sole responsibility that the F eries indicators are designed and will operate conform the following applicable uropean Directives and Harmonised tandards, when installed and operated according to the related manuals:... -
Page 57: Index Of This Manual
Page 57 INDEX OF THIS MANUAL accumulated Total ......... 9 Flowmeter input ........... 31 actual settings ........59, 60 flowrate Alarm ............. 9 calculation ..........14 analog Flowrate ............8 cut-off value ..........17 Installation ........... 19 floating output........... 30 Intrinsic safety ......... -
Page 58: List Of Figures In This Manual
Fig. 35: Terminal connectors Communication (type CT) ..............42 Fig. 36: F112-P-(AP)-(CT)-IB-(OT)-PC-XI - Battery powered - IIB/IIC – IIIC ........43 Fig. 37: F112-P-AP-CT-IB-OT-(PX)-XI - Output loop powered - IIB/IIC - IIIC ........44 Fig. 38: Marking Type PC battery: Intrinsically Safe FW-LiBAT-021 (SPC02) ........46 Fig. - Page 59 Page 59 LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE : DATE : 1 - TOTAL Enter your settings here 1.1 unit 1.2 decimals 0000000 1.3 K-Factor 0000001 1.4 decimals K-Factor 2 - FLOW RATE 2.1 unit 2.2 time /min 2.3 decimals 0000000 2.4 K-Factor 0000001...
- Page 60 A.3 serial no. nnnnnnn A.4 password 0000 A.5 tag-nr 0000000 Fluidwell B.V. PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Fluidwell bv - © 2023 - FW_F112-P_M_v2201-01_EN.docx...
