Fluidwell E Series Operation Manual

Explosion proof flowrate indicator / totalizer with single or quadrature inputs and outputs for one- or bi-directional measurement
Hide thumbs Also See for E Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Page 1

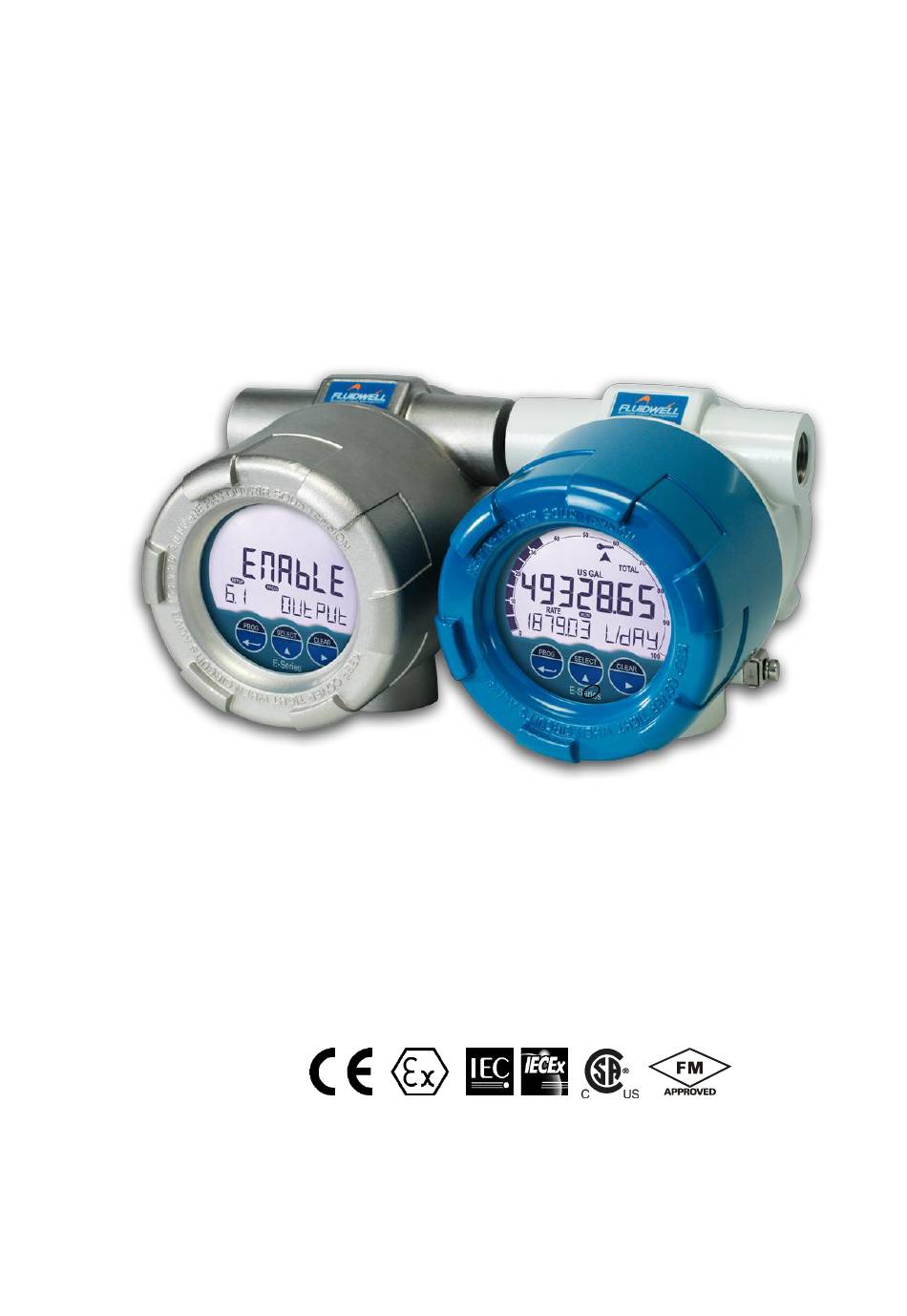

E-Series - Explosion proof indicators for hazardous areas.
E115-P
EXPLOSION PROOF FLOWRATE INDICATOR / TOTALIZER
with single or quadrature inputs and outputs for one- or
bi-directional measurement.
Signal input flowmeter: pulse, NAMUR and coil
Signal outputs: Analog referenced flowrate and scaled or unscaled
pulse referenced total
Remote control: External reset with clear-lock
Options: Modbus Communication, USB Communication
FW-E115-P-M_v0203_03_EN.docx
More info: www.fluidwell.com/eseries.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fluidwell E Series

Summary of Contents for Fluidwell E Series

  • Page 1 Signal input flowmeter: pulse, NAMUR and coil Signal outputs: Analog referenced flowrate and scaled or unscaled pulse referenced total Remote control: External reset with clear-lock Options: Modbus Communication, USB Communication E-Series - Explosion proof indicators for hazardous areas. FW-E115-P-M_v0203_03_EN.docx More info: www.fluidwell.com/eseries.

  • Page 2: Safety Instructions

    Page 2 SAFETY INSTRUCTIONS • Any responsibility is lapsed if the instructions and procedures as described in this manual are not followed. • LIFE SUPPORT APPLICATIONS: The E115-P is not designed for use in life support appliances, devices, or systems where malfunction of the product can reasonably be expected to result in a personal injury.

  • Page 3: About The Operation Manual

    Manual : FW-E115-P-M_v0203_03_EN.docx © Copyright 2019 : Fluidwell B.V. - the Netherlands Information in this manual is subject to change without prior notice. The manufacturer is not responsible for mistakes in this material or for incidental damage caused as a direct or indirect result of the delivery, performance or use of this material.

  • Page 4: Table Of Contents

    Page 4 CONTENTS MANUAL SAFETY INSTRUCTIONS ............................ 2 DISPOSAL OF ELECTRONIC WASTE ........................ 2 SAFETY RULES AND PRECAUTIONARY MEASURES ..................2 ABOUT THE OPERATION MANUAL........................3 WARRANTY AND TECHNICAL SUPPORT ......................3 CONTENTS MANUAL ............................4 INTRODUCTION ............................. 5 System description of the E115-P ................... 5 OPERATIONAL ............................

  • Page 5: Introduction

    Page 5 1 INTRODUCTION SYSTEM DESCRIPTION OF THE E115-P Functions and features The flowrate / totalizer model E115-P is a more advanced explosion proof microprocessor driven instrument designed to show flowrate, total, accumulated total, current and previous day total and several historical day totals.
  • Page 6 Page 6 Standard outputs • Configurable pulse outputs to transmit pulses representing a certain differential total quantity. Transmission is done either with separate negative / positive output indication or via separate pulse outputs for positive and negative flow. • Two unscaled frequency outputs for retransmission of the incoming pulses as robust square wave forms..

  • Page 7: Operational

    Page 7 2 OPERATIONAL GENERAL INFORMATION This chapter describes the daily use of the E115-P. This instruction is meant for users / operators. • The E115-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed •...
  • Page 8 Page 8 When the optical keys are locked, the key lock symbol is shown at the top of the display as shown below. Fig. 3: Control panel, disable optical keys To unlock the optical keys, the operator need to ‘activate’ the keys by pressing any of the keys for about 1 to 2 seconds.

  • Page 9: Operator Information And Functions

    Page 9 OPERATOR INFORMATION AND FUNCTIONS Be aware that the optical keys may be locked and will not function. Unlock the optical keys as described before. By default, the E115-P will act at Operator level. The information displayed is dependent upon the SETUP-settings.
  • Page 10 Page 10 Clear total The value for Total can be cleared and reset to zero. This action does not influence the value of Accumulated Total or Current Day Total. To clear Total, press the CLEAR-key when Total is shown on the display and the display will show the flashing text “PUSH CLEAR”.

  • Page 11: Operator Alarms

    Page 11 Display speedometer flowrate Along the edge of the display, a percentage based impression of the actual flowrate is shown. The speedometer consists of 20 segments which run from 0 to 100% in increments of 5%. This function can be enabled or disabled in the SETUP-menu Display. The displayed speedometer represents the flowrate of forward flow A, reverse flow B or differential flow A-B.

  • Page 12: Configuration

    Page 12 3 CONFIGURATION INTRODUCTION This and the following chapters are exclusively meant for electricians and non-operators. In these, an extensive description of all software settings and hardware connections are provided. • Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility.
  • Page 13 Page 13 Use the control panel to navigate through SETUP-level PROG-key When a function is selected, this key is used to start the programming sequence. When only a function group is selected (and no function), this key is used to scroll back a function group (e.g.
  • Page 14 Page 14 Step 2b: Changing the selected item in a list SELECT-key This key is used to select the next item in the list (e.g. Disable → Enable). At the end of the list, the selection will wrap around to the first selection. CLEAR-key This key is used to select the previous item in the list (e.g.

  • Page 15: Configuration Settings

    Page 15 CONFIGURATION SETTINGS All settings of the E115-P can be set via the control panel. As an alternative, you can also use the Remote Configuration Software which you can find on our website or through your supplier. Depending on the type of communication interface your device has, you might need a specific communication cable, which is available through your supplier.
  • Page 16 Page 16 ANALOG OUTPUT enable – disable RATE SELECT signed – absolute – rate A – rate B RATE-MIN (4mA) -999,999 – +999,999 RATE-MAX (20mA) -999,999 – +999,999 CUT-OFF 0.0 – 9.9% TUNE-MIN (4mA) 0000 – 9999 TUNE-MAX (20mA) 0000 – 9999 FILTER 1 –...
  • Page 17 Page 17 K-FACTOR A With the Total K-Factor, the flowmeter pulse signals from pickup A are converted to a total unit. The Total K-Factor is based on the number of pulses generated by the flowmeter per selected measurement unit (SETUP 1.1).. The more accurate the Total K-Factor, the more accurate the functioning of the system will be.
  • Page 18 Page 18 DECIMALS This setting determines for flowrate the number of decimals. The following can be selected: 0, 0.1, 0.02, 0.003 The next menu item can be modified only if the automatic unit conversion in SETUP 6.6, Flowmeter-units, is set to Hand. Else, the display will show “AUTO”.
  • Page 19 Page 19 EXPLANATION OF SETUP-MENU 4 – FLOWRATE B 3.3.5 • For Flowrate, you can only set K-Factor B when “Dual” is selected in SETUP 6.5. • Per default setting, the K-Factor is set to “Single” (K-Factor A = K-Factor B). •...
  • Page 20 Page 20 LCD NEW The calculation of the display-information influences the power consumption significantly. When the application does not require a fast display refresh rate, it is strongly advised to select a slow refresh rate. Please understand that NO information will be lost; every pulse will be counted and output signals are generated in the normal way.
  • Page 21 Page 21 The automatic unit conversion can handle either volume or mass units. For measurement units which are not supported, for example ‘revolutions’ or the use of volume and mass units simultaneously, the automatic unit conversion can be set to ‘Hand’, allowing total and flowrate to be configured independently.
  • Page 22 Page 22 CALCULATE If bi-directional measurement is enabled (SETUP 6.3), select here the way of calculation: Add: Forward flow will be interpreted as positive flow. Differential Total, accumulated Total will count up. Accumulated Total A will count up (if enabled at SETUP 5.2 Reverse flow will be interpreted as positive flow.
  • Page 23 Page 23 3.3.8 EXPLANATION OF SETUP-MENU 7 - ANALOG OUTPUT An analog 4-20mA signal is generated according to the flowrate with a 12 bits resolution. The settings for Flowrate (SETUP-menu 2) influence the analog output directly and should be configured first.
  • Page 24 Page 24 TUNE MAX (20mA) The initial maximum analog output value is 20mA. However, this value might differ slightly due to ambient influences such as temperature for example. The 20mA value can be tuned precisely with this setting. Before tuning the signal, be sure that the analog signal is not being used for any application! After pressing PROG, the current will be about 20mA.
  • Page 25 Page 25 PULSE OUTPUT MODE This setting is used to select the output functionality of digital output D1 and D2 (and optionally D5 and D6). Following functions are available: disabled – not negative – separated – signed – retransmit The retransmit mode is often used when sinus / non-square wave input signals are present (e.g.
  • Page 26 Page 26 MODE This setting is used to configure the Modbus communication mode of your device on the communications bus. The following modes can be selected: ASCII –RTU – OFF DATABITS This setting is used to configure the number of data bits and should match the number used on the communications bus.

  • Page 27: Installation

    Page 27 4 INSTALLATION GENERAL DIRECTIONS • Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. •...

  • Page 28: Mechanical Installation

    Page 28 MECHANICAL INSTALLATION SPECIAL CONDITIONS FOR SAFE USE • The painted aluminum enclosure shall be installed in such a way that danger of ignition due to electrostatic discharge is avoided. • Possible electrostatic hazard – clean only with a moist cloth. Use only in fixed installations and do not place in areas with rapid airflow.
  • Page 29 Page 29 4.3.2 MOUNTING The display inside the enclosure can be installed in four positions: 0°; 90°; 180°; 270°, so the enclosure can be installed in four positions. The enclosure can be installed on a wall by using the mounting plate (accessory) or pipe mounted with the bracket and hose clamps (accessory).
  • Page 30 Page 30 4.3.3 SEALING CONDUITS / ENCLOSURE • For FM Group A,B,C,D : “SEAL ALL CONDUIT ENTRIES WITHIN 18 INCHES”. • For CSA group B,C,D: “SEAL ALL CONDUIT ENTRIES WITHIN 18 INCHES”. • For CSA group A: “FOR GROUP A SEAL AT ENCLOSURE WALL” 4.3.4 FLAMEPROOF JOINTS •...

  • Page 31: Electrical Installation

    Page 31 ELECTRICAL INSTALLATION DO NOT OPEN AN INSTALLED ENCLOSURE WHEN CIRCUITS ARE ALIVE. For battery supplied equipment: DO NOT OPEN WHEN AN EXPLOSIVE GAS ATMOSPHERE IS PRESENT. • Electro static discharge does inflict irreparable damage to electronics! Before installing or opening the E115-P, the installer has to discharge himself by touching a well-grounded object.
  • Page 32 Without OR option Battery Typical 3.6V. Only use 10 mA Without OR option connector Fluidwell replacements A1/A2 11-27Vdc 25 mA AH only not suitable for OR If a combination of inputs is used, use the maximum value mentioned! The output relay (OR option) is of type SPST and has the following contact ratings: Load type &...
  • Page 33 Page 33 4.4.2 VOLTAGE SELECTION SENSOR SUPPLY Type PB / PX – Pickup element supply Terminal S3 provides a limited supply voltage of 3.2 V DC (coil signals 1.2V) for the signal output of the flowmeter. Output impedance is 2700 ohms, power is limited to 3.3 mW under short circuit conditions.

  • Page 34: Terminal Connectors - Main Electronics Module

    Page 34 TERMINAL CONNECTORS – MAIN ELECTRONICS MODULE The following terminal connectors are available for the Main Electronics Module (MEM): Fig. 14: Terminal connectors MEM – standard and options FW-E115-P-M_v0203_03_EN.docx...

  • Page 35: Terminal Connections

    Page 35 The following terminal connectors are available for the option OR – Mechanical relays (RSM Relay Supply Module): Fig. 15: Terminal connectors RSM TERMINAL CONNECTIONS TERMINAL P1-P2 AND P5-P6: POWER SUPPLY – TYPE PD/PX 4.6.1 Connect an external power supply of 9-27VDC to these terminals. When power is applied to these terminals, discharge of the (optional) internal battery will be disabled.
  • Page 36 Page 36 Type OT Two passive transistor outputs (D1 and D2) are available with a maximum pulse frequency of 500Hz. Max. driving capacity 300mA@50V DC. With type OT: • Terminals R1 and R3 are common ground (GND) terminals. • When retransmit mode is selected the minimum on and off-time is 50μs. Fig.
  • Page 37 Page 37 TERMINAL S1-S3 – SIGNAL A AND S4-S6 – SIGNAL B; FLOWMETER INPUT 4.6.3 Three basic types of flowmeter signals can be connected to the unit: pulse, active pulse or sine- wave (coil). The screen of the signal wire must be connected to the common ground terminal (unless earthed at the sensor itself).
  • Page 38 Page 38 Pulse-signal NPN / NPN-LP The E115-P is suitable for use with flowmeters which have a NPN output signal. For reliable pulse detection, the signal should be above 1.4V or below 1.0V under all circumstances. It is advised to use a sensor which is normally open and is closed for a small time (less power consumption).
  • Page 39 Page 39 Reed-switch The E115-P is suitable for use with flowmeters which have a reed-switch. To avoid pulse bounce from the reed-switch, it is advised to select REED LP – low-pass noise filter, which limits the maximum input frequency (see paragraph 3.3.7 for more information). Make sure the contact resistance of the reed switch is less than 1V@2uA=500k Ohm.
  • Page 40 Page 40 Active signals 8.2V and 24V The E115-P is suitable for flowmeters with an Active signal. The detection levels are about 50% of the selected supply voltage; approximately 4V (ACT_8.1) or 12V (ACT_24). See paragraph 3.3.7 for more information. Active signal selection may be desired in the case of power supply type PD being supplied for sensor supply.
  • Page 41 Page 41 TERMINAL C1-C4: COMMUNICATION RS232/RS485/USB (OPTION) – TYPE 4.6.5 CB/CH/CU Serial communications on hardware layers RS232 (length of cable max. 5 meters), RS485 (length of cable max. 1200 meters) and USB (length of cable max. 5 meters) are possible. Make sure that the hardware layer specific requirements are met to achieve reliable communication.
  • Page 42 Page 42 4.6.6 TERMINAL A1-A2 ISOLATED ANALOG OUTPUT - TYPE AH The flowrate proportional output (AH) is standard available. This output is an isolated 4-20mA output with the possibility to power the device via the 4-20mA loop. It is Non-polarity sensitive. When the output is disabled, the current is by default limited to 2mA.

  • Page 43: Maintenance

    Page 43 5 MAINTENANCE GENERAL DIRECTIONS • Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. Take careful notice of the “Safety rules, instructions and precautionary measures”...

  • Page 44: Open And Close The E-Series

    Page 44 OPEN AND CLOSE THE E-SERIES DO NOT OPEN AN INSTALLED ENCLOSURE WHEN CIRCUITS ARE ALIVE. For battery supplied equipment: DO NOT OPEN WHEN AN EXPLOSIVE GAS ATMOSPHERE IS PRESENT. 5.3.1 REMOVE THE COVER 1. Make the E-Series and the environment safe.
  • Page 45 Page 45 5.4.2 REMOVE THE BATTERY FROM THE SUPPLY MODULE (BSM OR RSM) 1. Disconnect the connector (13) from the Supply Module (8). 2. Carefully, remove the battery (12) from the battery holder (11). As applicable discard or keep the battery (12) and the Supply Module (8) in a clean and safe location.
  • Page 46 Page 46 5.4.5 TEST AND ADJUST THE E115-P This procedure assumes that the E115-P is serviceable. ACTION RESULT NOTICE • The battery indicator is off. 1. Make sure, the battery level Only replace with original indicator does not show. batteries supplied by the manufacturer.

  • Page 47: Label Information

    Page 47 6 LABEL INFORMATION GENERAL REMARKS REGARDING THE SHOWN LABELS Two labels will be fitted on the E-series enclosure: one showing the certification data, the other showing the thread sizes, type number, serial number and address applied. The labels below show a typical example for recognition. For the actual data, refer to the label which is attached to your unit or refer to the Appendix A;...

  • Page 48: Internal Labels

    Page 48 INTERNAL LABELS. Label on the main electronics module (MEM): The labels below are to be found on the main electronics module and supply modules inside the enclosure. Labels attached to the Main Electronics Module (MEM) (typical example): Fig. 29: Example label Main Electronic Module (MEM) Label attached to the Basic Supply Module (BSM) –...

  • Page 49: Technical Specification

    Page 49 TECHNICAL SPECIFICATION Display Type High intensity numeric and alphanumeric LCD, UV-resistant, with bright backlight. Intensity can be adjusted via the keypad. When battery powered, the backlight is only operational after a keypad touch to extend the battery lifetime. Dimensions Ø...
  • Page 50 Page 50 Hazardous area ATEX Gas : II 2 G Ex d IIC T6 Gb. Dust : II 2 D Ex tb IIIC T85°C Db. IECEx Gas : Ex d IIC T6 Gb. Dust : Ex tb IIIC T85°C Db. CSA c-us Class I, Division 1, Grps A, B, C, D Class II/III, Division 1, Grps E, F, G...
  • Page 51 Page 51 Communication (option) Function Reading display information, reading / writing all configuration settings and data log extraction. Type CB Modbus RTU - RS232 Type CH Modbus RTU - RS485 2-wire, bus termination without resistor for low power solutions Type CU USB communication incl.

  • Page 52: Problem Solving

    Page 52 PROBLEM SOLVING In this appendix, several problems are included that can occur when the E115-P is going to be installed or while it is in operation. Flowmeter does not generate pulses Check: • Signal selection SETUP 6.1 / 6.2. •...

  • Page 53: Modbus Communication

    Page 53 MODBUS COMMUNICATION General The product is fitted with the Modbus communication protocol and can be equipped with various physical interfaces like RS485 and RS232 (please see device datasheet for available options). The tables below show the various variables that can be accessed through the communication. Currently, the function codes supported are: •...
  • Page 54 Page 54 Runtime variables of the E115-P Reading flow rate, total, accumulated total or current day totals: When reading runtime variables, the given value may differ slightly from the value that is displayed on the display – this is due to the fact that the display is limited in the number of digits and may have a slower update rate.
  • Page 55 Page 55 Historical previous day totals of the E115-P – Integer based – Contiguous read The read-out of historical previous day totals is done via 2 INDEXED variables containing the number of decimals and the value. These 2 variables can be read as one contiguous list of 3 registers (in a single read action). Reading is done by first selecting the right entry (day) through the index.
  • Page 56 Page 56 Runtime variables of the E115-P – Floating point based 32 bit HOLDING VARIABLE TYPE VALUE / REMARKS ADDRESS REGISTER REGISTERS [d] 6400 46401 error status (bitfield) uint16 See list at register 516 in ‘individual read’ section. [h] 0x1900 [d] 6401 46402 reserved...
  • Page 57 Page 57 Configuration variables of the E115-P Total - A HOLDING VARIABLE TYPE VALUE / REMARKS ADDRESS REGISTER REGISTERS [d] 32 40033 unit uint16 0=none 3=US GAL 6= OilBBL 9=lb [h] 0x020 4= I GAL 7=kg 10=us ton 5=CF 8=ton 2= m [d] 33 40034...
  • Page 58 Page 58 [d] 2147 42148 day totals uint16 0=hidden 1=operate 2=off [h] 0x863 [d] 80 40081 LCD update uint16 0= fast 2=3 sec 4=30 sec [h] 0x050 time 1=1 sec 3=15 sec 5=off [d] 67 40068 backlight uint16 0=off 2=40% 4=80% [h] 0x043 brightness...
  • Page 59 Page 59 [d] 120 40121 tune uint16 0...9999 [h] 0x078 minimum output [d] 122 40123 tune uInt16 0...9999 [h] 0x07A maximum output [d] 127 40128 filter uint16 1...99 [h] 0x07F Pulse output VARIABLE TYPE VALUE / REMARKS HOLDING ADDRESS REGISTER REGISTERS [d] 135 40136...

  • Page 60: Declaration Of Conformity

    Page 60 DECLARATION OF CONFORMITY FW-E115-P-M_v0203_03_EN.docx...

  • Page 61: Index Of This Manual

    Page 61 INDEX OF THIS MANUAL actual settings measuring unit alarm Flowrate alarm output function functional description analog Intrinsic safety 43, 44, 46 cut-off value IP classification disable/enable keys filter main-function flowrate max. maintenance flowrate min. NAMUR-signal tune / calibrate operational 7, 12, 27, 43 clear total...
  • Page 62 Page 62 IST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: TOTAL - A Enter your settings here UNIT DECIMALS K-FACTOR AUTO FACTOR-X CLEAR PASSWORD CONTRACT HOUR 00:00 CURRENT DAY TOTAL ---- PREVIOUS DAY TOTAL ---- FLOWRATE - A UNIT TIME /min DECIMALS K-FACTOR...
  • Page 63 Page 63 COM MODB SPEED 9600 ADDRESS MODE bus-rtu DATABITS 8 bits PARITY none OTHERS 10.1 MODEL E115-P 10.2 SOFTWARE VERSION 03:_ _:_ _ 10.3 SERIAL NO _ _ _ _ _ _ _ 10.4 TIME 00:00:00 10.5 PASSWORD 0000 10.6 KEY LOCK enable...
  • Page 64 Page 64 Fluidwell B.V. PO box 6 Voltaweg 23 Website: www.fluidwell.com FW-E115-P-M_v0203_03_EN.docx 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright: 2019 - FW-E115-P-M_v0203_03_EN.docx...
