Fluidwell E Series Operation Manual

Explosion proof flowrate indicator/totalizer with analog and pulse signal outputs, alarm, linearization and hart communication, signal input flowmeter: pulse, namur and coil, signal outputs: analog referenced flowrate and pulse referenced total, options:
Hide thumbs Also See for E Series:
Table of Contents

Advertisement

Quick Links

E018-P

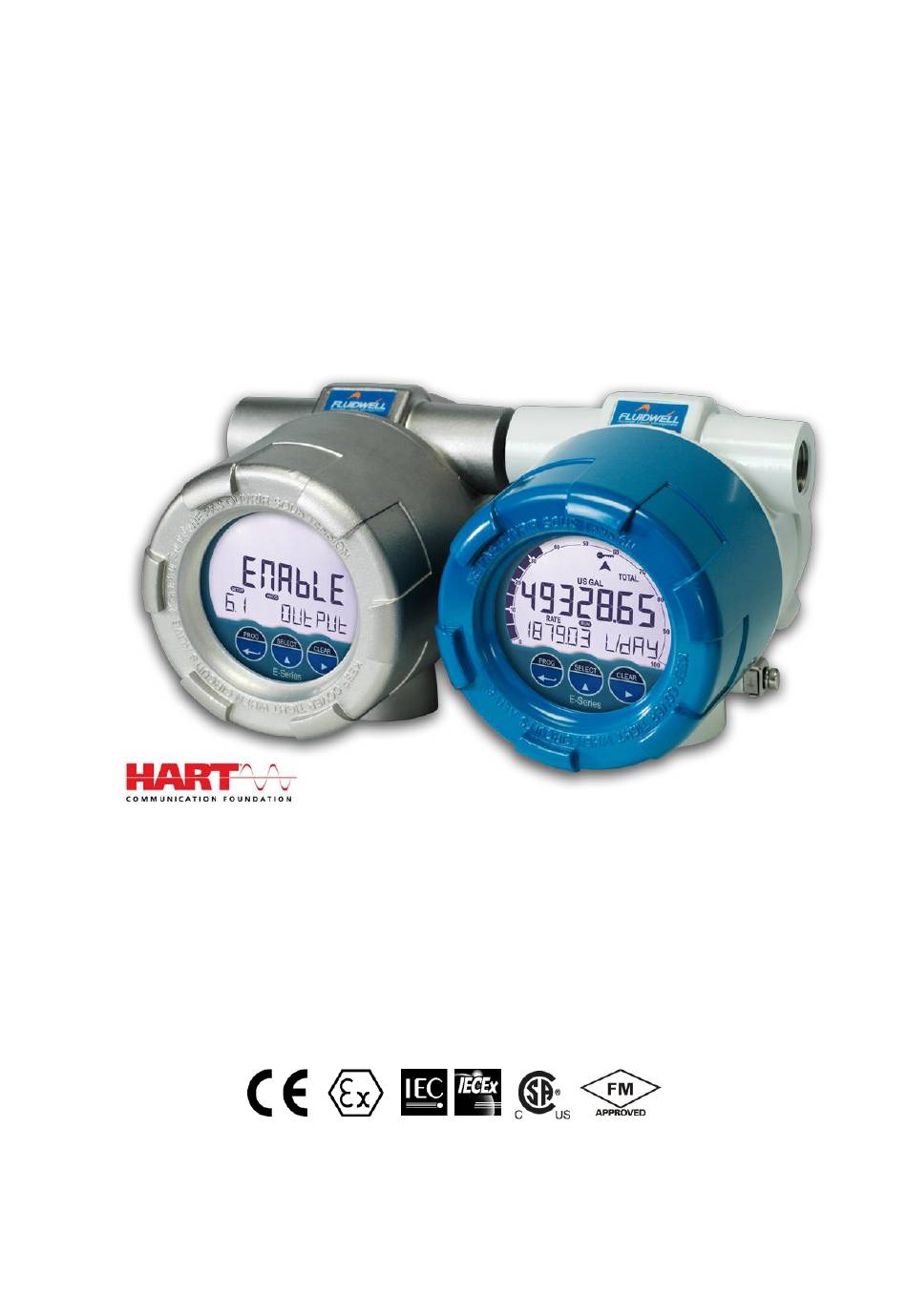

EXPLOSION PROOF FLOWRATE INDICATOR / TOTALIZER
With Analog and Pulse Signal Outputs, Alarm, Linearization
and HART Communication
Signal input flowmeter: pulse, Namur and coil
Signal outputs: Analog referenced flowrate and pulse referenced total
Options: HART communication and external reset
E-Series – Explosion proof indicators for hazardous areas.
More info: www.fluidwell.com/eseries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Series and is the answer not in the manual?

Questions and answers

Related Manuals for Fluidwell E Series

Summary of Contents for Fluidwell E Series

  • Page 1 With Analog and Pulse Signal Outputs, Alarm, Linearization and HART Communication Signal input flowmeter: pulse, Namur and coil Signal outputs: Analog referenced flowrate and pulse referenced total Options: HART communication and external reset E-Series – Explosion proof indicators for hazardous areas. More info: www.fluidwell.com/eseries...

  • Page 2: Safety Instructions

    Page 2 SAFETY INSTRUCTIONS  Any responsibility is lapsed if the instructions and procedures as described in this manual are not followed.  LIFE SUPPORT APPLICATIONS: The E018-P is not designed for use in life support appliances, devices, or systems where malfunction of the product can reasonably be expected to result in a personal injury.

  • Page 3: About The Operation Manual

    Manual : FW_E018-P_M_v0201_01_EN © Copyright 2016 Fluidwell B.V. - The Netherlands. Information in this manual is subject to change without prior notice. The manufacturer is not responsible for mistakes in this material or for incidental damage caused as a direct or indirect result of the delivery, performance or use of this material.

  • Page 4: Table Of Contents

    Explanation of setup-functions - Analog ................... 19 3.2.10 Explanation of setup-functions - Pulse ..................... 20 3.2.11 Explanation of setup-functions - Others.................... 21 HART Communication ........................21 Fluidwell HART Device Descriptor ....................21 Installation ............................21 General directions ..........................21 Installation / surrounding conditions ....................21 Dimensions- Enclosure ........................
  • Page 5 Page 5 Label ..............................39 General remarks regarding the shown labels .................. 39 Label with certification data ......................39 Label with thread sizes........................39 Internal Labels..........................40 ............................. Technical Specification ..............................41 ............................Problem solving 44 .............................. Hart communication ............................

  • Page 6: Introduction

    Page 6 1 INTRODUCTION SYSTEM DESCRIPTION Functions and features The flowrate / totalizer model E018-P is an explosion proof microprocessor driven instrument designed to linearize the flowmeter’s flow curve and to show the flowrate, the total and the accumulated total. This product has been designed with a focus on: ...
  • Page 7 Page 7 Configuration of the unit The E018-P has been designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure the E018-P according to your specific requirements. It includes several important settings, such as K-factors, measurement units, signal selection etc. All settings are stored in an EEPROM memory and will not be lost in the event of a power failure or a drained battery.

  • Page 8: Operational

    Page 8 2 OPERATIONAL GENERAL INFORMATION This chapter describes the daily use of the E018-P. This instruction is meant for users / operators.  The E018-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed ...
  • Page 9 Page 9 Lock optical keys To lock the optical keys: touch simultaneously the PROG and CLEAR keys for 3 seconds (or wait for 30 seconds). The key lock symbol will appear as shown. Fig. 3: Control panel, disable optical keys Enable or disable optical keys with on-off switch Under the optical keys an on-off switch is located to enable or disable the optical keys.

  • Page 10: Operator Information And Functions

    Page 10 OPERATOR INFORMATION AND FUNCTIONS Check the key lock and unlock before operation Unlock the optical keys as described before. By default, the E018-P will act at Operator level. The information displayed is dependent upon the SETUP- settings. The signal generated by the connected flowmeter is measured by the E018-P in the background. The display values are however updated depending on the selected refresh rate.

  • Page 11: Operator Alarms

    Page 11 OPERATOR ALARMS Low-battery alarm (PB only) During operation the battery voltage drops. When the battery voltage becomes too low, the battery indicator comes on. When the battery indicator is on, install a fresh and new battery (as soon as possible) to keep a reliable operation and indication.

  • Page 12: Configuration

    Page 12 3 CONFIGURATION INTRODUCTION This and the following chapters are exclusively meant for electricians and non-operators. In these, an extensive description of all software settings and hardware connections are provided.  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility.
  • Page 13 Page 13 After selecting a sub-function, the next main function is selected by scrolling through all "active" sub- functions (e.g. 1, 1.1, 1.2, 1.3, 1.4, 1, 2, 3, 3.1 etc.). Scroll back a function group is done by pressing PROG (e.g. 4  , 3  , 2  , 1  ) Scroll back a sub-function is done by pressing CLEAR (e.g.

  • Page 14: Overview Functions Setup Level

    Page 14 3.2.2 Overview functions setup level OTAL UNIT L; m3; US gal; I gal; cf; oilbbl; kg; ton; US ton; lb; ---- (none) DECIMALS 0; 0.1; 0.02; 0.003 K-FACTOR: 0.000010 - 9,999,999 K-FACTOR DECIMALS 0; 0.1; 0.02; 0.003; 0.0004; 0.00005; 0.000006 LOWRATE UNIT mL;...

  • Page 15: Explanation Of Setup-Functions - Total

    Page 15 10 O THERS 10.1 MODEL E018-P 10.2 SOFTWARE VERSION xx:xx:xx 10.3 SERIAL NO xxxxxxx 10.4 PASSWORD 0000 - 9999 10.5 KEY LOCK enable - disable 10.6 TAG NO 0000000 - 9999999 3.2.3 Explanation of setup-functions - Total OTAL 1.1 UNIT SETUP 1.1 determines the measurement unit for total, accumulated total and pulse output.

  • Page 16: Explanation Of Setup-Functions - Alarm

    Page 16 Changes to SETUP 2.3 Decimals will also change the decimal setting for the URV and LR V (7.1 and 7.2).Therefore it is best practice to first determine the required decimals for the flowrate! 2.3 K-FACTOR With the K-factor, the flowmeter pulse signals are converted to a flowrate. The K-factor is based on the number of pulses generated by the flowmeter per selected measurement unit (SETUP 2.1), for example per liter.

  • Page 17: Explanation Of Setup-Functions - Display

    Page 17 3.4 ALARM HI The high alarm is set with this setting. An alarm will be generated as long as the flowrate is higher as this. With value 0.0 this function is disabled. 3.5 ALARM HH The high-high alarm is set with this setting. An alarm will be generated as long as the flowrate is higher as this.

  • Page 18: Explanation Of Setup-Functions - Flowmeter

    Page 18 BL ALARM In case the E018-P generates a flowrate alarm, the backlight can be set to change to red. Following selections are available: OFF: during flowrate alarm the color is white during flowrate alarm the color is red FLASH: during flowrate alarm the color flashes red BARGRAPH...

  • Page 19: Explanation Of Setup-Functions - Analog

    Page 19 INEARISE FREQ. / M-FACTOR 1 The frequency is displayed at the bottom line of the display. The maximum frequency is 9,999.9 Hz. With value 0.0Hz, the M-Factor ↕ ↕ is disabled. (Please read SETUP 5.H - decimals frequency) FREQ.

  • Page 20: Explanation Of Setup-Functions - Pulse

    Page 20 TUNE-MAX The initial maximum analog output value is 20mA. However, this value might differ slightly due to ambient influences such as temperature for example. The 20mA value can be tuned precisely with this setting. EFORE TUNING THE SIGNAL BE SURE THAT THE ANALOG SIGNAL IS NOT BEING USED FOR ANY APPLICATION After pressing PROG, the current will be about 4mA (or 0mA / 0V).

  • Page 21: Explanation Of Setup-Functions - Others

    For a detailed description of the supported HART-commands and all the status bits, please refer to the HART Communication Protocol manual. FLUIDWELL HART DEVICE DESCRIPTOR In order to configure a HART device, the configurator must have the HART Device Descriptor (DD) for the E018-P.

  • Page 22: Dimensions- Enclosure

    Page 22 moisture by placing a dry sachet of silica gel, for example, inside the instrument case.  Mount the E018-P on a solid structure to avoid vibrations DIMENSIONS- ENCLOSURE Aluminum / Stainless steel enclosures: Left connection Right connection Cablegland options: Cablegland options: - M20x1.5 - M20x1.5...

  • Page 23: Installing The Hardware

    Page 23 5.3.1 Fig. 8: Dimensions aluminum / Stainless Steel enclosures INSTALLING THE HARDWARE 5.4.1 Introduction  Electro static discharge does inflict irreparable damage to electronics! Before installing or opening the E018-P, the installer has to discharge himself by touching a well-grounded object.

  • Page 24: Installation Guidelines - Mechanical

    Page 24 5.4.2 Installation guidelines – Mechanical Maximum torque = 4 Nm Earth terminal: - Nominal cross section 4 mm² - Possible conductors 4 mm² stranded, 6 mm² single wire Fig. 8: Installation – Plate mounted 1. Install the bracket to the mounting plate.

  • Page 25: Installation Instructions - Electrical

    Page 25 5.4.3 Installation instructions - Electrical For Class 1 applications make sure to apply proper internal (as well as external) grounding to PE terminal as shown.  PE terminal: Nominal cross section 4 mm²  Stranded conductor:4 mm², Single conductor: 6 mm² For battery supplied equipment: DO NOT OPEN WHEN AN EXPLOSIVE GAS ATMOSPHERE IS PRESENT.
  • Page 26 50 mA Without OR option Battery Typical 3.6V. Only use 10 mA Without OR connector Fluidwell replacements option A1/A2 11-27Vdc 25 mA AH only not suitable for OR If a combination of inputs is used, use the maximum value mentioned! The output relay (OR option) is of type SPDT and has the following contact ratings: Load type &...

  • Page 27: Voltage Selection Sensor Supply

    Page 27  All wiring must be in accordance with local codes and regulations.  In case this instrument is connected to a supply by means of a permanent connection a switch or circuit- breaker shall be included in the installation. This shall be in close proximity to the equipment and within easy reach of the operator.

  • Page 28: Overview Of Terminal Connectors

    Page 28 OVERVIEW OF TERMINAL CONNECTORS The following terminal connectors are available for the Main Electronics Module (MEM): Fig. 11: Terminal connectors MEM – standard and options. BATTERY BATTERY CONNECTOR FLATCABLE TO MAIN ELECTRONICS MODULE POWER PULSE SUPPLY OUTPUT Fig. 12: Terminal connectors supply module – standard and options FW_E018-P_M_v0201_01_EN...

  • Page 29: Terminal Connectors

    Page 29 Fig. 13: Terminal connectors - Connection Overview. 5.5.1 Terminal connectors Terminal P1-P2 and P5-P6: Power Supply - type PD/PX: To connect an external power supply. When power is applied to these terminals, the (optional) internal battery will be disabled / enabled automatically. When using the regulated sensor supply (8.2 or 12V) the input voltage must be at least 3V higher then the selected voltage.
  • Page 30 Page 30 Type OR: A mechanical relay output flowrate alarm output or pulse output is available with this option. Max. switch power 240V 0,5A per output. Be sure that the output frequency does not exceed 0.5Hz, else the relay life time and reliability will be reduced significantly.
  • Page 31 Page 31 Terminal S1-S6; Flowmeter input: Three basic types of flowmeter signals can be connected to the unit: pulse, active pulse or sine-wave (coil). The screen of the signal wire must be connected to the common ground terminal (unless earthed at the sensor itself).
  • Page 32 Page 32 Pulse-signal PNP / PNP-LP: The E018-P is suitable for use with flowmeters which have a PNP output signal. 3.0V is offered on terminal S3 which has to be switched by the sensor to terminal S2 (SIGNAL). For reliable pulse detection, the pulse amplitude has to go above 1.2V.
  • Page 33 Page 33 Active signals 8.2V and 24V: The E018-P is suitable for flowmeters with an Active signal. The detection levels are 50% of the selected supply voltage; approximately 4V (ACT_8.1) or 12V (ACT_24). See par. 3.4. for more information. Active signal selection may well be desired in the case of power supply type PD being supplied for sensor supply.
  • Page 34 Page 34 Terminal A1-A2; HART Communication – Type CR: The E018-P is suitable for connecting a HART master device. This HART master device is connected to Terminal A1 and Terminal A2 to enable HART communication with the unit. HART communication - Galvanically isolated 4 - 20mA INTERNAL EXTERNAL 10 - 30V DC...

  • Page 35: Maintenance

    Page 35 6 MAINTENANCE GENERAL DIRECTIONS  Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. Take careful notice of the "Safety rules, instructions and precautionary measures"...

  • Page 36: Open And Close The E-Series

    Page 36 OPEN AND CLOSE THE E-SERIES 6.3.1 Remove the cover 1. Make the E-Series and the environment safe. 2. Loosen the set screw (2) to release the cover (3). 3. Use a wrench to turn the cover (3) counter-clockwise to release the cover (3). 4.

  • Page 37: Remove The Battery From The Basic Supply Module (Bsm)

    Page 37 6.4.2 Remove the battery from the Basic Supply Module (BSM) 1. Disconnect the connector (13) from the BSM (8). 2. Carefully, remove the battery (12) from the battery holder (11). 3. As applicable discard or keep the battery (12) and the BSM (8) in a clean and safe location.

  • Page 38: Install The Main Electronics Module (Mem)

    Page 38 6.4.6 Install the Main Electronics Module (MEM) 1. Install the connectors (6, 7) to the MEM (4). 2. Lock the flatcable connector (7) by hand and note that the MEM (4) comes on. 3. Make sure, the battery level indicator does not show.

  • Page 39: Label

    Page 39 7 LABEL GENERAL REMARKS REGARDING THE SHOWN LABELS Two labels will be fitted on the E-series enclosure: one showing the certification data, the other showing the thread sizes, type number, serial number and address applied. LABEL WITH CERTIFICATION DATA The labels show a typical example for recognition.

  • Page 40: Internal Labels

    Page 40 INTERNAL LABELS. The labels show a typical example for recognition. For the actual data, refer to the label which is attached to your unit or refer to the Appendix A; Technical specifications. Label on the main electronics module (MEM): The labels below are to be found on the main electronics module and supply modules inside the enclosure.

  • Page 41: Technical

    Page 41 TECHNICAL SPECIFICATION Display Type High intensity numeric and alphanumeric LCD, UV-resistant, with bright backlight. Intensity can be adjusted. When battery powered, the backlight is only operational after a keypad touch to extend the battery lifetime. Dimensions Ø 65 x 45mm (2.56” x 1.77”). Digits Seven 12mm (0.47”) and eleven 7mm (0.28”).
  • Page 42 Page 42 Data protection Type EEPROM backup of all settings. Backup of running totals every minute. Data retention at least 10 years. Password Configuration settings can be password protected. Hazardous area ATEX Gas : II 2 G Ex d IIC T6/T5 Gb. Dust : II 2 D Ex tb IIIC T85°C/T100°C Db.
  • Page 43 Page 43 HART communication (option) Functions Reading display information, reading / writing all configuration settings Protocol type CR HART Communication protocol, Revision 7.0 Loop resistance Between 250 and 1100Ω Addressing Maximum 32 addresses Operational Operator functions Displayed information  Linearized flow rate and / or total. ...

  • Page 44: Specification

    Page 44 PROBLEM SOLVING In this appendix, several problems are included that can occur when the E018-P is going to be installed or while it is in operation. Flowmeter does not generate pulses: Check:  Signal selection SETUP – 5.1, ...

  • Page 45: Communication

    HART Device Descriptor (DD), especially designed for the E018-P. These DD’s can be downloaded from the HART Communication Foundations website (www.hartcomm.org) or the Fluidwell website (www.fluidwell.com). HART VARIABLES The following E018-P runtime variables are mapped to the HART dynamic device variables:...
  • Page 46 Page 46 Device status information The E018-P returns its status in the device status byte available through command 48. When the status flag ‘more status available’ is set, command 48 can return the following status flags in its additional status bytes: EVICE STATUS INFORMATION ESCRIPTION...

  • Page 47: Hart

    Page 47 FLOWRATE E018 Unit HART Unit HART Unit HART Unit /day HART unit /second unitnr. /minute unitnr. /hour unitnr. unitnr. ml/sec 246* ml/min 247* ml/hr 248* ml/day 249* l/sec l/min l/hr l/day 240* m3/sec m3/min m3/hr m3/day USgal gal/sec gal/min gal/hr gal/day...

  • Page 48: Conformity

    Page 48 DECLARATION OF CONFORMITY FW_E018-P_M_v0201_01_EN...

  • Page 49: Index

    Page 49 INDEX accumulated Total ........... 10 Intrinsic safety ........35, 36, 38 actual settings ..........50, 51 IP classification ..........21 alarm keys ..............8 alarm output function ........20 main-function ............ 12 alarm output ............34 maintenance ............. 35 analog Meter Factor ............
  • Page 50 Page 50 LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE : DATE : 1 - TOTAL Enter your settings here: 1.1 unit 1.2 decimals 0000000 1.3 K-factor 0000001 1.4 decimals K-factor 2 - FLOWRATE 2.1 unit 2.2 time /min 2.3 decimals 0000000 2.4 K-factor 0000001...
  • Page 51 Page 51 LIST OF CONFIGURATION SETTINGS (CONTINUED) SETTING DEFAULT DATE : DATE : 6 – LINEARIZE ( continued) frequency A 0.0Hz m-factor A 1.000000 frequency B 0.0Hz m-factor B 1.000000 frequency C 0.0Hz m-factor C 1.000000 frequency D 0.0Hz m-factor D 1.000000 frequency E 0.0Hz...
  • Page 52 Page 52 Fluidwell B.V. FW_E018-P_M_v0201_01_EN PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright: Fluidwell B.V. - 2016 - FW_E018-P_M_v0201_01_EN...
