2.3

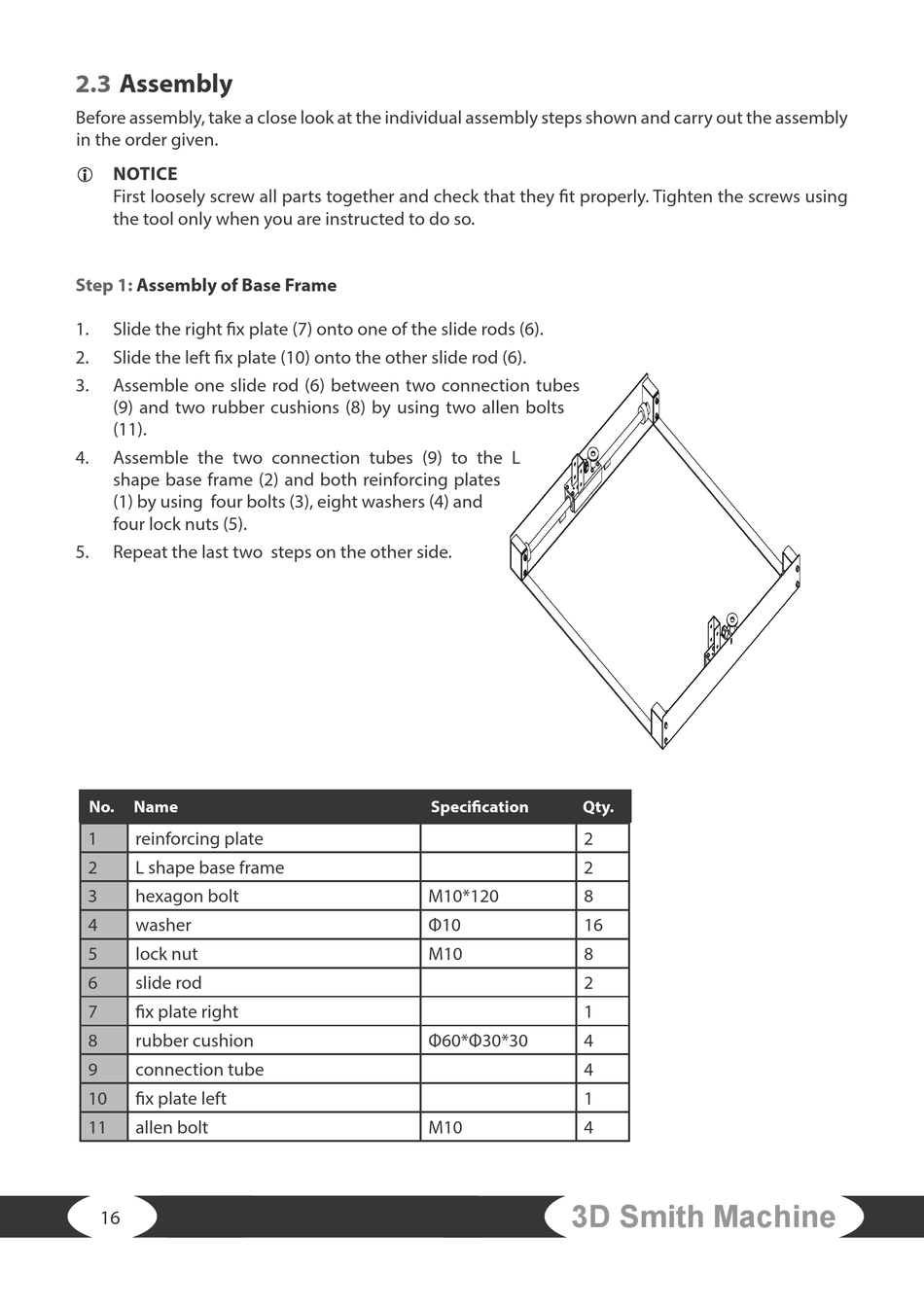

Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assembly of Base Frame
1. Slide the right fix plate (7) onto one of the slide rods (6).
2. Slide the left fix plate (10) onto the other slide rod (6).
3. Assemble one slide rod (6) between two connection tubes
(9) and two rubber cushions (8) by using two allen bolts
(11).
4. Assemble the two connection tubes (9) to the L
shape base frame (2) and both reinforcing plates
(1) by using four bolts (3), eight washers (4) and
four lock nuts (5).
5. Repeat the last two steps on the other side.
No. Name
1 reinforcing plate
2 L shape base frame
3 hexagon bolt
4 washer
5 lock nut
6 slide rod
7 fix plate right
8 rubber cushion
9 connection tube
10 fix plate left
11 allen bolt
16
Specification Qty.
2
2
M10*120 8
Φ10 16
M10 8
2
1
Φ60*Φ30*30 4
4
1
M10 4
