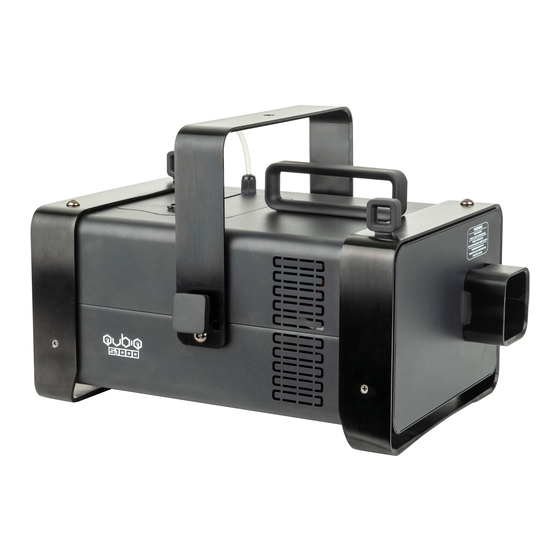

- Page 1 USER MANUAL ENGLISH QubiQ S1000 Product code: 61060 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 QubiQ S1000 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
QubiQ S1000 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................6 Warnings and Safety Instructions ........................ - Page 4 QubiQ S1000 Main Menu (Remote Control) ......................36 Menu Overview (Remote Control) .....................36 Setup ..............................37 Output Volume ...........................38 Duration..............................38 Interval ..............................38 Save ..............................38 Continuous Output ..........................39 Timer / Interval ............................39 Manual Output ...........................39 DMX Operation ..............................40 DMX Channels ............................40 Troubleshooting ..............................41 Maintenance ..............................
-
Page 5: Introduction
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec QubiQ S1000 ● Remote control ● 2 x safety eye ●... -
Page 6: Symbols And Signal Words
QubiQ S1000 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
QubiQ S1000 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 QubiQ S1000 WARNING Risk of burns due to hot surface The fog output nozzle becomes very hot during operation. ● Do not touch the fog output nozzle during operation or shortly after use. ● Allow the device cool down for several hours before servicing or maintenance.
- Page 9 QubiQ S1000 Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.
-
Page 10: Requirements For The User
QubiQ S1000 Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 11: Description Of The Device
DMX or included timer remote control. The QubiQ S1000 is reliable since it can provide a continuous output and it has a comprehensive security. It has an accurate and reliable temperature control (double over temperature protection), as well as a sensor to know when the liquid is almost empty. -
Page 12: Back View
QubiQ S1000 Back View Fig. 03 07) LED display with Menu buttons 08) ON / OFF 09) Ground/earth connection 10) Pro power connector (Gray) OUT 11) Pro power connector (Blue) IN 12) Fuse F5A /250 V 13) 3-pin DMX signal connector OUT... -
Page 13: Remote Control
QubiQ S1000 Remote Control Fig. 04 16) 5-pin DIN connector with 3,5 m cable 17) Control Wheel 18) Blue SETUP Button 19) Red PLUS / CONTI 20) Yellow MINUS / TIMER Button 21) Green ENTER / MANUAL Button Product code: 61060... -
Page 14: Product Specifications
QubiQ S1000 Product Specifications Model: QubiQ S1000 Electrical: Input voltage: 240 V AC, 50/60 Hz Power consumption: 1000 W Fuse: F5A / 250 V Physical: Dimensions: 425 x 305 x 280 mm (LxWxH) Weight: 9,2 kg Fogger capacity: Heater: 1000 W... -
Page 15: Dimensions
QubiQ S1000 Dimensions Fig. 05 Product code: 61060... -
Page 16: Installation
QubiQ S1000 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. - Page 17 QubiQ S1000 To mount the device, follow the steps below: Use a clamp to attach the device to the supporting structure, as shown in Fig. 06. Make sure that the device cannot move freely. 02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device.
-
Page 18: Connecting To Power Supply
QubiQ S1000 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 19: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the QubiQ S1000 is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually. For more information about the control mode, refer to 6.7.4.1. DMX Address on page 32. -
Page 20: Dmx Cables
QubiQ S1000 DMX Cables Shielded twisted-pair cables with 3-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use 3-pin XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 21: Dmx Addressing
04) Continue assigning the starting addresses of the remaining devices by adding each time 1 to the previous number. Make sure that you do not have any overlapping channels in order to control each QubiQ S1000 correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 22: Operation
QubiQ S1000 Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is designed to be used as a professional fog effect. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 23: Filling The Tank
QubiQ S1000 Filling the Tank WARNING Risk of explosion caused by incorrect handling ● Do not add flammable liquids such as perfume and alcohol to the fog fluid. ● Operate the device only with the fluids recommended in this user manual. - Page 24 QubiQ S1000 Do not disconnect the safety cable. Unscrew the lid on the fluid tank, as shown in Fig. 13. Take out the fluid tank, as shown in Fig. 14. Fig. 13 Fig. 14 Place the fluid tank on a flat service near the device, as shown in Fig. 15.
- Page 25 QubiQ S1000 Put the fluid tank back in the device, as shown in Fig. 17. Screw the lid back on the fluid tank, as shown in Fig. 18. Fig. 17 Fig. 18 Put the lid back on the device, as shown in Fig. 19.
-
Page 26: Emptying The Tank After Operation
QubiQ S1000 Emptying the Tank after Operation To empty the tank, follow the steps below: Lift the small ring on top of the device to open the service lid, as shown in Fig. 21. Open the service lid, as shown in Fig. 22. - Page 27 QubiQ S1000 Do not disconnect the safety cable. Unscrew the lid on the fluid tank, as shown in Fig. 25. Take out the fluid tank, as shown in Fig. 26. Fig. 25 Fig. 26 Place the fluid tank on a flat service near the device, as shown in Fig. 27.
- Page 28 QubiQ S1000 Put the fluid tank back in the device, as shown in Fig. 29. Screw the lid back on the fluid tank, as shown in Fig. 30. Fig. 29 Fig. 30 Put the lid back on the device, as shown in Fig. 31.
-
Page 29: Restarting The Device After Running The Tank Empty
Make sure you fill the entire tank, let the device reheat and then manually start fogging. This will take a few seconds until the completely emptied lines are filled with fog fluid. Control Modes The QubiQ S1000 supports the following control modes: ● Manual (fog intensity, duration, timer) ●... -
Page 30: Manual Operation
QubiQ S1000 Manual Operation To set up the device, follow the steps below: Fill the tank (Fluid Tank Capacity 1 L). See 6.3. Filling the Tank on page 22 for more information. Connect the power cable before supplying power to the device. See 4.5. Connecting to Power Supply on page 17 for more information. -
Page 31: Start-Up
QubiQ S1000 Start-up Upon start-up, the display will show the current software version and the temperature. Before you are able to see the main menu or change settings, you have to wait until the device is fully heated. The display will show:... -
Page 32: Menu Overview (Device)
QubiQ S1000 Menu Overview (Device) Notes: ● The remote control always has priority over manual operation with the control panel on the device. You are not able to use the buttons on the device, when the remote is plugged in. -
Page 33: Main Menu Options (Device)
QubiQ S1000 Main Menu Options (Device) The main menu has the following options: Press the SETUP button to navigate through the main menu. DMX Address In this menu you can set the DMX address. Press the UP/DOWN buttons to set the desired DMX address. The adjustment range is 001–512. -
Page 34: Duration
QubiQ S1000 Duration In this menu you can set the duration of the fog output. Press the UP/DOWN buttons to set the desired duration of your fog output. The adjustment range is 1–999 sec. Fluid Sensor In this menu you can set the Fluid Sensor. -
Page 35: Manual Operation With Remote Control
QubiQ S1000 Manual Operation with Remote Control To set up the device, follow the steps below: Fill the tank (Fluid Tank Capacity 1 L). See 6.3. Filling the Tank on page 22 for more information. Connect the remote control cable to the device. -
Page 36: Remote Control
QubiQ S1000 Remote Control The device can be controlled with a remote control. Fig. 34 Button Function Description Increase/Decrease Scroll through the Menu / Press control wheel to Save Setup Scroll through the Menu Plus / Conti Increase value / Continuous output... -
Page 37: Main Menu (Remote Control)
QubiQ S1000 Main Menu (Remote Control) Notes: ● The remote control always has priority over manual operation with the control panel on the device. You are not able to use the buttons on the device, when the remote is plugged in. -
Page 38: Setup
QubiQ S1000 Setup In this menu you can set the output volume, duration and interval for the fog output. Press the colored buttons, the UP/DOWN buttons or turn the CONTROL WHEEL to select the parameter. Press the green ENTER / MANUAL button to confirm the selection and open the submenu. -
Page 39: Output Volume
QubiQ S1000 Output Volume In this menu you continuously fog. Press the UP/DOWN buttons or turn the CONTROL WHEEL to increase / decrease the output volume. The adjustment range is 1–100%. Duration In this menu you can set the duration of the fog output. -
Page 40: Continuous Output
QubiQ S1000 Continuous Output In this menu you continuously keep fogging until the tank is empty. Press the red PLUS / CONTI button or press the CONTROL WHEEL to immediately start fogging at the preset volume. To change the volume, see 6.8.4.2. Output Vol on page 38 for more information. -
Page 41: Dmx Operation
QubiQ S1000 DMX Operation To setup up the device, follow the steps below: Fill the tank (Fluid Tank Capacity 1 L). See 6.3. Filling the Tank on page 22 for more information. Connect the DMX cables before supplying power to the device. See 5.3. DMX Connection on page 18 for more information Connect the power cable before supplying power to the device. -
Page 42: Troubleshooting
QubiQ S1000 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 43: Maintenance
QubiQ S1000 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. -
Page 44: Basic Cleaning Instructions
QubiQ S1000 Basic Cleaning Instructions The device must be cleaned periodically from the built-up dust and fog fluid residues. To clean the device, follow the steps below: Disconnect the device from the electrical power supply. Allow the device to cool down for at least 1 hour. -
Page 45: Corrective Maintenance
QubiQ S1000 Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. Replacing the Fuse... -
Page 46: Deinstallation, Transportation And Storage
QubiQ S1000 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 47 QubiQ S1000 Product code: 61060...
- Page 48 ©2022 Showtec...
