Features; Product Panels - KTI Networks KFS-0540 Installation Manual

1.1 Features


Auto MDI/MDI-X crossover function on the copper port

Support IEEE 802.3x flow control for full-duplex operation

Support Back-pressure flow control for half-duplex operation

Wide operating temperature range for temperature critical environment

Support DIN-rail mounting and panel mounting

Provide two power input types to meet more application needs

Accept wide power input voltage range for application flexibility

Industrial-rated Emission and Immunity performance

1.2 Product Panels

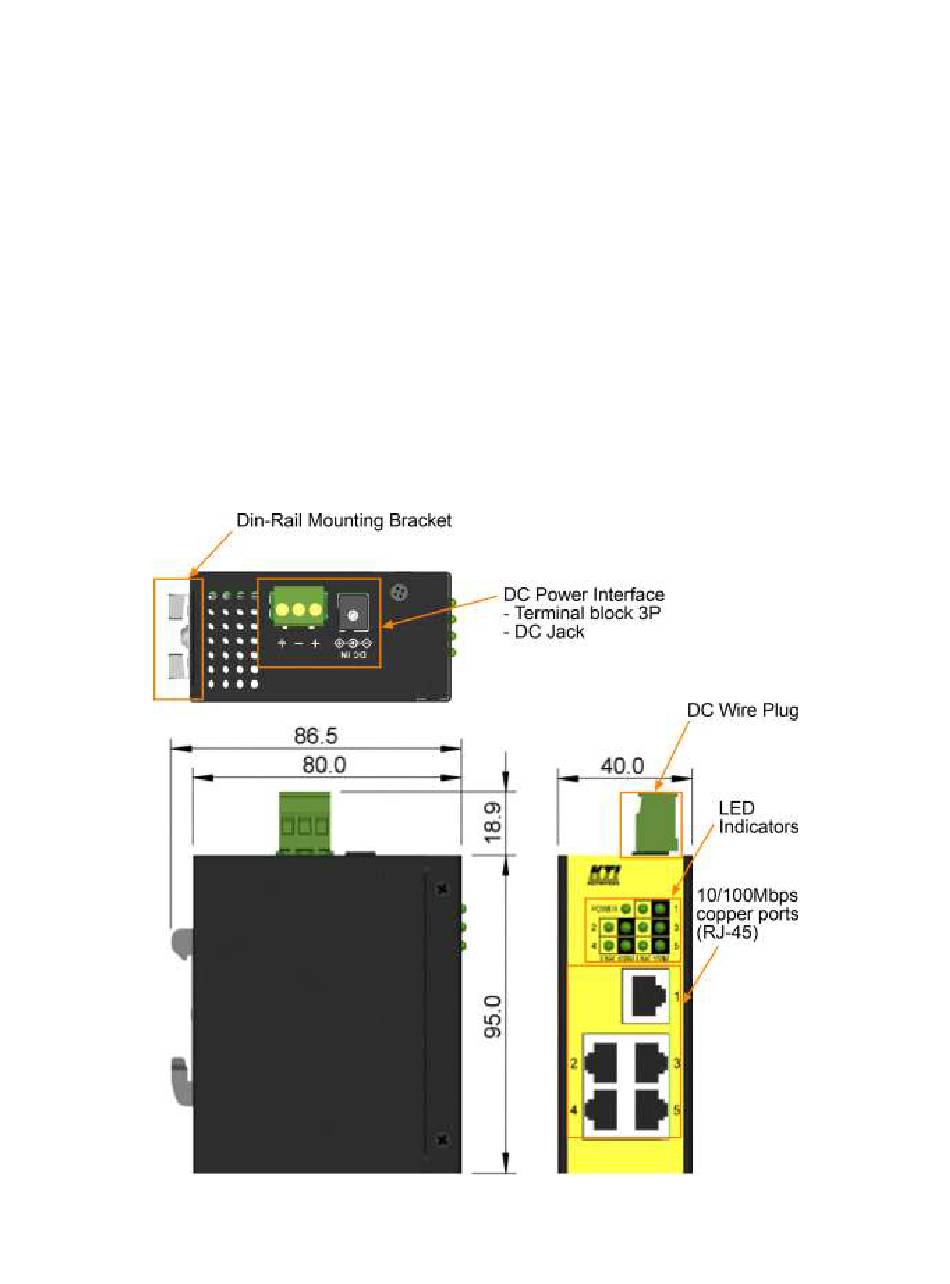

The following figure illustrates the panels of the switch:
-6-
