2. Hardware Functionality

2.4 Ethernet Interfaces

The RJ45 panel socket is used for one ETH0 and one ETH1 Ethernet interfaces. The pinout of the socket
is shown in Figure 14 and described in Table 5.
Pin
1
2
3
4
5
6
7
8
Table 5: Ethernet Connector Pinout Description of RJ45 Socket
The isolation barrier of the Ethernet ports against the ground is 1500 V.
ICR-4233 Hardware Manual

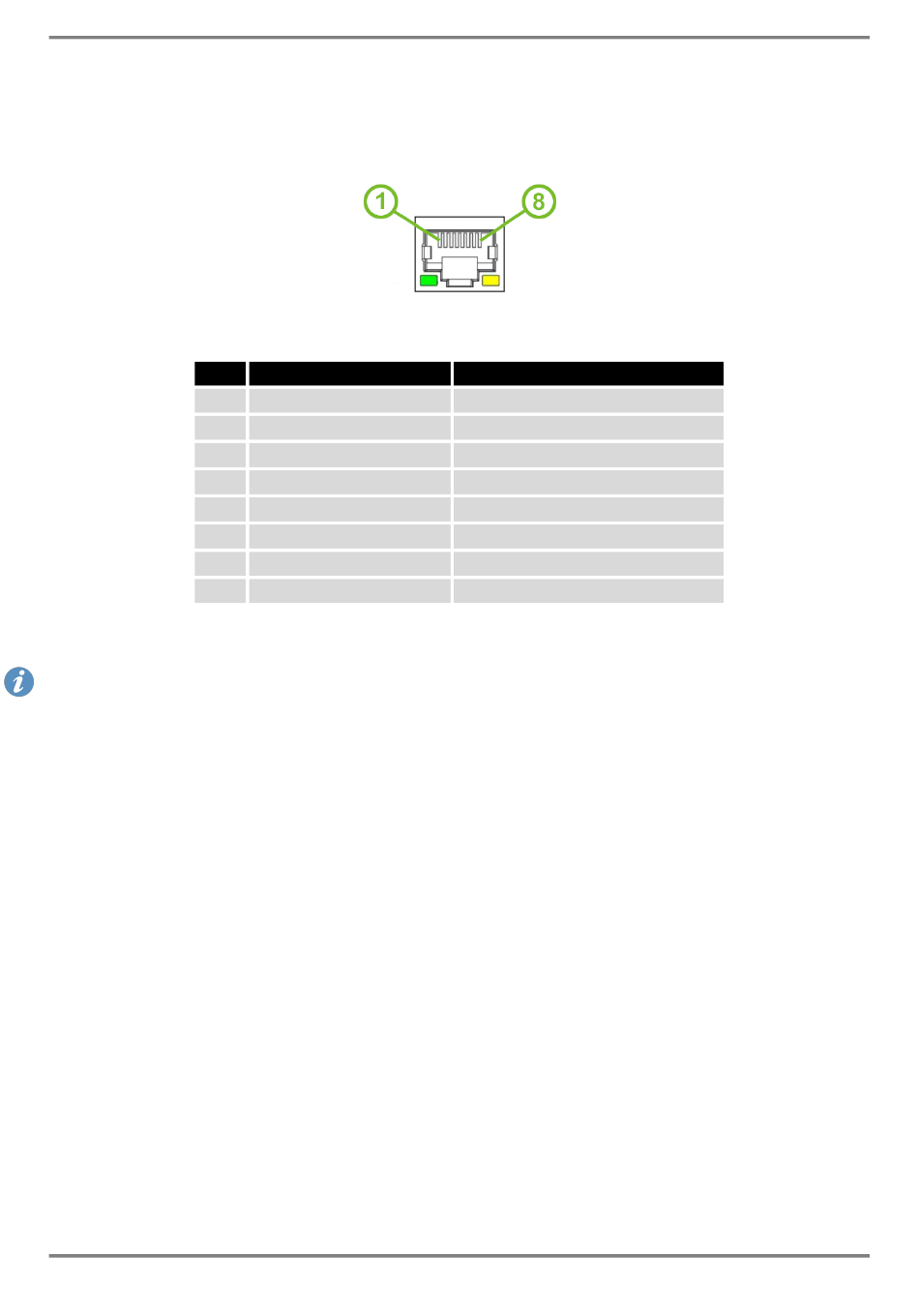

Figure 14: Ethernet Connector Pinout of RJ45 Socket
10base-T & 100base-T
Tx+ (Transmit Data+)
Tx- (Transmit Data-)
Rx+ (Receive Data+)
—
—
Rx- (Receive Data-)
—
—
1000base-T
BI_DA+ (BiDirectional pair A+)
BI_DA- (BiDirectional pair A-)
BI_DB+ (BiDirectional pair B+)
BI_DC+ (BiDirectional pair C+)
BI_DC- (BiDirectional pair C-)
BI_DB- (BiDirectional pair B-)
BI_DD+ (BiDirectional pair D+)
BI_DD- (BiDirectional pair D-)
2.4 Ethernet Interfaces
