- Page 1 November 13, 2020 Ver1.04 USB3.0 UV CMOS Camera ARTCAM-2020UV-USB3 INSTRUCTION BOOKLET 4.00 M Pixels ARTCAM-2020UV-USB3 ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Shutter Speed ........................- 11 - 6.2.2. External Trigger Function ....................- 12 - Spectral Sensitivity Characteristics ....................- 14 - 7.1. ARTCAM-2020UV-USB3......................- 14 - 7.2. UV Bandpass Filter（U340）(Optional）................. - 14 - Systems Requirements ........................- 15 - 8.1. -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・The product becomes smoky or gets extremely hot on the surface, or makes unusual smells or sounds.
- Page 5 For more details, please refer to the sites below: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf ■Limited Responsibility We do not guarantee the functions of this product or the descriptions on this manual to be completely adapted to the users’...
-
Page 6: Introduction

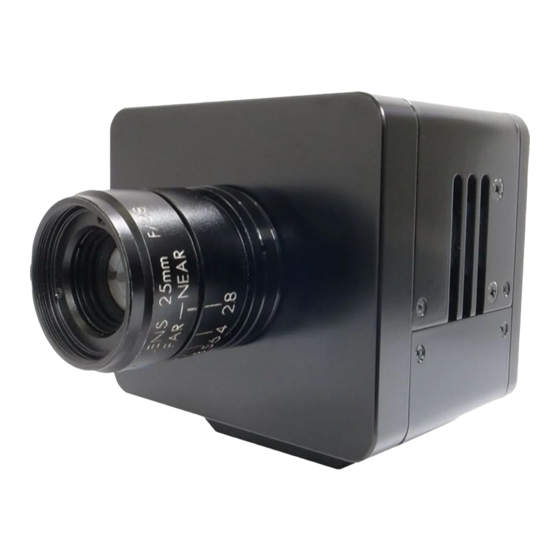

2. Introduction ARTCAM-2020UV-USB3 is an ultraviolet camera that has high sensitivity to the wavelength band between 200 nm to 1100 nm. Adopting USB3.0 interface, thus enables direct data transfer to PC without a capture card. 3. Main Features UV Detection with High Sensitivity The adopted CMOS sensor has high sensitivity to the wavelength band between 200nm to 1100nm. -
Page 7: Connections
5. Connections 5.1. Connecting Method (an example) - 7 -... -
Page 8: Specifications
6. Specifications 6.1. Camera Specifications 6.1.1. Camera specification list Items Image pickup device Gpixel 4M Pixels CMOS Sensor GSENSE2020BSI Number of effective pixels 2058(H) × 2056(V) Number of output pixels 2048(H) × 2048(V) Pixel Size 6.5(H) [µm] × 6.5(V) [µm] 13.3(H)×13.3(V)[mm] Imaging area (Diagonal 18.809[mm], Approx.1.2 inch) -
Page 9: Dimensional Outline
6.1.2. Dimensional Outline HR10A-7R-6S(73)(HIROSE) Bottom Without Tripod mount - 9 -... -
Page 10: Schematic Diagram Of The Sensor
6.1.3. Schematic Diagram of the Sensor - 10 -... -
Page 11: Camera's Functions
6.2. Camera’s Functions 6.2.1. Shutter Speed The exposure time (electronic shutter speed) of the camera can be set. The exposure time can be calculated by the following formula: Exposure time = the setting value of the shutter speed * 1 8~89285 H period (Setting range: = 560(Minimum) * 1PCLK ＝... -
Page 12: External Trigger Function
6.2.2. External Trigger Function This camera has an external trigger electronic circuit, which is insulated by a photocoupler, and thus enables synchronized shooting by the input signal received from the external circuit. HR10A-7R-6S(73)(HIROSE) R1 = 2.4kΩ (5～12V) R2 = 4.7kΩ The Pin Assignment of the External I/O Terminal Pin Number Function... - Page 13 Details of trigger timing Item Items Required Time Numbers Effective Trigger Input Pulse >10μsec. Time required from the starting of the <1μsec. External Trigger to the starting of the Internal Trigger Signals (may delay caused by the photocoupler) Time required from the starting of the <1μsec.
-
Page 14: Spectral Sensitivity Characteristics
7.1. ARTCAM-2020UV-USB3 7.2. UV Bandpass Filter（U340）(Optional） ARTCAM-2020UV-USB3 is possible to choose to install an additional filter U340, which can absorb visible wavelengths and only allow ultraviolet wavelengths to pass. Please refer to the following Spectral sensitivity line chart for detail. -
Page 15: Systems Requirements
What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3389-5488) ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us...
