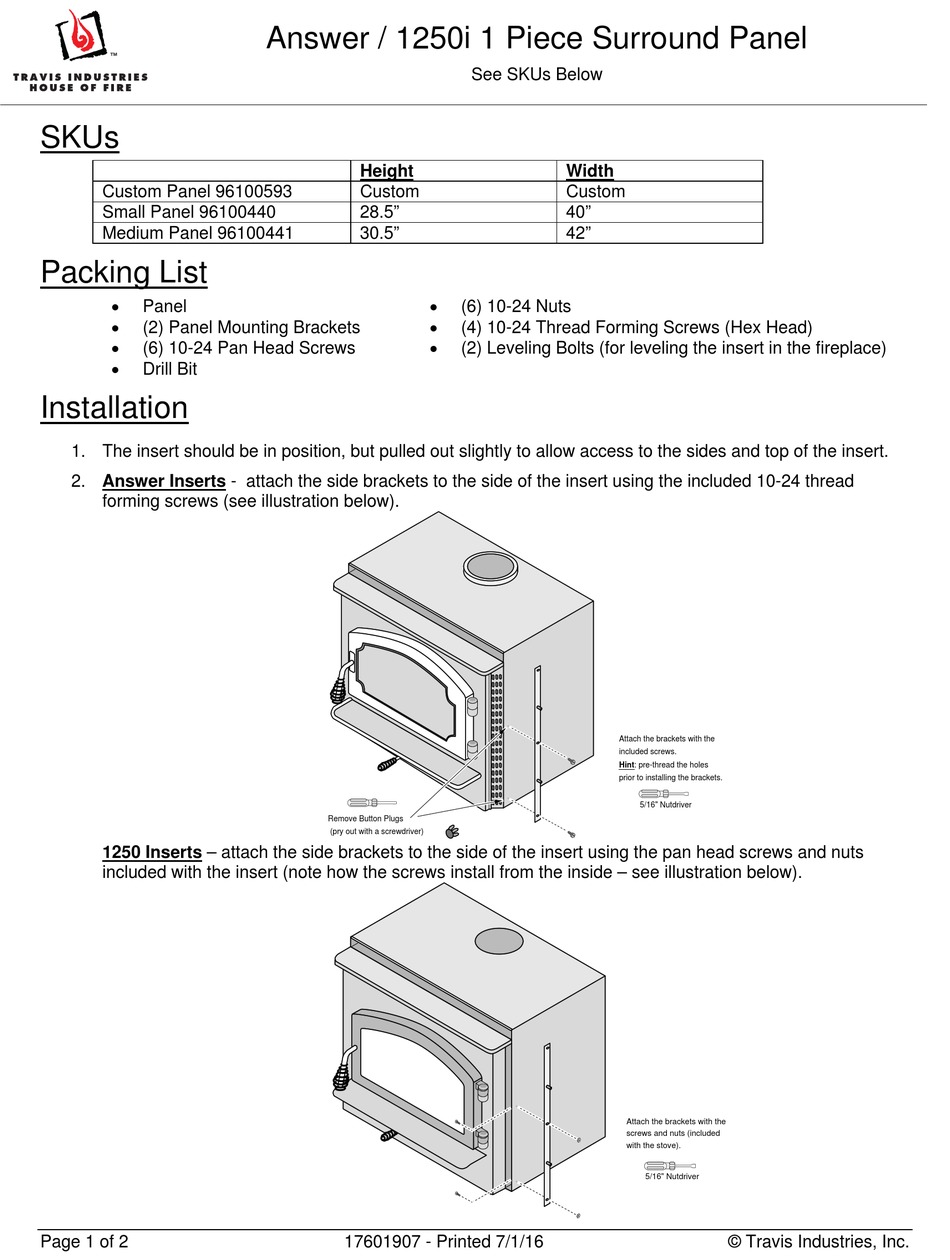

Travis Industries 96100593 Quick Start Manual

SKUs
Custom Panel 96100593
Small Panel 96100440
Medium Panel 96100441
Packing List

Panel

(2) Panel Mounting Brackets

(6) 10-24 Pan Head Screws

Drill Bit
Installation
1. The insert should be in position, but pulled out slightly to allow access to the sides and top of the insert.
2. Answer Inserts - attach the side brackets to the side of the insert using the included 10-24 thread
forming screws (see illustration below).
1250 Inserts – attach the side brackets to the side of the insert using the pan head screws and nuts
included with the insert (note how the screws install from the inside – see illustration below).
Page 1 of 2
Answer / 1250i 1 Piece Surround Panel
Height
Custom
28.5"
30.5"



Remove Button Plugs
(pry out with a screwdriver)
17601907 - Printed 7/1/16
See SKUs Below
Width
Custom
40"
42"
(6) 10-24 Nuts
(4) 10-24 Thread Forming Screws (Hex Head)
(2) Leveling Bolts (for leveling the insert in the fireplace)
Attach the brackets with the
included screws.
Hint: pre-thread the holes
prior to installing the brackets.
5/16" Nutdriver
Attach the brackets with the
screws and nuts (included
with the stove).
5/16" Nutdriver
© Travis Industries, Inc.
