Compatibility
Large Flush Wood Rect. Insert
NOTE: Do not build facing up to the faceplate (a
3/8" gap is required to allow for air to circulate).
Sizing
Height
667mm high
Installation
1. Before installing the face, the insert must be in place with the flue and surround panel attached.
2. Pull the bypass forward then remove the bypass rod (you may need pliers - see "a" below).
3. Remove the air control rod and knob (you may need pliers – see "b" below).
4. Place the face near the insert. Connect the rheostat wires from the face to the rheostat wires on the
insert (orientation does not matter – see "c" below). Make sure the power cord is routed through the hole
in the surround panel.
P
a
g
e
1
f o
2
Large Flush Wood Insert Face Installation
Shadowbox Black 96400717, Shadowbox Bronze 96400718, Times Square 96400719
Width
958mm wide
a
b
1
7
6
0
1
6
8
Packing List
7
-
r P
n i
e t
d
6
1 /
8
1 /
5

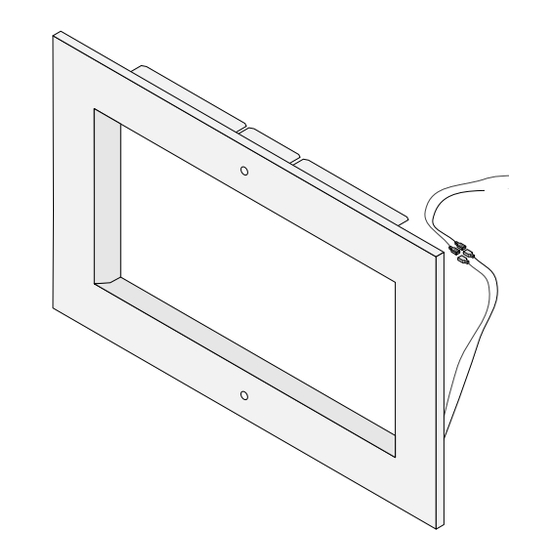

Face (see below)
(2) Rod Extenders
Bypass Ring
c
©
T
a r
v
s i
n I
d
u
s
r t
e i
, s
n I
. c
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries 96400717
Summary of Contents for Travis Industries 96400717
- Page 1 Large Flush Wood Insert Face Installation Shadowbox Black 96400717, Shadowbox Bronze 96400718, Times Square 96400719 Compatibility Packing List Large Flush Wood Rect. Insert Face (see below) (2) Rod Extenders NOTE: Do not build facing up to the faceplate (a Bypass Ring 3/8”...
- Page 2 Large Flush Wood Insert Face Installation Shadowbox Black 96400717, Shadowbox Bronze 96400718, Times Square 96400719 5. Attach the face to the insert (see “a” below). WARNING: When installing the face, make sure all wiring is inserted into the cavity between the insert and the fireplace.
