Travis Industries Wilmington Face Installation Instructions

Small flush wood

Compatibility

•

Small Flush Wood Insert – Arched

NOTE: The small flush wood insert may be installed with a face and no surround panel. The face is 30"

wide and 21.5" tall.

•

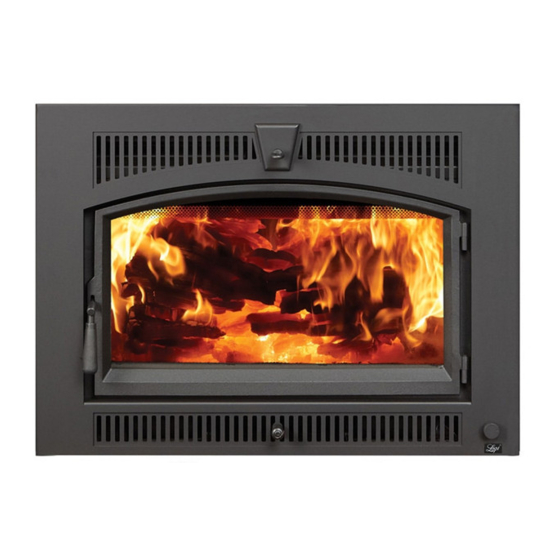

Wilmington Face

•

Ashlip

•

(2) ¼-20 x 1" Bolts

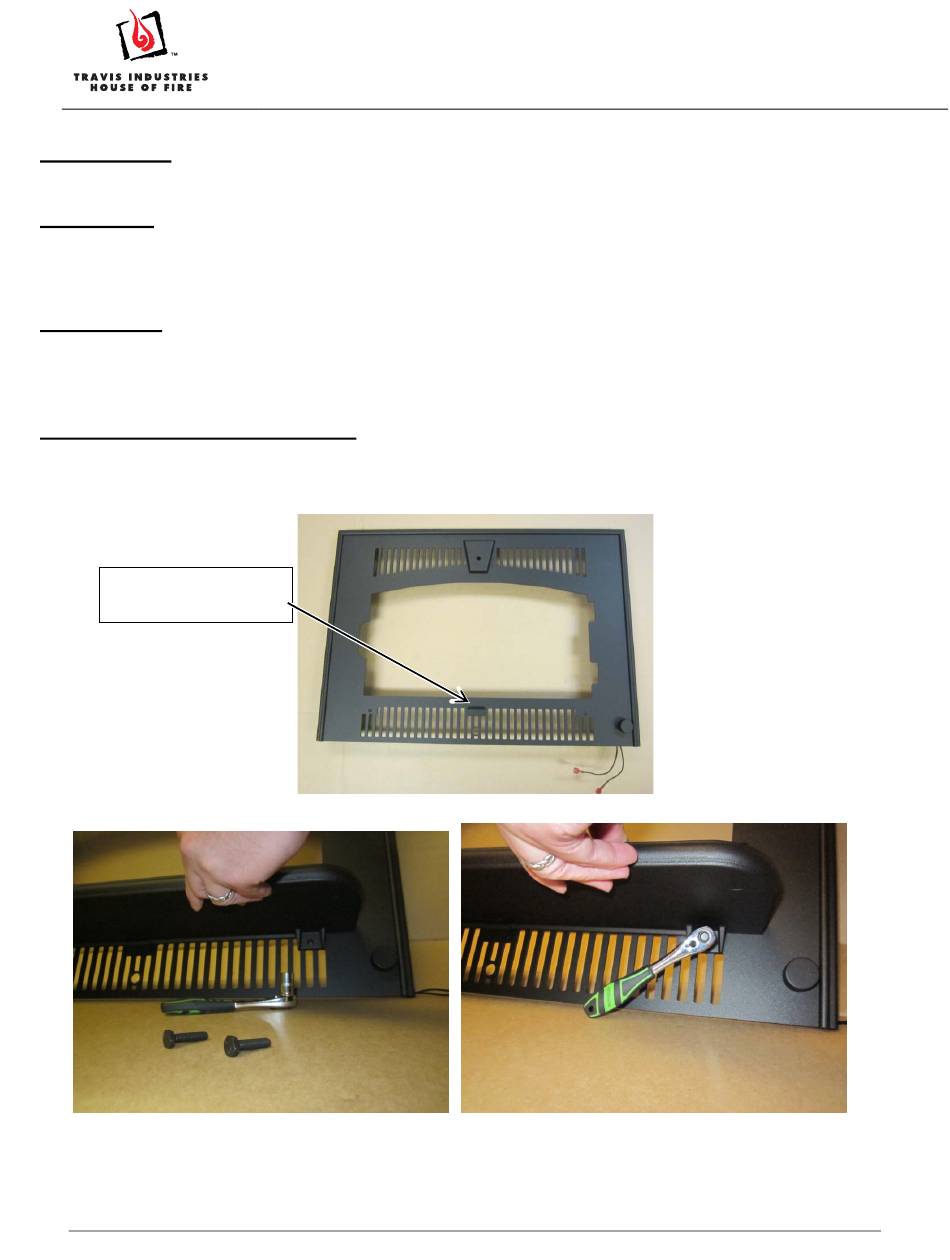

Place the face a non-scratching surface (front side upwards). Take care to prevent damage to the

mounting brackets or the wiring from the rheostat. Before installing the ashlip, make sure the center

clip is slightly loose (when tightened, it will secure the center of the ashlip to the face).

Make sure the center

clip is slightly loose.

Place the ashlip in position and secure using the two included bolts (7/16" wrench).

Page 1 of 4

Small Flush Wood Wilmington Face

Installation Instructions

17601808.docx — 9/23/13

96300207

Table of Contents

Do you have a question about the Wilmington Face and is the answer not in the manual?

Page 1 Small Flush Wood Wilmington Face Installation Instructions 96300207 Compatibility • Small Flush Wood Insert – Arched Face Sizing NOTE: The small flush wood insert may be installed with a face and no surround panel. The face is 30” wide and 21.5” tall.
Page 2 Small Flush Wood Wilmington Face Installation Instructions 96300207 Place the face upright. Position the center clip so it is snug against the ashlip. Tighten the two nuts on back of the face to secure the center of the ashlip to the face (11/32” wrench).
Page 3 Small Flush Wood Wilmington Face Installation Instructions 96300207 The power cord may be routed behind the surround panel or between the surround panel and face. If routing between the surround panel and face, remove the knock-out along the bottom edge of the face (knock-outs are provided on both sides –...
Page 4 Small Flush Wood Wilmington Face Installation Instructions 96300207 The face uses hooks to hang in place. Lift the face slightly and slide into place. Take care to prevent damage to the wiring while installing. Re-attach the bypass and air control rod.
