Table of Contents
SKUs
Custom Panel 96100594
Small Panel 96100443
Medium Panel 96100444
Packing List
Panel
Left & Right Panel Mounting Brackets
(6) 10-24 Pan Head Screws
Installation
1. The insert should be in position, but pulled out slightly to allow access to the sides and top of the insert.
2. Attach the side brackets to the side of the insert following the directions below.
REVERE
Attach the brackets using the studs on the side
convection fronts and the nuts included with the panel.
Page 1 of 2

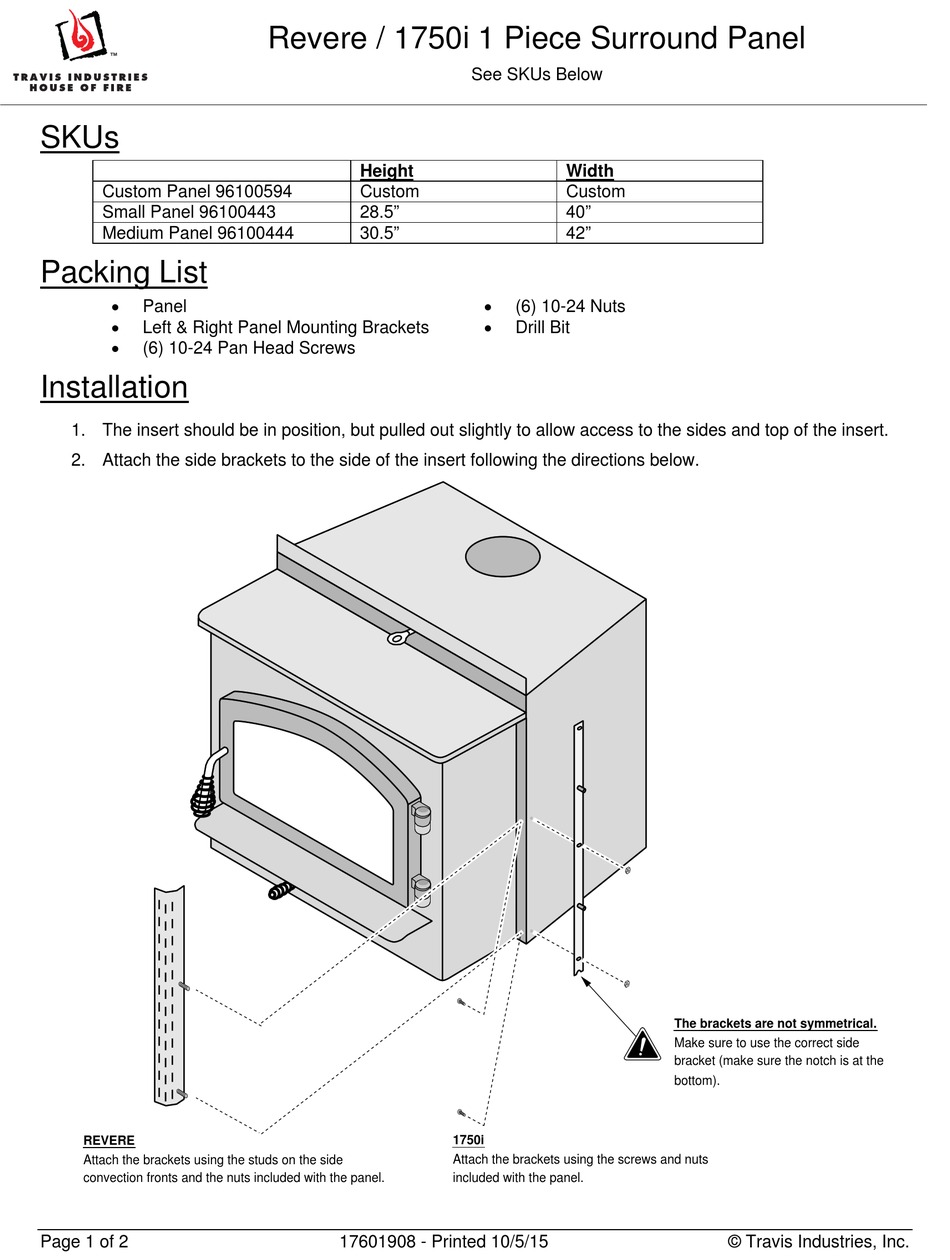

Revere / 1750i 1 Piece Surround Panel
Height
Custom
28.5"
30.5"
17601908 - Printed 10/5/15
See SKUs Below
Width
Custom
40"
42"
(6) 10-24 Nuts
Drill Bit
1750i
Attach the brackets using the screws and nuts
included with the panel.
The brackets are not symmetrical.
Make sure to use the correct side
bracket (make sure the notch is at the
bottom).
© Travis Industries, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries 96100594
Summary of Contents for Travis Industries 96100594
- Page 1 Revere / 1750i 1 Piece Surround Panel See SKUs Below SKUs Height Width Custom Panel 96100594 Custom Custom Small Panel 96100443 28.5” 40” Medium Panel 96100444 30.5” 42” Packing List Panel (6) 10-24 Nuts Left & Right Panel Mounting Brackets Drill Bit ...
- Page 2 (use included drill bit). Secure the bracket using the screws and nuts included with the panel. 4. Place the insert into position (flue attached). Attach the surround panel as shown below. Page 2 of 2 17601908 - Printed 10/5/15 © Travis Industries, Inc.
