Compatibility:

• 564 SS Fireplace with FPX Double-Doors
• 564 Electric Fireplace with FPX Double-Doors

Installation

1
Remove the center screen and handle from the door (both sides).
Page 1 of 4
564 Double-Door Onlay
Arch Bronze 96300770
Arch Nickel 96300771
Rect. Bronze 96300780
Rect. Nickel 96300781

Packing List:

• (2) Door Onlays (Left and Right Side)
• (6) 8-32 Acorn Nuts
• 13/64" Drill Bit
12/20/07
Arch Copper 96300772
Rect. Copper 96300782
© Travis Industries, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fireplace Xtrordinair 96300770 and is the answer not in the manual?

Questions and answers

Summary of Contents for Travis Industries Fireplace Xtrordinair 96300770

  • Page 1 • (2) Door Onlays (Left and Right Side) • 564 Electric Fireplace with FPX Double-Doors • (6) 8-32 Acorn Nuts • 13/64” Drill Bit Installation Remove the center screen and handle from the door (both sides). Page 1 of 4 12/20/07 © Travis Industries, Inc.

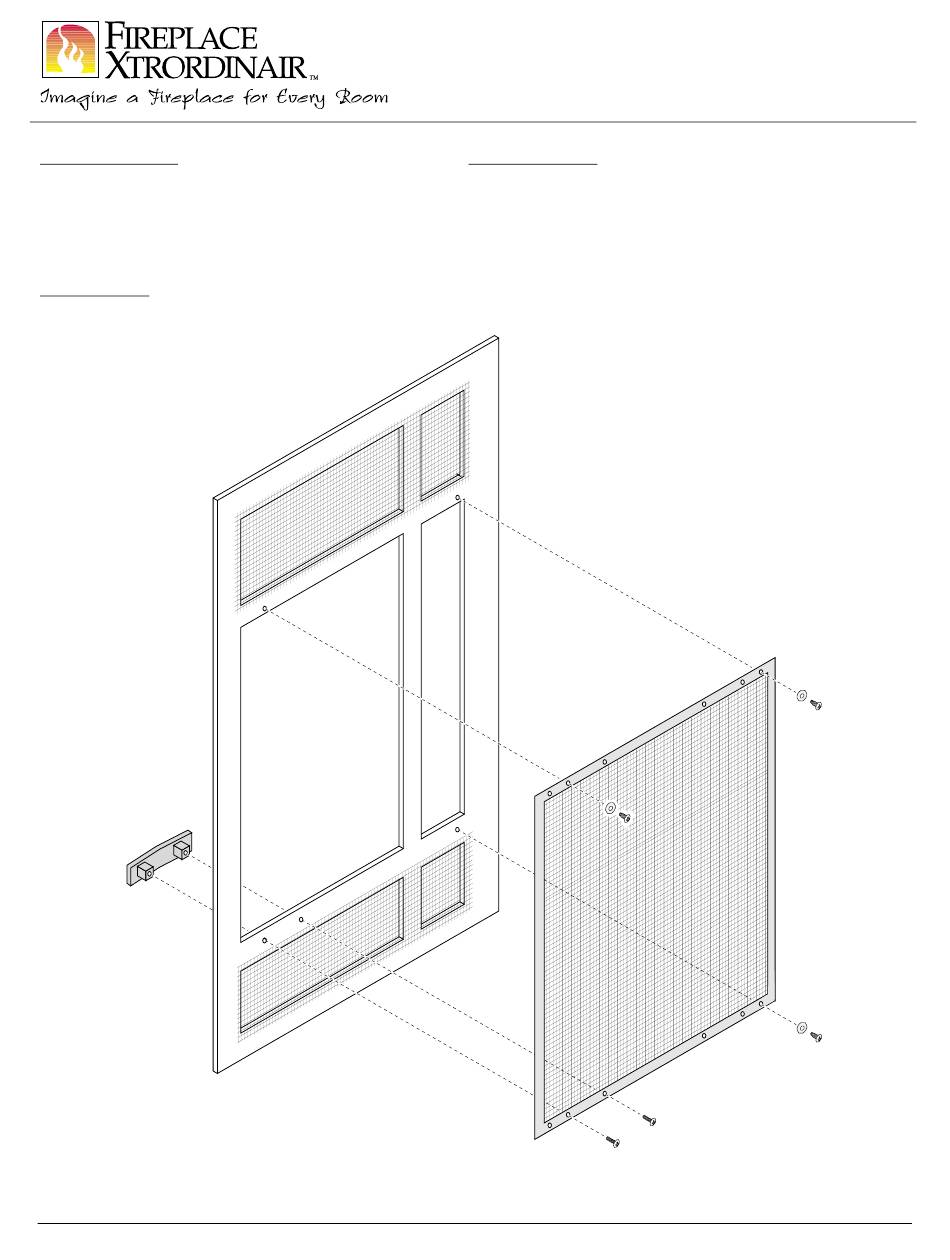

  • Page 2 With the doors removed, locate the three holes used to secure the center screen to the door (see the illustration below). Use the included 13/64” drill bit to drill through the doors in these locations (both doors). Remove any burrs from the holes. Page 2 of 4 12/20/07 © Travis Industries, Inc.
  • Page 3 During shipment the onlays may develop a slight bow. If the onlays don’t seat flat against the doors, simply remove the onlay and gently straighten by hand. Be careful to not over-adjust. Page 3 of 4 12/20/07 © Travis Industries, Inc.
  • Page 4 Use denatured alcohol and a soft cloth to clean plated surfaces. Marks Denatured Alcohol left on the surface may damage the face. Soft Cloth Copper-Plated Surfaces See the instructions included with these onlays for cleaning with citric acid. Page 4 of 4 12/20/07 © Travis Industries, Inc.
