Travis Industries 6015 Quick Start Manual

Black glass firebacks
Hide thumbs Also See for 6015:

Advertisement

Quick Links

Packing List

(1) Rear Glass Firebacks
(2) Side Glass Firebacks

Installation

HANDLING THE FIREBACKS: The glass firebacks are fragile – especially the edges. Take care to prevent
contacting/scraping the glass against metal or rough surfaces. You may wish to lay out a blanket during
installation in case you need to set the firebacks down.
We recommend the use of gloves and safety glasses during the installation of the glass firebacks.
These firebacks require periodic cleaning. Do not use ammonia-based cleaners (this may cloud the glass). We
recommend ammonia-free glass cleaner (i.e. vinegar and water) to clean the fireback.
1
Access the firebox (see appliance manual for details).
2
Remove the (2) rear and the (2) side fireback clips from the firebox ceiling (1/4" nut driver). The clips
have a "keyhole" so loosen the screws but do not remove them. Slide the clips away from the firebox wall
and lower them over the screw heads. Set the clips aside for reinstallation. Leave the screws loose, they
will be tightened in a later step.
Page 1 of 3

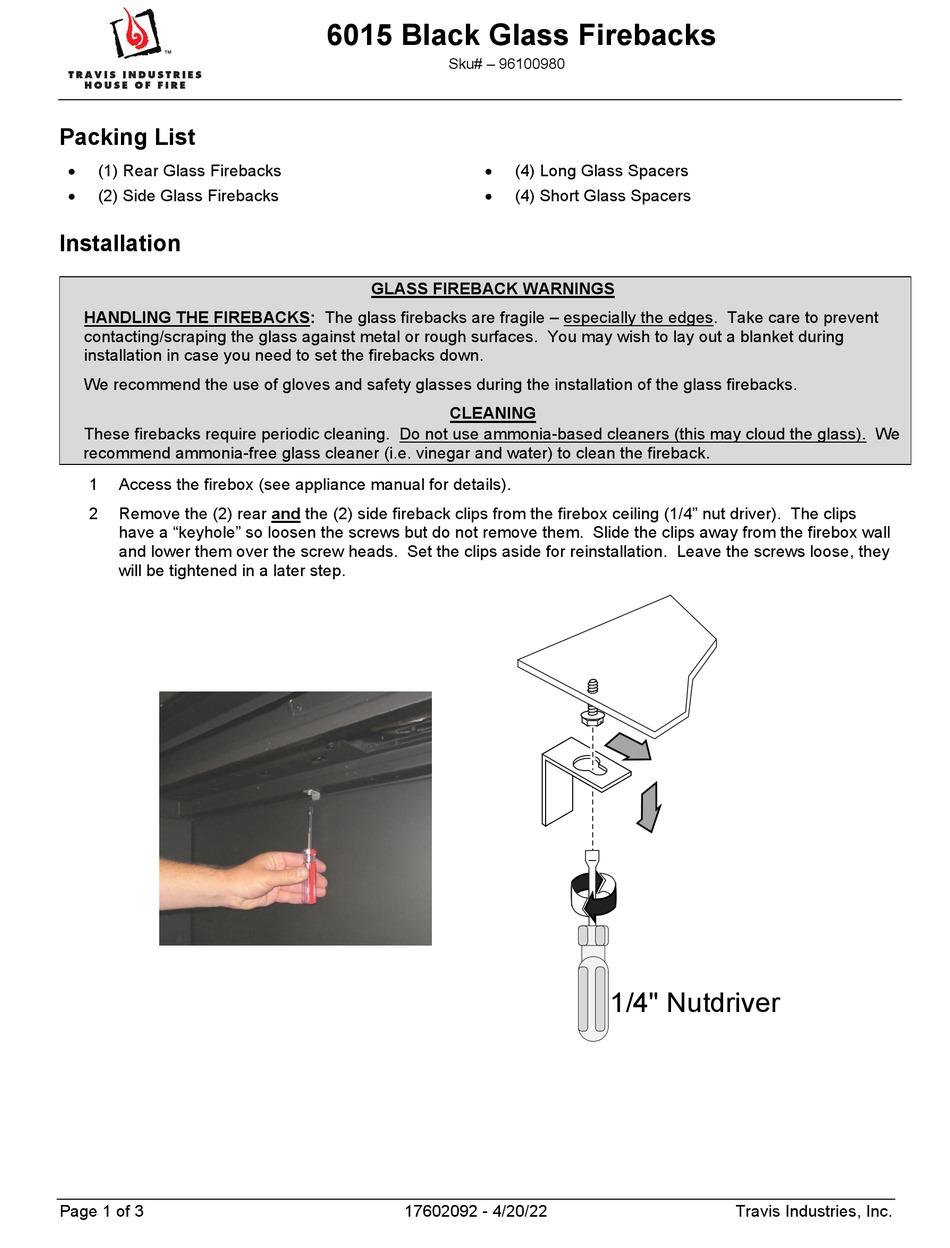

6015 Black Glass Firebacks
Sku# – 96100980

GLASS FIREBACK WARNINGS

CLEANING

17602092 - 4/20/22
(4) Long Glass Spacers
(4) Short Glass Spacers
1/4" Nutdriver
Travis Industries, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Travis Industries 6015

  • Page 1 6015 Black Glass Firebacks Sku# – 96100980 Packing List   (1) Rear Glass Firebacks (4) Long Glass Spacers   (2) Side Glass Firebacks (4) Short Glass Spacers Installation GLASS FIREBACK WARNINGS HANDLING THE FIREBACKS: The glass firebacks are fragile – especially the edges. Take care to prevent contacting/scraping the glass against metal or rough surfaces.
  • Page 2 6015 Black Glass Firebacks Sku# – 96100980 Prepare the (8) spacers by bending the tabs (2 per clip) up approximately 90° (see below). Install the (2) clips on each of the side firebacks (top and bottom) and (4) clips on the rear fireback. The longer spacers are used on the rear fireback pieces and the shorter spacers are for the sides.
  • Page 3 6015 Black Glass Firebacks Sku# – 96100980 Install the rear fireback. Insert one end of the fireback through the firebox opening. Carefully move it deeper into the firebox until the opposite end of the fireback clears the opening. Once the entire fireback is in the firebox, maneuver the fireback parallel to the back of the firebox and center it against the back wall.
