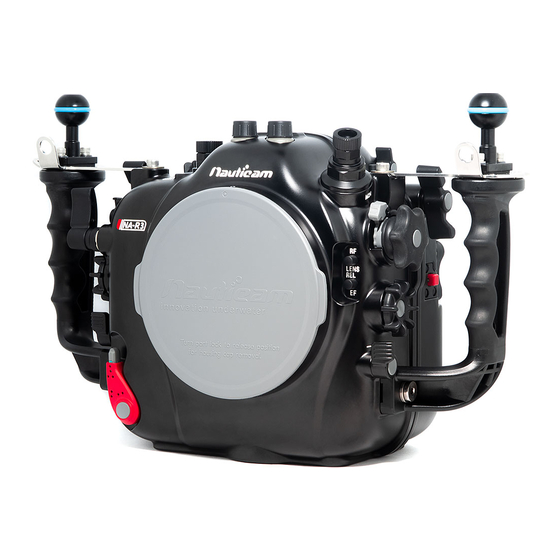

For Canon EOS R3 Mirrorless Camera
2
2
3
4
7
8
9
10
17
20
21
22
April, 2022
NA - R3
PN 17336
User Manual
Housing
FF- MIL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA - R3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nauticam NA - R3

  • Page 1: Table Of Contents

    April, 2022 NA - R3 For Canon EOS R3 Mirrorless Camera PN 17336 User Manual Housing FF- MIL Introduction Package Contents Important Instructions Part Names and Functions Housing Mount Opening the housing Closing the housing Preparation for Use Optional Accessories...
  • Page 2: Introduction

    PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-R3 Padded Travel Case...
  • Page 3: Important Instructions

    O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories speci ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product.
  • Page 4: Part Names And Functions

    PART NAMES AND FUNCTIONS Rear View TTL Indicator Window Menu button Rate button Housing unlock button AE lock button AF point selection button Quick control button Multi selector Set button Info button Main switch Delete button Moisture alarm window Multi selector - center...
  • Page 5 PART NAMES AND FUNCTIONS Top + Front Views M14 6-pin bulkhead (M26-M14) Optical cable connector 1/4” Threaded holes Drive mode / AF selection button Flash exposure / metering button M10 Accessory port M14 Accessory port Mode button M16 Accessory port Quick control dial 2 Still photo / movie recording lever Accessory mounting ball...
  • Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Sacri cial zinc anodes TTL On/off lever Magniify/reduce lever Zoom/Focus knob release Zoom/Focus knob Playback lever Control ring mount adaptor Fn Pv lever AF-ON lever M-Fn lever Shutter release lever ISO lever REC lever Main dial...
  • Page 7: Housing Mount

    HOUSING MOUNT Housing mount Compatible accessories M16 Accessory port 25625 M16 Vacuum valve II (pushbutton release) M14 Accessory port 25017 M14 6-pin bulkhead for Canon system (pre-installed) M10 Accessory port 25221 M10 Strobe mounting ball 25224 M10 Strobe mounting ball with hole 1/4”...
  • Page 8: Opening The Housing

    OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing...
  • Page 9: Closing The Housing

    CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely...
  • Page 10: Preparation For Use

    PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * rotate the zoom/focus knob release before sliding in the camera tray with camera lens and gears to make sure...
  • Page 11 PREPARATION FOR USE * drawings as illustrations only Installing the Camera - RF mount/ EF mount lens installment RF mount lens make sure the small lever is in vertical make sure the small gear engagement knob position before RF mount lens installment on housing tray is on the left from rear view EF mount lens with Canon EF to EOS R...
  • Page 12 PREPARATION FOR USE * drawings as illustrations only Installing the Camera - RF mount/ EF mount lens installment EF mount lens with Canon Drop-in lter mount adpator EF-EOS R with variable ND lters * 26320 control kit from SN A482725 is required for this setup remove the original control kit from the replace it by 26320 control kit for Canon...
  • Page 13 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
  • Page 14 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
  • Page 15 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm Alarm ON/OFF CR2032 Battery remove battery press the battery down until it insulation lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will ash in...
  • Page 16 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
  • Page 17: Optional Accessories

    OPTIONAL ACCESSORIES * drawings as illustrations only Vacuum valve system remove the plug of M16 accessory port from the housing remove the cap from the vacuum hand pump valve vacuum valve slightly lubricate the o-ring and accesory port make sure the o-ring is in place on housing then tighten the vacuum valve to the housing with the tool provided...
  • Page 18 OPTIONAL ACCESSORIES * drawings as illustrations only Strobe Mounting Ball Installing M5 Strobe Mounting Ball - RECOMMENDED M5 screw remove M5 screw with the allen key provided in the screw #25228 M5 Strobe mounting ball directing onto housing package the M5 thread * the anti-corrosion screw may also be Anti-corrosion unscrewed while removing M5 screw, if this...
  • Page 19 OPTIONAL ACCESSORIES Installing View nder rstly remove the pre-installed 0.66x view nder gently push the 0.66x view nder from the inside of from the housing by removing the retainer o-ring the housing inside rear housing remove the retainer o-ring from the view nder align the view nder alignment pins with the LCD lightly lubricate the retainer o-ring and place it back display window and push the view nder into the...
  • Page 20: Care/Storage

    CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation.
  • Page 21: Warranty

    NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals.
  • Page 22: Speci Cations

    Monitor options ( 2.0 ) Monitor options ( 1.4 ) 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2” 4K HDMI Monitor 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5”...
  • Page 23 Aluminium Float Collar (incl. N120 to N100 port adaptor) 85202 0.36x Wide Angle Conversion Port *please refer to Nauticam port charts for more setup information. Set with Aluminium Float Collar for Sigma 18-35mm F1.8 85204 0.57x Wide Angle Conversion Port 2...
  • Page 24 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
