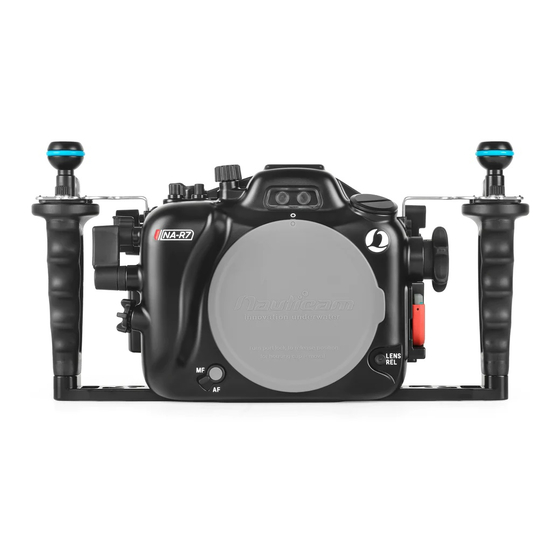

Sep, 2022 NA - R7 For Canon EOS R7 Mirrorless Camera PN 17338 User Manual Housing APS-C- MIL Introduction Package Contents Important Instructions Part Names and Functions Housing Mount Opening the housing Closing the housing Preparation for Use Optional Accessories Care/Storage Warranty Specifi... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-R7 Padded Travel Case... -
Page 3: Important Instructions
O-ring on this recommended when using the system for housing, only use the lubricant provided by the fi rst time and after the changing of NAUTICAM. port and O-ring(s). Discontinue use immediately should you Store the housing in a robust, shock-proof notice any leakage. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View TTL Indicator window 0.66x Viewfi nder Menu button TTL on/off button AE lock button AF point selection/magnify/reduce button Info button Up button Right button Down button Delete button Multi-controller Access lamp Left button Moisture alarm window Quick Control/Set button... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M24 Accessory port M14 Accessory port 1/4” Threaded holes Mode dial Multi-function lock button ISO speed setting button M10 Accessory port Main switch Rear dial M14 Accessory port Accessory mounting ball Focus mode switch Optical fi...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes M5 Threaded holes Sacrifi cial zinc anodes Playback lever Zoom/Focus knob Port lock safety button Port locking lever AF-ON lever M-Fn lever Shutter release lever Housing unlock button REC lever Front dial...
-
Page 7: Housing Mount
(x and ground connection only) M24 Accessory port 25086 M24 adaptor for HDMI 2.0 cable 25077 HDMI 2.0 cable M5 Threaded holes 25218 Mounting ball set for tripod legs 1/4” -20 mounting threads 17954 Universal tripod plate 17960 Universal Quadra-Pod Plate for Nauticam Housings... -
Page 8: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti-clockwise to open the housing fl ip open the back housing when lock latch is aligned to ‘open’ position... -
Page 9: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock latch clockwise until you hear and feel it click into place... -
Page 10: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing * pull out the actuator for focus mode switch on the camera tray as shown attach the camera tray by tightening the tray screw into the tripod socket... - Page 11 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress port lock safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation fi lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will fl...
- Page 14 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 15: Optional Accessories
OPTIONAL ACCESSORIES * drawings as illustrations only Vacuum valve system remove the plug of M14 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and vacuum valve make sure the o-ring is in place accesory port on housing then tighten the vacuum valve to... - Page 16 OPTIONAL ACCESSORIES Installing Viewfi nder fi rstly remove the pre-installed 0.66x viewfi nder gently push the 0.66x viewfi nder from the inside of from the housing by removing the retainer o-ring the housing inside rear housing to use with 32211/32213 viewfi nder, exhchange a remove the retainer o-ring from the viewfi...
-
Page 17: Care/Storage
It is recommended that you ship the immediately and replaced only with one housing to our distributor for a complete that is provided by NAUTICAM. overhaul three years or after every 300 dives. Place the O-rings in a small zip-lock plastic Store the housing in a robust, shock-proof bag and place it inside the housing. -
Page 18: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 19: Specifications
Monitor options ( 2.0 ) Monitor options ( 1.4 ) 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2” 4K HDMI Monitor 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor... - Page 20 (incl. fl oat collar) 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible *please refer to Nauticam port charts for more setup information. 24mm Lenses (incl. fl oat collar) 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C) 85203 N100 0.36x Wide Angle Conversion...
- Page 21 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
