- Page 2 Thank you for your purchase of a NAUTICAM camera housing. At NAUTICAM, we pride ourselves on the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
- Page 3 2. NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in this manual.
- Page 4 1. NA-RX100/ RX100V housing 2. Instruction manual 3. Spare silicone rubber housing o-ring 4. O-ring remover 5. CR2032 battery (for moisture alarm) 6. Lubricant 7. Set of Allen keys 8. HDMI bulkhead with socket extension (for NA-RX100V) 9. HDMI (D-D) cable (for NA-RX100V)
- Page 5 O-ring(s). 2. Do not use lubricants from other brands with the silicone rubber O- ring on this housing, only use the lubricant provided by NAUTICAM. 3. Discontinue use immediately should you notice any leakage. 4. Store the housing in a robust, shock-proof container during transportation;...
- Page 6 Specifications Identification of Parts Preparation of the Housing Opening and Locking the Housing Installing the Camera Installing the HDMI bulkhead (NA-RX100V) Care and Maintenance Optional Accessories...
- Page 7 Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 144mm/ 152mm (NA-RX100V) Dimensions Height: 102mm/ 116mm (NA-RX100V) Depth: 102mm/ 103mm (NA-RX100V) Weight Approx. 0.77kg / 0.81kg (NA-RX100V) (without camera) Buoyancy Slightly negative Depth rating 100 metres Moisture alarm: Blinking LED and audible alarm...

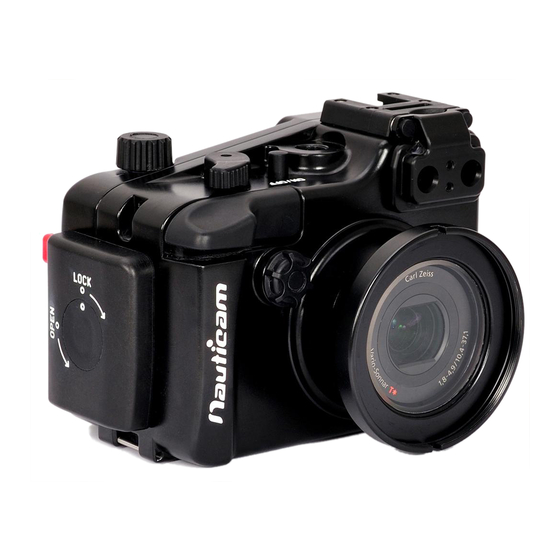

- Page 8 M10 strobe mounting base Front control wheel On/Off button Accessory coldshoe Zoom lever Optical fibre mount Mode dial Port with 67mm thread Shutter release lever...
- Page 9 * The maximum length of screws that can be used with the tripod sockets is 4mm Moisture alarm window Tracking focus/ Set button Exposure Compensation/ Down Movie button selection button Fn button In-Camera Guide/ Delete button Menu button Playback button Rear control wheel Housing lock safety button Display/ Up selection button...
- Page 10 1. After verifying that the housing O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the rear part of the housing is free from any foreign material; the groove can be cleaned with the aid of a microfiber cloth.
- Page 11 Setting up the moisture alarm 1. Install CR2032 battery provided into battery compartment on the circuit board inside the rear part of the housing. 2. Test the alarm by contacting the two wires near the bottom of the housing with a damped cotton bud;...
- Page 12 To open the housing: 1. Press the housing lock safety 2. Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown. To lock the housing: 3. Close the housing while the 4. Turn the housing lock clockwise housing lock is in the “Open”...
- Page 13 2. Confirm that all the controls of 1. Place the camera inside the the housing are correctly housing as shown. engaged.
- Page 14 1. Unscrew the M16 plug from the threaded hole with a coin. 2. Tighten the socket extension to the camera housing with a spanner. 3. Open the housing and insert the HDMI cable through the threaded hole from inside of the housing.
- Page 15 4. Connect the HDMI cable to the HDMI bulkhead. 5. Tighten the HDMI bulkhead by turning the threaded ring on the socket extension. 6. Connect the HDMI cable to the camera's HDMI connector before placing the camera inside the housing. Please refer to the NA-DP4 manual for connecting NA-DP4 housing to HDMI bulkhead.
- Page 16 A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. 3. Replace the main O-ring annually. 4. It is recommended that you ship the housing to our distributor for a...
- Page 17 P.N. 38016 Diffuser for NA-RX100 housing P.N. 25101 M67 flip diopter holder for M67 macro port...
