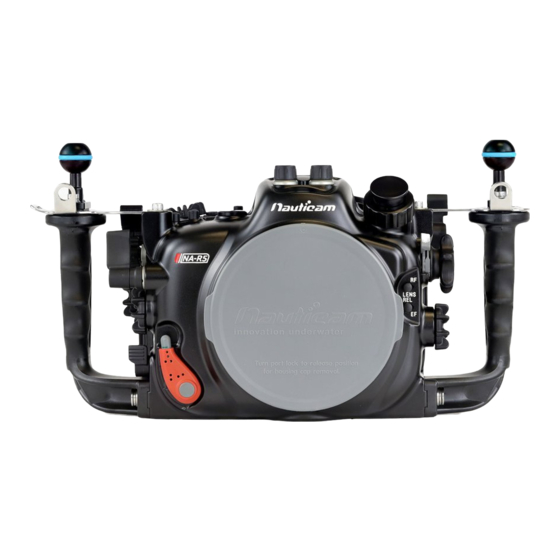

NA - R5 For Canon R5 Camera PN 17333 User Manual Housing FF- MIL Introduction Package Contents Important Instructions Part Names and Functions Opening the housing Closing the housing Preparation for Use Recommended Accessories Care/Storage Warranty Specifi cations... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-R5 Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specifi ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Menu button Rating/Voice memo button Housing unlock button Moisture alarm window TTL Indicator Window AE lock button AF point selection button Multi selector Info button Set button Access lamp Delete button... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M24 Accessory port Optical cable connector Main switch LCD/Viewfi nder lever M14 Accessory port Multi-function lock button Mode button M16 Accessory port Quick control dial 2 TTL fl ash on/off Accessory mounting ball Port lock safety button Port locking lever Port index mark...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Zinc Anodes Magnify/Reduce button Playback lever Zoom/Focus dial Control ring mount adaptor Fn AF Start button Shutter release lever M-Fn lever REC lever Quick control lever Quick control dial 1 Main dial Preview lever...
-
Page 7: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing... -
Page 8: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only Housing Lock - Lock before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely... -
Page 9: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * lift up the Photo/movie lever each time before installing the camera, also pull out the zoom/focus knob if... - Page 10 PREPARATION FOR USE * drawings as illustrations only Installing the Camera - RF mount/ EF mount lens installment RF mount lens make sure the small lever is in vertical make sure the small gear engagement knob position before RF mount lens installment on housing tray is on the left EF mount lens (w/ mount adaptor EF-R)
- Page 11 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation fi lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will fl...
- Page 14 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 15: Recommended Accessories
RECOMMENDED ACCESSORY * drawings as illustrations only Vacuum valve system remove the plug of M16 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and vacuum valve tighten the vacuum valve to the housing with the tool provided accesory port on housing... -
Page 16: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 17: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 18: Specifications
25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool) 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable Monitor options 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” (excl. HDMI 2.0 cable) HDMI connectivity accessories ( 1.4 ) 25033 Standard HDMI bulkhead with M16 thread... - Page 19 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
