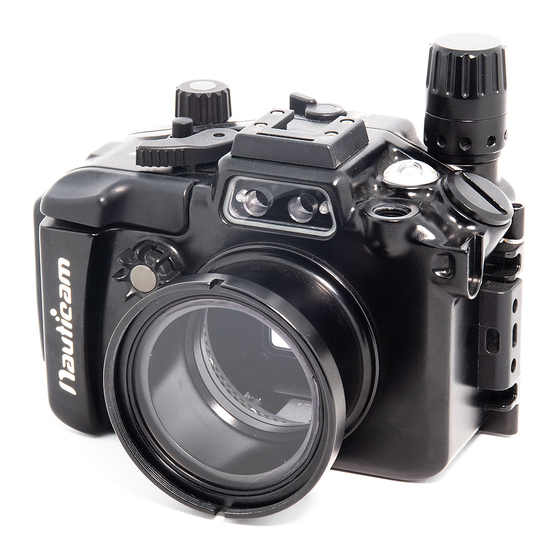

Summary of Contents for Nauticam NA-RX100III
- Page 2 Thank you for your purchase of a NAUTICAM camera housing. At NAUTICAM, we pride ourselves on the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
- Page 3 NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in our manuals.
- Page 4 1. NA-RX100III housing 2. Instruction manual 3. Spare silicone rubber housing o-ring 4. O-ring remover 5. CR2032 battery (for moisture alarm) 6. Lubricant 7. Set of Allen keys CR2032 battery Spare silicone rubber o-ring O-ring remover Lubricant Set of Allen keys...
- Page 5 O-ring(s). 2. Do not use lubricants from other brands with the silicone rubber O- ring on this housing, only use the lubricant provided by NAUTICAM. 3. Discontinue use immediately should you notice any leakage. 4. Store the housing in a robust, shock-proof container during transportation;...
- Page 6 Specifications Identification of Parts Preparation of the Housing Opening and Locking the Housing Installing the Camera Installing the HDMI bulkhead (Optional) Care and Maintenance Optional Accessories...
- Page 7 Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 150mm Dimensions Height: 101mm Depth: 107mm Weight Approx. 0.83kg (without camera) Buoyancy Slightly negative Depth rating 100 metres Moisture alarm: Blinking LED and audible alarm Optical fibre mount included for external strobes connection, TTL capability:...
- Page 8 Mode dial Housing lock On/Off button Shutter release lever Zoom lever Front control wheel Housing lock safety button Port with 67mm thread...
- Page 9 Accessory coldshoe M14 accessory port Optical fibre mount M16 accessory port Flash up/off lever M10 strobe mounting base Moisture alarm window...
- Page 10 * The maximum length of screws that can be used with the tripod sockets is 4mm Mounting holes for LCD Flash mode/ Right selection Magnifier attachment rails button Movie button Set button Exposure Compensation/ Down Fn button selection button Menu button Custom/ Delete button Rear control wheel Playback button...
- Page 11 1. After verifying that the housing O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the rear part of the housing is free from any foreign material; the groove can be cleaned with the aid of a microfiber cloth.
- Page 12 4. Setting up the moisture alarm: 1. Install the CR2032 battery provided into the battery compartment on the circuit board inside the front part of the housing. Switch the alarm on. The LED light will turn blue for five seconds indicating the battery is normal.
- Page 13 (Optional) Vacuum valve can be attached to the housing via one accessory port conducting a vacuum seal test. Please refer to the manual of the vacuum valve for more details of the operation. LED status identification: On start up: LED indicator Status Steady "Blue"...
- Page 14 To open the housing: 1. Press the housing lock safety 2. Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown. To lock the housing: 3. Close the housing while the 4. Turn the housing lock clockwise housing lock is in the “Open”...
- Page 15 1. Place the camera inside the 2. Confirm that all the controls of housing as shown. the housing are correctly engaged.
- Page 16 1. Unscrew the M16 plug from the threaded hole with a coin. 2. Tighten the socket extension to the camera housing with a spanner. 3. Open the housing and insert the HDMI cable through the threaded hole from inside of the housing.
- Page 17 4. Connect the HDMI cable to the HDMI bulkhead. 5. Tighten the HDMI bulkhead by turning the threaded ring on the socket extension. 6. Connect the HDMI cable to the camera's HDMI connector before placing the camera inside the housing. Please refer to the monitor manual for connecting monitor housing to HDMI bulkhead.
- Page 18 A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. 3. Replace the main O-ring annually. 4. It is recommended that you ship the housing to our distributor for a...
- Page 19 P.N. 25131 LCD Magnifier attachment rails for NA-RX100III P.N. 25611 M14 Vacuum Valve...
- Page 20 1) P.N. 25032 Custom HDMI bulkhead to use with socket extension 2) P.N. 25028 Socket extension for 25032 HDMI bulkhead with M16 thread 3) P.N. 25046 HDMI (D-D) cable in 200mm length (for connection from HDMI bulkhead to camera)
